1-5 1 Maintenance 2.2 Maintenance tools 2.2.1 Cleaning tools Cleaning tools Parts supplied with machine Nozzle cleaning wire Nozzle tip cleaning tape 53103-L5-00 n Cleaning tools P arts supplied with machine Product Name…
1-4
1
Maintenance
2.1.2 Replaceable parts (for repairs)
The term "Replaceable parts" in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts are described in this manual.
Replaceable parts
Replace if broken
Solenoid valve
Air vent
Plug for bit replacement
Plug for filter replacement
Valve for conveyor unit
53102-L5-00
n
Replaceable parts list
Replace if broken
Product Name Parts List Designation Parts No. Note
Feeder valve VALVE KIT KGA-M37P0-00X For feeder drive (YG12 only)
Feeder joint JOINT ASSY KJV-M3407-A0X Feeder air supply joint (YG12 only)
Bit for ejector BIT KHY-M7154-01X Bit for ejector replacement
Ejector and blow valve VALVE KHY-M7153-00X For ejector and blow operation
Cleaning blow valve VALVE KGS-M37P1-00X For cleaning blow operation
Conveyor valve VALVE (SPARE) KHW-M8582-40X For conveyor unit
c
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
1-5
1
Maintenance
2.2 Maintenance tools
2.2.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Nozzle tip cleaning tape
53103-L5-00
n
Cleaning tools
Parts supplied with machine
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X
c
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
1-6
1
Maintenance

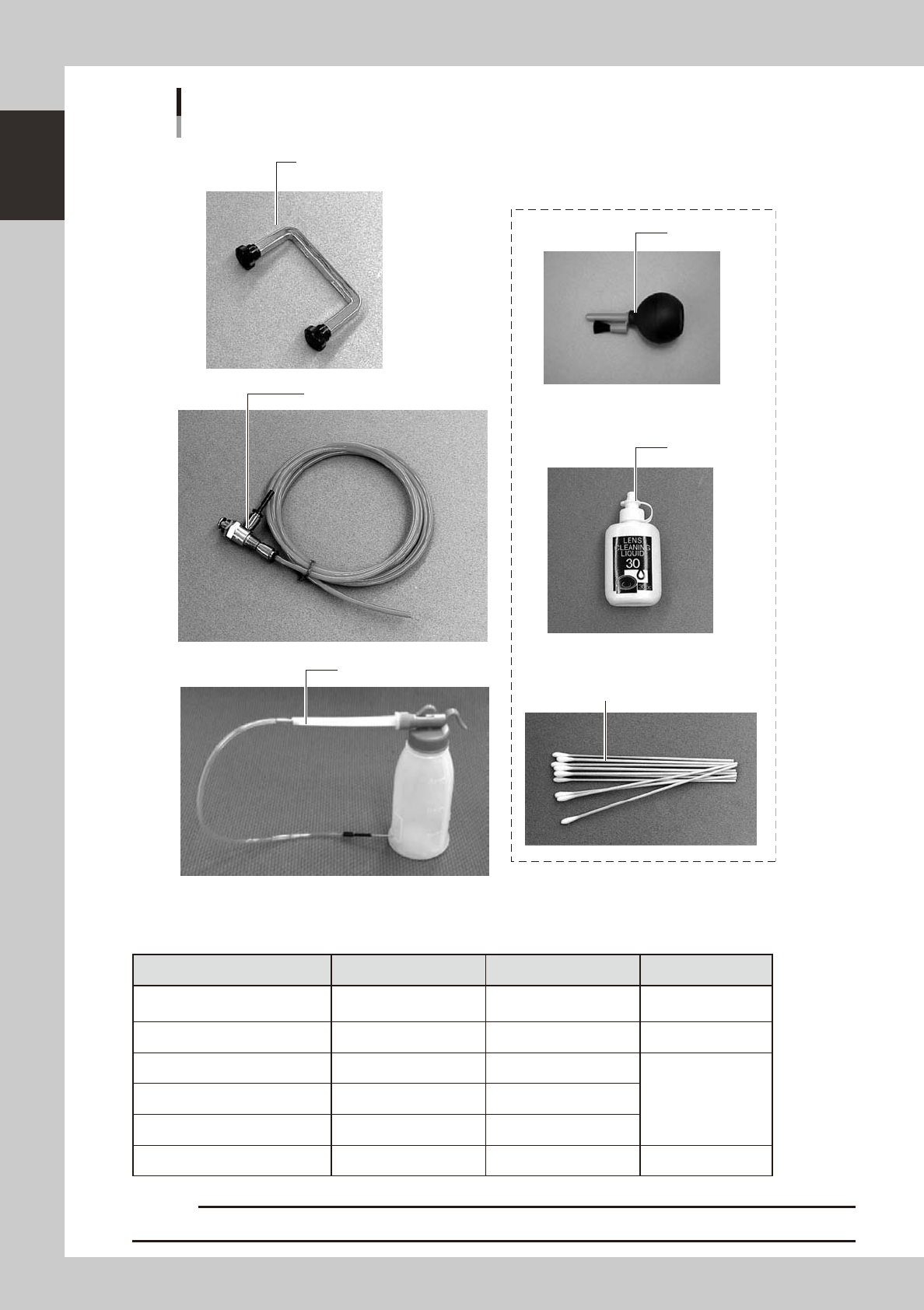

CLEANER, VISION SET
Cleaning tools
Optional parts
Nozzle cleaning wire handle
Air blow gun
Lens cleaner
Cotton swab sticks
Lens blower brush
Spline shaft cleaning kit
53104-L5-00
n
Cleaning tools
Optional parts
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire handle
NEEDLE CLEANER
ASSY
KV8-M8881-A0X Special Tool
Air blow gun AIR GUN ASSY KU4-M8590-00X
Cotton swab sticks SWAB KGA-M3802-00X
CLEANER, VISION
SET
(KHW-M3801-A0X)
Lens blower brush BLOWER KGA-M3803-00X
Lens cleaner CLEANER, LENS KGA-M3801-00X
Spline shaft cleaning kit CLEANING KIT KHN-M8860-00X
c
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
