Daily maintenance items

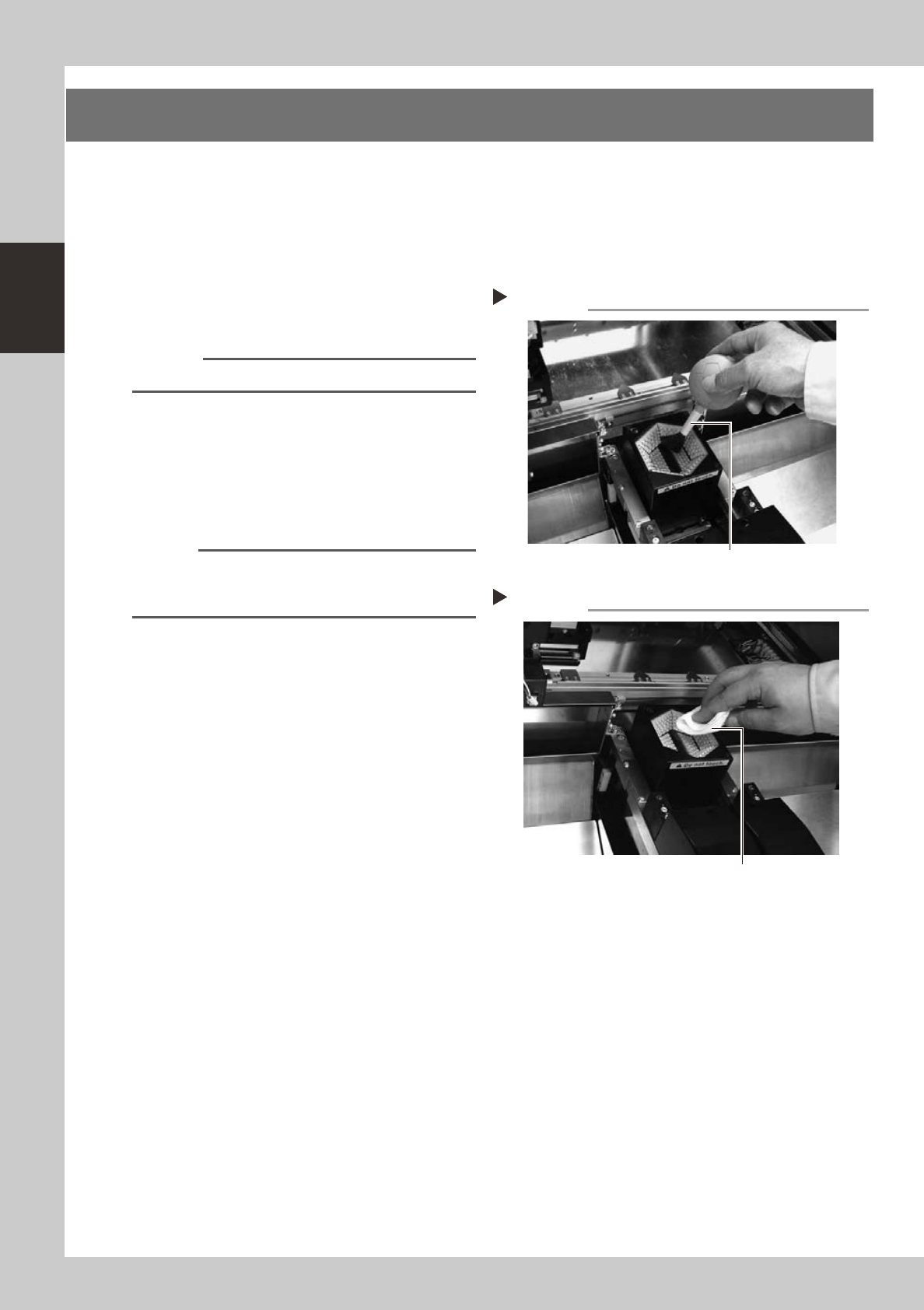

3. Cleaning the camera transparent cover
Dirt or dust particles sticking to the transparent cover of the multi-view camera can cause recognition errors.
Periodic inspection and cleaning are recommended to prevent this problem.
e
To ensure safety, make sure that the machine power switch is off or the emergency stop button is pressed
before starting work.
1
Remove dust on the transparent
cover with the lens blower brush.
53207-L5-00
Reference
A lens blower brush is available as an option.
2
Wipe the transparent cover with a
lint-free cloth.
Apply a few drops of lens cleaner to a
lint-free cleaning cloth or paper towel and
wipe the transparent cover.
53209-L5-00
n
NOTE
Usealint-freecleaningclothorpaperwiper.
A lens cleaner is supplied with the machine. Do not use
other type of cleaner.
Blowing off dust with blower brush
Step 1
Lens blower brush
Wiping the transparent cover
Step 2
Lent-free cleaning cloth or paper wiper
Chapter 3 Periodic maintenance items
Contents
1. Weekly inspection 3-1
1.1 Checking and cleaning the nozzles 3-1
1.1.1 Checking and cleaning the spring-action parts 3-1
1.1.2 Checking the nozzle leaf springs 3-3
1.2 Checking the conveyor sensor condition and operation 3-4
1.3 Checking the board clamp condition and operation 3-5
1.3.1 Checking the board clamp condition 3-5
1.3.2 Checking the board clamp operation 3-5
2. Monthly or bimonthly inspection 3-6
2.1 Cleaning the nozzle air path 3-6
2.2 Inspecting ball screws and linear guides of each axis 3-7
2.3 Cleaning and greasing the X, Y and W axes 3-8
2.3.1 Cleaning and greasing the X, Y and W axis ball screws 3-8
2.3.2 Cleaning and greasing the X, Y and W axes linear guides 3-11
2.4 Inspecting, cleaning and greasing the push-up shaft 3-13
2.5 Inspecting the board conveyor unit 3-15
2.5.1 Inspecting and cleaning the conveyor belt 3-15
3. Three-month inspection 3-16
3.1 Cleaning and replacing the ejector filter 3-16
3.1.1 Checking the ejector vacuum pressure 3-17
3.1.2 Checking the blow valve operation (each head) 3-18
3.1.3 Checking the cleaning blow valve operation (for all heads) 3-18
3.2 Cleaning and lubricating the inside of the spline shaft 3-19
3.2.1 Cleaning the inside of the spline shaft 3-19
3.2.2 Checking the negative pressure 3-22
3.3
Checking the spline shaft movement and lubricating the slide section
3-23
3.4 Checking the SC-axis flex cable 3-24
3.5 Inspecting and cleaning the air/mist filters 3-25
4. Six-month or one-year inspection 3-27
4.1 Cleaning the camera lighting unit (6-month inspection) 3-27
4.2 Checking the R-axis spline belt (1 year) 3-28
4.3 Cleaning and replacing the blow station filter (1 year) 3-29
4.4
Checking the nozzle station sensor condition (1 year) … option
3-30
4.5 Inspecting and cleaning the controller filter (1 year) 3-31
4.6
Cleaning the multi-view camera lens and lighting unit (1 year) …. option
3-32
4.7
Cleaning the scan camera lighting unit (6-month inspection)
3-34
