4-1 1 4 How to replace consumable parts 6.4 Conveyor W-axis linear guide and ball screw W-axis lubrication points W-axis ball screw W-axis ball screw Hexagonal spline W-axis linear guide W-axis linear guide Lubrication s…
4-10
4
How to replace consumable parts

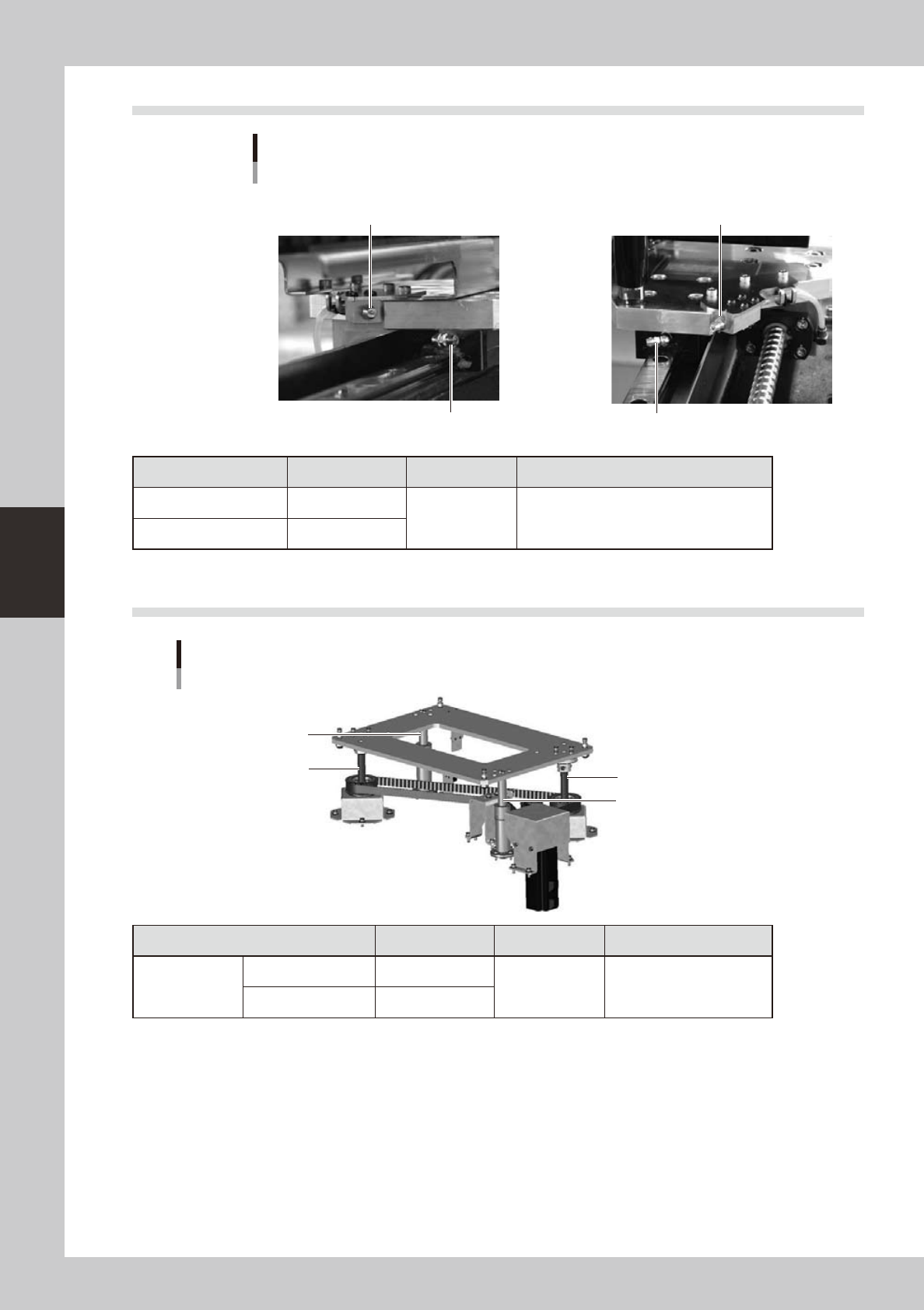

6.2 Y1 and Y2 axis linear guide and ball screw
Y-axis lubrication points
Grease nipple for Y-axis ball screw
Y2 axis (left side) Y1 axis (right side)
Grease nipples (2 places each on front and rear)
for Y-axis linear guide
Grease nipples (2 places each on front and rear)
for Y-axis linear guide
Grease nipple for Y-axis ball screw
Lubrication section Lubrication point Interval Procedure
Linear guide 4
Once a month Grease gun
Ball screw 2
53436-L5-00
6.3 PU-axis linear guide and ball screw
PU-axis lubrication points
Ball screw
Ball screw
Ball guide
Ball guide
Lubrication section Lubrication point Interval Procedure
Single PU
Ball guide 2
Once a month Apply grease by hand.
Ball screw 2
53437-L5-00
4-11
4
How to replace consumable parts
6.4 Conveyor W-axis linear guide and ball screw
W-axis lubrication points
W-axis ball screw
W-axis ball screw
Hexagonal spline
W-axis linear guide
W-axis linear guide
Lubrication section Lubrication point Interval Procedure
Linear guide 2
Once a month Apply grease by hand.Ball screw 2
Hexagonal spline 1
53438-L5-00
6.5 Head spline shaft
Z-axis lubrication points
Z-axis spline shaft
Lubrication section Lubrication point Interval Procedure
Z-axis spline shaft 10 3 months Apply a thin coat of grease by hand.
53439-L5-00
