1-4 1 Maintenance 2.1.2 Replaceable par ts (for repairs) T he term "Replaceable parts" in this manual indicates parts that might cause a machine stoppage as these parts lose their functions but do not require m…
1-3
1
Maintenance

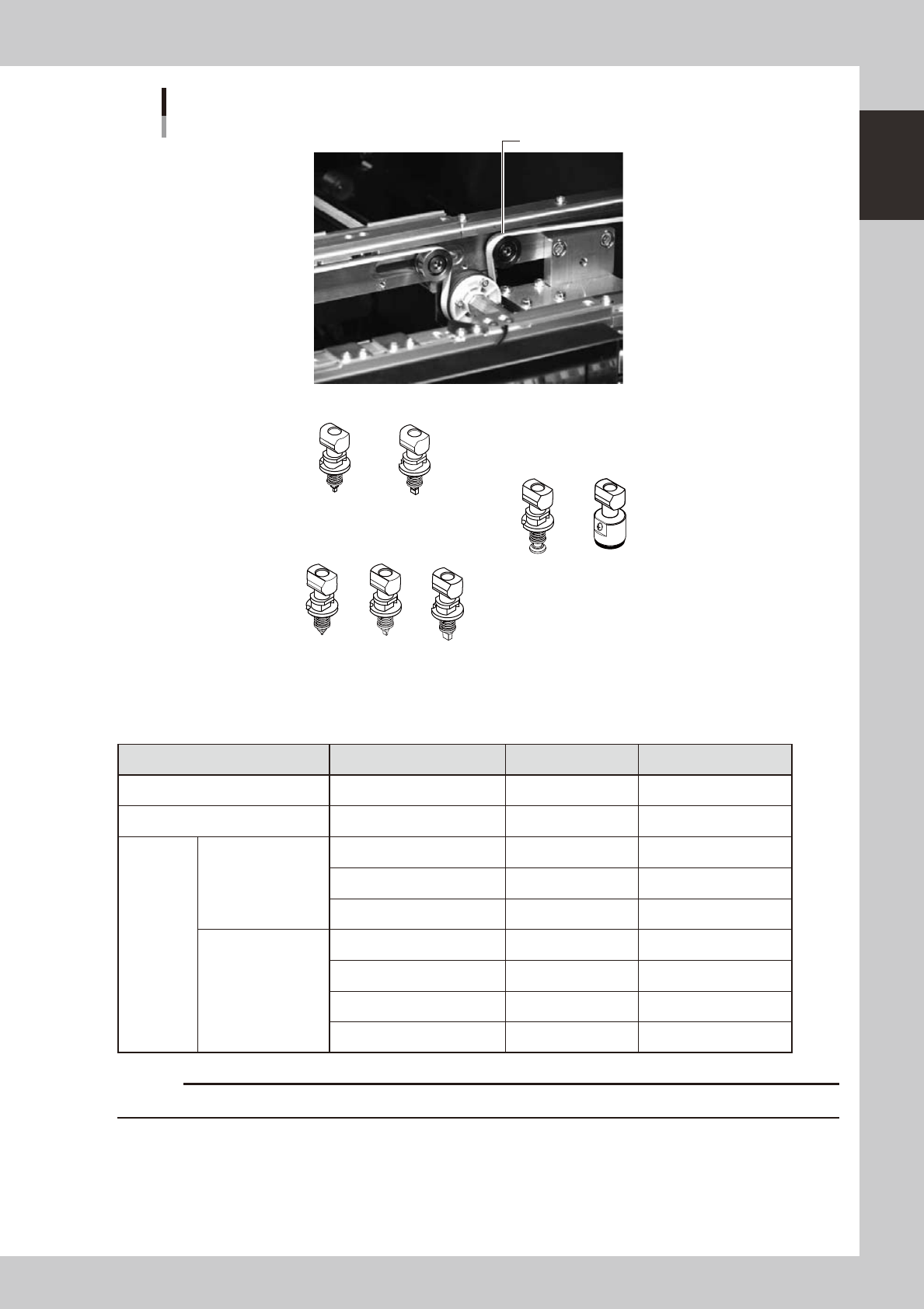

Consumable parts
Optional parts
Conveyor belt
Type301A Type302A
Type303A
Type314A
Type304A
Type315A
Type311A Type312A Type313A
Standard nozzles
Narrow adjacent nozzles
Universal nozzles for standard and
narrow adjacent type
53101-L5-00
n
Consumable parts
Optional parts
Product Name Parts List Designation Parts No. Note
Conveyor belt (standard) BELT 1, CONVEYOR KHY-M9129-000 L=2692mm
Conveyor belt (extended) BELT 1, CONVEYOR KHY-M9129-100 L=3111mm
Nozzles
Type A (standard)
NOZZLE 301A ASSY. KHN-M7710-A1X
NOZZLE 302A ASSY. KHN-M7720-A1X
NOZZLE 303/314A ASSY. KHY-M7740-A0X
Type A (narrow
adjacent)
NOZZLE 311A ASSY. KHY-M7710-A0X
NOZZLE 312A ASSY. KHY-M7720-A0X
NOZZLE 313A ASSY. KHY-M7730-A0X
NOZZLE 304/315A ASSY. KHY-M7750-A0X
c
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
1-4
1
Maintenance

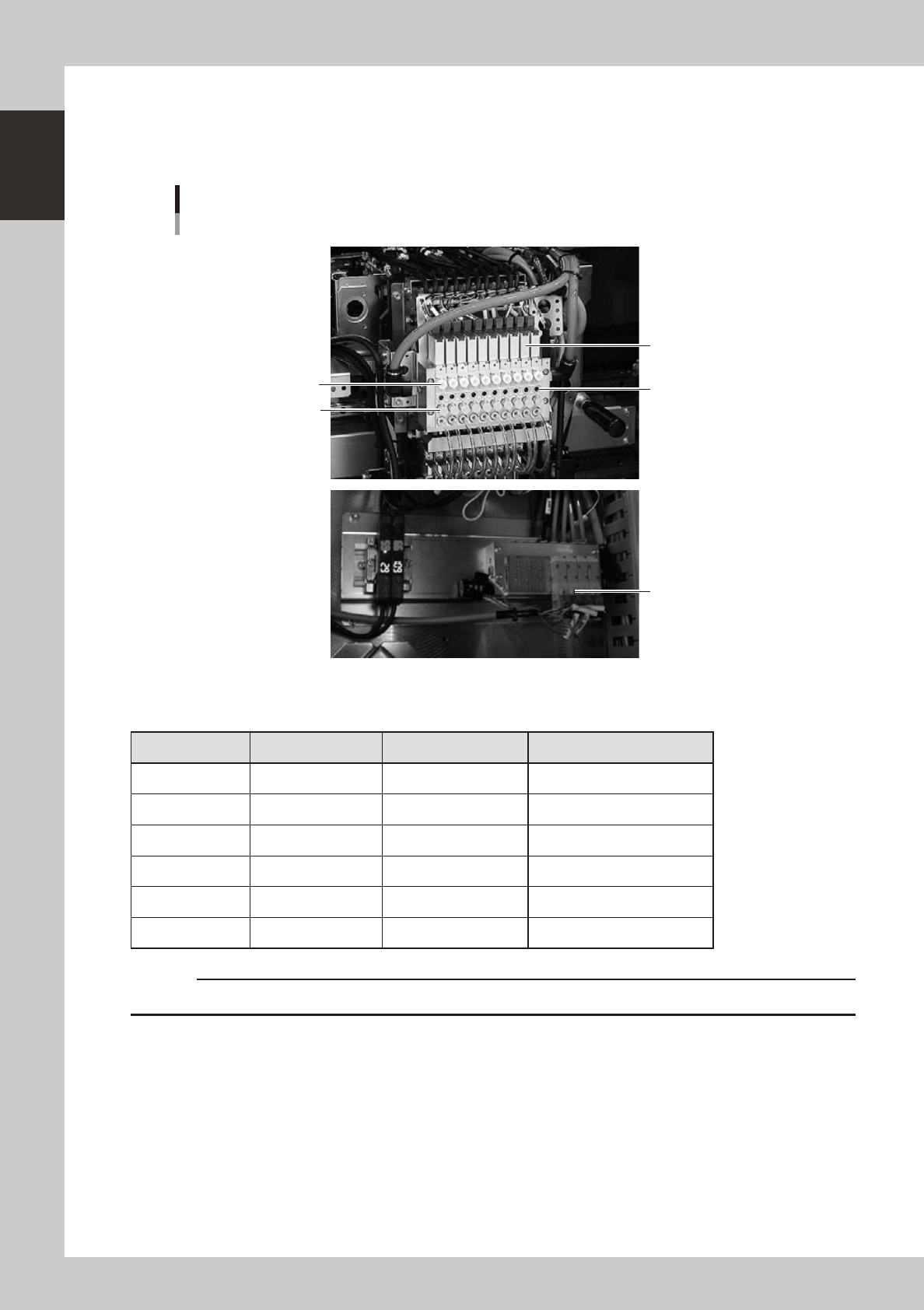

2.1.2 Replaceable parts (for repairs)
The term "Replaceable parts" in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts are described in this manual.
Replaceable parts
Replace if broken
Solenoid valve
Air vent
Plug for bit replacement
Plug for filter replacement
Valve for conveyor unit
53102-L5-00
n
Replaceable parts list
Replace if broken
Product Name Parts List Designation Parts No. Note
Feeder valve VALVE KIT KGA-M37P0-00X For feeder drive (YG12 only)
Feeder joint JOINT ASSY KJV-M3407-A0X Feeder air supply joint (YG12 only)
Bit for ejector BIT KHY-M7154-01X Bit for ejector replacement
Ejector and blow valve VALVE KHY-M7153-00X For ejector and blow operation
Cleaning blow valve VALVE KGS-M37P1-00X For cleaning blow operation
Conveyor valve VALVE (SPARE) KHW-M8582-40X For conveyor unit
c
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
1-5
1
Maintenance

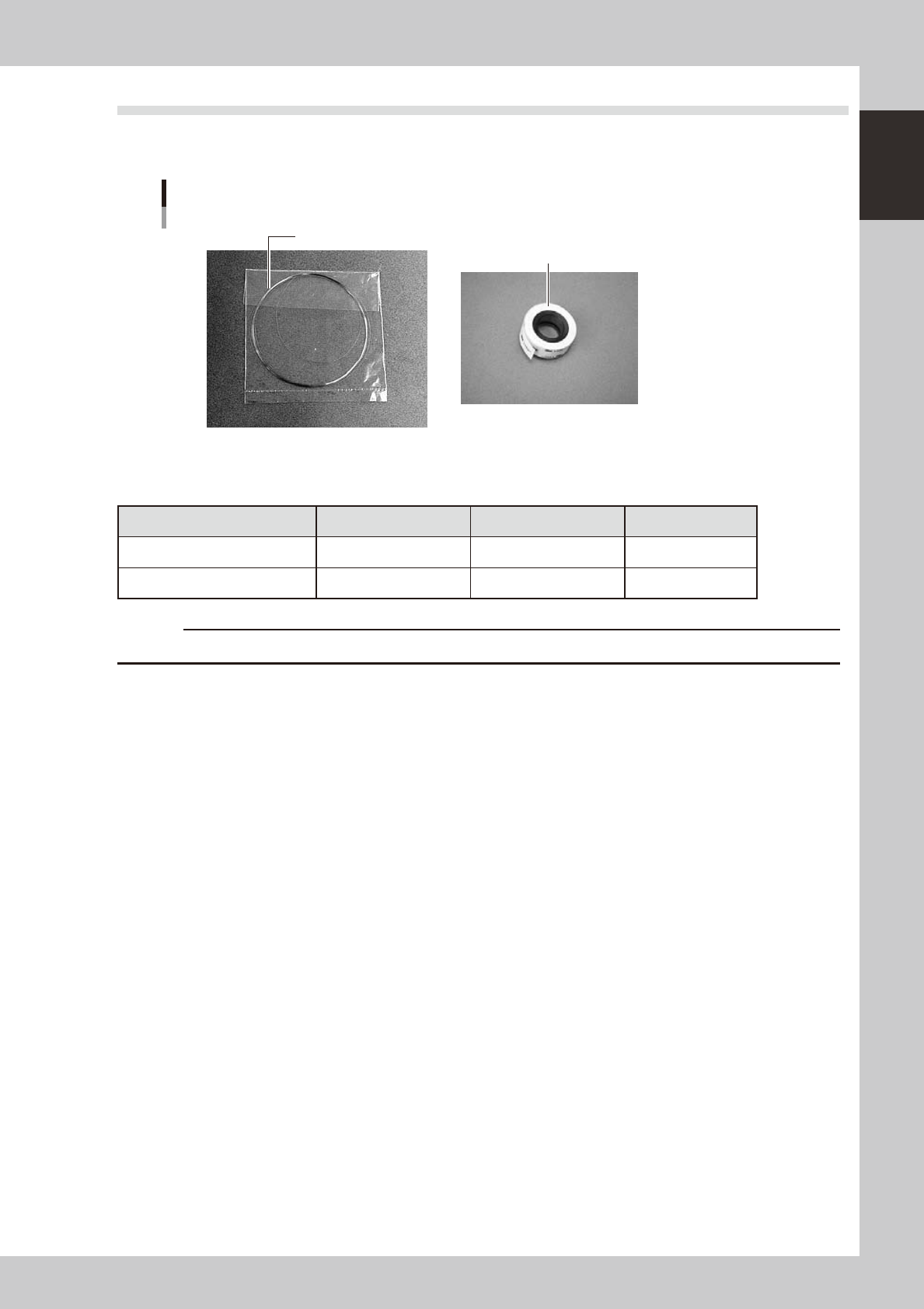

2.2 Maintenance tools
2.2.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Nozzle tip cleaning tape
53103-L5-00
n
Cleaning tools
Parts supplied with machine
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X
c
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
