User Manual S-23 HM 11 S tation extensions / options Software Vers ion SR.405.xx 05/99 Iss ue 11.1 Nozzle c hanger 373 (6) Slot for the parallel p in (7) for centeri ng the mag azine s (7) Parallel pin fo r centerin g th…
11 Station extensions / options User Manual S-23 HM
11.1 Nozzle changer Software Version SR.405.xx 05/99 Issue
372

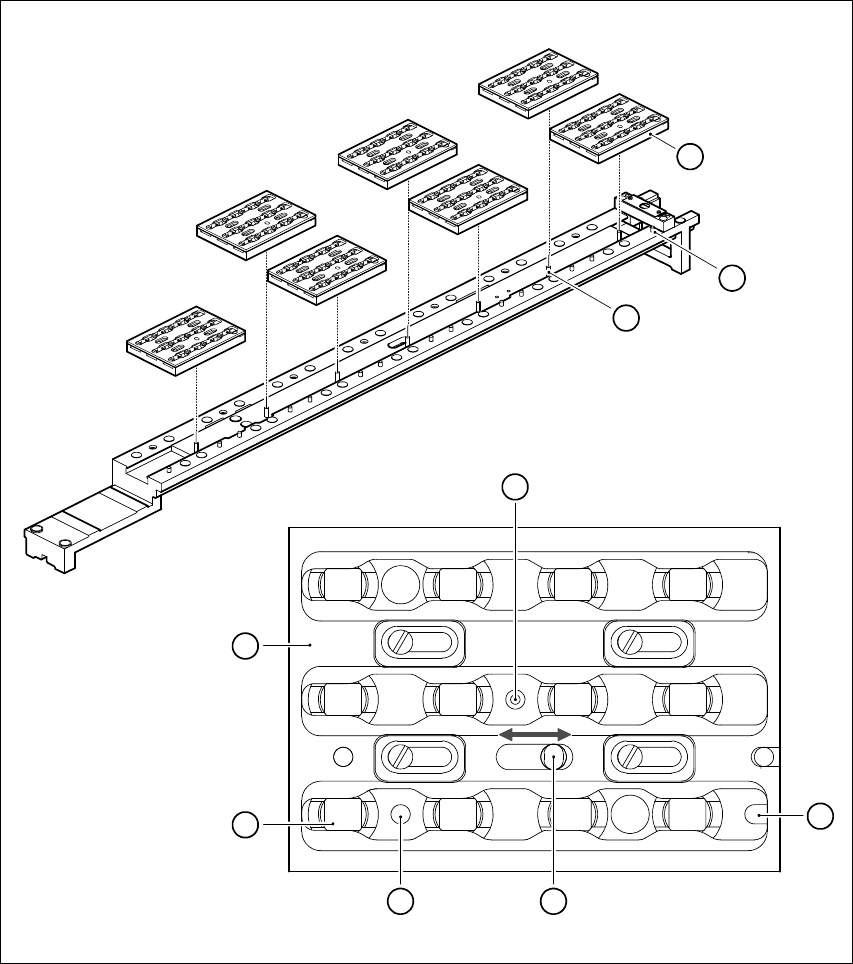

Fig. 11.1 - 2 Magazine and nozzle garages
Key to Fig. 11.1 - 2
(1) Positioning fiducial
(2) Locking plate
(3) Nozzle garage
(4) Hole for the parallel pin (7) for centering the magazines
(5) Hole for the parallel pin of the slide mechanism
12 3
4
5
6
7
8
91011
12
6
5
4
3
2
1
6
7
4
5
2
3
1
9
7
8
User Manual S-23 HM 11 Station extensions / options
Software Version SR.405.xx 05/99 Issue 11.1 Nozzle changer
373
(6) Slot for the parallel pin (7) for centering the magazines
(7) Parallel pin for centering the magazines
(8) Parallel pins for opening and closing the locking plate
(9) Magazines
11.1.4 Notes on operation
È When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
PLEASE NOTE 11
Only ONE
nozzle type must be used in each magazine.
Fill the magazines off the machine and always replace complete magazines. 11
È Open the locking plate and place the nozzles in the nozzle garages.
È Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 11
Before you fill magazine, make sure that all the nozzles on the revolver head have been re-
turned to their magazines. 11
È See the UNIX line computer operating instructions for programming the nozzle changers on
the line computer.
PLEASE NOTE 11
È Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
È Do not allow components to drop onto free feeder module locations because they will stick to
the magnetic bar. Production may have to be interrupted if the feeder modules are not placed
on the component table correctly. You should therefore regularly clean the magazines and free
locations.
11 Station extensions / options User Manual S-23 HM
11.1 Nozzle changer Software Version SR.405.xx 05/99 Issue
374
11.1.5 Position detection
There is a position detection fiducial on every magazine. 11
11
Fig. 11.1 - 3 Nozzle changer - position detection
Key to Fig. 11.1 - 3
(1) Positioning fiducial
(2) Position of the nozzles in the magazine with respect to the positioning fiducial
11
È See section 6 Vision functions for the use of fiducials.
12 3
4
5
6
7
8
91011
12
Y
X
1
2
