User Manual SIPLACE S-23 HM 12 Station Extensions - Software Software Vers ion SR.405.xx 05/99 Iss ue 12.2 GEM Inte rface 403 T oolbar: 12 Y ou can u se the bu ttons in the to olbar to swit ch the us er inter face betwee…
12 Station Extensions - Software User Manual SIPLACE S-23 HM
12.2 GEM Interface Software Version SR.405.xx 05/99 Issue
402
Display fields: 12
Spooling 12
In this display section, the current spooling status is displayed to the right of the "State:" item. 12
– Active: The connection to the host computer has been interrupted.
Messages are being collected.
– Inactive: The connection to the host computer is OK.
Messages are being sent to the host computer.
The "Spool Load:" item indicates whether the spooling file storage area is full or whether there is
still capacity in the spooling file. 12
SECS connection 12
This display field contains the buttons described below. The current status of the connection is dis-
played above the buttons. 12
– Connect
The connection between the station computer and the host computer will be set up.
– Disconnect
The connection between the station computer and the host computer will be terminated.
Control 12
This display field contains the buttons described below. The current status of the connection is dis-
played above the buttons. 12
– Local
Placement programs can be uploaded from the station computer to the host computer or down-
loaded from the host computer to the station computer.
– Remote
Placement programs can be uploaded from the station computer to the host computer.
No placement programs can be downloaded from the host computer to the station computer.
– Off-line
It is not possible to send or receive messages. However, the connection is retained.
NOTE
If the host computer drops the control connection, the connection goes into the status Off-line.
Only the host computer can re-establish the connection. At the station, this status can only be quit
by clicking the Off-line button. Only then are the functions Remote and Local available again.12
È Click the button corresponding to the required function.
User Manual SIPLACE S-23 HM 12 Station Extensions - Software
Software Version SR.405.xx 05/99 Issue 12.2 GEM Interface
403
Toolbar: 12
You can use the buttons in the toolbar to switch the user interface between the following views:12
12
Main view 12
(see Chapter 3) 12
12
"State" view 12
(see Figure 12.2 - 4) 12
12
"Placement program" view 12
You can use the functions available in this view to load a placement program which is present on
the host computer or station computer (see section 12.2.2.6). 12
12
"Messages" 12
You can use the functions available in this view to read messages sent by the host computer and
send messages to the host computer (see section 12.2.2.7). 12
12
È Click the required button in order to switch to the required view.
12 Station Extensions - Software User Manual SIPLACE S-23 HM
12.2 GEM Interface Software Version SR.405.xx 05/99 Issue
404
12.2.2.6 Loading placement programs
12
È In the "State" view, click the button.
The user interface switches to the following view.
12

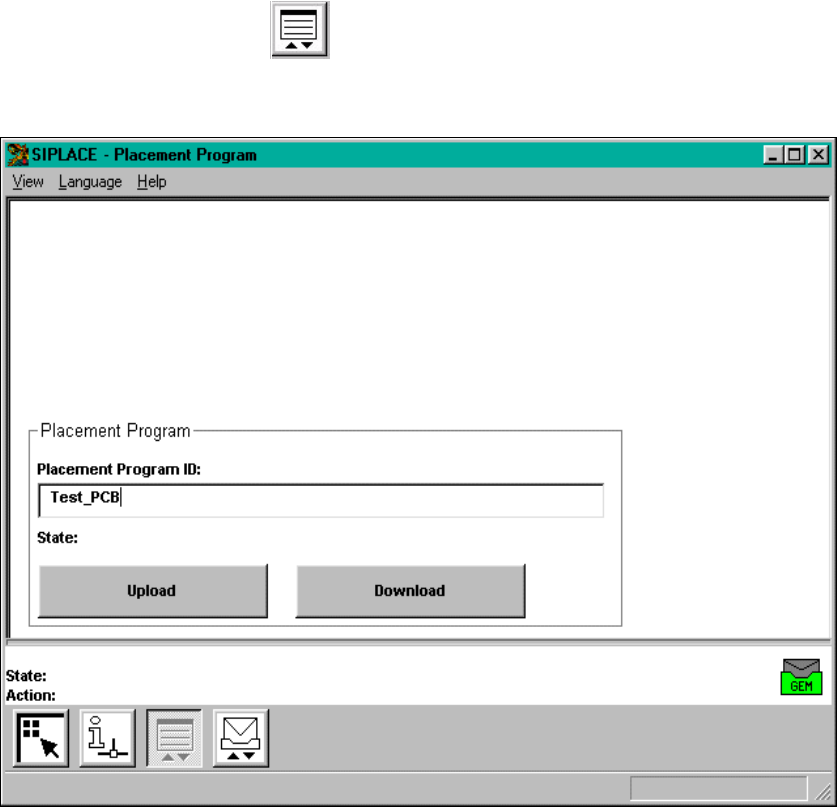

Fig. 12.2 - 5 "Placement program" view"
12
You can use the buttons in the display area to perform the following actions: 12
– Upload
The placement program whose name is entered in the text box is uploaded from the station
computer to the host computer.
– Download
The placement program whose name is entered in the text box is downloaded from the host
computer to the station computer.
12
