- 35 -
6-3-5 Feeder calibration jig with LCD monitor
This Jig is for calibrating a feeder while monitoring the component pick-up position with a
CCD camera. If you check and calibrate the pick position on a regular basis, you can
maintain the stable pick-up capability.
On support of production management system. *Only production management system for a
mechanical feeder (JM01) is available.
As an option, if you attach the RFID reader (antenna) onto the jig main unit, you can
manage the maintenance state of each feeder with the production management system,
which records the maintenance history, the frequency of usage and others for each
feeder; For example, the system indicates a feeder of which pick-up ratio became lower,
and displays a list of feeders that need to be calibrated according to the maintenance
interval settings.
* To use “Intelli feeder calibration Jig with LCD monitor, “production management
system” is required.
For details, refer to "Equipment Specifications of Production Management System"
Note 1: A jig tape and tools are required separately when adjust feeder.
Note 2: RFID compliance is necessary when you use production control system.
For Mechanical Feeder（JM01） For Electric Feeder (EFATG)
Feeders
*See Note1
ATF
8mm to 24mm *Note2
ETF
8mm
～
56mm
CT F,CTFR
8mm *Note2
－ －
FTF
FTFR
8mm to 72mm *Note2
32mm to 56mm *Note2
BF
BF10AS,BF11AS,
BF12BS,BF12CS,
BF25CS,BF28CS,BF28RS
Specifications
Power supply
Select 100 V - 120 V or 200 V - 240 V
100 - 240V
Outer dimension
L=290mm , H=480mm, W=157mm
L=400mm , H=710mm, W=240mm
Mass
- Adjustment jig main unit: 12 kg or less
(including the CCD camera and lens
section)
- Master feeder: 2 kg
- Monitor: 4kg
- Adjustment jig main unit: 20 kg or
less
(including the CCD camera and
lens section)
- Master feeder: 3.5 kg
- Monitor: 4 kg
- Power supply: 2.5kg
Environment
During operation
Temperature
10°C to 35°C
Accuracy
guaranty
temperature
20°C to 25°C
Humidity
30% to 80%RH (No condensation)
Altitude
1,000m or less
Transportation or storage
Temperature
-15°C to 70°C
Humidity
20% to 95%RH (No condensation)
Option for production
management system
Options for the RFID system
- Controller (MPC) - Antenna
－
- 36 -
6-3-6 Feeder setup stand
This is platform for attaching a tape reel onto a tape feeder. Since it allows you to attach a
tape reel on a tape feeder while keeping the tape feeder in position, the tape attachment
capability is improved and it also functions to prevent a tape feeder from falling.
Two types of packages of feeder setup stand designed for a mechanical feeder are available
in response to applications.
Type Application
Feeder setup stand
(With a stand)
Equipped with pedestal stand: can be installed as desired.
Feeder setup stand
(without a stand)
A user has to fix the platform on a table or similar substance
with screws.
(1) Specifications
For a mechanical tape feeder For an electric tape feeder
Power supply
－
Input side: 90 to 250 V AC
Output side: ± 24 % (± 10 %) DC
Frequency
－
Input side: 50/60 Hz
Current
－
Input side: 1.5 A (maximum)
Output side: 4.2 A (maximum)
Outer dimensions
Platform equipped with a stand:
* When including a feeder support section
L = 666 mm, W = 400 mm, H = 977 ± 50 mm
* Base side only
L = 550 mm, W = 400 mm, H = 977 ± 50 mm
* Platform without a stand:
L = 187 mm, W = 127 mm, H = 187 mm
L=550mm,W=470mm,H=950±50mm
Mass
20. kg (with a stand)
1.5 kg (without a stand)
25 kg (with a stand)
Number of feeders
to which power can
be supplied
－
1
* The outer dimensions and mass described above indicate values to be applied when any feeder is
not mounted on the platform.
- 37 -
6-3-7 Electric Trolley Power Station
Power supply for an electric feeder exchange trolley
This is an optional unit that supplies power to a feeder exchange trolley for an electric feeder
in order to set a tape onto an electric tape feeder (ETF type) without removing the feeder
from the electric feeder exchange trolley. This shall be used for an electric feeder
exchange trolley only.
(1) Specifications
Model
PW01
Power supply
100 – 120 V/200 – 240 V AC
Frequency
50/60Hz
Rated power
600VA
Output voltage
24 V ± 10 % DC
Output current
9.0A(Max)
External dimensions
(L/W/H)
200mm×260mm×545mm
Mass
Approximately 9.0 kg
6-4. Stick feeder (mechanical bank)
A stick feeder is driven by the belt without requiring any power supply or air supply.
It feeds an ordinary SOP, SOJ and PLCC that are packed in a stick.
For components other than those in the following table of the stick package, consult with JUKI
or the agent.

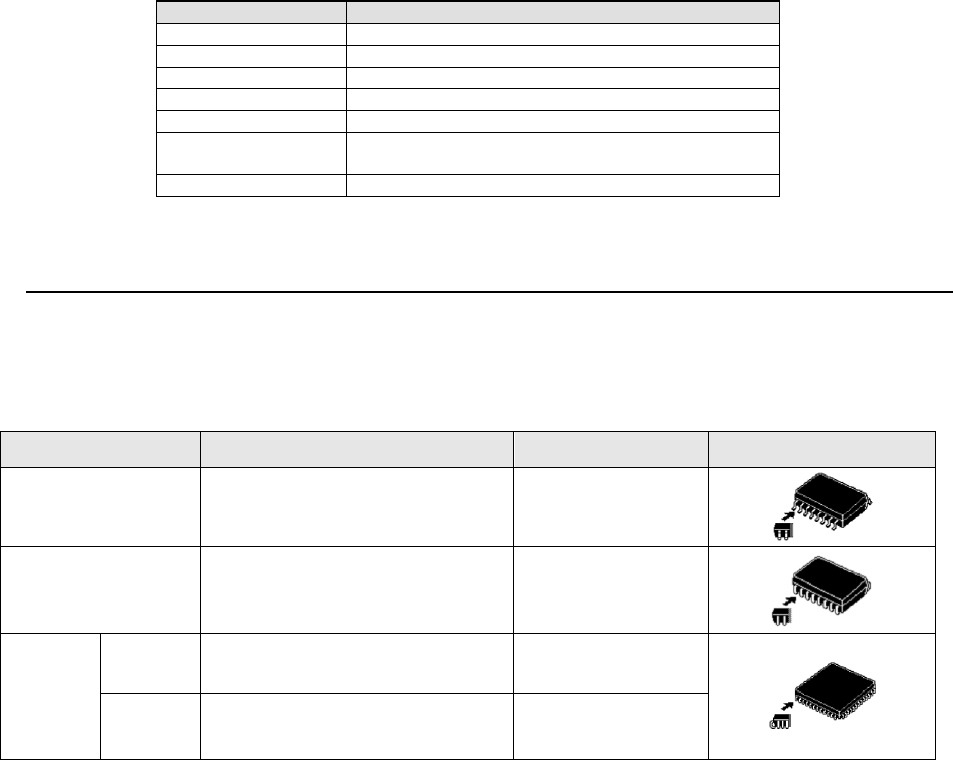

Applicable element Type N Type W Element shape
SOP
（over 8 pin）
225 mil, 300 mil, 375 mil, 450 mil 525 mil, 600 mil
SOJ 300 mil, 350 mil, 400 mil, 450 mil -
QFJ
(PLCC)
Square 350 mil, 450 mil
650 mil, 750 mil,
950 mil, 1,150 mil
Rectangle
285×425 mil, 290×490 mil,
350×550 mil, 450×550 mil
-
