2.2 Setting up the communication port
1. Click [Control Panel] – [System] to open the System Properties window and select the
[Hardware] tab.
2. Click [Device Manager] to open the Device Manager window. Click the [+] sign next to
[Ports (COM & LPT] and confirm that COM1 is available. If COM1 is not available
check the hardware.
Select the
[Hardware] tab
Confirm that
COM1 is available
NXT Repair Training Textbook
Conveyor Unit

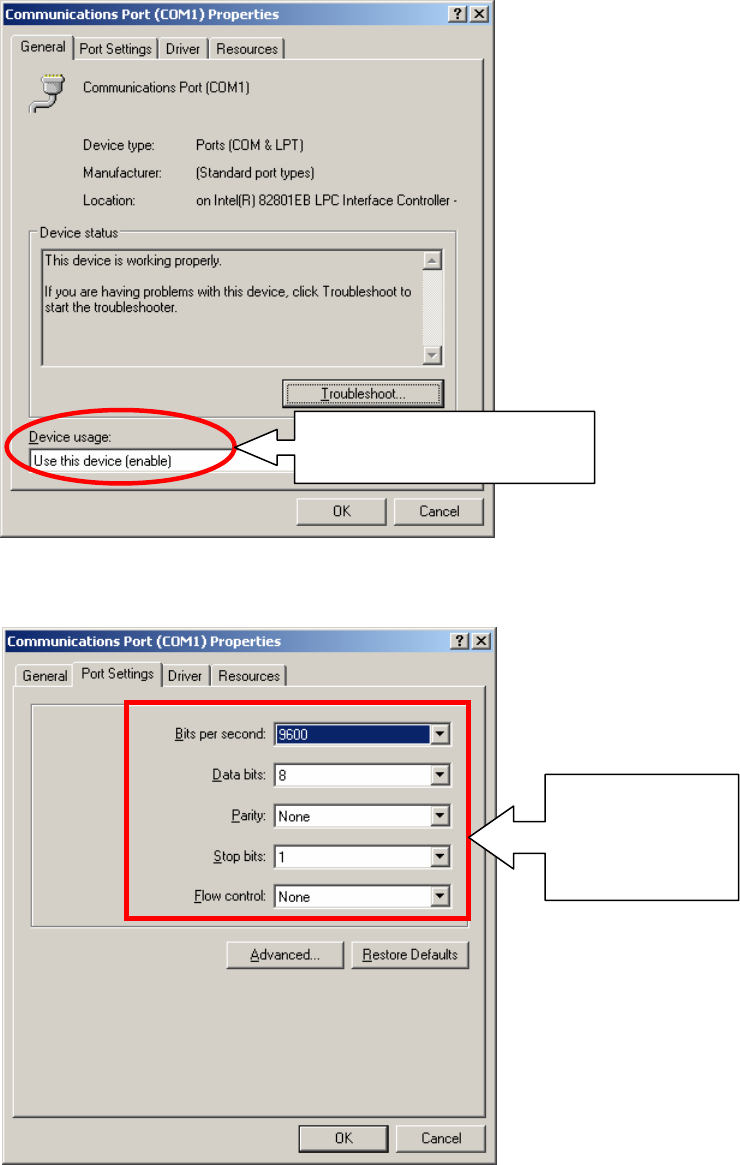

3. Right click on [Communications Port (COM1)] and select [Properties]. Check that [Use
this device (enable)] is selected.
4. Click the [Port Settings] tab and check that the settings match those shown in the
following screen shot.
Check that [Use this device
(enable)] is selected
Check that the
settings are the
same as those
shown here
NXT Repair Training Textbook
Conveyor Unit

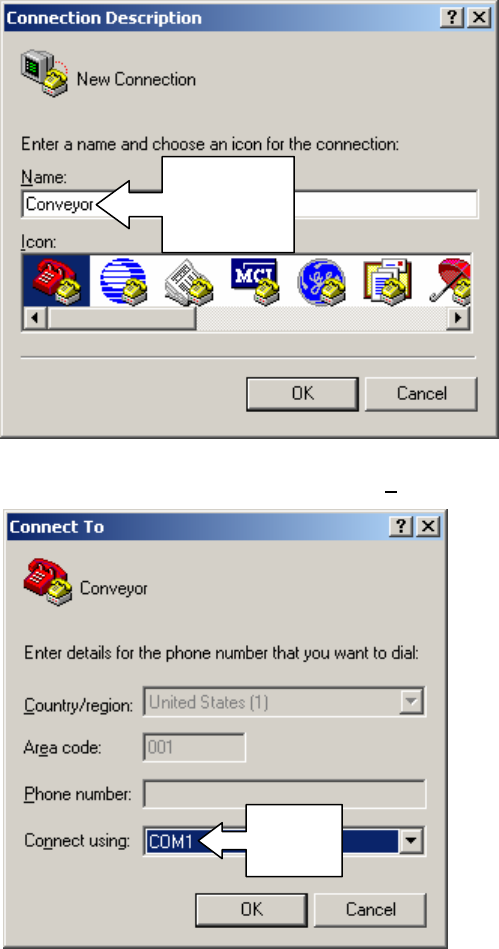

2.3 Setting up Hyper Terminal
1. Click [Start] – [All programs] – [Accessories] – [Communications] – [HyperTerminal].
2. In the Connection Description dialog input “Conveyor” as shown in the following screen
shot.
3. Click [OK] and select [COM1] in the [Con
nect using] list box.
Input
Conveyor
here
Select
COM1
NXT Repair Training Textbook
Conveyor Unit
