14. Check the data that displays in the [Response data] field. In the following example the
bank version is 84.0.
2.6 Checking the conveyor I/Os

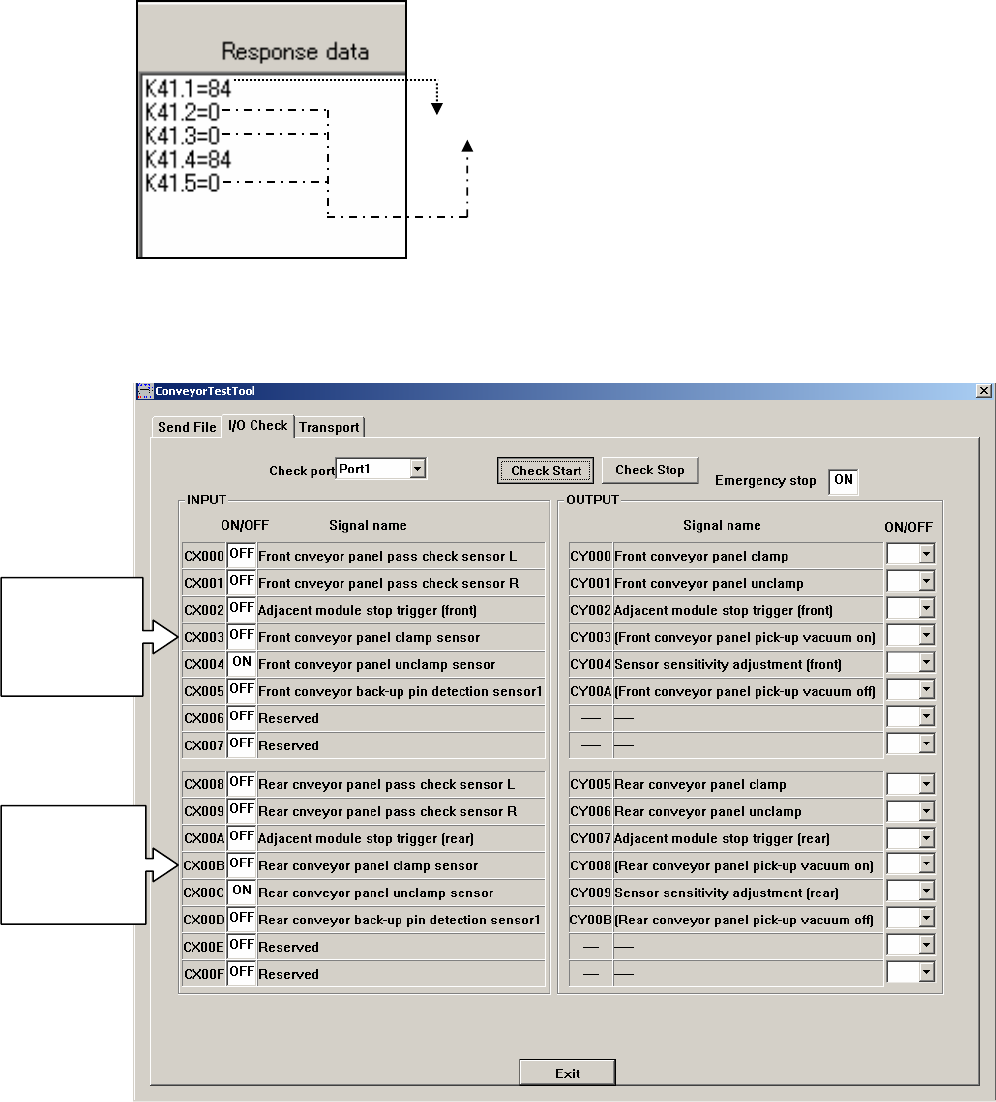

1. Select the [I/O Check] tab in the ConveyorTestTool and click [Check Start].
84.0
Old type (not
currently used)
CX004 monitors
both clamp and
unclamp
Old type (not
currently used)
CX00C monitors
both clamp and
unclamp
NXT Repair Training Textbook
Conveyor Unit
FK-9F98-43-0E
Edition 1.0 27 / 46 FUJI Machine Mfg. Co., Ltd.

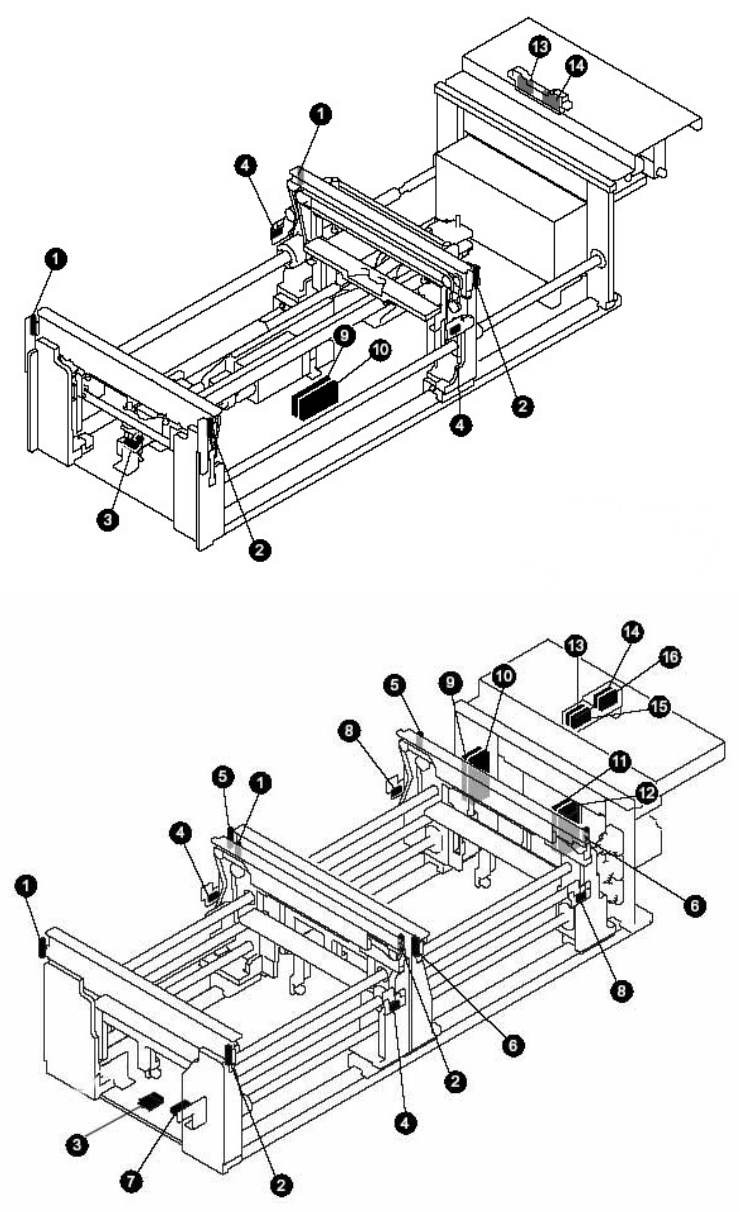

2. Check the operation of all the sensors listed on the input side. Refer to the following
diagrams to find the location of sensors on the conveyor.
M3 Single Conveyor
M3 Double Conveyor
NXT Repair Training Textbook
Conveyor Unit
FK-9F98-43-0E
Edition 1.0 28 / 46 FUJI Machine Mfg. Co., Ltd.
M6 Single Conveyor
M6 Double Conveyor
NXT Repair Training Textbook
Conveyor Unit
FK-9F98-43-0E
Edition 1.0 29 / 46 FUJI Machine Mfg. Co., Ltd.
