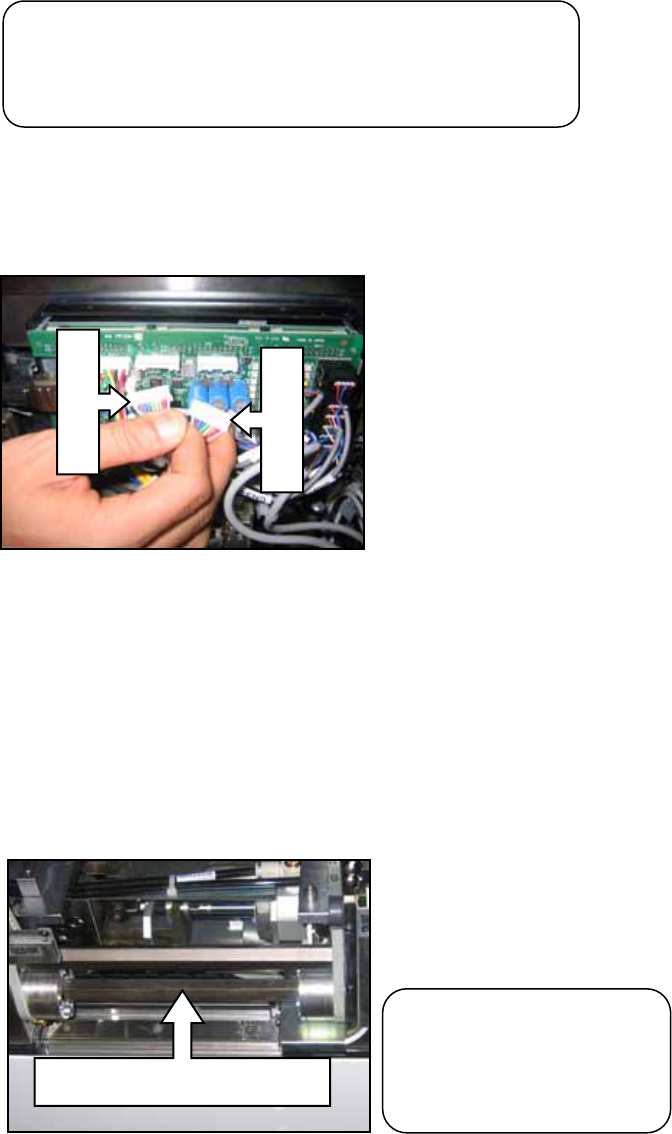

2.4 Calibrating the conveyor motors
1. Turn the CID power OFF.
2. Disconnect the CN4-1 and CN4-2 connectors from the conveyor controller board as
shown below.
3. Turn the CID power ON.
4. Turn the CID power OFF.
5. Reconnect the CN4-1 and CN4-2 cables.
6. Turn the CID power ON and the calibration proceeds automatically. The shaft shown
in the photo below will rotate slightly.
7. Wait approximately 10 seconds and then turn the CID power OFF.
CN4-1
CN4-2
This shaft rotates slightly
Caution! The motion of
the motor may be
unstable if this calibration
is not carried out correctly.
Note: this calibration procedure is necessary if the
conveyor motor encoder cables have been
disconnected from the conveyor controller board.
NXT Repair Training Textbook
Conveyor Unit
2.5 Transmitting K-parameter and bank program files (test version)

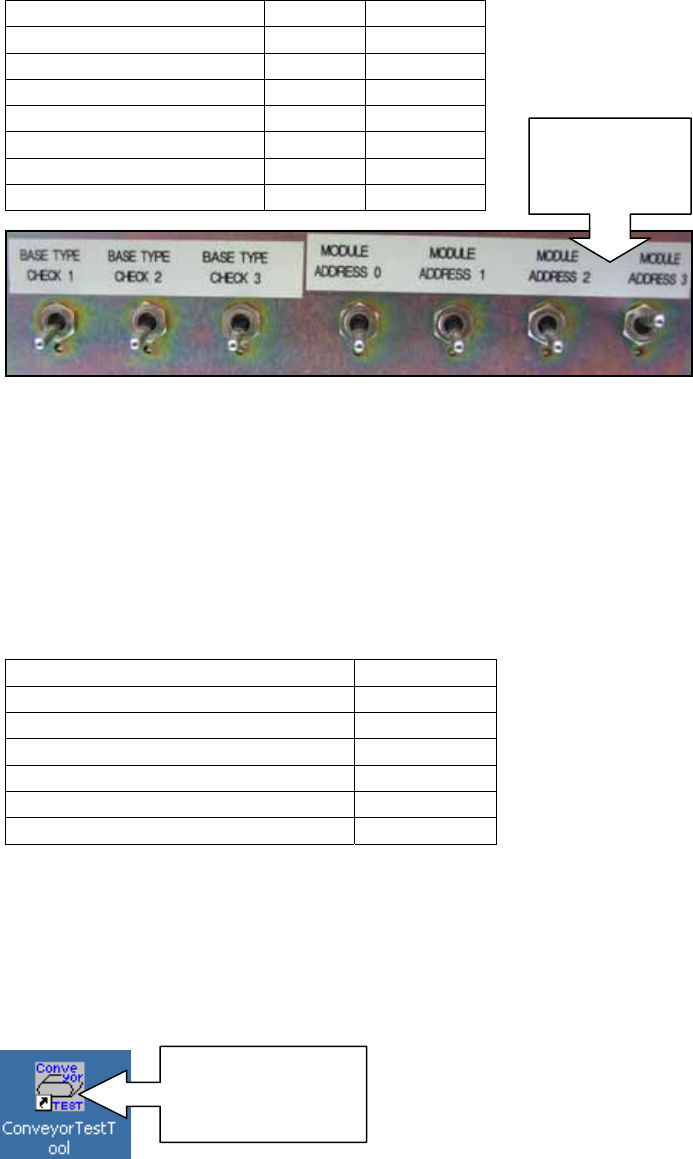

1. Set the toggle switches on the CID as shown.
2. Select [Programs] – [Accessories] – [Communications] – [HyperTerminal] – [Conveyor]
to open the HyperTerminal window.
3. From the [Transfer] menu select [Send Text File…] and select the text file from the
following path: Conveyor/Data/Double Conveyor or Single Conveyor depending on the
conveyor type.
4. Refer to the following table and choose the appropriate text file to transmit:
5. Click [Open] to transmit the text file to the conveyor.
6. Wait until all the data has been transmitted then select [File] – [Exit] – [Yes] to
disconnect Hyper Terminal.
7. Double click the ConveyorTestTool icon on the desktop to open the ConveyorTestTool
software.
8. Select the [Transport] tab and click [Load].
Toggle Switch Status Position
BASE TYPE CHECK 1 OFF Down
BASE TYPE CHECK 2 OFF Down
BASE TYPE CHECK 3 OFF Down
MODULE ADDRESS 0 OFF Down
MODULE ADDRESS 1 OFF Down
MODULE ADDRESS 2 OFF Down
MODULE ADDRESS 3 ON Up
Conveyor Type Text file
M3 Single Conveyor M3S-84.01
M6 Single Conveyor M63-84.01
M3 Double Conveyor (old type) M3-83.06
M3 Double Conveyor (new type) M3-84.00
M6 Double Conveyor (old type) M6-83.06
M6 Double Conveyor (new type) M6-84.00
Set the
dipswitches
as shown
Double Click to
open the
ConveyorTestTool
NXT Repair Training Textbook
Conveyor Unit

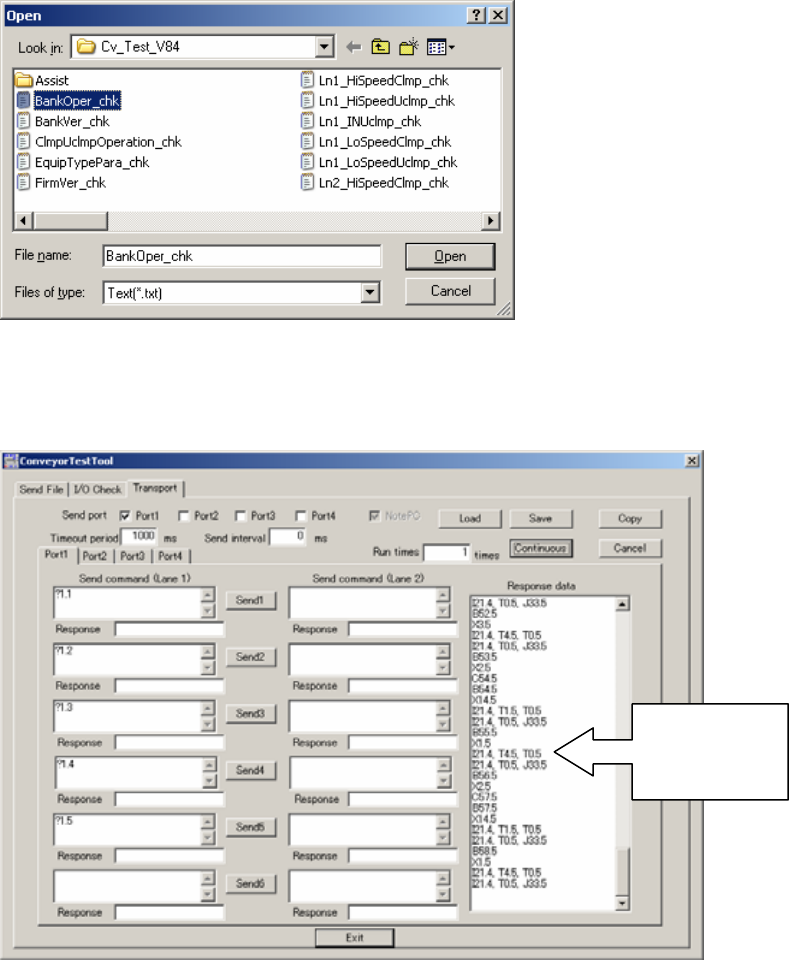

9. Select the file to load from the following path: Conveyor/CHK_Command_Cvtool/
CV_Test_V83 (for old type conveyors) or CV_Test_V84 (for new type conveyors)
/BankOper_chk.
10. Click [Open] to load the file into the ConveyorTestTool.
11. Click [Continuous] to send the file to the conveyor and confirm that data displays in the
[Response data] field.
12. Click [Load] and select BankVer_chk.txt – [Open] to load the file into the
ConveyorTestTool.
13. Click [Continuous] to send the file to the conveyor.
Check that
data displays
in this field
NXT Repair Training Textbook
Conveyor Unit
