3 Overview
3.1 General 3.1.1 Specifications
24 Student Guide SIPLACE D-Series (FSE)
Range of components
0.6 x 0.3 mm
2
(0201) to 18.7 x 18.7 mm
2
Max. component height 6 mm
Placement accuracy / angle accu-
racy
Camera type 28: ± 60 µm, ± 0.5° (3 s), ± 80 µm, ± 0.7° (4 s)
Camera type 29: ± 60 µm, ± 0.5° (3 s), ± 80 µm, ± 0.7° (4 s)
Camera type 30: ± 41 µm, ± 0.4° (3 s), ± 55 µm, ± 0.5° (4 s)
Component feeding 4 component trolleys with tape reel holder and integrated waste
containers (12 locations à 30 mm width per component trolley)
Feeder module types Tape, bulkcase, stick magazines, application-specific OEM feeder
modules, surftape feeder modules (8, 12, 16 mm), waffle pack
trays
Feeding capacity 48 tape feeder modules 3 x 8 mm S (144 tracks)
48 tape feeder modules 2 x 8 mm S (96 tracks)
48 tape feeder modules x 12/16 mm S (48 tracks)
32 tape feeder modules x 24/32 mm S (32 tracks)
PCB format
(LxW)
Single conveyor
50 x 50 mm
2
to 368 x 460 mm
2
50 x 110 mm
2
to 610 x 460 mm
2
(option "Long board")
Width up to 508 mm on request
Dual conveyor
50 x 50 mm
2
to 368 x 216 mm
2
50 x 110 mm
2
to 610 x 216 mm
2
(option "Long board")
Width up to 242 mm on request
Dual conveyor in Single conveyor mode
50 x 50 mm
2
to 368 x 380 mm
2
50 x 110 mm
2
to 610 x 380 mm
2
(option "Long board")
Width up to 430 mm on request
PCB thickness 0.3 to 4.5 mm (thicker PCBs available on request)
3 Overview
3.1.2 SIPLACE D4/D4i Configuration 3.2 Machine Overview Comparison D1/D1i to D4/D4i
Student Guide SIPLACE D-Series (FSE) 25
3.1.2
3.1.2 SIPLACE D4/D4i Configuration
SIPLACE D4/D4i Configuration

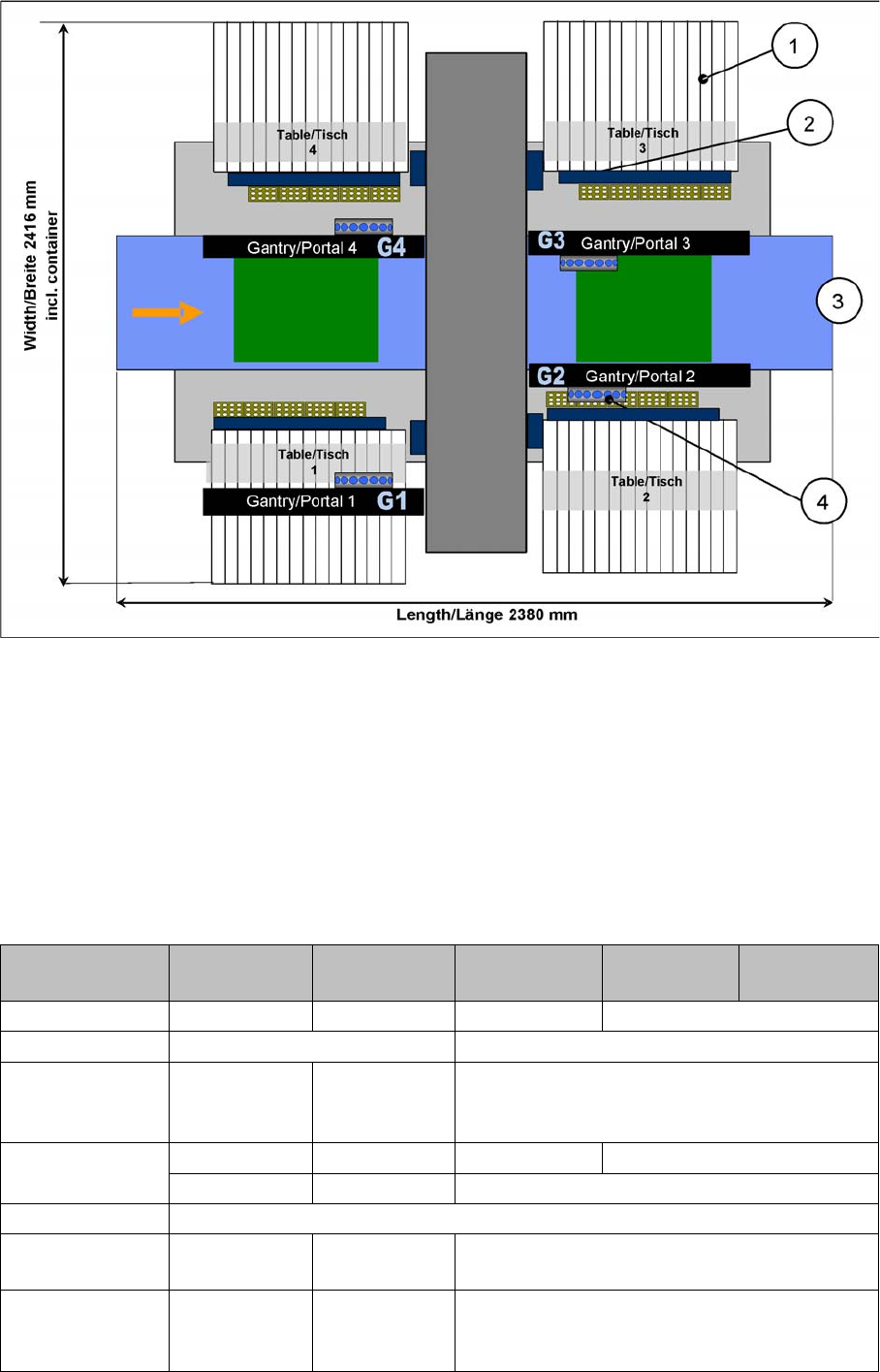

SIPLACE D4/D4i configuration
Legend
1. S-table with S-feeder
2. Reject container for components and nozzles, without sensor for the reject container
3. Single/dual conveyor with stationary side on left or right
4. 4x C&P12
3.2
3.2 Machine Overview Comparison D1/D1i to D4/D4i
Machine Overview Comparison D1/D1i to D4/D4i
Designation D4/D4i D3 D2/D2i D1/D1i D1/D1i single
head
Succeeds HS50/60 ---- S2X FX
Processing areas 21
SMEMA height in-
creases
3 distance
plates (70, 100,
120 mm)
2 distance
plates (70, 100/
120, mm)
3 distance plates (70, 100, 120 mm)
Gantries 432 1
Cast gantry CFK gantry Extended cast gantry
Y drive Linear motor
X-drive Motor with belt
drive
Linear motor Motor with belt drive
Y-motor cooling Through com-
pressed air
supply
Through motor
generating
compressed air
Through compressed air supply
3 Overview
3.2 Machine Overview Comparison D1/D1i to D4/D4i 3.1.2 SIPLACE D4/D4i Configuration
26 Student Guide SIPLACE D-Series (FSE)
X-motor cooling Through fan
during compo-
nent pickup
Through ex-
haust from
C&P/TWIN
heads
Through fan during component pickup
Platine an der
X-Achse
Gantry head
distributor, ver-
sion 3
Head interface/
adapter
Gantry head distributor, version 3
Platine an der
Y-Achse
Gantry distribu-
tor
Gantry inter-
face
Gantry distributor
Placement head
type
C&P12 C&P12/6 PA1 /
C&P12/6 /
TWIN PA2
C&P12/6 C&P12/6 und
P&P
(= 1 TWIN
segment)
C&P12/6 or
P&P
(= 1 TWIN
segment)
C&P-Version DLM3
Max. component
height
6 mm C&P12: 6 mm
C&P6: 8.5 mm
TWIN: 25 mm
C&P12: 6 mm
C&P6: 8.5 mm
C&P12: 6 mm
C&P6: 8.5 mm
P&P: 19 mm
Conveyor 5-parts 3-parts
Conveyor control TSP 301 TSP 201
For dual conveyor With extension board Without extension board
SC BoxPC (or Sin-
gle BoxPC)
Currently with
computer rack
or box PC
BoxPC (or Single BoxPC)
Basic software SC/MC602 SC/MC603.01 SC/MC603.01
SP1
MC Micro Box PC
+ USB DVD-
LW (or incorpo-
rate into Single
BoxPC)
MC slot PC
(C086) or Box
PC
+ USB DVD-
LW
Micro Box PC
+ USB DVD-LW (or incorporate into Single Box-
PC)
MC operating sys-
tem
602 RMOS/603 WinXP/605
WinXPe
603 WinXP/605 WinXPe
USB hub 7-fold 4-fold 7-fach (od. 4-fach)
Axis controller
rack
2 racks with code switch 1 rack with code switch to standard
Axis controller A364 A363/A364 A364
Pneumatic
changeover table
docking unit
--- YES ---
No. changeover
table positions per
location
1 each STP 2 / STP1
Pos für D2
STP 1 pos D2 or D1
(Pos. D1 35 mm further outside
than D2)
Cutter HS version HF version Neu, verlängerte HS
Changeover table
S feeder
HF version Neu, verbreitert
Kopf-Modularität --- C&P12/6/
TWIN
C&P12/6 C&P12/6 with P&P
Bestückkopf/ Ser-
vo-Teile
No Same as X ma-
chine
C&P and P&P module
Designation D4/D4i D3 D2/D2i D1/D1i D1/D1i single
