14 SITEST
14.3.7 New Functions in SITEST 14.3 Calibration Basics
Student Guide SIPLACE D-Series (FSE) 253
14.3.7
14.3.7 New Functions in SITEST
New Functions in SITEST
14.3.7.1
14.3.7.1 Transport Menu
Transport Menu
Transport - option and configuration
Legend
1. Changing the conveyor width (only for lane 1, if dual conveyor):
You will see a submenu, in which you can select Widened or Not widened (standard width). Widened
means that lane 2 is moved together (to the limit switch), while the fixed side for lane 1 remains in
its position. (max. width of lane 1 = 380 mm)
If point 4 is selected first (extra wide) this gives a max. width for lane 1 of 430 mm.
2. Change transport mode:
This function is used to configure the option Long Board .
Next menu: normal PCB/ long PCB
3. Show stop positions:
shows the number of position in PA 1 and PA2, additional the offset depend on the standard position
(PCB Reference- corner). The offset for the option Long Board is set by SIPLACE Pro.
4. This enables you to move the fixed conveyor side in its standard position to accommodate standard
or extra wide boards (values from the conveyor control machine data).
Extra wide means that the fixed side is moved up to 26 mm. (dual conveyor lane 1 and lane 2 =
242 mm, flexible dual conveyor lane 1 = 430 mm, single conveyor = 508 mm)
5. Point 5 and 6 only with SIPLACE Service password active! The fixed conveyor side (left, right) can
be taught.
6. Save the teach data from point 5.
14 SITEST
14.3 Calibration Basics 14.3.7 New Functions in SITEST
254 Student Guide SIPLACE D-Series (FSE)
14.3.7.2
14.3.7.2 Function Firmware Download
Function Firmware Download
► Select Settings from the SITEST menu and then Firmware Download.
Overview of firmware download
NOTICE
Art und Quelle der Gefahr
For versions up to SC/MC SW 603, this function is only available to SIPLACE service person-
nel.
From SC/MC SW 604, the downloads performed with SITEST to all components can also be
executed by customer service technicians.
14 SITEST
14.3.7 New Functions in SITEST 14.3 Calibration Basics
Student Guide SIPLACE D-Series (FSE) 255

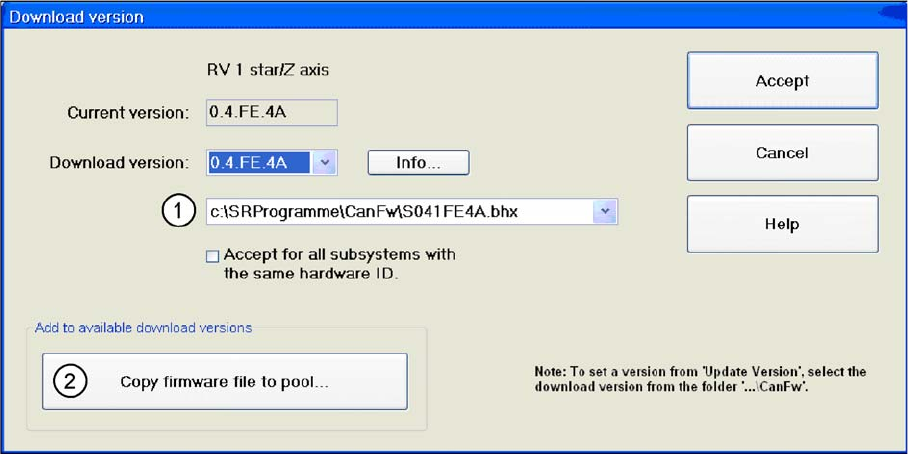

Firmware download
In the Can FW folder there are all current Firmware versions of all axes, tables etc.
Legend
1. The system checks this folder, to see whether there is a newer version of the firmware for the re-
spective axis, table etc.. If there exist a new firmware version, this new version will be offered and
could be downloaded for example to the star- axis.
2. You can also copy a new firmware version manually into the CAN FW folder. Click on the Copy firm-
ware file to pool. An Explorer menu will open, in which you can directly copy the new firmware version
from a USB stick etc. into the CAN FW folder. The firmware version you have selected is now present
in the selection menu (see (1)).
14.3.7.3
14.3.7.3 Head Modularity for SIPLACE D/Di-Series
Head Modularity for SIPLACE D/Di-Series
► Select Settings from the SITEST menu and then Head exchange.
