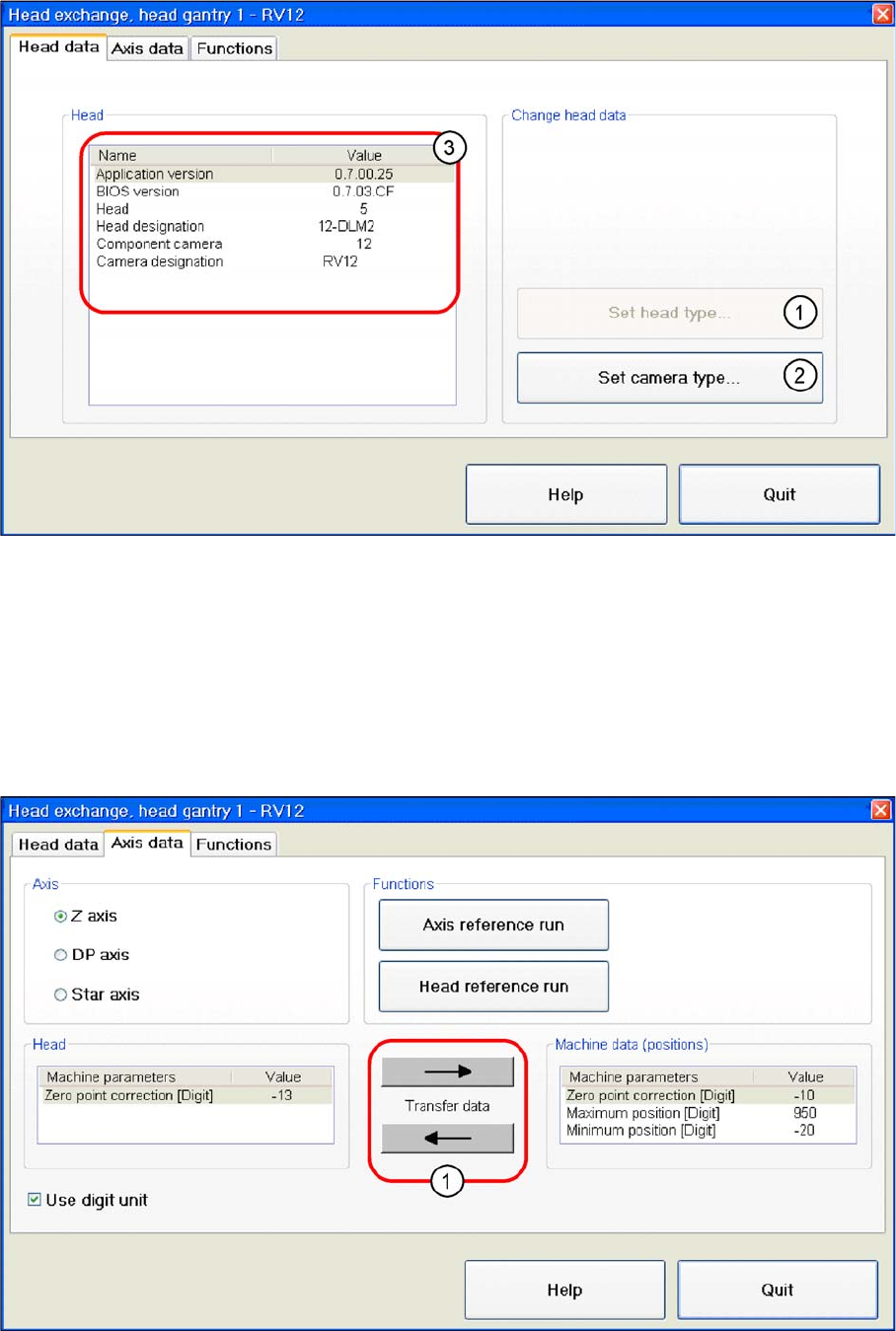

Head Data

Head modularity - head data

Legend

1. Select and set the relevant head type for the head replacement.

2. Select and set the relevant camera type for the selected head type or head replacement.

3. Shows the data for the head installed. The current BIOS and application version, the head type and

the camera type of the installed head.

Axis Data

Head modularity - axis data

14 SITEST

14.3.7 New Functions in SITEST 14.3 Calibration Basics

Student Guide SIPLACE D-Series (FSE) 257

Legend

1. This is where the axis data (Z and star axes) can be written from the head EPROM to the machine

data. You can also write the Z and star axis data from the machine data to the head EPROM.

Function

Head modularity - function

Legend

1. After the head has been replaced, this function enables you to calibrate this head directly in the head

modularity menu. Of course it is also possible to calibrate the other heads with this function. The new

head and other heads can also be calibrated with SITEST, at Calibrate machine..., All heads and

cameras... .

2. The same applies as in(1). After the head exchange you can directly do a head- mapping. The head

mapping function can be found at Calibrate machine, Head Mapping.
