K87_FV_M-PL.pdf
P AR TS LIST FEEDER FV - 080 9 (PL) FV series F eeder
Contents
1
FV12C
FV-12-3040C~106000C ............................. 1-1~1-6
2
FV12D
FV-12-20001D~ ......................................... 2-1~2-6
3
FV12LP STD
FV-12-LP-016~ ........................................... 3-1~3-5
4
FV12LP PSA
FV-12-LP-016~ ........................................... 4-1~4-5
5
FV16 STD
FV-16-1022~ ............................................. 5-1~5-5
6
FV16 PSA
FV-16-1022~ ............................................. 6-1~6-5
7
FV24AL STD
FV-24-AL-011 ............................................ 7-1~7-5
8
FV24AL PSA
FV-24-AL-011 ............................................ 8-1~8-5
9
FV24 STD
FV-24-0843................................................ 9-1~9-5
10
FV24 PSA
FV-24-0843............................................ 10-1~10-5
11
FV32 STD
FV-32-0255~ ......................................... 11-1~11-5
12
FV32 PSA
FV-32-0255~ ......................................... 12-1~12-5
13
FV32N ADD
FV-32-0255~ ......................................... 13-1~13-5
14
FV44 STD
FV-44-0174~ ......................................... 14-1~14-5
15
FV44 PSA
FV-44-0174~ ......................................... 15-1~15-5
16
FV56 STD
FV-56-001~ ........................................... 16-1~16-5
17
FV82C
FV-82-853C~5500C ............................... 17-1~17-6
18
FV82D
FV-82-05501D~12674D ........................ 18-1~18-6
19
FV82E
FV-82-12675E~ ...................................... 19-1~19-6
20
FV84C
FV-84-22877C~106000C ....................... 20-1~20-6
21
FV84D
FV-84-106001D~171343D .................... 21-1~21-6
22
FV84E
FV-84-171344E~ .................................... 22-1~22-6
1
1
FV12C
FV12C
FV12C-0411

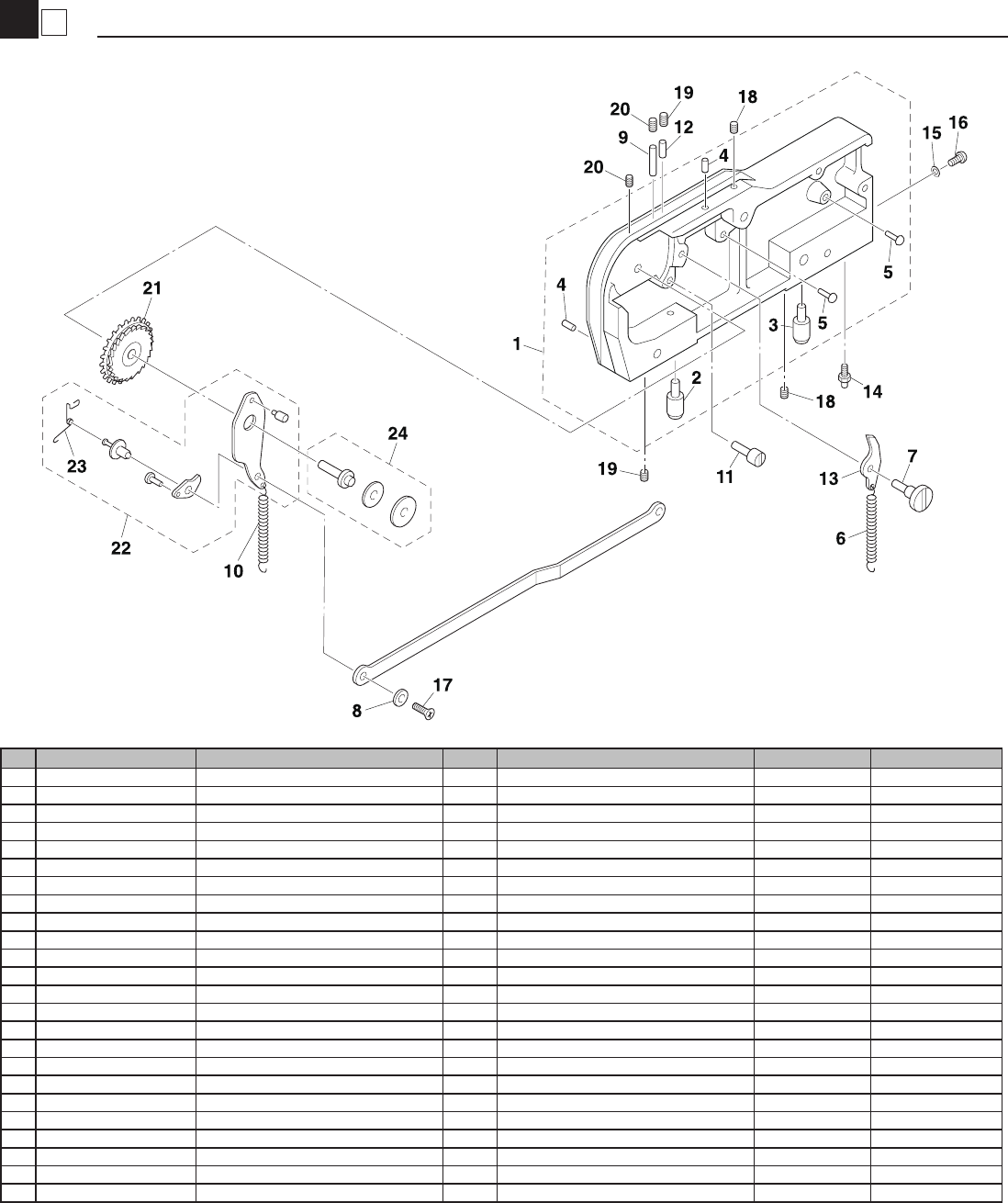

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2110-00X BODY ASSY 1
2 K87-M1112-00X KNOCK PIN (FRONT) 1
3 K87-M2113-00X KNOCK PIN (REAR) 1
4 NEEDLE ROLLER 2
5 CIRCULAR RIVET 2
6 K87-M211A-00X SPRING 1
7 K87-M211B-00X BACK STOPPER AXIS 1
8 K87-M111C-00X PLANE WASHER 1
9 K87-M111D-00X PUSH PIN 1
10 K87-M211E-00X SPRING 1
11 K87-M211F-00X STOPPER PIN 1
12 K87-M111G-00X PUSH PIN 1
13 K87-M111H-00X BACK STOPPER 1
14 K87-M1186-00X BARB CONNECTOR STRAIGHT 1
15 K87-M111M-00X GASKET 1
16 K87-M111N-00X SCREW,PAN HEAD + 1
17 K87-M111P-00X SCREW,FLAT HEAD + 1
18 K87-M111R-00X SCREW,SET 2
19 K87-M111T-00X SCREW,SET 2
20 K87-M111X-00X SCREW,SET 2
21 K87-M1120-00X SPROCKET 1
22 K87-M212A-00X RACKING LEVER ASSY 1
23 K87-M112D-00X COIL SPRING 1
24 K87-M212L-00X SPROCKET AXIS ASSY 1
