K87_FV_M-PL.pdf - 第11页
3 2 FV12D FV12D FV12D-1001 2 3 17 5 11 17 6 4 7 1 8 12 18 10 9 15 14 16 18 13 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 K87-M1 11U-00X SCREW FLANGE NUT 2 2 K87-M2173-10X MAIN ARM ASSY…
FV12D
FV12D
FV12D-0305
2
2
11
1
8
5
13
12
16
14
15
7
9
2
10
3
4
6
6
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M111V-00X SCREW,SET 1
2 K87-M111Y-00X SCREW,SET 1
3 K87-M2131-00X CLAMP LEVER UNIT 1
4 K87-M2132-10X CLAMP LEVER ASSY 1
5 K87-M213A-00X CLANK ARM ASSY 1
6 K87-M113D-00X ARM 2
7 K87-M113E-00X HINGE PIN 2 1
8 K87-M11D7-00X CIRCLIP E 2
9 K87-M213L-10X CLAMP LEVER AXIS 1
10 K87-M213M-00X AXIS PIN 1
11 K87-M113H-00X PUSH PIN 1
12 K87-M2140-10X TAPE GUIDE ASSY 1
13 K87-M114A-10X LOCK LEVER ASSY 1
14 K87-M214N-00X GUIDE AXIS 1
15 K87-M214P-00X GUIDE PIN 1
16 K87-M213L-00X GUIDE AXIS 1
3
2
FV12D
FV12D
FV12D-1001
2
3
17
5
11
17
6
4
7
1
8
12
18
10
9
15
14
16
18
13

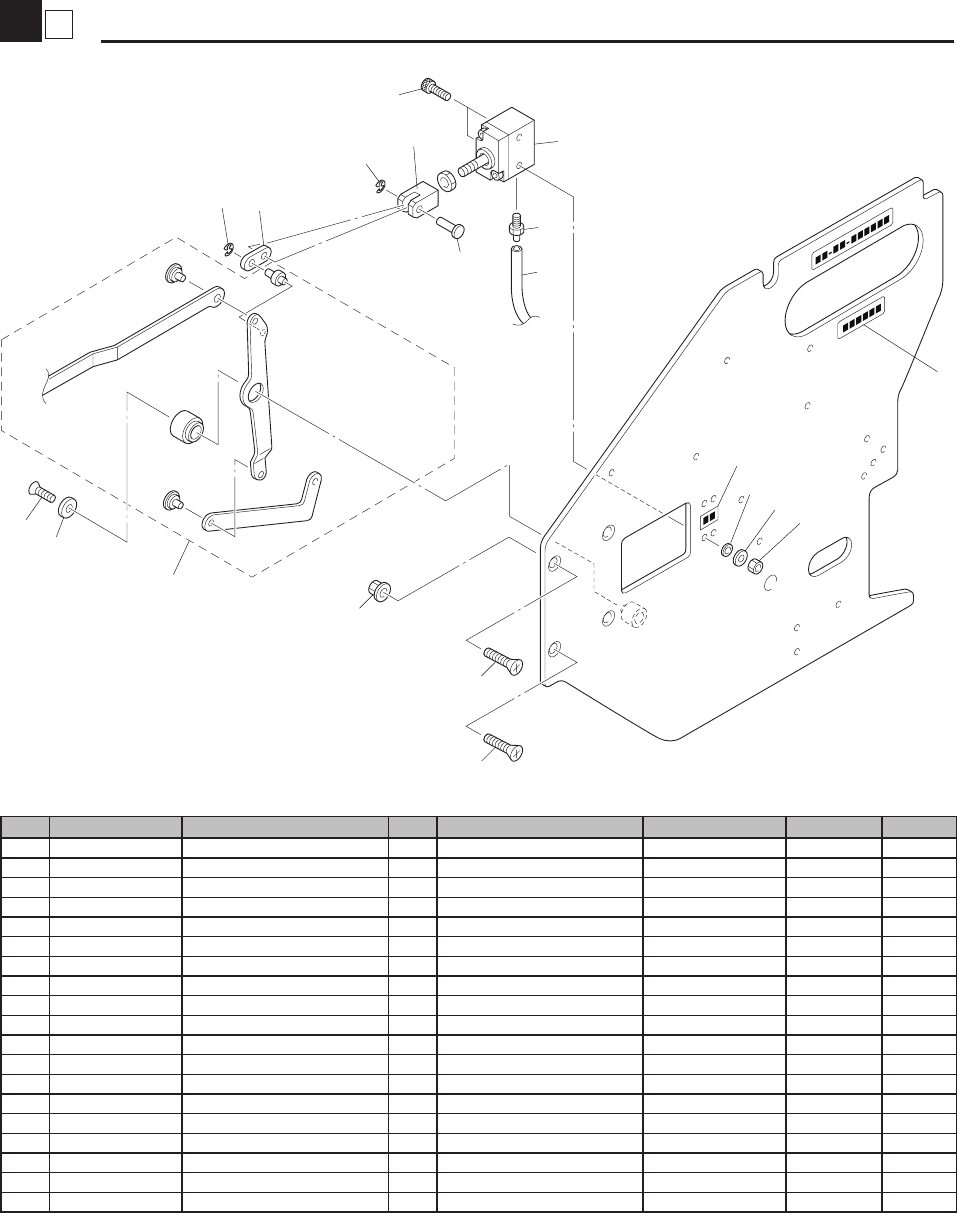

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 K87-M111U-00X SCREW FLANGE NUT 2
2 K87-M2173-10X MAIN ARM ASSY 1
3 K87-M217B-10X PLANE WASHER 1
3-1 K87-M562A-00X WASHER PLANE 1 (2008/7/8) ME60270 OK
4 K87-M1181-00X ROD CONNECT 1
5 K87-M1182-00X ARM 1
6 K87-M1184-00X CONNECT PIN 1
7 K87-M2185-00X MULTI CYLINDER 1
8 K87-M1186-00X
BARB CONNECTOR STRAIGHT
1
9 K87-M218J-00X PA NO. SEAL 1
10 K87-M218K-00X RATCHET PITCH STICKER 1
11 K87-M55BG-00X SCREW,TRUSS HEAD 1
12 K87-M21B1-10X AIR HOSE (100) 1
13 K87-M21BL-00X
BOLT,HEXAGON SOCKET HEAD
2
14 K87-M11BE-00X PLANE WASHER 2
15 K87-M21BM-00X SPRING LOCK WASHER 2
16 K87-M21BN-00X SCREW NUT 2
17 K87-M11B9-00X CIRCLIP E 2
18 K87-M21B4-00X SCREW,FLAT HEAD + 4
8
10
9
11
12
6
20
21
5
7
13
17
4
3
2
26
24
23
26
21
16
15
14
20
28
18
22
1
25
19
27
26
4
2
FV12D
FV12D
FV12D-0406

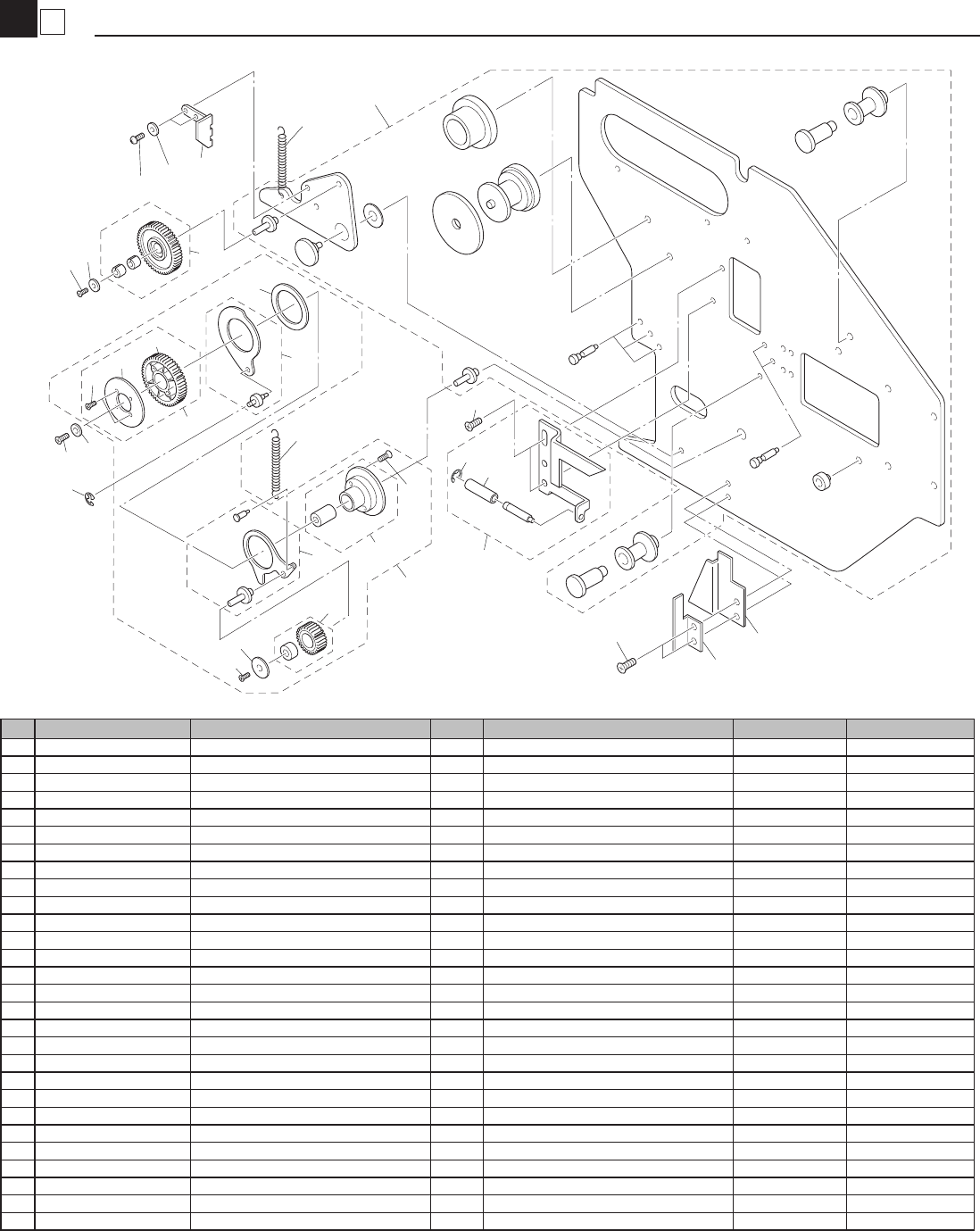

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2160-10X BACK PLATE ASSY 1
2 K87-M2166-10X GUIDE PLATE ASSY 1
3 K87-M216U-00X ROLLER 1
4 K87-M11B9-00X CIRCLIP E 1
5 K87-M2191-10X DRIVE ROLLER UNIT 1
6 K87-M2192-00X INDENTATION LEVER ASSY 1
7 K87-M2196-00X SUB LEVER ASSY 1
8 K87-M1199-10X DRIVE GEAR ASSY 1
9 K87-M217B-10X PLANE WASHER 1
10 K87-M55BG-00X SCREW,TRUSS HEAD 1
11 K87-M219C-10X LEVER METAL ASSY 1
12 K87-M11B2-00X SCREW,FLAT HEAD + 2
13 K87-M219F-10X DRIVE ROLLER ASSY 1
14 K87-M219G-10X DRIVE ROLLER 1
15 K87-M119H-00X COVER PLATE 1
16 K87-M11BA-00X SCREW,FLAT HEAD + 2
17 K87-M119J-00X THRUST WASHER 1
18 K87-M219K-00X SPRING 1
19 K87-M219L-10X IDLE ROLLER ASSY 1
20 K87-M562A-00X PLANE WASHER 2
21 K87-M55BG-00X SCREW,TRUSS HEAD 2
22 K87-M119P-10X SPRING 1
23 K87-M21A1-10X LOWER GUIDE PLATE 1
24 K87-M21A2-10X COVER PLATE 1
25 K87-M21A3-10X LOWER GUIDE PLATE 1
26 K87-M111N-00X SCREW,PAN HEAD + 6
27 K87-M11BE-00X PLATE WASHER 2
28 K87-M11B9-00X CIRCLIP E 1
