FV32 S TD FV32 S TD FV32STD-0012 11 2 6 7 8 11 10 1 2 3 4 9 6 5 N o . Part No. Part Name Q'ty Re m arks Date R evised No. 1 K87-M2313-00X KNOCK PIN (REAR) 1 2 K87-M5330-00X CLAMP LEVER ASSY 1 3 K87-M2335-00X CLAMP R…
1
11

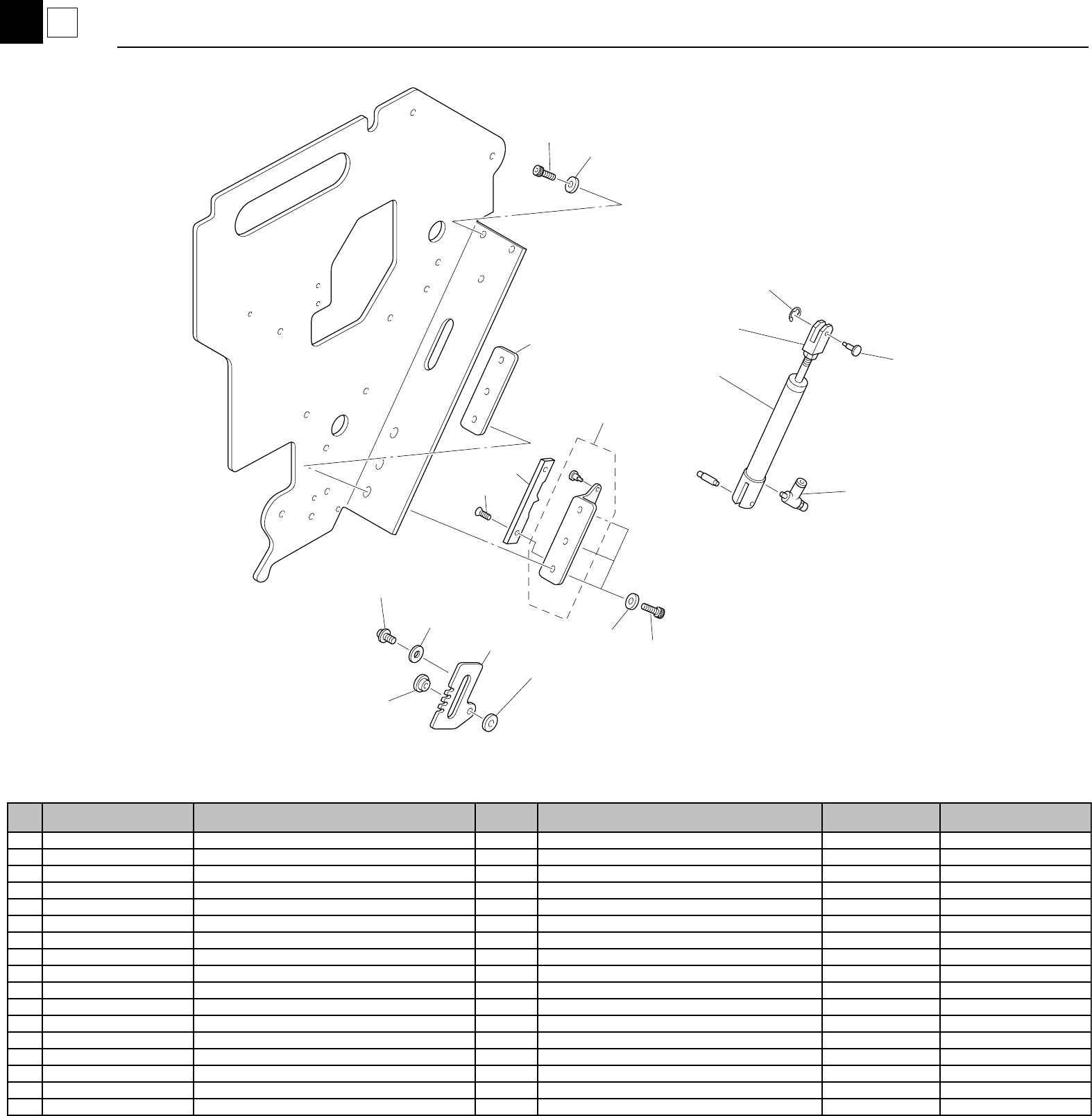

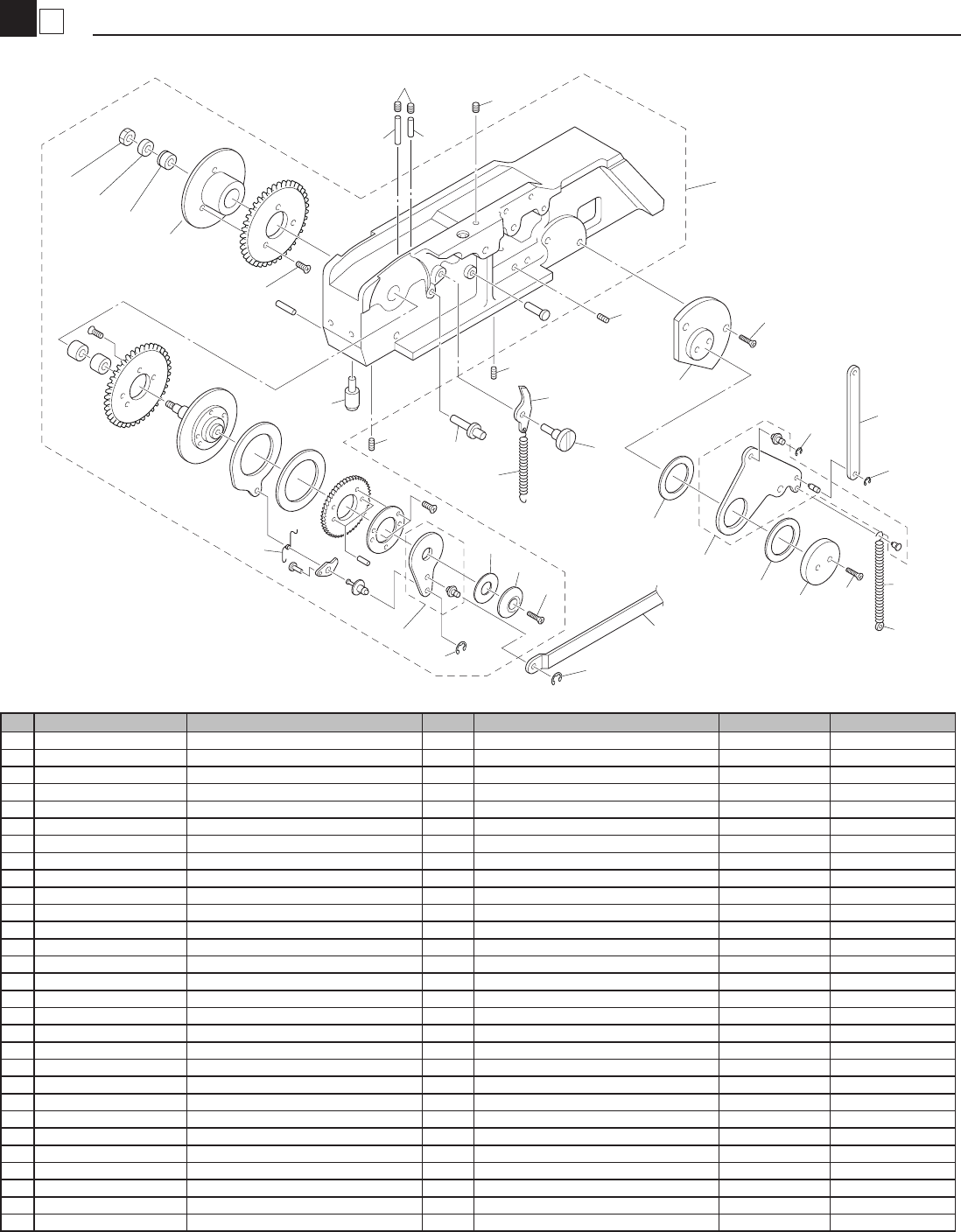

FV32 STD
FV32 STD
FV32STD-0501
19
2
17
21
22
13
26
25
7
27
7
18
16
1
29
14
28
15
12
8
10
9
11
29
5
7
7
13
4
3
6
29
29
22
23
13
20
24
No. PartNo. PartName Q'ty Remarks Date RevisedNo.
1 K87-M5310-00X BODYASSY 1
2 K87-M1112-00X KNOCKPIN(FRONT) 1
3 K87-M116H-00X THRUSTWASHER 1
4 K87-M5323-00X CAP 1
5 K87-M532D-00X COILSPRING 1
6 K87-M5320-00X SUBLEVERASSY 1
7 K87-M11B9-00X CIRCLIPE 4
8 K87-M532J-00X METAL 1
9 K87-M532L-00X PRESSURERING 1
10 K87-M532K-00X CLAMPELEMENT 1
11 K87-M532M-00X UNUT 1
12 K87-M111P-00X SCREW,FLATHEAD+ 3
13 K87-M23B6-00X SCREW,FLATHEAD+ 5
14 K87-M531F-00X PUSHPIN 1
15 K87-M531B-00X PUSHPIN 1
16 K87-M531G-00X BACKSTOPPER 1
17 K87-M531A-00X BACKSTOPPERAXIS 1
18 K87-M5319-00X BACKSTPPERSPRING 1
19 K87-M531E-00X STOPPERPIN 1
20 K87-M431G-00X LEVERASSY 1
21 K87-M231F-00X PLATE 1
22 K87-M2316-00X THRUSTWASHER 2
23 K87-M2317-00X CAP 1
24 K87-M5315-00X MAINARM 1
25 K87-M531C-00X HOOK 2
26 K87-M531D-00X SPRING 1
27 K87-M238D-00X SUBARM 1
28 K87-M111Y-00X SCREW,SET 2
29 K87-M111V-00X SCREW,SET(84D) 4 2005/1
FV32 STD
FV32 STD
FV32STD-0012
11
2
6
7
8
11
10
1
2
3
4
9
6
5
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2313-00X KNOCK PIN (REAR) 1
2 K87-M5330-00X CLAMP LEVER ASSY 1
3 K87-M2335-00X CLAMP ROLLER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M5342-00X GUIDE AXIS 1
6 K87-M533A-00X GUIDE AXIS 2
7 K87-M5340-00X TAPE GUIDE ASSY 1
8 K87-M534A-00X LOCK LEVER ASSY 1
9 K87-M534F-00X SCREW, TRUSS HEAD + 2
10 K87-M23BG-00X ELBO CONNECTOR 1
11 K87-M53BH-00X HOSE 1
FV32 STD
FV32 STD
FV32STD-0301
11
3
14
15
9
8
15
13
7
10
5
4
6
12
2
1
11
3
16
17
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2381-00X CYLINDER 1
2 K87-M5382-00X CYL CONNECTOR 1
3 K87-M1184-00X CONNECT PIN 1
4 K87-M5384-00X MOVE PLATE 1
5 K87-M2385-00X METAL 1
6 K87-M2386-00X PLANE WASHER 1
7 K87-M2387-00X PLANE WASHER 2
8 K87-M5389-00X SET PLATE ASSY 1
9 K87-M238C-00X FASTEN PLATE 1
10 K87-M23B7-00X SCREW, TRUSS HEAD 2
11 K87-M43B8-00X SPEED CONTROLER 1
12 K87-M11B9-00X CIRCLIP E 3
13 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
14 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BC-00X PLANE WASHER 6
16 K87-M111S-00X SCREW FLAT HEAD + 2
17 K87-M538C-00X POSITION PLATE 1
