FV12C FV12C FV12C-0012 1 3 N o . Part No. Part Name Q'ty R em arks Date R evised No. 1 K87-M2173-00X MAIN ARM ASSY 1 2 K87-M117B-00X PLANE WASHER 1 3 K87-M1181-00X ROD CONNECT 1 4 K87-M1182-00X A R M 1 5 K87-M1184-0…
FV12C
FV12C
FV12C-0012
1
3

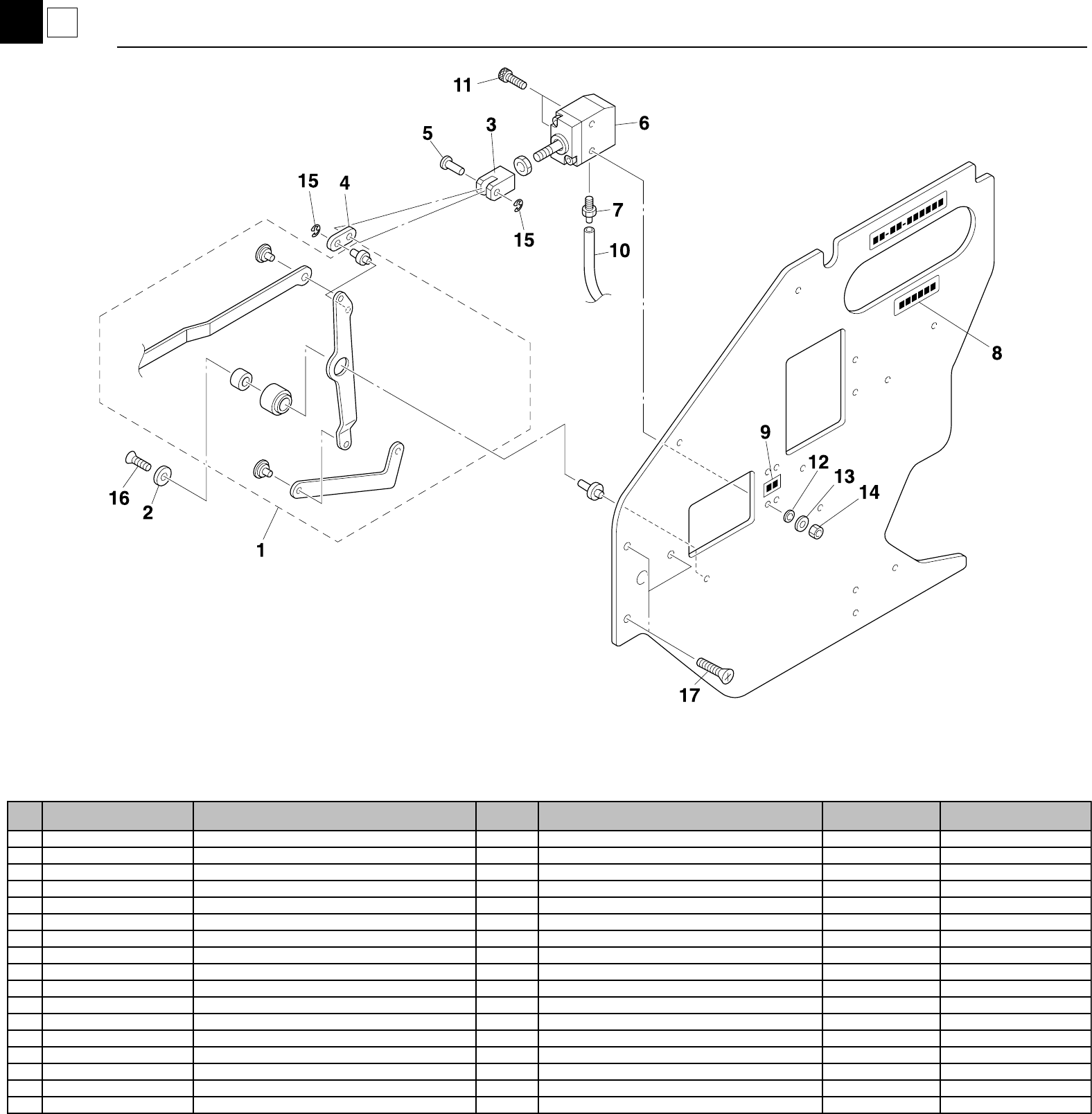

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2173-00X MAIN ARM ASSY 1
2 K87-M117B-00X PLANE WASHER 1
3 K87-M1181-00X ROD CONNECT 1
4 K87-M1182-00X ARM 1
5 K87-M1184-00X CONNECT PIN 1
6 K87-M2185-00X MULTI CYLINDER 1
7 K87-M1186-00X BARB CONNECTOR STRAIGHT 1
8 K87-M218J-00X PA NO. SEAL 1
9 K87-M218K-00X RATCHET PITCH STICKER 1
10 K87-M21B1-00X AIR HOSE 1 135mm
11 K87-M21BL-00X BOLT,HEXAGON SOCKET HEAD 2
12 K87-M11BE-00X PLANE WASHER 2
13 K87-M21BM-00X SPRING LOCK WASHER 2
14 K87-M21BN-00X SCREW NUT 2
15 K87-M11B9-00X CIRCLIP E 2
16 K87-M11BB-00X SCREW,FLAT HEAD + IB 1
17 K87-M11B4-00X SCREW,FLAT HEAD +IB 3

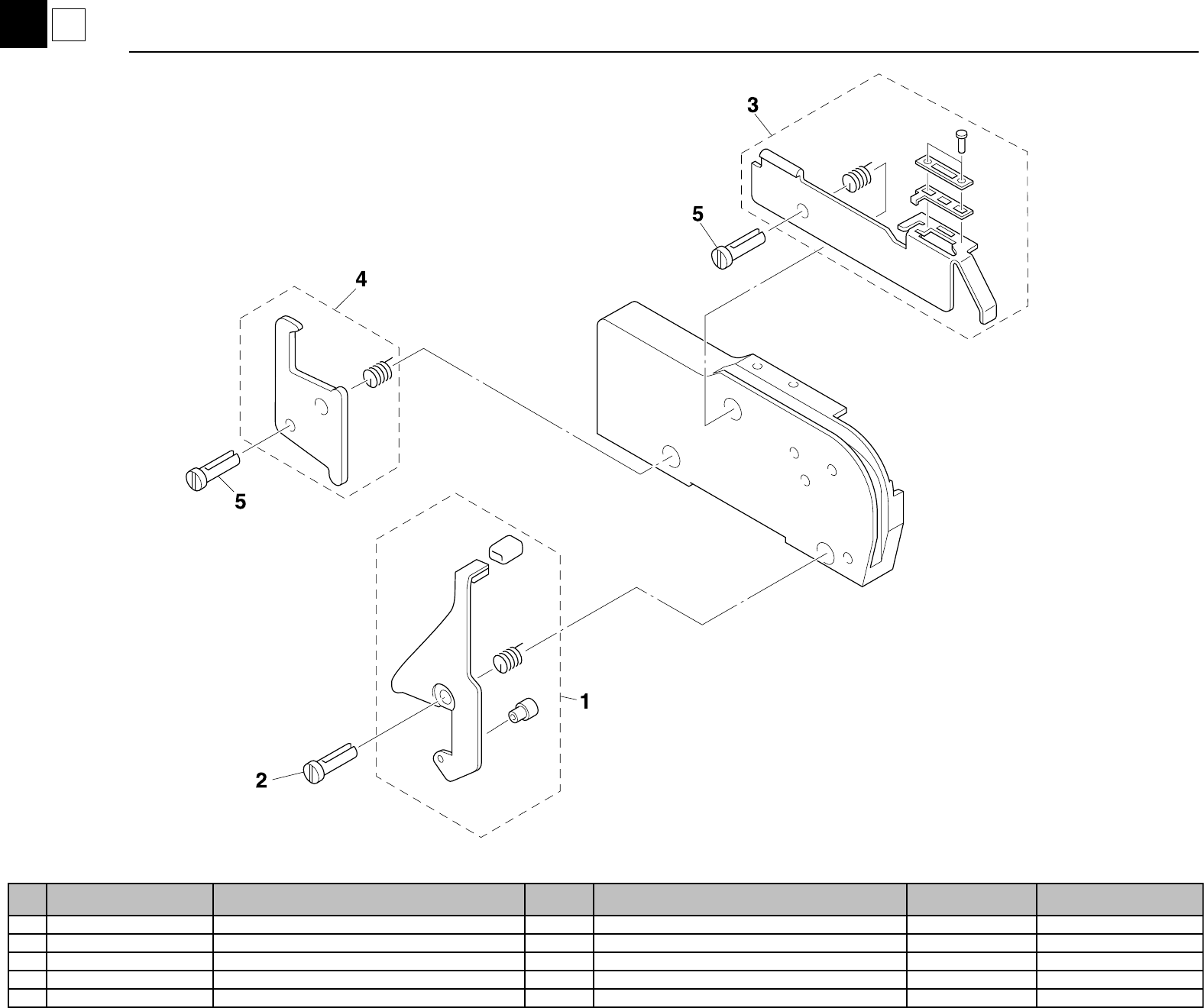

FV12C
FV12C
FV12C-0012
1
4

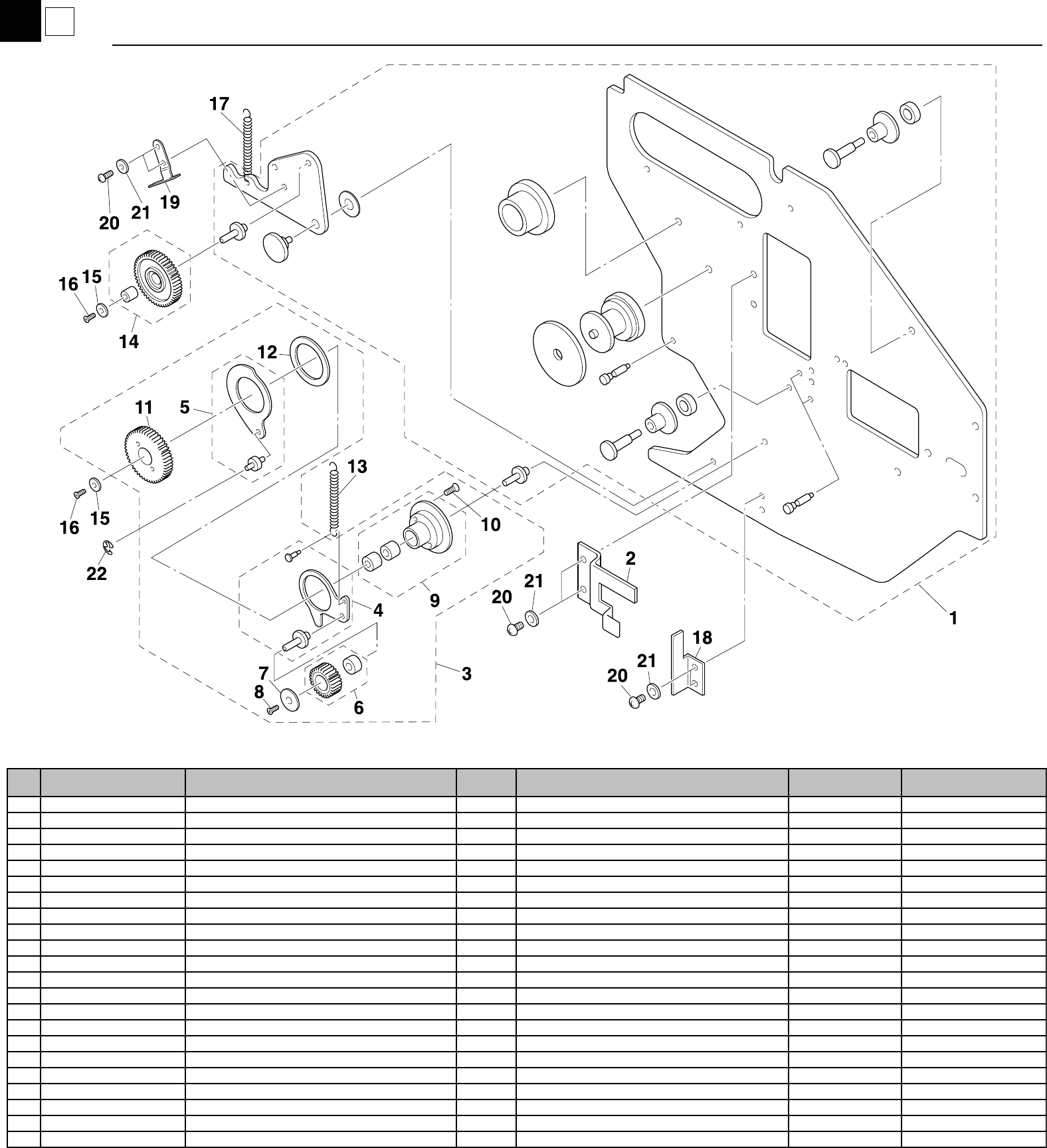

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2160-00X BACK PLATE ASSY 1
2 K87-M2166-00X GUIDE PLATE 1
3 K87-M2191-00X DRIVE ROLLER UNIT 1
4 K87-M2192-00X INDENTATION LEVER ASSY 1
5 K87-M2196-00X SUB LEVER ASSY 1
6 K87-M2199-00X DRIVE GEAR ASSY 1
7 K87-M117B-00X PLANE WASHER 1
8 K87-M11BB-00X SCREW,FLAT HEAD + IB 1
9 K87-M219C-00X LEVER METAL ASSY 1
10 K87-M11B2-00X SCREW,FLAT HEAD + 2
11 K87-M219G-00X DRIVE ROLLER 1
12 K87-M119J-00X THRUST WASHER 1
13 K87-M219K-00X SPRING 1
14 K87-M219L-00X IDLE ROLLER ASSY 1
15 K87-M117B-00X PLANE WASHER 2
16 K87-M11BB-00X SCREW,FLAT HEAD + IB 2
17 K87-M119P-00X SPRING 1
18 K87-M21A1-00X LOWER GUIDE PLATE 1
19 K87-M21A3-00X LOWER GUIDE PLATE 1
20 K87-M111N-00X SCREW,PAN HEAD + 6
21 K87-M11BE-00X PLANE WASHER 6
22 K87-M11B9-00X CIRCLIP E 1
