FV84C
FV84C
FV84C-0012
20
4

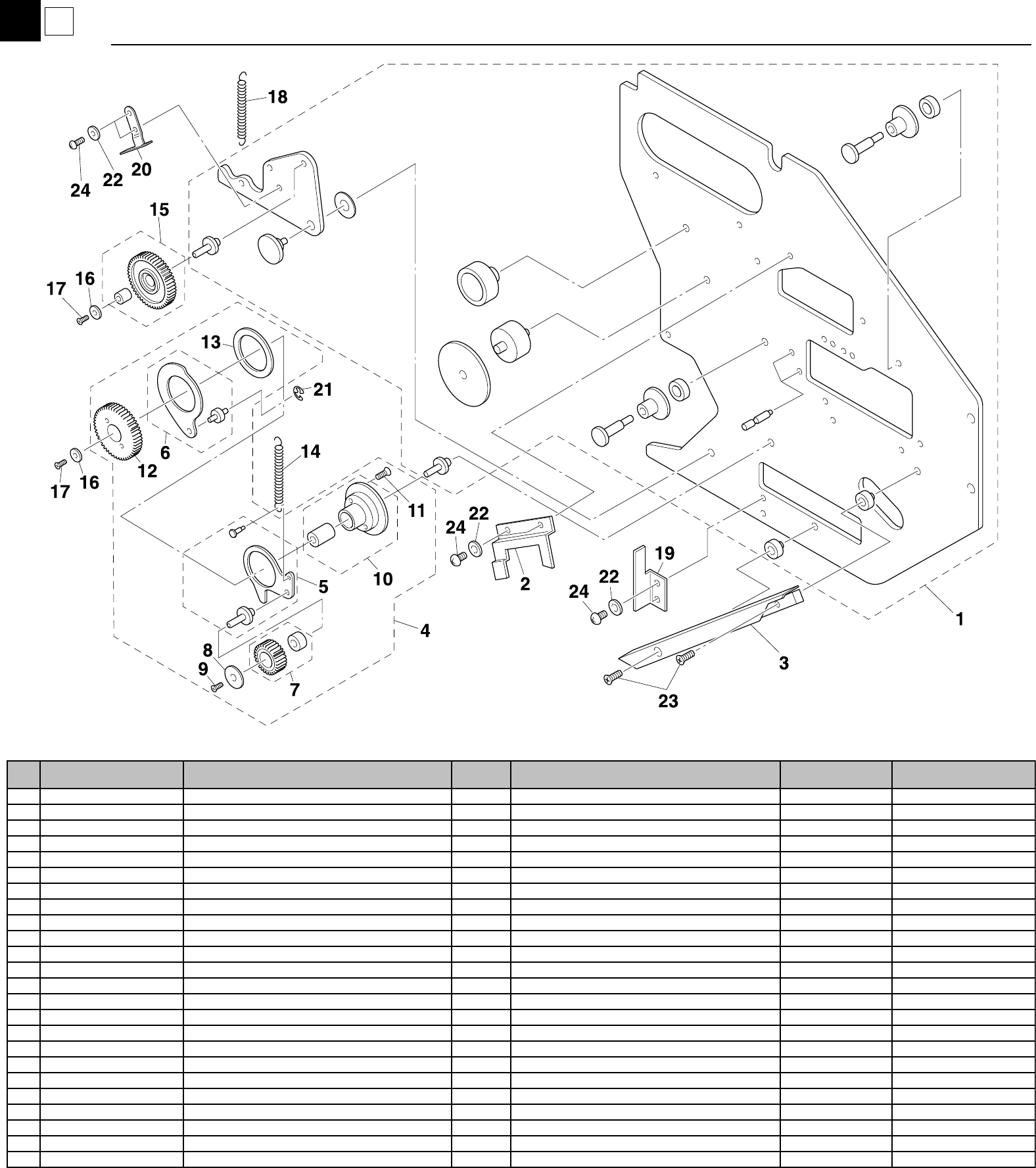

No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M1160-00XBACK PLATE ASSY1
2K87-M1166-00XGUIDE PLATE1
3K87-M1169-00XGUIDE PLATE1
4K87-M1191-00XDRIVE ROLLER UNIT1
5K87-M1192-00XINDENTATION LEVER ASSY1
6 K87-M1196--00XSUB LEVER ASSY1
7K87-M1199-00XDRIVE GEAR ASSY1
8K87-M117B-00XPLANE WASHER1
9K87-M11BB-00XSCREW,FLAT HEAD + IB1
10K87-M119C-00XLEVER METAL ASSY1
11K87-M11BC-00XSCREW,FLAT HEAD +2
12K87-M119G-00XDRIVE ROLLER1
13K87-M119J-00XTHRUST WASHER1
14K87-M119K-00XSPRING1
15K87-M119L-00X IDLE ROLLER ASSY1
16 K87-M117B-00XPLANE WASHER2
17K87-M11BB-00XSCREW,FLAT HEAD + IB2
18K87-M119P-00XSPRING1
19K87-M11A1-00XLOWER GUIDE PLATE1
20K87-M11A3-00XLOWER GUIDE PLATE1
21K87-M11B9-00XCIRCLIP E1
22K87-M11BE-00XPLANE WASHER6
23K87-M11BF-00XSCREW,FLAT HEAD +IB2
24K87-M111N-00XSCREW,PAN HEAD +6
FV84C
FV84C
FV84C-0012
20
5

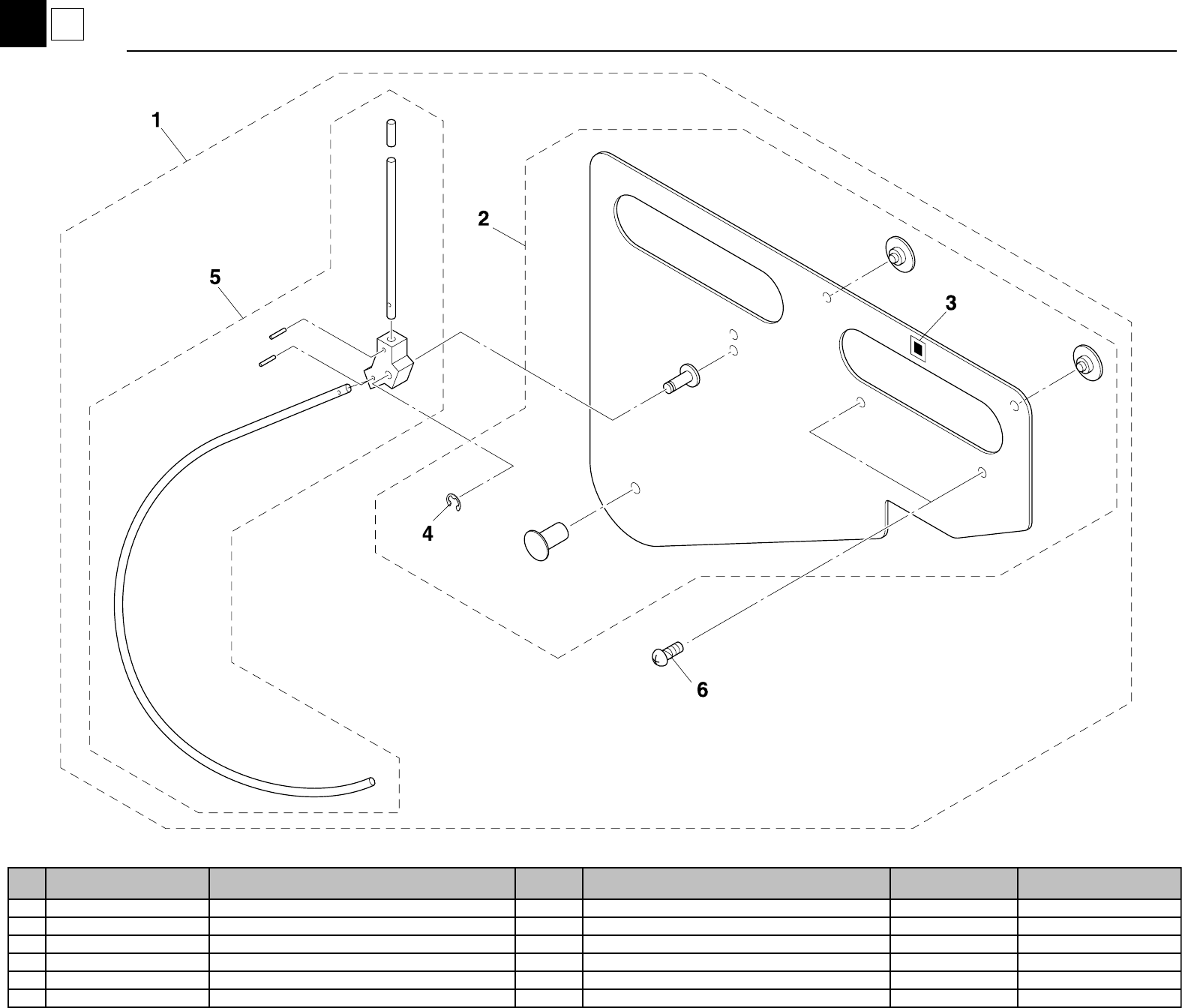

No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M11D0-00XREEL HOLDER ASSY1
2K87-M11D1-00XREEL PLATE ASSY1
3K87-M11D3-00XTAPE SIZE STICKER1
4K87-M11D7-00XCIRCLIP E1
5K87-M11DA-00XINDICATOR LEVER ASSY1
6 K87-M111N-00XSCREW,PAN HEAD +2
FV84C
FV84C
FV84C-0012
20
6

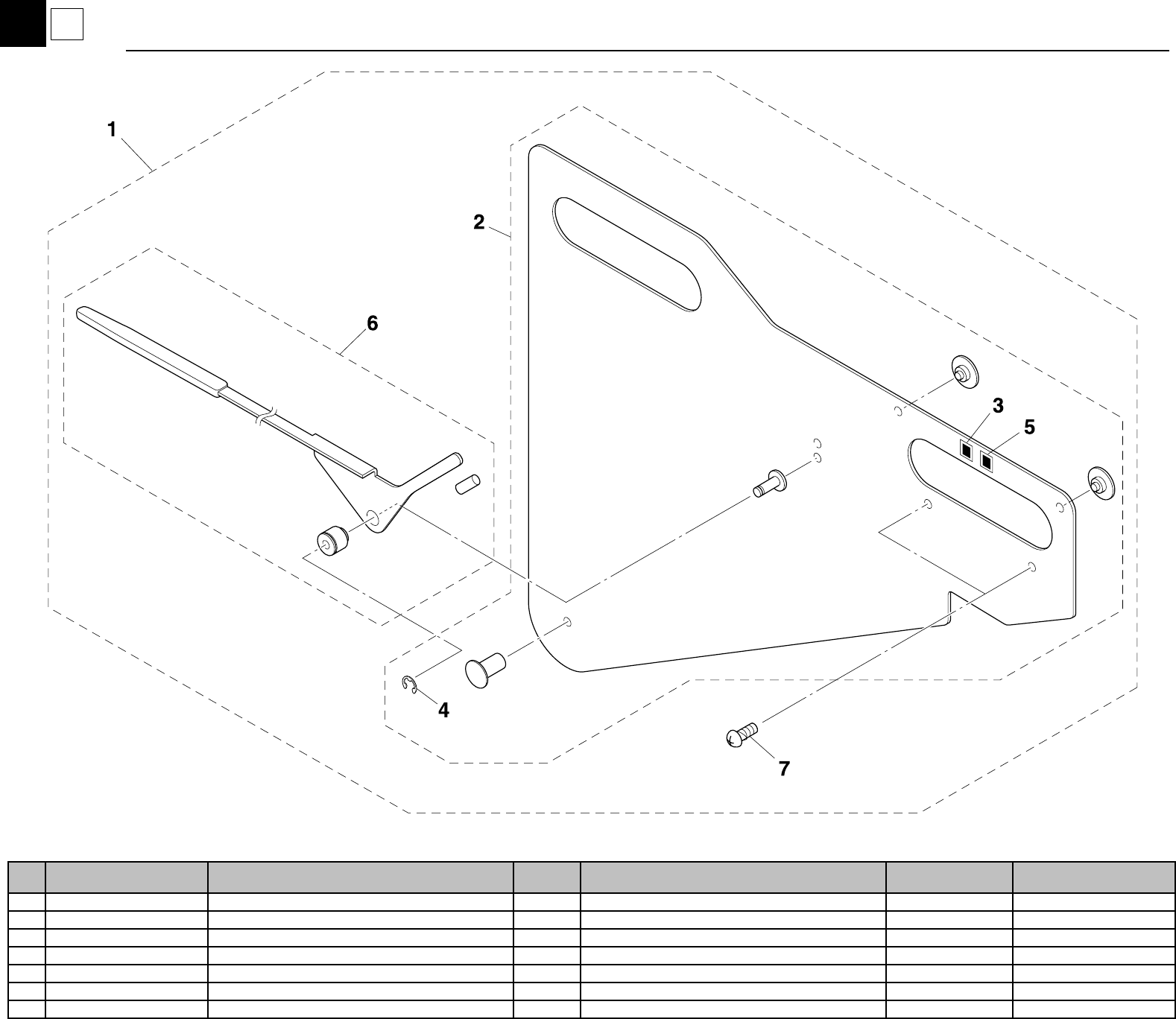

No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M12D0-00XREEL HOLDER ASSY1
2K87-M12D1-00XREEL PLATE ASSY1
3K87-M11D3-00XTAPE SIZE STICKER1
4K87-M11D7-00XCIRCLIP E1
5K87-M12D8-00XREEL SIZE STICKER1
6 K87-M12DA-00XINDICATOR LEVER ASSY1
7K87-M111N-00XSCREW,PAN HEAD +2
