1 13 FV32N ADD FV32N ADD FV32N-0012 15 5 23 21 30 29 8 9 6 13 11 12 14 7 1 17 2 3 18 22 19 25 27 25 4 4 24 16 25 28 10 20 26 24 24 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M5610-00X BODY ASSY 1 2 K…

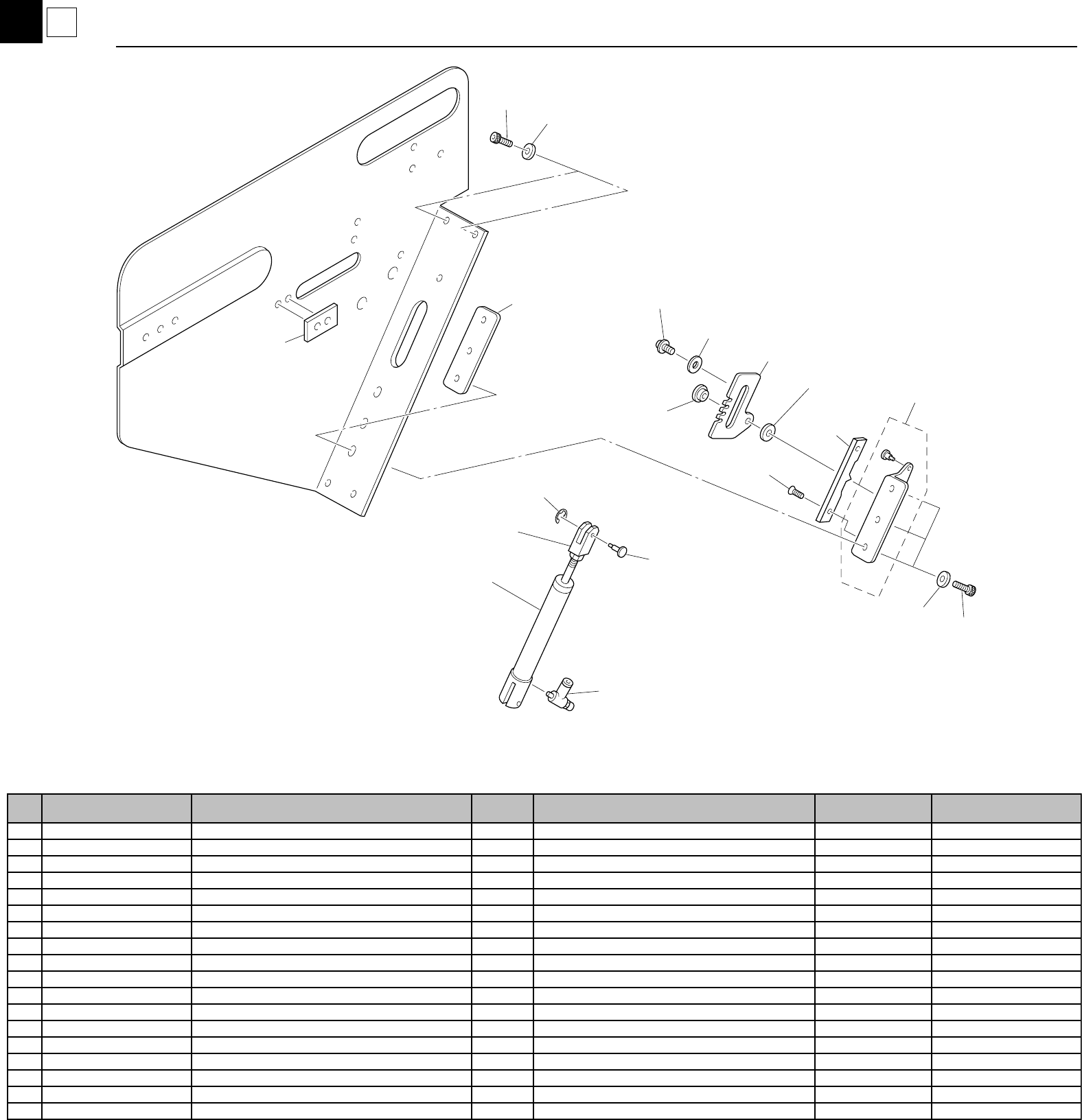

FV32 PSA
FV32 PSA
FV32PSA-0301
12
5
15
16
2
6
16
14
11
18
9
8
10
13
4
3
12
5
1
17
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M556E-00X PLATE 1
2 K87-M238C-00X FASTEN PLATE 1
3 K87-M2381-00X CYLINDER 1
4 K87-M2382-00X CYL CONNECTOR 1
5 K87-M1184-00X CONNECT PIN 1
6 K87-M558A-00X SET PLATE ASSY 1
7 K87-M538C-00X POSITION PLATE 1
8 K87-M5584-00X ADJUST PLATE 1
9 K87-M2385-00X METAL 1
10 K87-M2386-00X PLANE WASHER 1
11 K87-M2387-00X PLANE WASHER 1
12 K87-M43B8-00X SPEED CONTROLER 1
13 K87-M11B9-00X CIRCLIP E 1
14 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
16 K87-M23BC-00X PLANE WASHER 6
17 K87-M111S-00X SCREW, FLAT HEAD + 2
18 K87-M23B7-00X SCREW, TRUSS HEAD + 2

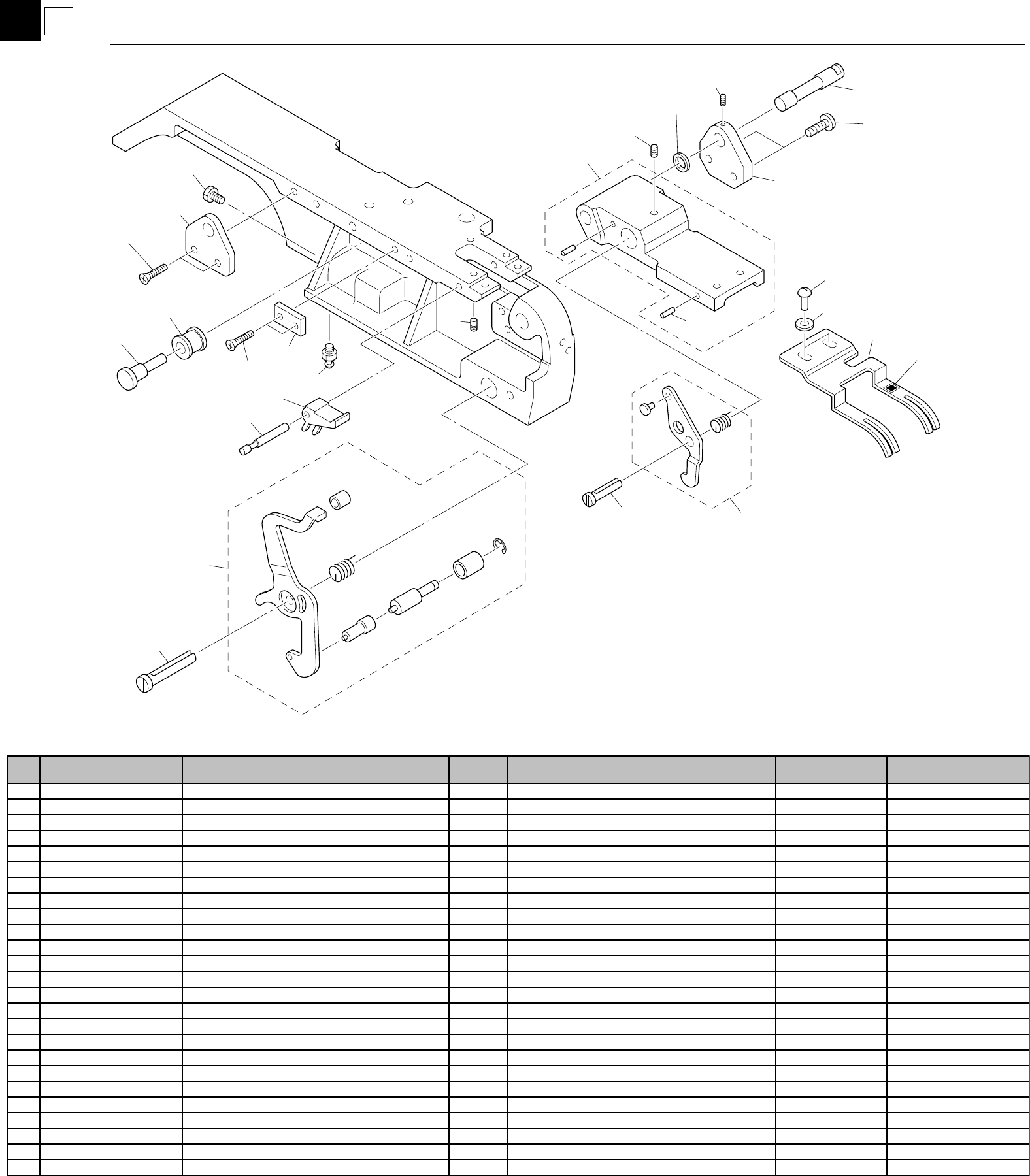

1
13

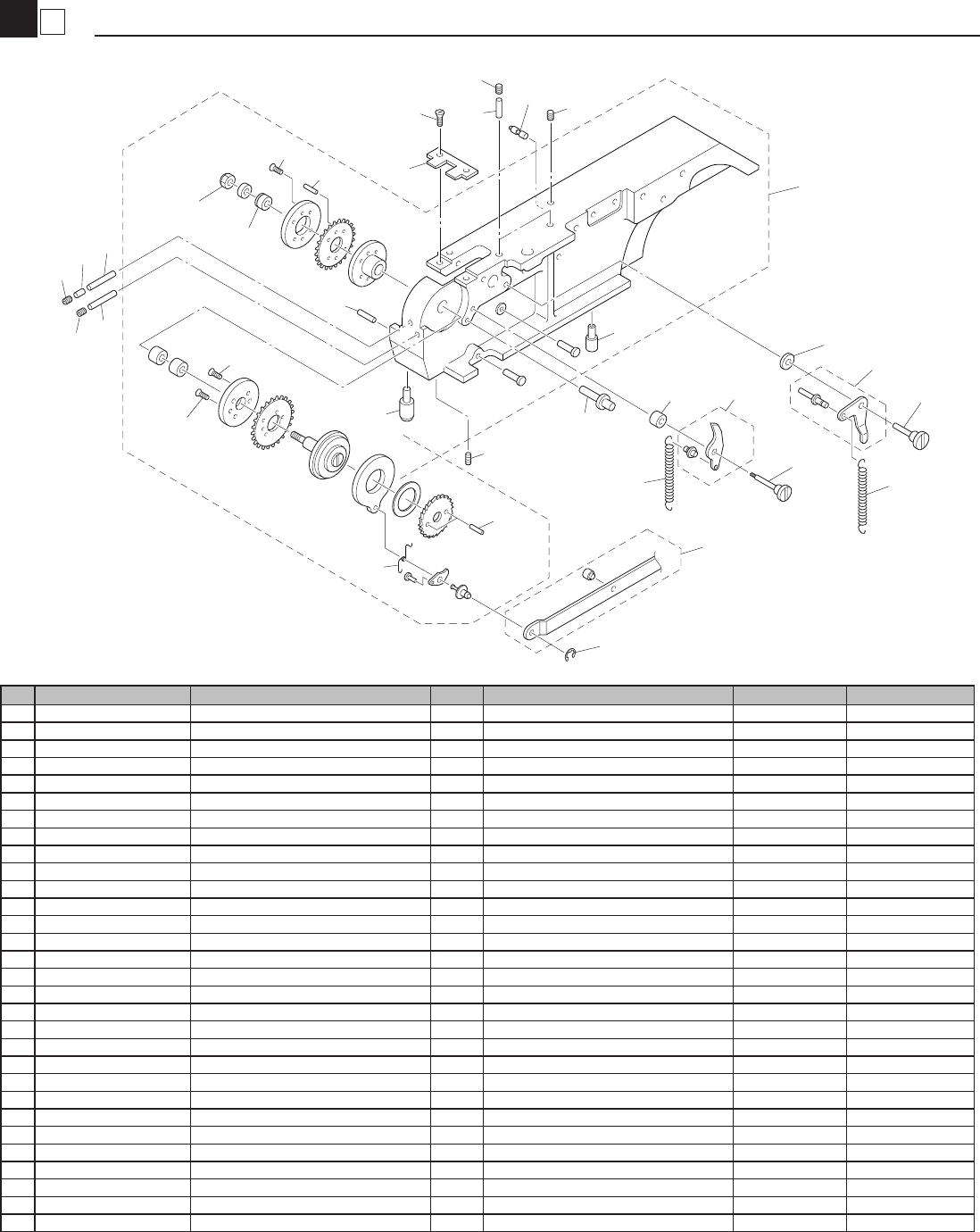

FV32N ADD
FV32N ADD
FV32N-0012
15
5
23
21
30
29
8
9
6
13
11
12
14
7
1
17
2
3
18
22
19
25
27
25
4
4
24
16
25
28
10
20
26
24
24
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5610-00X BODY ASSY 1
2 K87-M561F-00X GUIDE PIN 1
3 K87-M113H-00X PUSH PIN 2
4 K87-M561H-00X PIN 2
5 K87-M561R-00X KNOCK PIN 1
6 K87-M5620-00X BACK STOPPER ASSY 1
7 K87-M5623-00X LEAF 1
8 K87-M5624-00X BACK STOPPER SHAFT 1
9 K87-M5625-00X SPRING 1
10 K87-M562C-00X MAIN ARM ASSY 1
11 K87-M562F-00X PEEL LEVER ASSY 1
12 K87-M562J-00X SHAFT,LEVER 1
13 K87-M2387-00X PLANE WASHER 1
14 K87-M556C-00X SPRING 1
15 K87-M562M-00X GUIDE PIN 1
16 K87-M5642-00X TAPE PLATE 1
17 K87-MB01H-00X SCREW,SET 1
18 K87-M23B3-00X SCREW,SET 2
19 K87-M532M-00X U NUT 1
20 K87-M56BJ-00X WAVE SPRING PIN 2
21 K87-M56BJ-00X WAVE SPRING PIN 2
22 K87-M532K-00X CLAMP ELEMENT 1
23 K87-M231M-00X STRAIGHET PIN 1
24 K87-M111S-00X SCREW,FLAT HEAD + 6
25 K87-M23B5-00X SCREW,SET 3
26 K87-M532D-00X COIL SPRING 1
27 K87-M531F-00X PUSH PIN 1
28 K87-M11B9-00X CIRCLIP E 1
29 K87-M551U-00X KNOCK PIN 1
30 K87-M111S-00X SCREW, FLAT HEAD+ 4
FV32N ADD
FV32N ADD
FV32N-0012
13
2
4
3
4
6
19
9
15
18
7
8
17
5
11
22
10
16
14
13
23
23
2
20
25
1
24
12
21
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M561N-00X PEEL LEVER 1
2 K87-M561P-00X GUIDE PLATE 1
3 K87-M5630-00X CLAMP LEVER ASSY 1
4 K87-M233A-00X GUIDE AXIS 2
5 K87-M5640-00X TAPE HOLDER ASSY 1
6 K87-M5643-00X ROCK LEVER ASSY 1
7 K87-M5647-00X TAPE FIX PLATE 1
8 K87-M5543-00X STICKER 2
9 K87-M5649-00X SUPPORT A 1
10 K87-M564A-00X SHAFT HOLDER 1
11 K87-M564B-00X THRUST WASHER 1
12 K87-M564C-00X SUPPORT B 1
13 K87-M5669-00X GUIDE ROLLER 1
14 K87-M566B-00X FRANGE PIN 1
15 K87-M55BH-00X SCREW,TRUSS HEAD + 2
16 K87-M56BA-00X SCREW,BIND HEAD 2
17 K87-M111Y-00X SCREW,SET 1
18 K87-M23BC-00X PLANE WASHER 2
19 K87-M56BH-00X WAVE SPRING PIN 2
20 K87-M56C1-00X BARB CONNECTOR 1
21 K87-M56C2-00X PLUG 1
22 K87-M23B3-00X SCREW, SET 1
23 K87-M111S-00X SCREW, FLAT HEAD+ 4
24 K87-M56C6-00X LEVER AXIS 1
25 K87-M111X-00X CSCREW, SET 1
