K87_FV_M-PL.pdf - 第60页
1 12 FV32 PSA FV32 PSA FV32PSA-0012 12 22 10 15 14 19 18 6 11 9 1 21 21 8 4 6 6 7 3 2 5 22 22 20 15 16 23 13 17 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M5510-00X BODY ASSY 1 2 K87-M1 16H-00X THRUS…

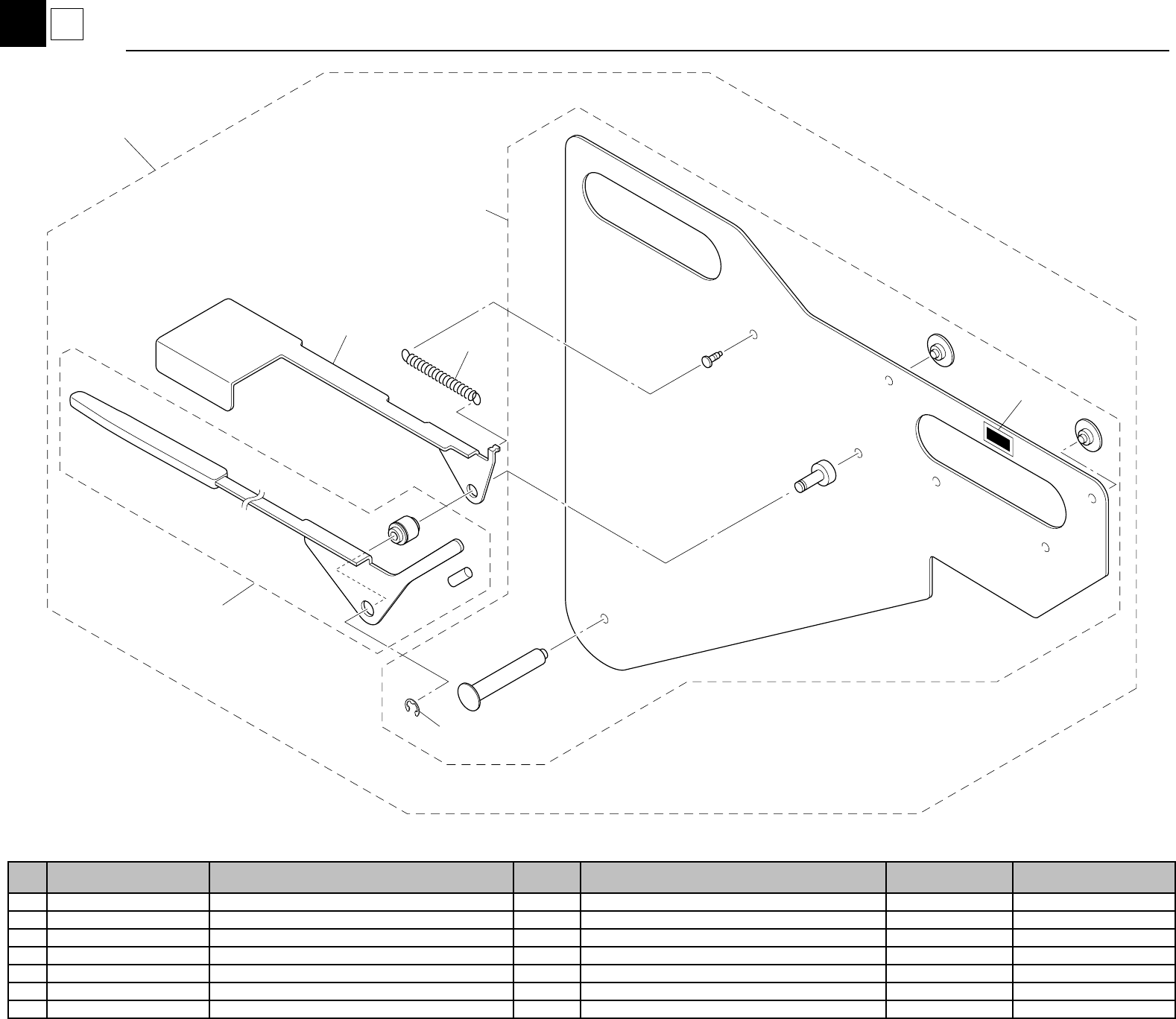

FV32 STD
FV32 STD
FV32STD-0012
11
5
1
4
2
3
5
6
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M53D0-00X REEL HOLDER ASSY 1
2 K87-M53D1-00X REEL PLATE ASSY 1
3 K87-M53D4-00X TAPE SIZE STICKER 1
4 K87-M53BX-00X CIRCLIP U 1
5 K87-M53DA-00X INDICATOR LEVER ASSY 1
6 K87-M53DE-00X REEL BRAKE LEVER 1
7 K87-M23DE-00X SPRING 1
1
12
FV32 PSA
FV32 PSA
FV32PSA-0012
12
22
10
15
14
19
18
6
11
9
1
21
21
8
4
6
6
7
3
2
5
22
22
20
15
16
23
13
17
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5510-00X BODY ASSY 1
2 K87-M116H-00X THRUST WASHER 1
3 K87-M552F-00X PLANE WASHER 1
4 K87-M532D-00X COIL SPRING 1
5 K87-M5520-00X SUB LEVER ASSY 1
6 K87-M11B9-00X CIRCLIP E 4
7 K87-M55BL-00X U NUT 1
8 K87-M111G-10X PUSH PIN L=10 (84D) 1
9 K87-M531G-00X BACK STOPPER 1
10 K87-M531A-00X BACK STOPPER AXIS 1
11 K87-M5319-00X BACK STPPER SPRING 1
12 K87-M531E-00X STOPPER PIN 1
13 K87-M551G-00X LEVER ASSY 1
14 K87-M551L-00X LEVER METAL ASSY 1
15 K87-M2316-00X THRUST WASHER 2
16 K87-M2317-00X COVER 1
17 K87-M5515-00X MAIN ARM 1
18 K87-M531C-00X HOOK 2
19 K87-M531D-00X SPRING 1
20 K87-M55BN-00X SCREW, FLAT HEAD + 2
21 K87-M111R-00X SCREW, SET 3
22 K87-M111V-00X SCREW, SET (84D) 3
23 K87-M23B6-00X SCREW, FLAT HEAD + 2
2
12
FV32 PSA
FV32 PSA
FV32PSA-0012
17
22
12
15
16
14
21
3
18
13
2
20
1
20
9
8
6
10
19
11
4
5
7
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M551B-00X PUSH PIN L=10 1
2 K87-M5512-00X KNOCK PIN (FRONT) 1
3 K87-M5513-00X KNOCK PIN (REAR) 1
4 K87-M2131-00X CLAMP LEVER UNIT 1
5 K87-M2132-00X CLAMP LEVER ASSY 1
6 K87-M113E-00X HINGE PIN 2 1
7 K87-M113D-00X ARM 2
8 K87-M213A-00X CLANK ARM ASSY 1
9 K87-M11D7-00X CIRCLIP E 2
10 K87-M213L-00X CLAMP LEVER AXIS 1
11 K87-M213M-00X AXIS PIN 1
12 K87-M113L-00X GUIDE AXIS 1
13 K87-M533A-00X GUIDE AXIS 1
14 K87-M5545-00X GUIDE AXIS 1
15 K87-M5540-00X TAPE GUIDE ASSY 1
16 K87-M5543-00X STICKER 1
17 K87-M534A-00X LOCK LEVER ASSY 1
18
K87-M534F-00X SCREW,TRUSS HEAD +
2
19 K87-M111Y-00X SCREW,SET 1
20 K87-M111V-00X SCREW,SET (84D) 2
21 K87-M23BG-00X ELBO CONNECTOR 1
22 K87-M55BA-00X HOSE 1
