FV56 S TD FV56 S TD FV 5 6STD-0012 16 4 1 5 6 3 7 4 8 9 2 No. Part No. Part Name Q't y Remarks Date R evised No. 1 K87-M7560-00X REEL PLATE ASSY 1 2 K87-M5569-00X REEL SIZE STICKER 1 3 K87-M7567-00X GU ID E PLATE 1 …
FV56 STD
FV56 STD
FV56STD-0012
16
3
15
8
3
9
5
6
9
7
9
10
16
18
2
21
4
13
20
1
19
17
11
12
14
15

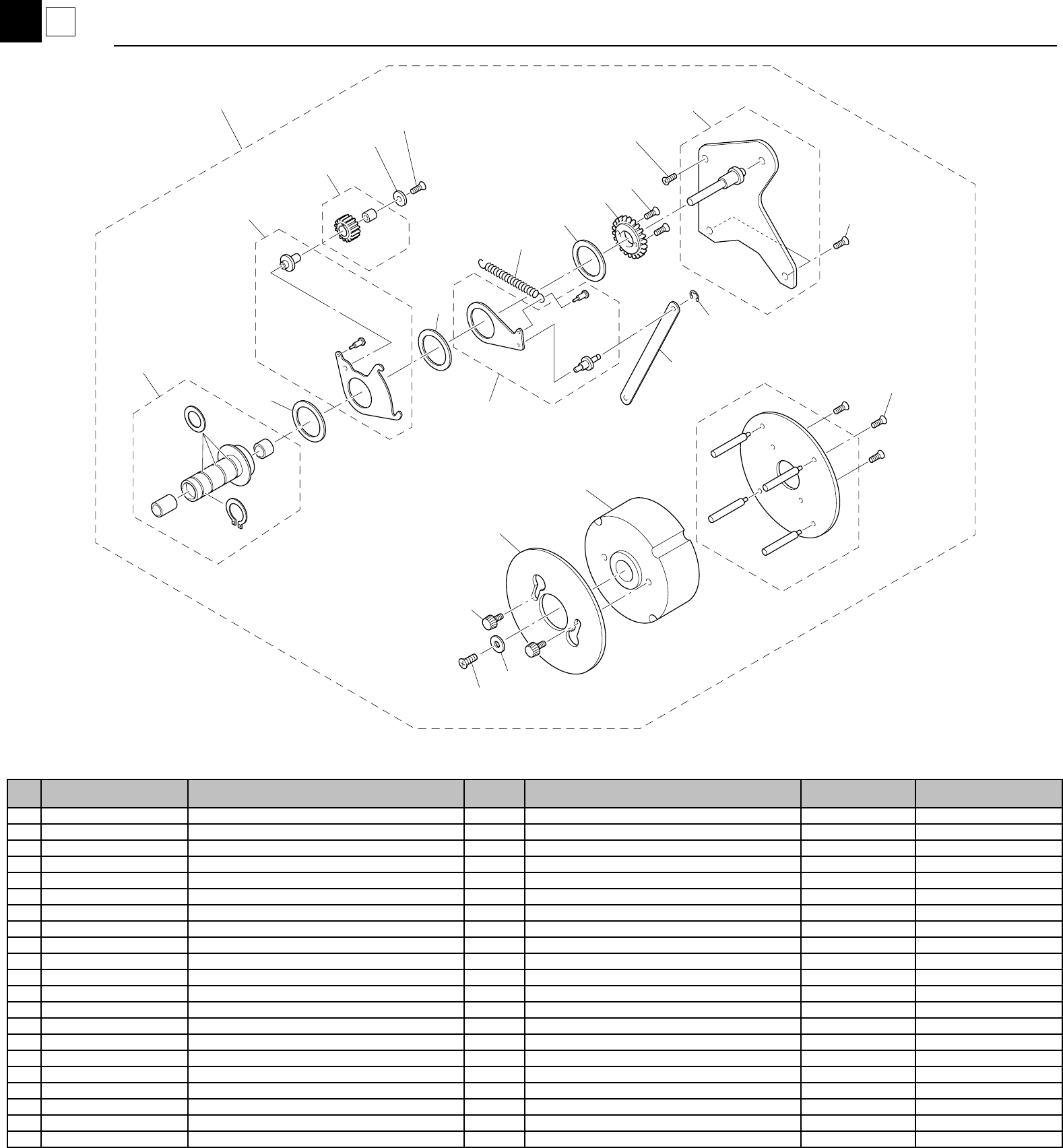

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M7590-00X WIND ROLLER ASSY 1
2 K87-M7591-00X WIND PLATE ASSY 1
3 K87-M559A-00X DRIVE GEAR ASSY 1
4 K87-M559G-00X SUB LEVER ASSY 1
5 K87-M559D-00X INDENTATION LEVER ASSY 1
6 K87-M7594-00X REEL SHAFT ASSY 1
7 K87-M539M-00X SPRING 1
8 K87-M2397-00X PLANE WASHER 1
9 K87-M119J-00X THRUST WASHER 3
10 K87-M559K-00X INDEX GEAR 1
11 K87-M239Y-00X PLANE WASHER 1
12 K87-M559U-00X REEL PLATE 1
13 K87-M559L-00X SUB ARM 1
14 K87-M759T-00X METAL 1
15 K87-M23BJ-00X SCREW, FLAT HEAD + 5
16 K87-M55BN-00X SCREW, FLAT HEAD + 2
17 K87-M55BJ-00X SCREW,TRUSS HEAD 1
18 K87-M55BH-00X SCREW,TRUSS HEAD 1
19 K87-M55BP-00X THUMB SCREW 2
20 K87-M11B9-00X CIRCLIP E 1
21 K87-M23B6-00X SCREW,FLAT HEAD + 2
FV56 STD
FV56 STD
FV56STD-0012
16
4
1
5
6
3
7
4
8
9
2

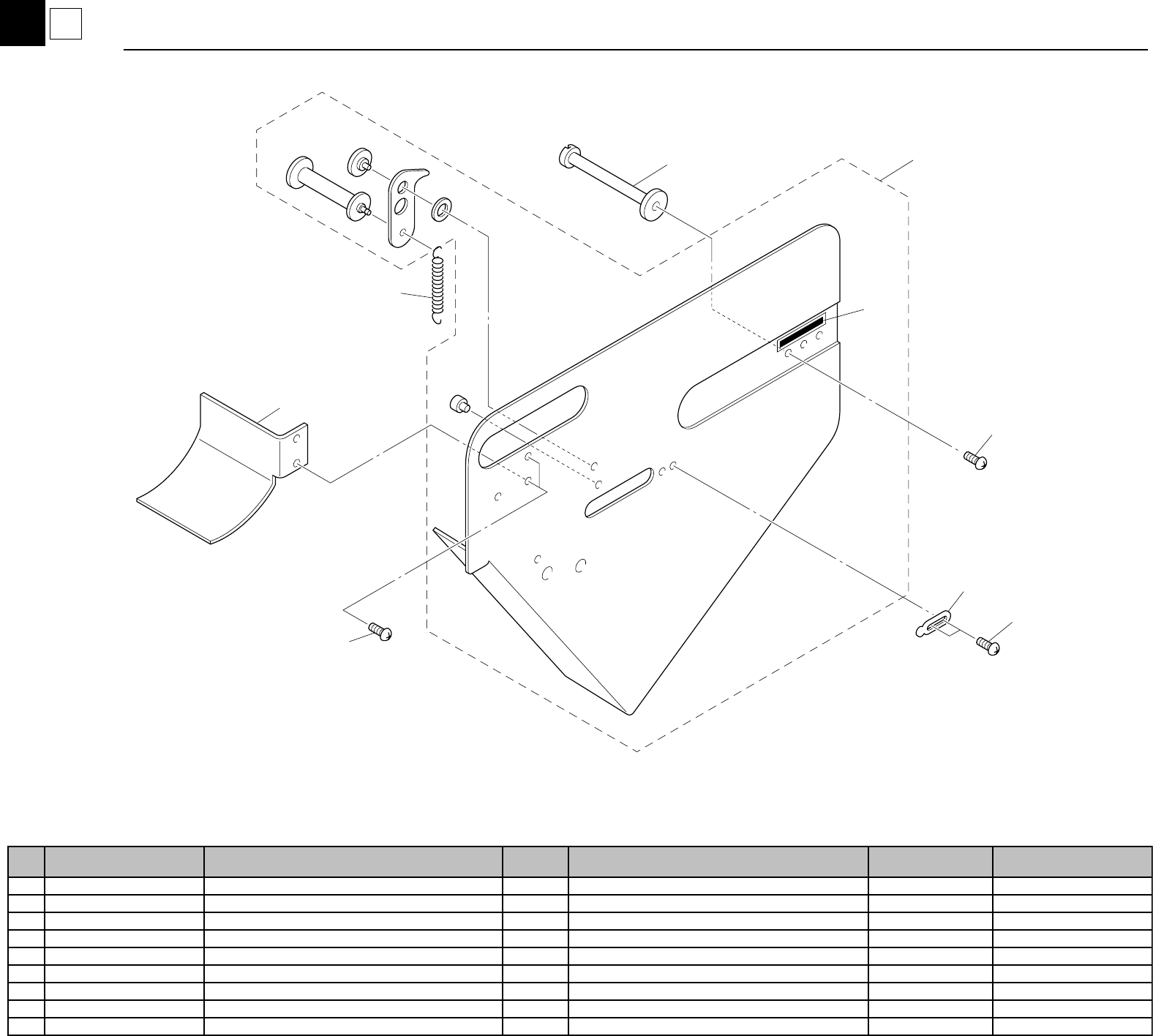

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M7560-00X REEL PLATE ASSY 1
2 K87-M5569-00X REEL SIZE STICKER 1
3 K87-M7567-00X GUIDE PLATE 1
4 K87-M556B-00X PLATE HOOK 1
5 K87-M756D-00X REEL AXIS 1
6 K87-M556C-00X SPRING 1
7 K87-M534F-00X SCREW,TRUSS HEAD + 2
8 K87-M55BG-00X SCREW,TRUSS HEAD + 4
9 K87-M23B7-00X SCREW, TRUSS HEAD + 1
FV56 STD
FV56 STD
FV56STD-0301
16
5
15
16
2
1
6
16
14
10
8
11
17
5
4
13
7
18
9
12
3

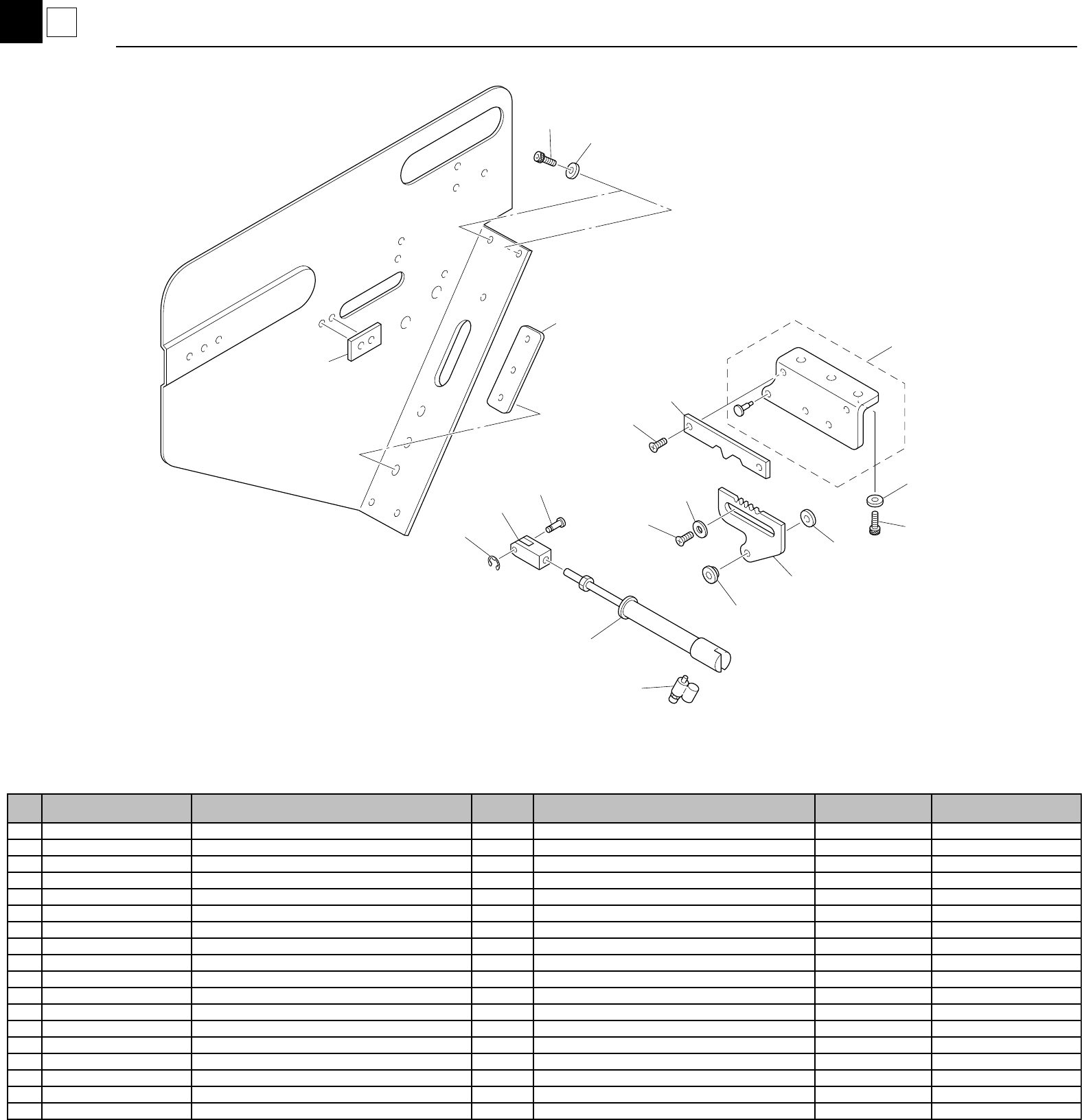

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M556E-00X PLATE 1
2 K87-M238C-00X FASTEN PLATE 1
3K87-M2381-00XCYLINDER1
4K87-M2382-00XCYL CONNECTOR1
5 K87-M1184-00X CONNECT PIN 1
6 K87-M558A-00X SET PLATE ASSY 1
7 K87-M538C-00X POSITION PLATE 1
8 K87-M7584-00X ADJUST PLATE 1
9 K87-M2385-00X METAL 1
10 K87-M2386-00X PLANE WASHER 1
11 K87-M2387-00X PLANE WASHER 2
12 K87-M75BE-00X SPEED CONTROLER 1
13 K87-M11B9-00X CIRCLIP E 1
14 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
16 K87-M23BC-00X PLANE WASHER 6
17 K87-M111S-00X SCREW, FLAT HEAD + 2
18 K87-M23B7-00X SCREW, TRUSS HEAD + 2
