FV44 S TD FV44 S TD FV 44 STD-0012 14 2 6 7 8 11 10 1 2 3 4 9 6 5 No. Part No. Part Name Q't y Remarks Date R evised No. 1 K87-M2313-00X KNOCK PIN (REAR) 1 2 K87-M5330-00X CLAMP LEVER ASSY 1 3 K87-M2335-00X CLAMP RO…
1
14
FV44 STD
FV44 STD
FV44STD-0012
19
2
17
21
22
13
26
25
7
27
7
18
16
1
29
14
28
15
12
8
10
9
11
29
5
7
7
13
4
3
6
29
29
22
23
13
20
24

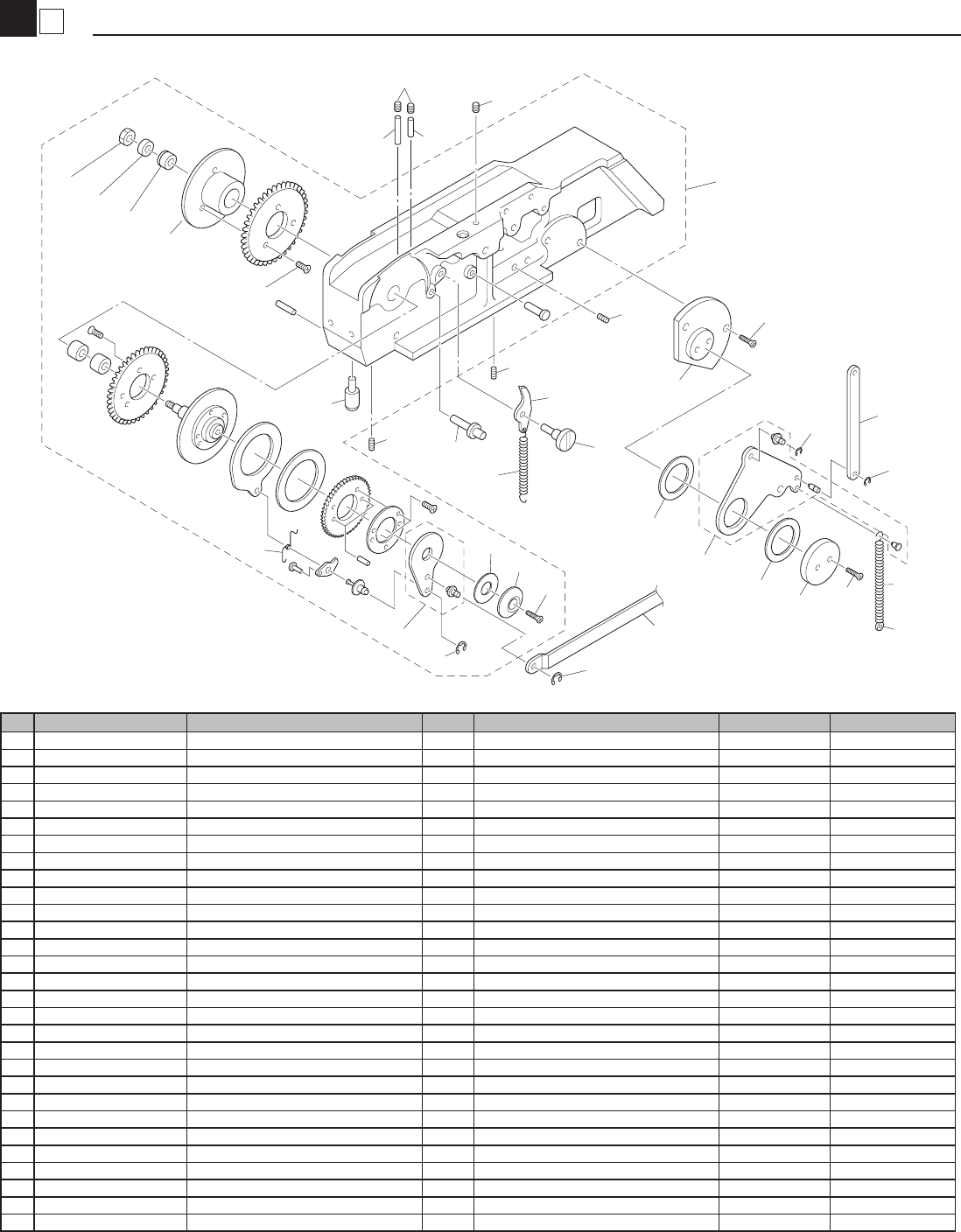

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M6310-00X BODY ASSY 1
2 K87-M1112-00X KNOCK PIN (FRONT) 1
3 K87-M116H-00X THRUST WASHER 1
4 4K87-M5323-00X CAP 1
5 K87-M532D-00X COIL SPRING 1
6 K87-M5320-00X SUB LEVER ASSY 1
7 K87-M11B9-00X CIRCLIP E 4
8 K87-M532J-00X METAL 1
9 K87-M532L-00X PRESSURE RING 1
10 K87-M532K-00X CLAMP ELEMENT 1
11 K87-M532M-00X U NUT 1
12 K87-M111P-00X SCREW,FLAT HEAD + 3
13 K87-M23B6-00X SCREW,FLAT HEAD + 5
14 4K87-M531F-00X PUSH PIN 1
15 K87-M531B-00X PUSH PIN 1
16 K87-M531G-00X BACK STOPPER 1
17 K87-M531A-00X BACK STOPPER AXIS 1
18 K87-M5319-00X BACK STPPER SPRING 1
19 K87-M531E-00X STOPPER PIN 1
20 K87-M431G-00X LEVER ASSY 1
21 K87-M231F-00X PLATE 1
22 K87-M2316-00X THRUST WASHER 2
23 K87-M2317-00X CAP 1
25 4K87-M5315-00X MAIN ARM 1
25 K87-M531C-00X HOOK 2
26 K87-M531D-00X SPRING 1
27 K87-M238D-00X SUB ARM 1
28 K87-M111Y-00X SCREW,SET 2
29 K87-M111V-00X SCREW,SET (84D) 4
FV44 STD
FV44 STD
FV44STD-0012
14
2
6
7
8
11
10
1
2
3
4
9
6
5

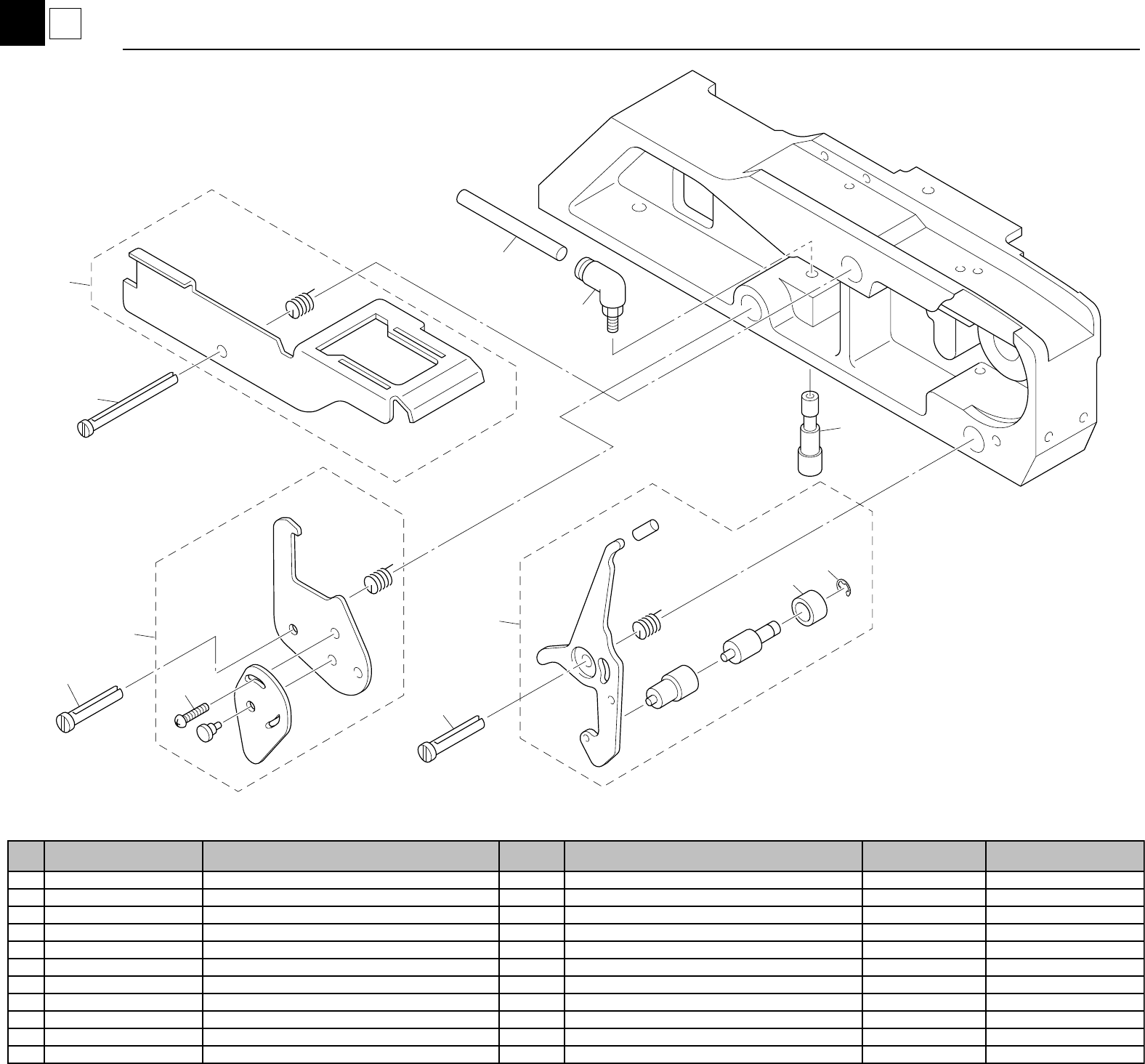

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2313-00X KNOCK PIN (REAR) 1
2 K87-M5330-00X CLAMP LEVER ASSY 1
3 K87-M2335-00X CLAMP ROLLER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M6342-00X GUIDE AXIS 1
6 K87-M533A-00X GUIDE AXIS 2
7 K87-M6340-00X TAPE GUIDE ASSY 1
8 K87-M534A-00X LOCK LEVER ASSY 1
9 K87-M534F-00X SCREW,FLAT HEAD + 2
10 K87-M23BG-00X ELBO CONNECTOR 1
11 K87-M53BH-00X HOSE 1
FV44 STD
FV44 STD
FV44STD-0301
14
3
14
15
9
8
15
13
7
10
5
4
6
12
2
1
11
3
16
17
No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M2381-00XCYLINDER1
2K87-M2382-00XCYL CONNECTOR1
3 K87-M1184-00X CONNECT PIN 1
4 K87-M5384-00X MOVE PLATE 1
5 K87-M2385-00X METAL 1
6 K87-M2386-00X PLANE WASHER 1
7 K87-M2387-00X PLANE WASHER 2
8 K87-M5389-00X SET PLATE ASSY 1
9 K87-M238C-00X FASTEN PLATE 1
10 K87-M23B7-00X SCREW,PAN HEAD + 2
11 K87-M43B8-00X SPEED CONTROLER 1
12 K87-M11B9-00X CIRCLIP E 3
13 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
14 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BC-00X PLANE WASHER 6
16 K87-M111S-00X FLAT HEAD + 2
17 K87-M538C-00X POSITION PLATE 1
