K87_FV_M-PL.pdf - 第62页
FV32 PSA FV32 PSA FV32PSA-0012 12 3 15 8 3 9 5 6 9 7 9 10 16 18 2 21 4 13 20 1 19 17 11 12 14 15 N o . Part No. Part Name Q'ty Re m arks Date R evised No. 1 K87-M5590-00X W I N D ROLLER ASSY 1 2 K87-M5591-00X WIND P…

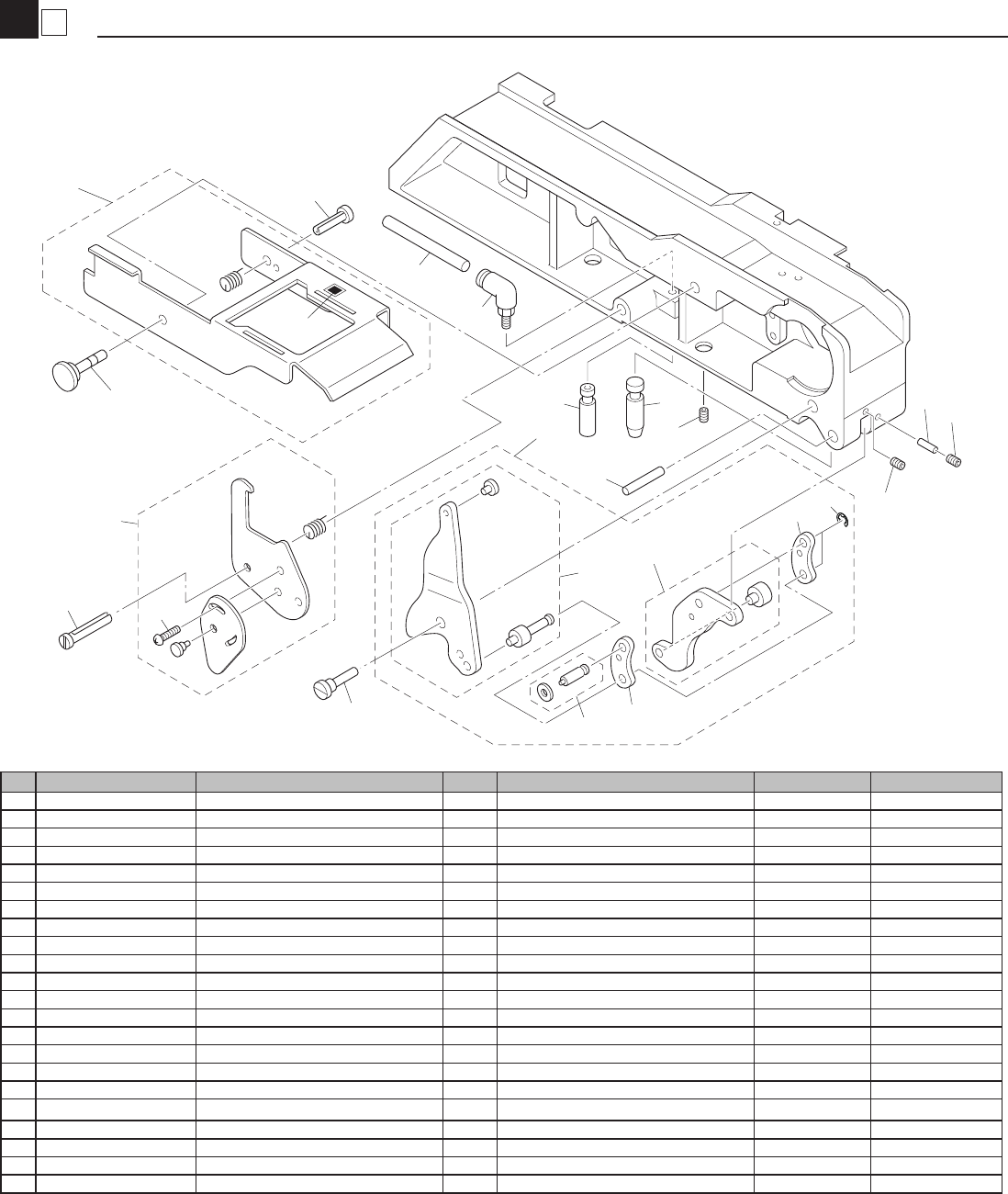

2
12

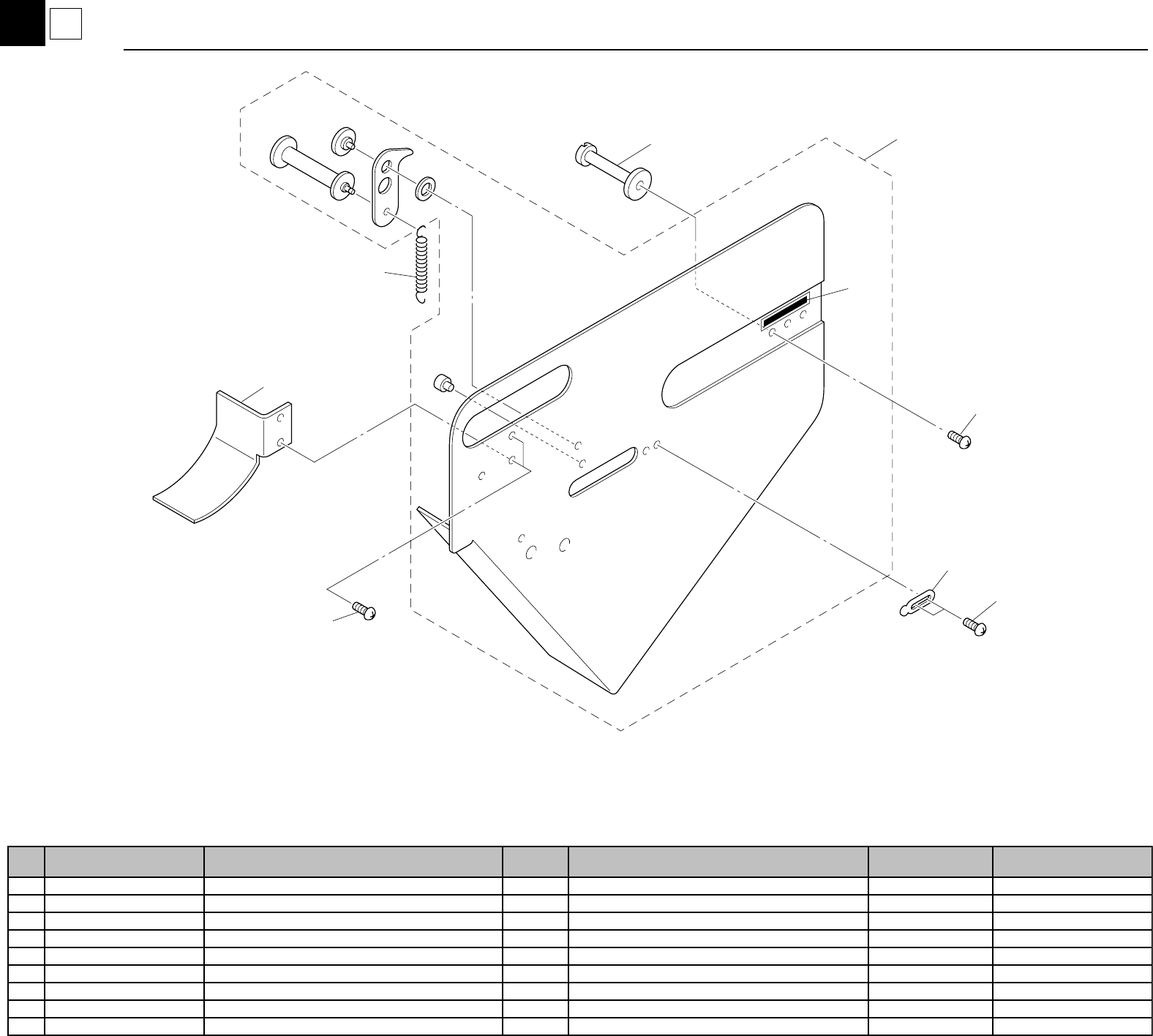

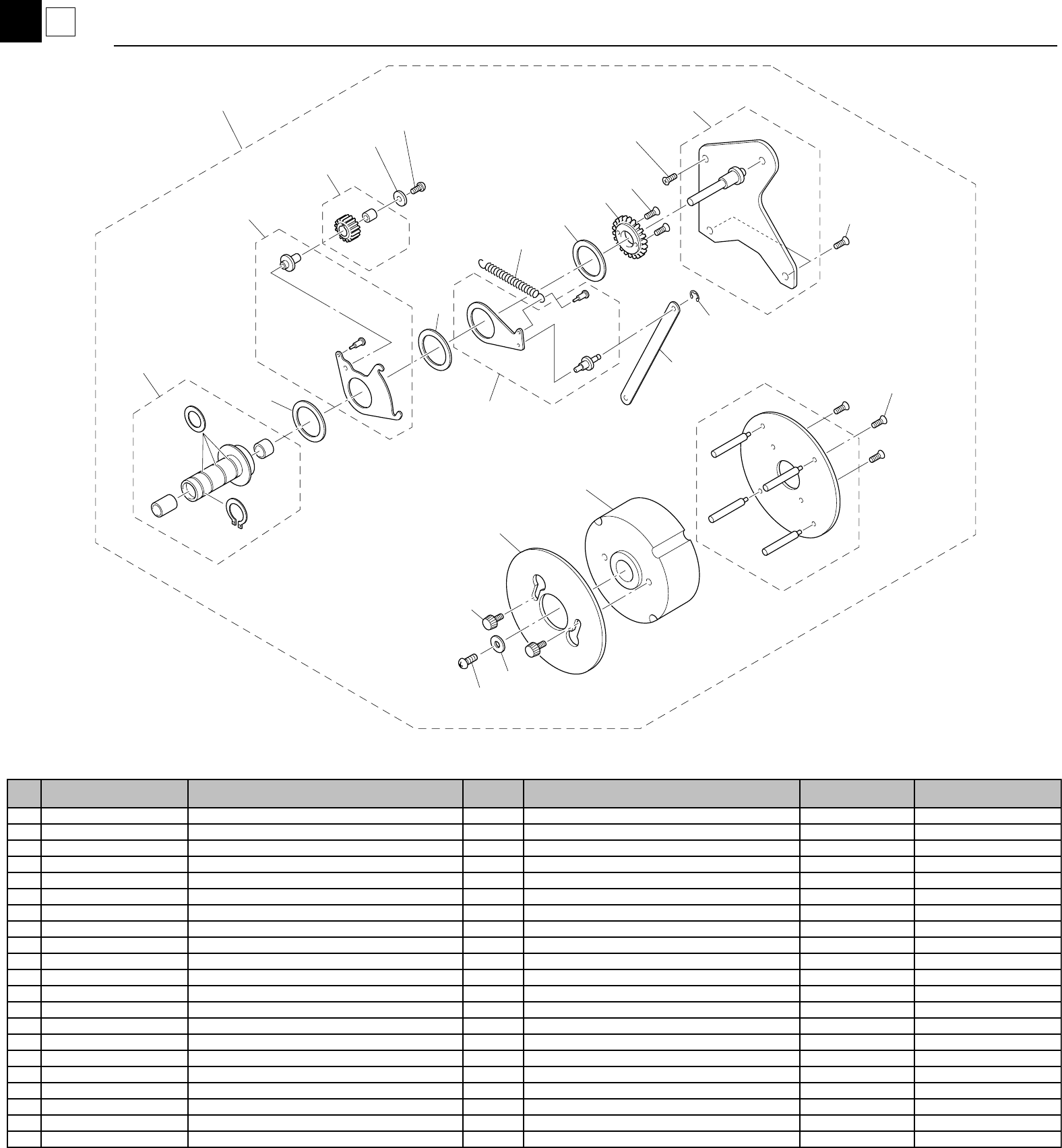

FV32 PSA
FV32 PSA
FV32PSA-0012
17
22
12
15
16
14
21
3
18
13
2
20
1
20
9
8
6
10
19
11
4
5
7
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M551B-00X PUSH PIN L=10 1
2 K87-M5512-00X KNOCK PIN (FRONT) 1
3 K87-M5513-00X KNOCK PIN (REAR) 1
4 K87-M2131-00X CLAMP LEVER UNIT 1
5 K87-M2132-00X CLAMP LEVER ASSY 1
6 K87-M113E-00X HINGE PIN 2 1
7 K87-M113D-00X ARM 2
8 K87-M213A-00X CLANK ARM ASSY 1
9 K87-M11D7-00X CIRCLIP E 2
10 K87-M213L-00X CLAMP LEVER AXIS 1
11 K87-M213M-00X AXIS PIN 1
12 K87-M113L-00X GUIDE AXIS 1
13 K87-M533A-00X GUIDE AXIS 1
14 K87-M5545-00X GUIDE AXIS 1
15 K87-M5540-00X TAPE GUIDE ASSY 1
16 K87-M5543-00X STICKER 1
17 K87-M534A-00X LOCK LEVER ASSY 1
18
K87-M534F-00X SCREW,TRUSS HEAD +
2
19 K87-M111Y-00X SCREW,SET 1
20 K87-M111V-00X SCREW,SET (84D) 2
21 K87-M23BG-00X ELBO CONNECTOR 1
22 K87-M55BA-00X HOSE 1
FV32 PSA
FV32 PSA
FV32PSA-0012
12
3
15
8
3
9
5
6
9
7
9
10
16
18
2
21
4
13
20
1
19
17
11
12
14
15
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5590-00X WIND ROLLER ASSY 1
2 K87-M5591-00X WIND PLATE ASSY 1
3 K87-M559A-00X DRIVE GEAR ASSY 1
4 K87-M559G-00X SUB LEVER ASSY 1
5 K87-M559D-00X INDENTATION LEVER ASSY 1
6 K87-M5594-00X REEL SHAFT ASSY 1
7 K87-M539M-00X SPRING 1
8 K87-M2397-00X PLANE WASHER 1
9 K87-M119J-00X THRUST WASHER 3
10 K87-M559K-00X INDEX GEAR 1
11 K87-M239Y-00X PLANE WASHER 1
12 K87-M559U-00X REEL PLATE 1
13 K87-M559L-00X SUB ARM 1
14 K87-M559T-00X METAL 1
15 K87-M23BJ-00X SCREW, FLAT HEAD + 5
16 K87-M55BN-00X SCREW, FLAT HEAD + 2
17 K87-M55BJ-00X SCREW,TRUSS HEAD 1
18 K87-M55BH-00X SCREW,TRUSS HEAD 1
19 K87-M55BP-00X THUMB SCREW 2
20 K87-M11B9-00X CIRCLIP E 1
21 K87-M23B6-00X SCREW,FLAT HEAD + 2
FV32 PSA
FV32 PSA
FV32PSA-0012
12
4
1
5
6
3
8
4
9
7
2
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5560-00X REEL PLATE ASSY 1
2 K87-M5569-00X REEL SIZE STICKER 1
3 K87-M5567-00X GUIDE PLATE 1
4 K87-M556B-00X PLATE HOOK 1
5 K87-M556D-00X REEL AXIS 1
6 K87-M556C-00X SPRING 1
7 K87-M23B7-00X SCREW,TRUSS HEAD + 1
8 K87-M534F-00X SCREW,TRUSS HEAD + 2
9 K87-M55BG-00X SCREW,TRUSS HEAD + 2
