2 15 FV44 PSA FV44 PSA FV44PSA-0012 17 22 12 15 16 14 21 3 18 13 2 20 1 20 9 8 6 10 19 11 4 5 7 7 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M551B-00X PUSH PIN L=10 1 2 K87-M5512-00X KNOCK PIN (FRONT…

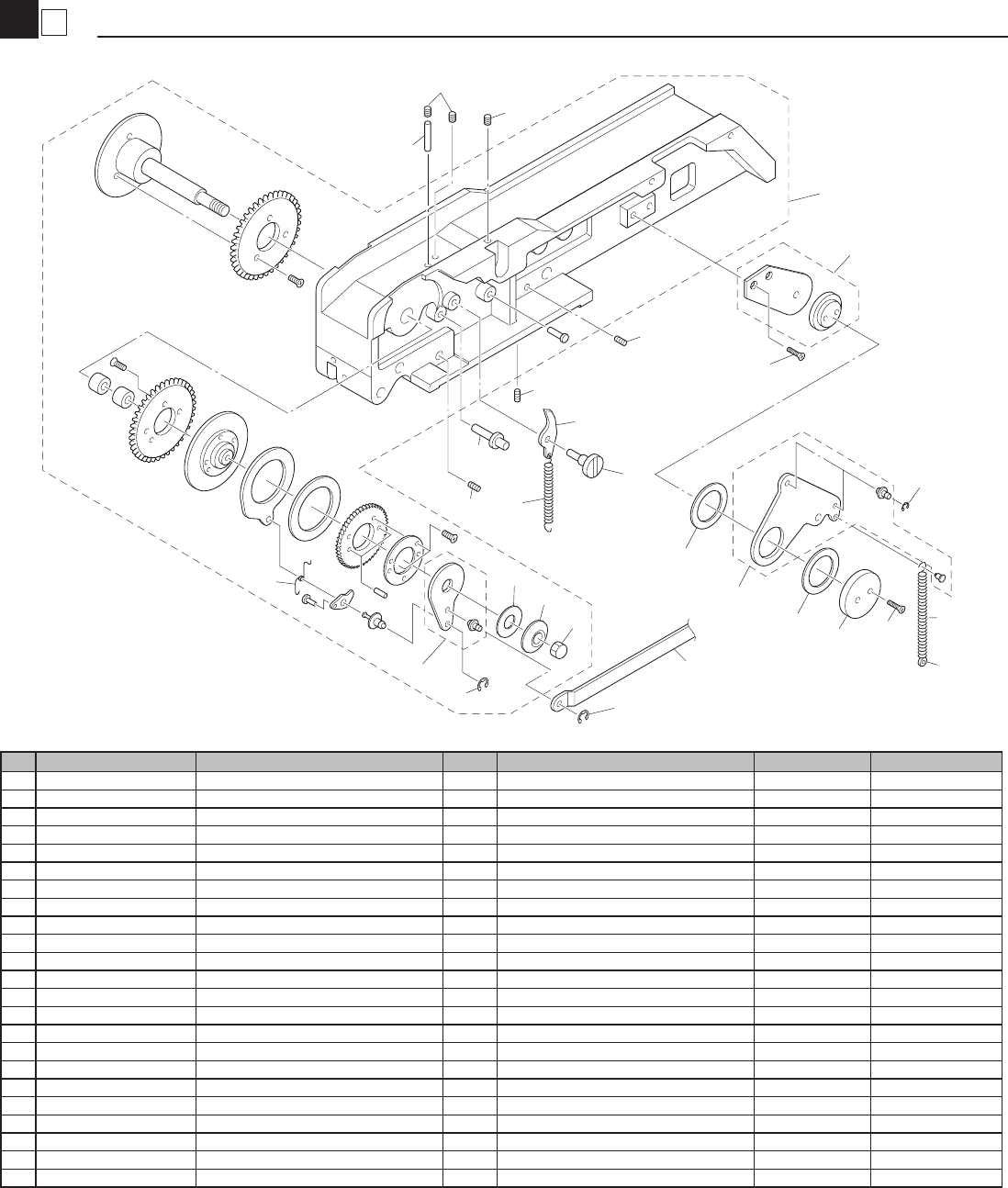

1
15

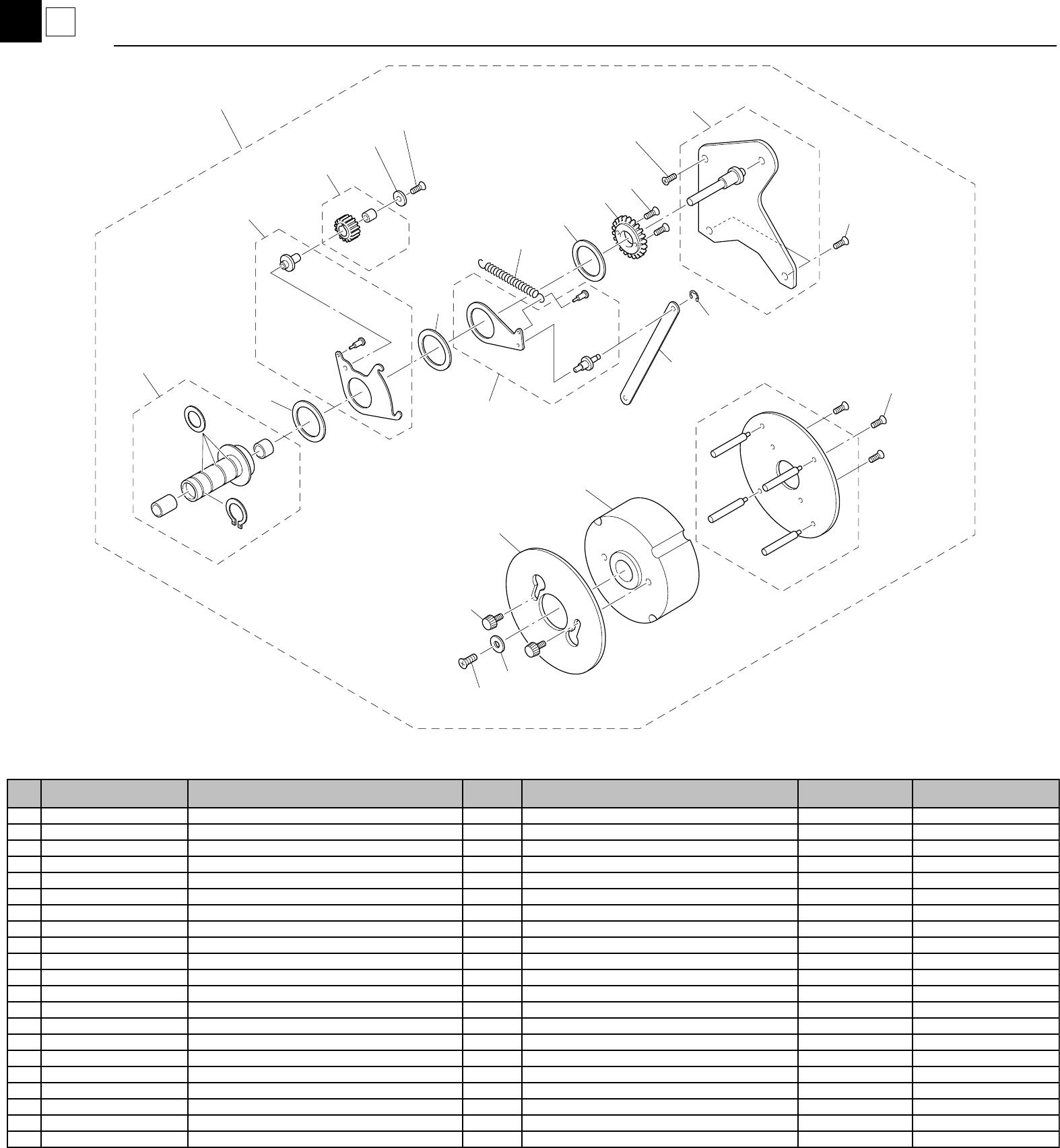

FV44 PSA
FV44 PSA
FV44PSA-0012
12
22
10
15
14
19
18
6
11
9
1
21
21
8
4
6
6
7
3
2
5
22
22
20
15
16
23
13
17
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M6510-00X BODY ASSY 1
2 K87-M116H-00X THRUST WASHER 1
3 K87-M552F-00X PLANE WASHER 1
4 K87-M532D-00X COIL SPRING 1
5 K87-M5520-00X SUB LEVER ASSY 1
6 K87-M11B9-00X CIRCLIP E 4
7 K87-M55BL-00X U NUT 1
8 K87-M111G-10X PUSH PIN L=10 (84D) 1
9 K87-M531G-00X BACK STOPPER 1
10 K87-M531A-00X BACK STOPPER AXIS 1
11 K87-M5319-00X BACK STPPER SPRING 1
12 K87-M531E-00X STOPPER PIN 1
13 K87-M551G-00X LEVER ASSY 1
14 K87-M551L-00X LEVER METAL ASSY 1
15 K87-M2316-00X THRUST WASHER 2
16 K87-M2317-00X COVER 1
17 K87-M5515-00X MAIN ARM 1
18 K87-M531C-00X HOOK 2
19 K87-M531D-00X SPRING 1
20 K87-M55BN-00X SCREW, FLAT HEAD + 2
21 K87-M111R-00X SCREW, SET 3
22 K87-M111V-00X SCREW, SWT (84D) 3
23 K87-M23B6-00X SCREW, FLAT HEAD + 2

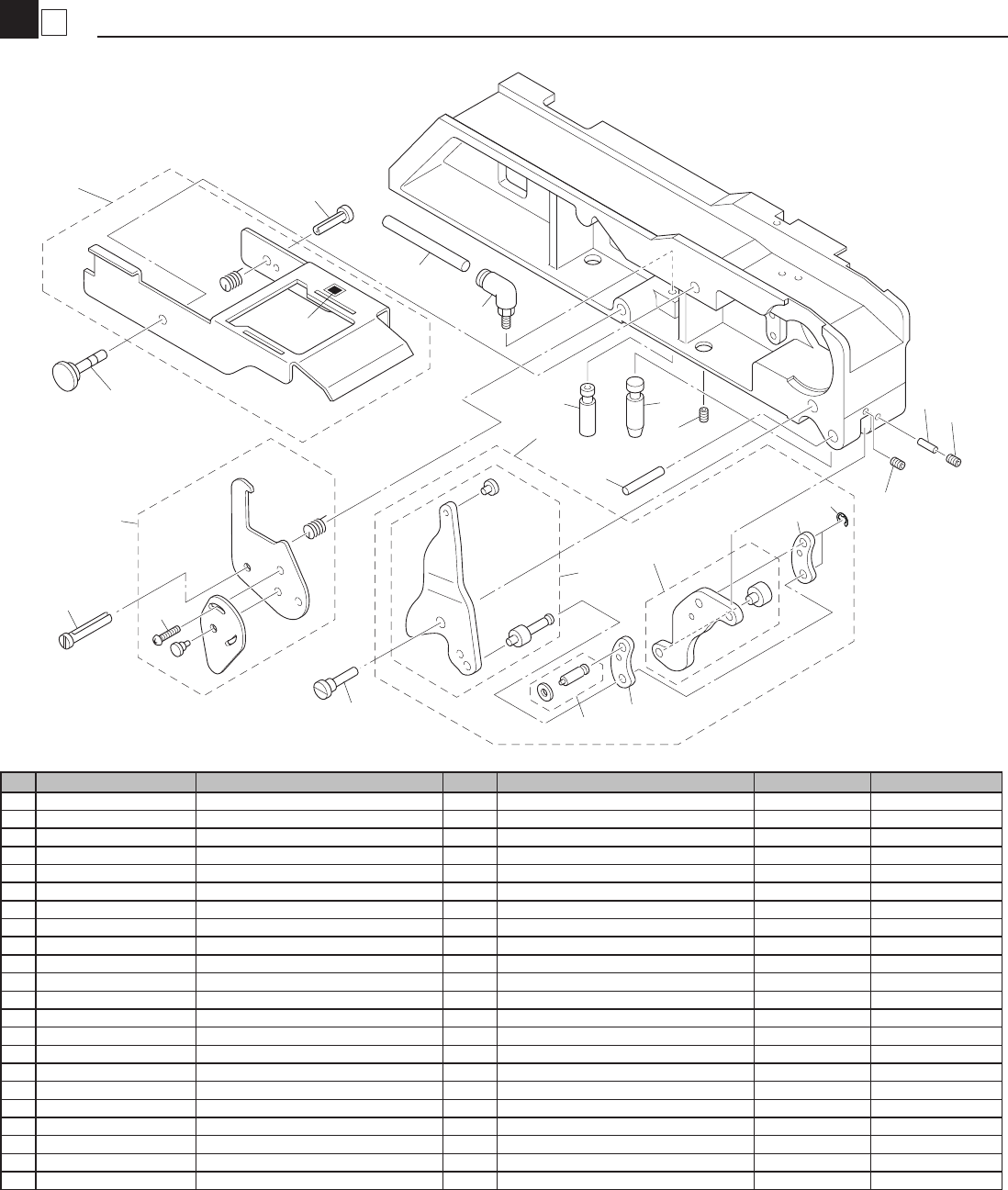

2
15
FV44 PSA
FV44 PSA
FV44PSA-0012
17
22
12
15
16
14
21
3
18
13
2
20
1
20
9
8
6
10
19
11
4
5
7
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M551B-00X PUSH PIN L=10 1
2 K87-M5512-00X KNOCK PIN (FRONT) 1
3 K87-M5513-00X KNOCK PIN (REAR) 1
4 K87-M2131-00X CLAMP LEVER UNIT 1
5 K87-M2132-00X CLAMP LEVER ASSY 1
6 K87-M113E-00X HINGE PIN 2 1
7 K87-M113D-00X ARM 2
8 K87-M213A-00X CLANK ARM ASSY 1
9 K87-M11D7-00X CIRCLIP E 2
10 K87-M213L-00X CLAMP LEVER AXIS 1
11 K87-M213M-00X AXIS PIN 1
12 K87-M113L-00X GUIDE AXIS 1
13 K87-M533A-00X GUIDE AXIS 1
14 K87-M5545-00X GUIDE AXIS 1
15 K87-M6540-00X TAPE GUIDE ASSY 1
16 K87-M5543-00X STICKER 1
17 K87-M534A-00X LOCK LEVER ASSY 1
18 K87-M534F-00X SCREW,TRUSS HEAD + 2
19 K87-M111Y-00X SCREW,SET 1
20 K87-M111V-10X SCREW,SET (84D) 2
21 K87-M23BG-00X ELBO CONNECTOR 1
22 K87-M55BA-00X HOSE 1
FV44 PSA
FV44 PSA
FV44PSA-0012
15
3
15
8
3
9
5
6
9
7
9
10
16
18
2
21
4
13
20
1
19
17
11
12
14
15
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M6590-00X WIND ROLLER ASSY 1
2 K87-M6591-00X WIND PLATE ASSY 1
3 K87-M559A-00X DRIVE GEAR ASSY 1
4 K87-M559G-00X SUB LEVER ASSY 1
5 K87-M559D-00X INDENTATION LEVER ASSY 1
6 K87-M6594-00X REEL SHAFT ASSY 1
7 K87-M539M-00X SPRING 1
8 K87-M2397-00X PLANE WASHER 1
9 K87-M119J-00X THRUST WASHER 3
10 K87-M559K-00X INDEX GEAR 1
11 K87-M239Y-00X PLANE WASHER 1
12 K87-M559U-00X REEL PLATE 1
13 K87-M559L-00X SUB ARM 1
14 K87-M659T-00X METAL 1
15 K87-M23BJ-00X SCREW, FLAT HEAD + 5
16 K87-M55BN-00X SCREW, FLAT HEAD + 2
17 K87-M55BJ-00X SCREW,TRUSS HEAD 1
18 K87-M55BH-00X SCREW,TRUSS HEAD 1
19 K87-M55BP-00X THUMB SCREW 2
20 K87-M11B9-00X CIRCLIP E 1
21 K87-M23B6-00X SCREW,FLAT HEAD + 2
