8 15 11 7 6 13 3 14 5 22 1 17 19 21 20 2 18 16 16 12 16 9 4 10 1 2 FV12D FV12D FV12D-0406 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M21 10-10X BODY ASSY 1 2 K87-M1 112-10X KNOCK PIN (FRONT) 1 3 K87-…

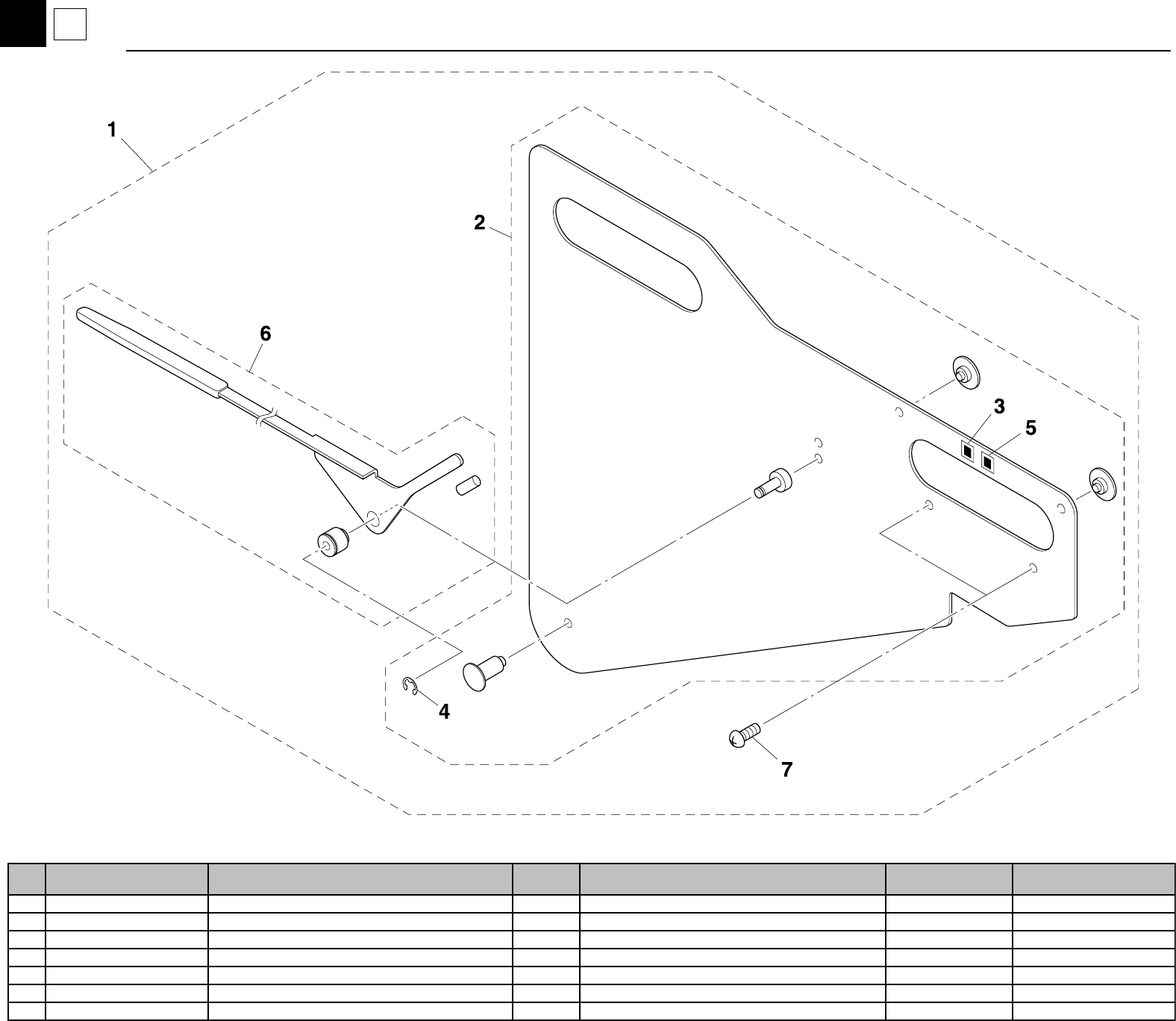

FV12C
FV12C
FV12C-0012
1
6
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M22D0-00X REEL HOLDER ASSY 1
2 K87-M22D1-00X REEL PLATE ASSY 1
3 K87-M21D3-00X TAPE SIZE STICKER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M12D8-00X REEL SIZE STICKER 1
6 K87-M12DA-00X INDICATOR LEVER ASSY 1
7 K87-M111N-00X SCREW,PAN HEAD + 2
8
15
11
7
6
13
3
14
5
22
1
17
19
21
20
2
18
16
16
12
16
9
4
10
1
2

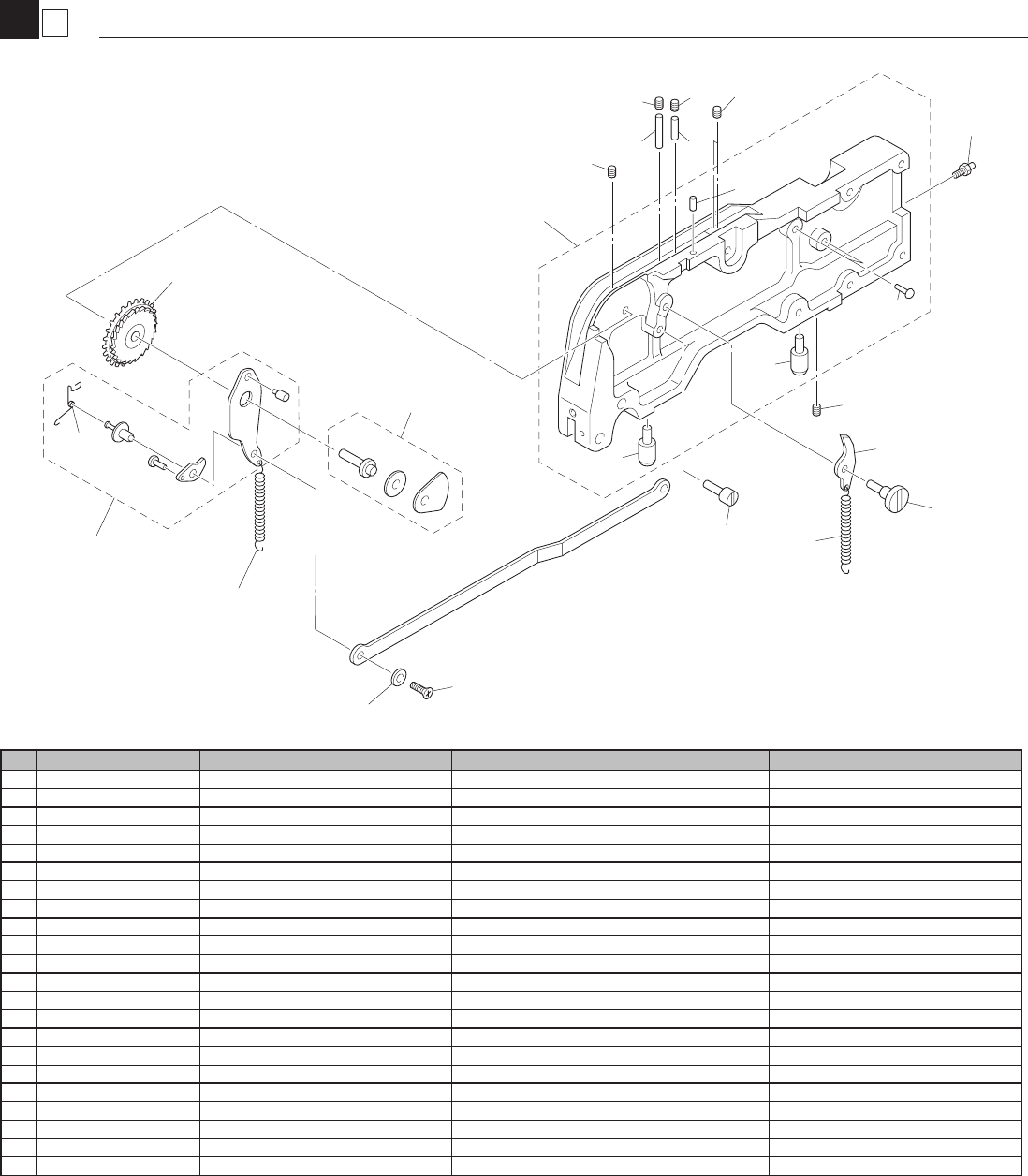

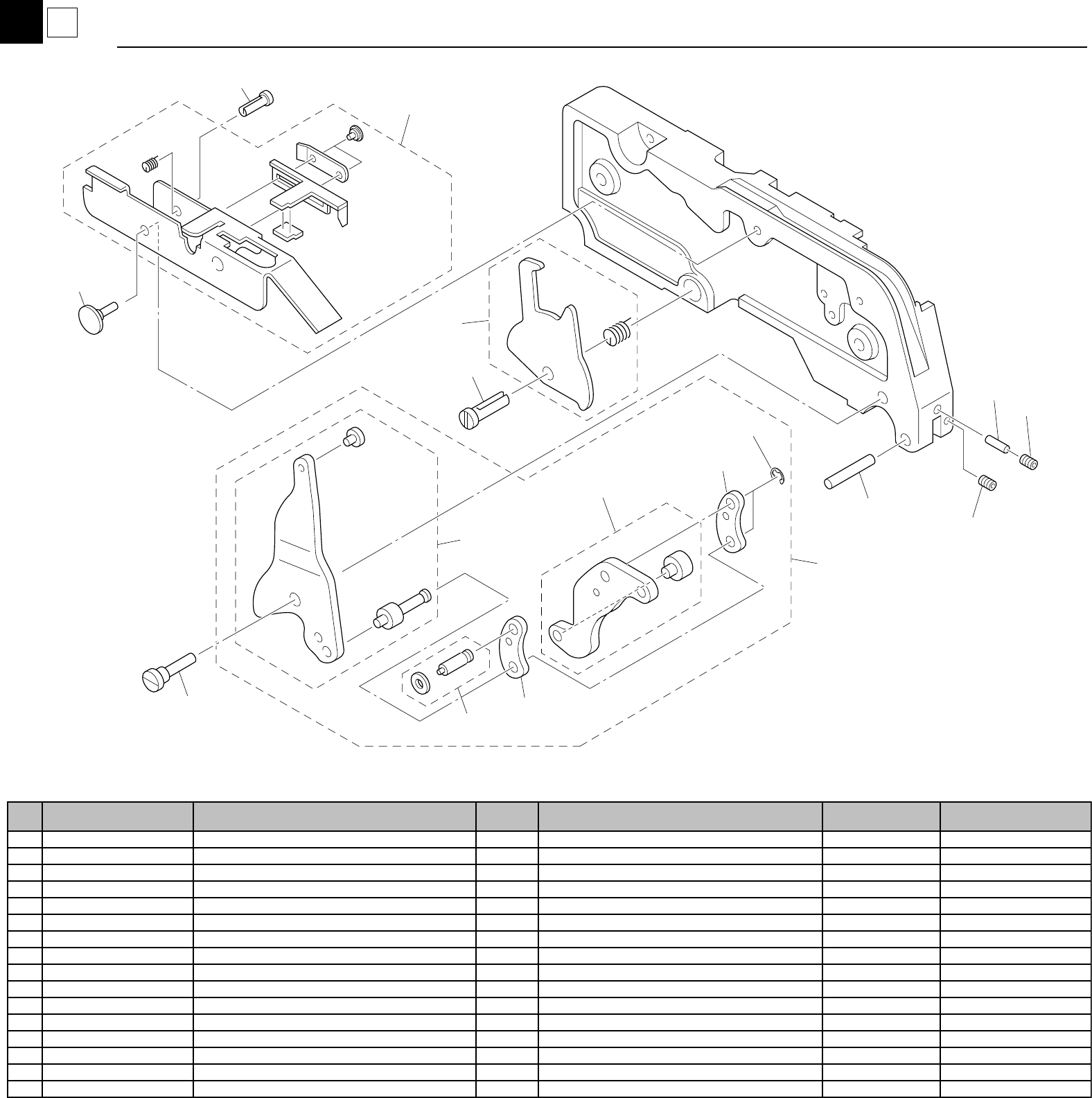

FV12D
FV12D
FV12D-0406
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2110-10X BODY ASSY 1
2 K87-M1112-10X KNOCK PIN (FRONT) 1
3 K87-M2113-10X KNOCK PIN (REAR) 1
4 K87-M2114-10X NEEDLE ROLLER 1
5 CIRCULAR RIVET 2
6 K87-M111A-10X SPRING 1
7 K87-M111B-00X BACK STOPPER AXIS 1
8 K87-M111C-00X PLANE WASHER 1
9 K87-M111G-10X PUSH PIN 1
10 K87-M211E-00X SPRING 1
11 K87-M111F-10X STOPPER PIN 1
12 K87-M111G-00X PUSH PIN 1
13 K87-M111H-10X BACK STOPPER 1
14 K87-M1186-00X BARB CONNECTOR STRAIGHT 1
15 K87-M111P-00X SCREW,FLAT HEAD + 1
16 K87-M111R-00X SCREW,SET 3
17 K87-M111T-00X SCREW,SET 2
18 K87-M111X-00X SCREW,SET 1
19 K87-M1120-00X SPROCKET 1
20 K87-M212A-10X RACKING LEVER ASSY 1
21 K87-M112D-00X COIL SPRING 1 2002.5
22 K87-M212L-10X SPROCKET AXIS ASSY 1
FV12D
FV12D
FV12D-0305
2
2
11
1
8
5
13
12
16
14
15
7
9
2
10
3
4
6
6
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M111V-00X SCREW,SET 1
2 K87-M111Y-00X SCREW,SET 1
3 K87-M2131-00X CLAMP LEVER UNIT 1
4 K87-M2132-10X CLAMP LEVER ASSY 1
5 K87-M213A-00X CLANK ARM ASSY 1
6 K87-M113D-00X ARM 2
7 K87-M113E-00X HINGE PIN 2 1
8 K87-M11D7-00X CIRCLIP E 2
9 K87-M213L-10X CLAMP LEVER AXIS 1
10 K87-M213M-00X AXIS PIN 1
11 K87-M113H-00X PUSH PIN 1
12 K87-M2140-10X TAPE GUIDE ASSY 1
13 K87-M114A-10X LOCK LEVER ASSY 1
14 K87-M214N-00X GUIDE AXIS 1
15 K87-M214P-00X GUIDE PIN 1
16 K87-M213L-00X GUIDE AXIS 1
