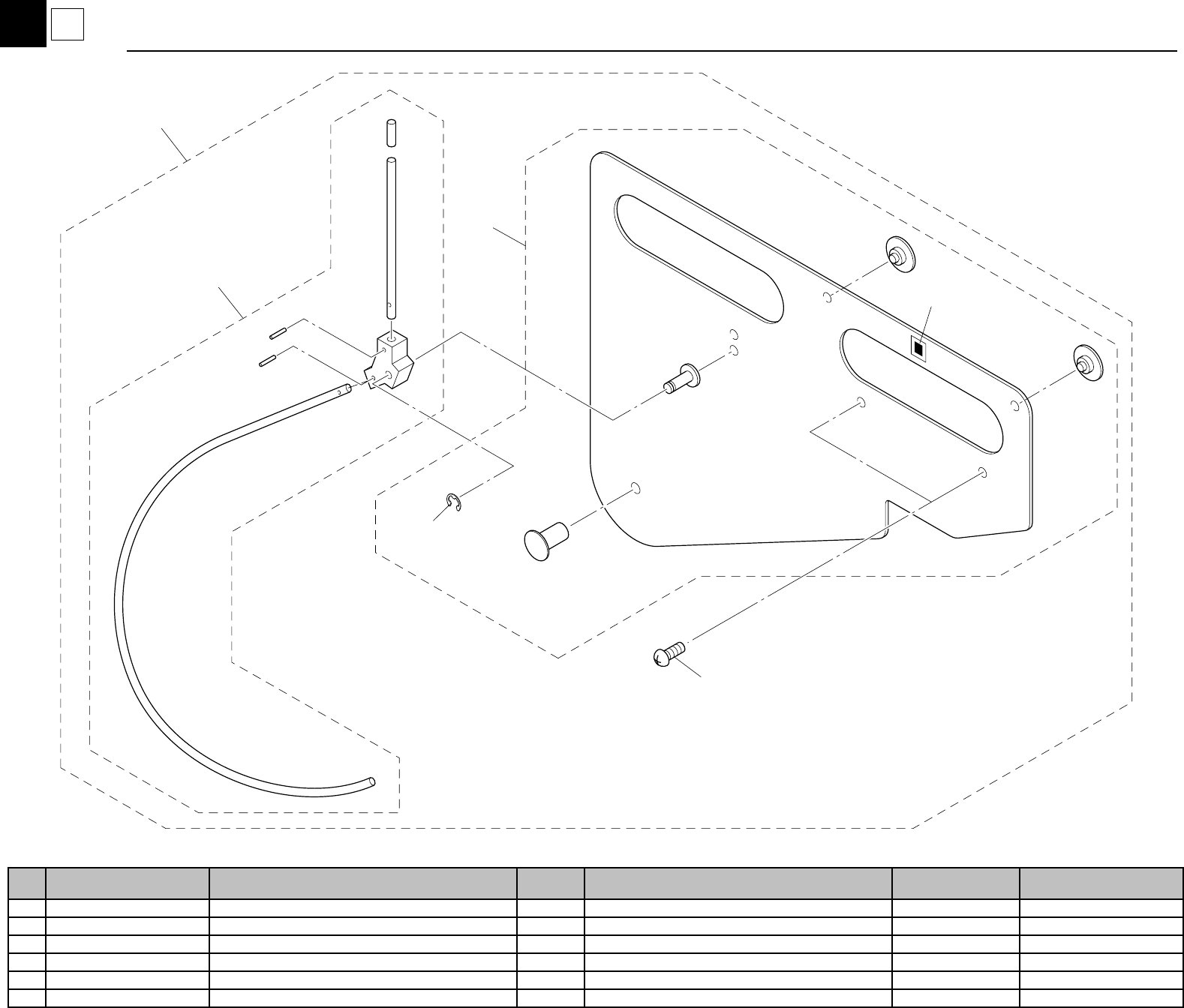

FV82C FV82C FV 82C -0012 17 5 1 3 2 4 6 5 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M11D0-00X REEL HOLDER ASSY 1 2 K87-M11D1-00X REEL PLATE ASSY 1 3 K87-M11D3-00X TAPE SIZE STICKER 1 4 K87-M11D7-00X…
FV82C
FV82C
FV82C-0012
17
4
11
10
5
16
17
7
4
21
13
17
9
8
16
12
6
14
20
15
18
22
24
23
3
1
22
19
2
24
22
24

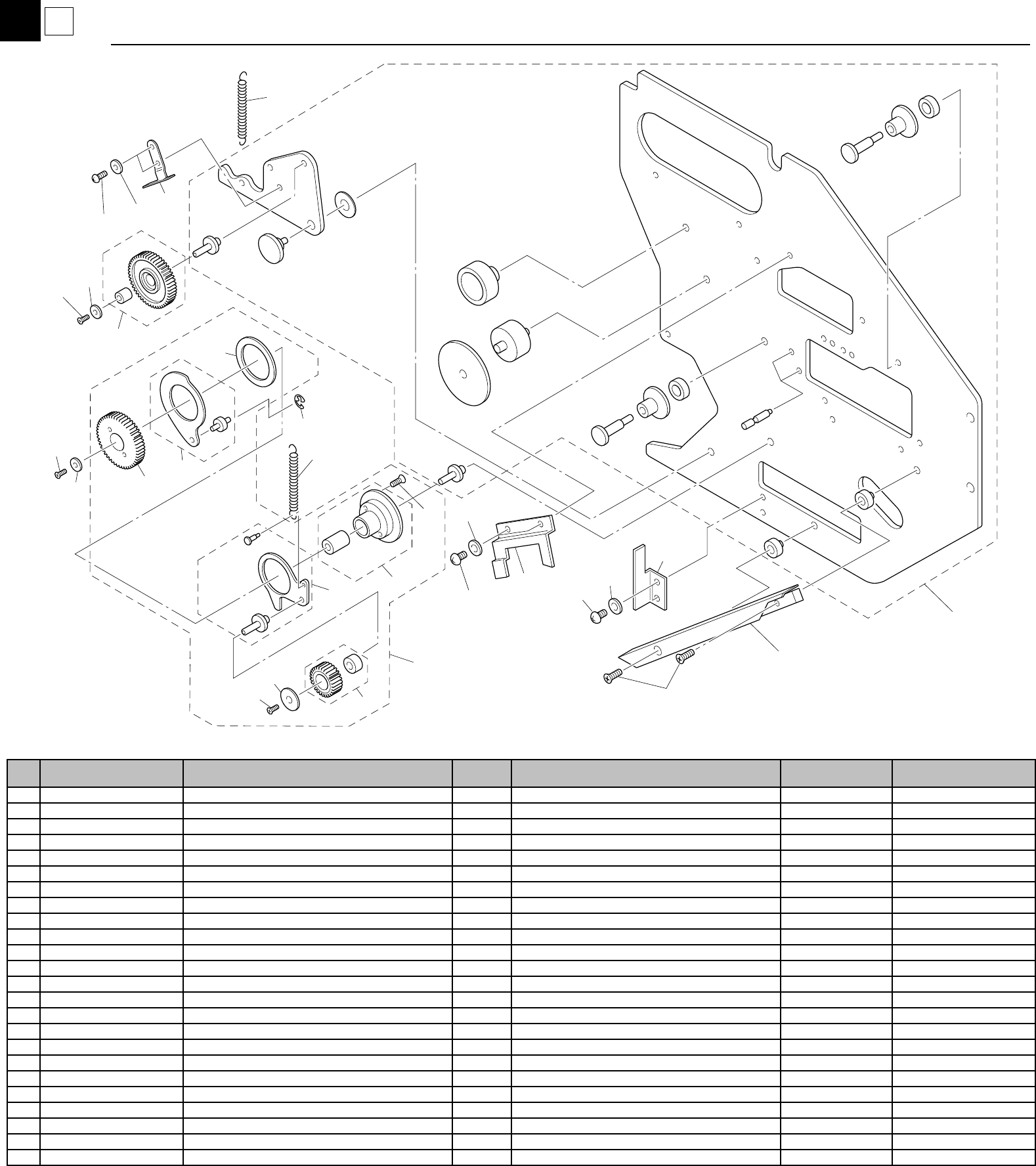

No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1160-00X
BACK PLATE ASSY 1
2
K87-M1166-00X
GUIDE PLATE 1
3
K87-M1169-00X
GUIDE PLATE 1
4
K87-M1191-00X
DRIVE ROLLER UNIT 1
5
K87-M1192-00X
INDENTATION LEVER ASSY 1
6
K87-M1196-00X
SUB LEVER ASSY 1
7
K87-M1199-00X
DRIVE GEAR ASSY 1
8
K87-M117B-00X
PLANE WASHER 1
9
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
10
K87-M119C-00X
LEVER METAL ASSY 1
11
K87-M11BC-00X
SCREW,FLAT HEAD + 2
12
K87-M119G-00X
DRIVE ROLLER 1
13
K87-M119J-00X
THRUST WASHER 1
14
K87-M119K-00X
SPRING 1
15
K87-M119L-00X
IDLE ROLLER ASSY 1
16
K87-M117B-00X
PLANE WASHER 2
17
K87-M11BB-00X
SCREW,FLAT HEAD + IB 2
18
K87-M119P-00X
SPRING 1
19
K87-M11A1-00X
LOWER GUIDE PLATE 1
20
K87-M11A3-00X
LOWER GUIDE PLATE 1
21
K87-M11B9-00X
CIRCLIP E 1
22
K87-M11BE-00X
PLANE WASHER 6
23
K87-M11BF-00X
SCREW,FLAT HEAD +IB 2
24
K87-M111N-00X
SCREW,PAN HEAD + 6
FV82C
FV82C
FV82C-0012
17
1
4
2
3
5
6
7
6
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M12D0-00X
REEL HOLDER ASSY 1
2
K87-M12D1-00X
REEL PLATE ASSY 1
3
K87-M11D3-00X
TAPE SIZE STICKER 1
4
K87-M11D7-00X
CIRCLIP E 1
5
K87-M12D8-00X
REEL SIZE STICKER 1
6
K87-M12DA-00X
INDICATOR LEVER ASSY 1
7
K87-M111N-00X
SCREW,PAN HEAD + 2
