FV56 S TD FV56 S TD FV 56 STD-0012 16 2 5 8 11 10 1 2 3 4 9 5 5 7 6 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M2313-00X KNOCK PIN (REAR) 1 2 K87-M5330-00X CLAMP LEVER ASSY 1 3 K87-M2335-00X CLAMP RO…
1
16
FV56 STD
FV56 STD
FV56 STD-0409
18
14
16
17
15
1
27
12
26
13
11
7
8
9
10
27
4
6
6
28
3
2
5
27
27
23
21
20
25
24
6
28
21
19
22
28

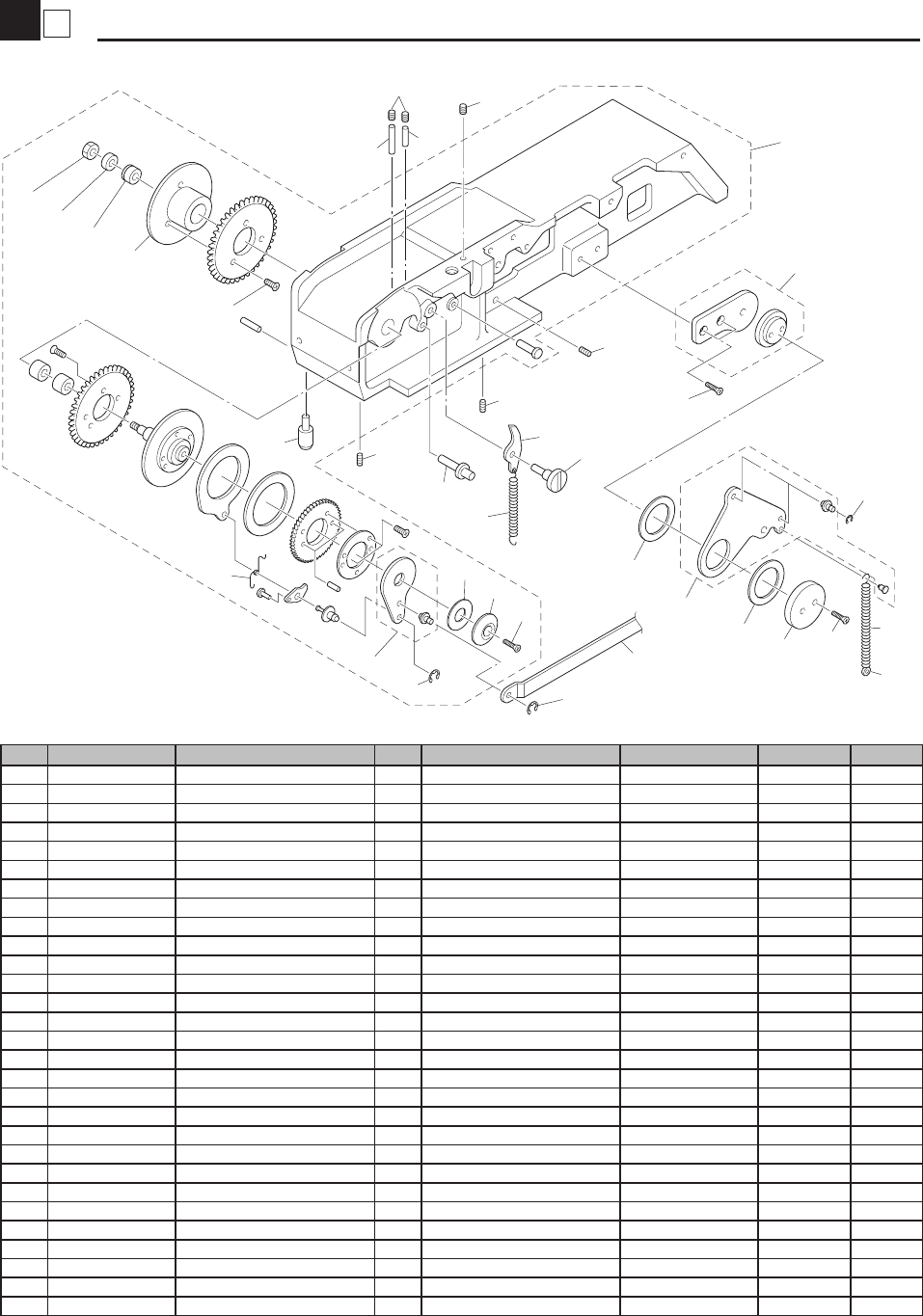

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 K87-M6510-00X BODY ASSY 1
1-1 K87-M7510-00X BODY ASSY 1 2000/10/19 M000104 OK
2 K87-M116H-00X THRUST WASHER 1
3 K87-M5323-00X CAP 1
4 K87-M532D-00X COIL SPRING 1
5 K87-M5520-00X SUB LEVER ASSY 1
6 K87-M11B9-00X CIRCLIP E 4
7 K87-M532J-00X METAL 1
8 K87-M532K-00X CLAMP ELEMENT 1
9 K87-M532L-00X RING 1
10 K87-M532M-00X U NUT 1
11 K87-M111P-00X SCREW, FLAT HEAD+ 3
12 K87-M531F-00X PUSH PIN 1
13 K87-M531B-00X PUSH PIN 1
14 K87-M1112-00X KNOCK PIN (FRONT) 1
15 K87-M531G-00X BACK STOPPER 1
16 K87-M531A-00X BACK STOPPER AXIS 1
17 K87-M5319-00X BACK STPPER SPRING 1
18 K87-M531E-00X STOPPER PIN 1
19 K87-M551G-00X LEVER ASSY 1
20 K87-M751L-00X LEVER METAL ASSY 1
21 K87-M2316-00X THRUST WASHER 2
22 K87-M2317-00X COVER 1
23 K87-M5515-00X MAIN ARM 1
24 K87-M531C-00X HOOK 2
25 K87-M531D-00X SPRING 1
26 K87-M111Y-00X SCREW, SET 2
27 K87-M111V-00X SCREW, SET (84D) 5
28 K87-M23B7-00X SCREW,TRUSS HEAD + 5
FV56 STD
FV56 STD
FV56STD-0012
16
2
5
8
11
10
1
2
3
4
9
5
5
7
6

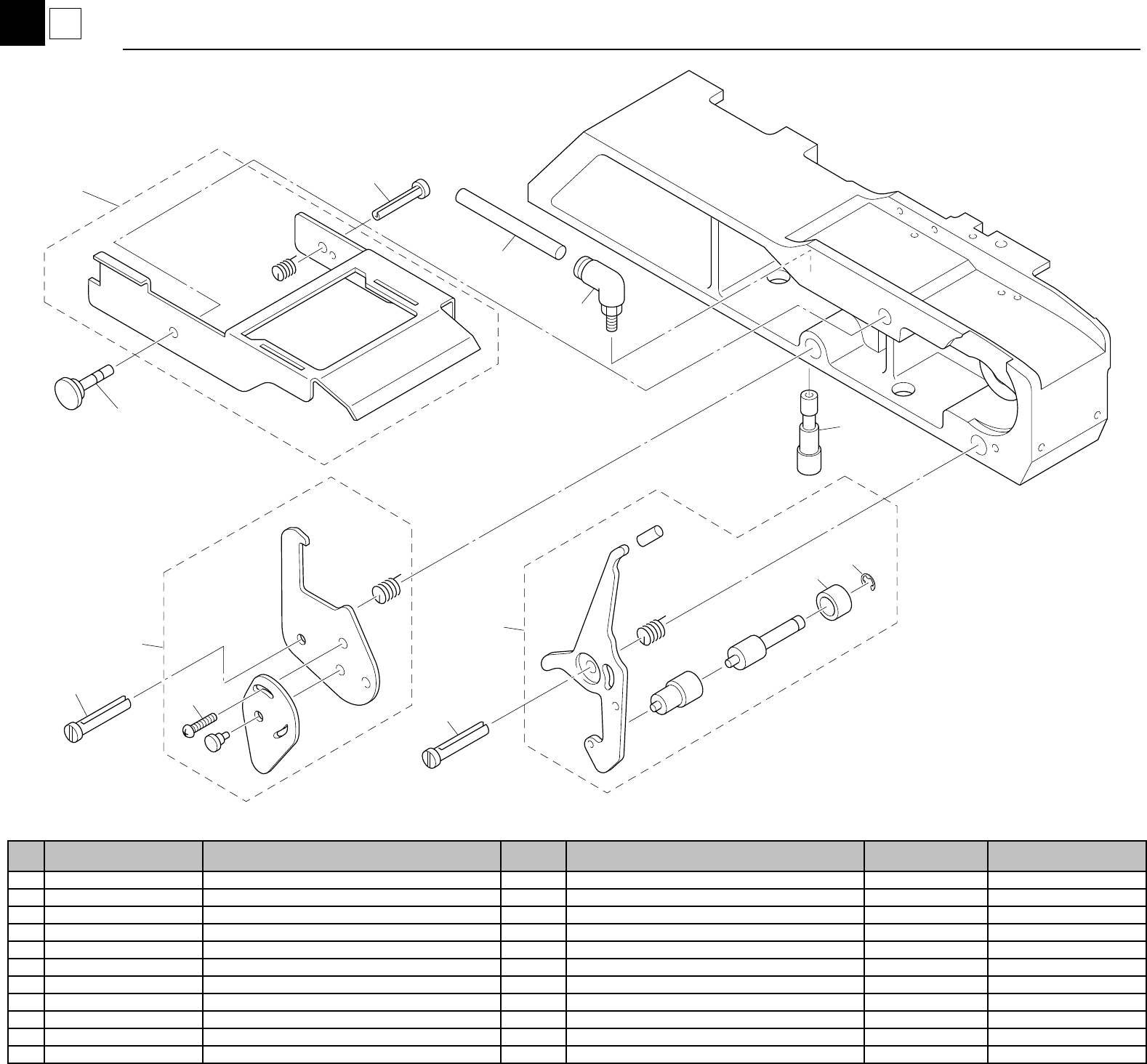

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2313-00X KNOCK PIN (REAR) 1
2 K87-M5330-00X CLAMP LEVER ASSY 1
3 K87-M2335-00X CLAMP ROLLER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M533A-00X LEVER AXIS 3
6 K87-M7545-00X GUIDE AXIS 1
7 K87-M7540-00X TAPE GUIDE ASSY 1
8 K87-M534A-00X LOCK LEVER ASSY 1
9 K87-M534F-00X SCREW,TRUSS HEAD + 2
10 K87-M23BG-00X ELBO CONNECTOR 1
11 K87-M75BA-00X HOSE 1
FV56 STD
FV56 STD
FV56STD-0012
16
3
15
8
3
9
5
6
9
7
9
10
16
18
2
21
4
13
20
1
19
17
11
12
14
15
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M7590-00X WIND ROLLER ASSY 1
2 K87-M7591-00X WIND PLATE ASSY 1
3 K87-M559A-00X DRIVE GEAR ASSY 1
4 K87-M559G-00X SUB LEVER ASSY 1
5 K87-M559D-00X INDENTATION LEVER ASSY 1
6 K87-M7594-00X REEL SHAFT ASSY 1
7 K87-M539M-00X SPRING 1
8 K87-M2397-00X PLANE WASHER 1
9 K87-M119J-00X THRUST WASHER 3
10 K87-M559K-00X INDEX GEAR 1
11 K87-M239Y-00X PLANE WASHER 1
12 K87-M559U-00X REEL PLATE 1
13 K87-M559L-00X SUB ARM 1
14 K87-M759T-00X METAL 1
15 K87-M23BJ-00X SCREW, FLAT HEAD + 5
16 K87-M55BN-00X SCREW, FLAT HEAD + 2
17 K87-M55BJ-00X SCREW,TRUSS HEAD 1
18 K87-M55BH-00X SCREW,TRUSS HEAD 1
19 K87-M55BP-00X THUMB SCREW 2
20 K87-M11B9-00X CIRCLIP E 1
21 K87-M23B6-00X SCREW,FLAT HEAD + 2
