1 17 FV82C FV82C FV82C-0208 10 8 17 11 7 6 13 3 14 5 15 16 22 1 18 18 12 18 9 19 21 20 2 4 4 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M1310-00X BODY ASSY 1 2 K87-M1 112-00X KNOCK PIN (FRONT) 1 3 K8…
FV56 STD
FV56 STD
FV56STD-0301
16
5
15
16
2
1
6
16
14
10
8
11
17
5
4
13
7
18
9
12
3
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M556E-00X PLATE 1
2 K87-M238C-00X FASTEN PLATE 1
3K87-M2381-00XCYLINDER1
4K87-M2382-00XCYL CONNECTOR1
5 K87-M1184-00X CONNECT PIN 1
6 K87-M558A-00X SET PLATE ASSY 1
7 K87-M538C-00X POSITION PLATE 1
8 K87-M7584-00X ADJUST PLATE 1
9 K87-M2385-00X METAL 1
10 K87-M2386-00X PLANE WASHER 1
11 K87-M2387-00X PLANE WASHER 2
12 K87-M75BE-00X SPEED CONTROLER 1
13 K87-M11B9-00X CIRCLIP E 1
14 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
16 K87-M23BC-00X PLANE WASHER 6
17 K87-M111S-00X SCREW, FLAT HEAD + 2
18 K87-M23B7-00X SCREW, TRUSS HEAD + 2

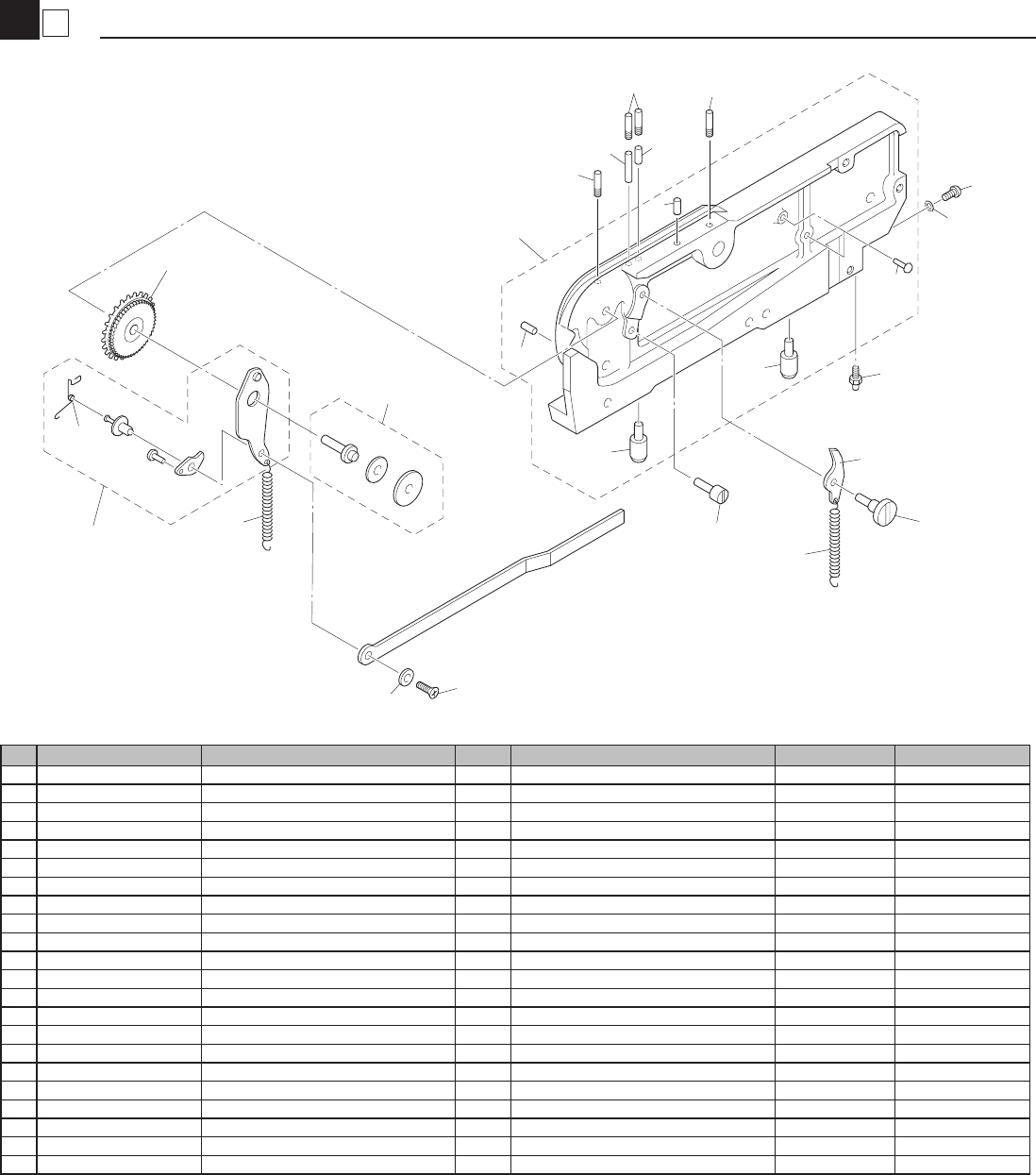

1
17

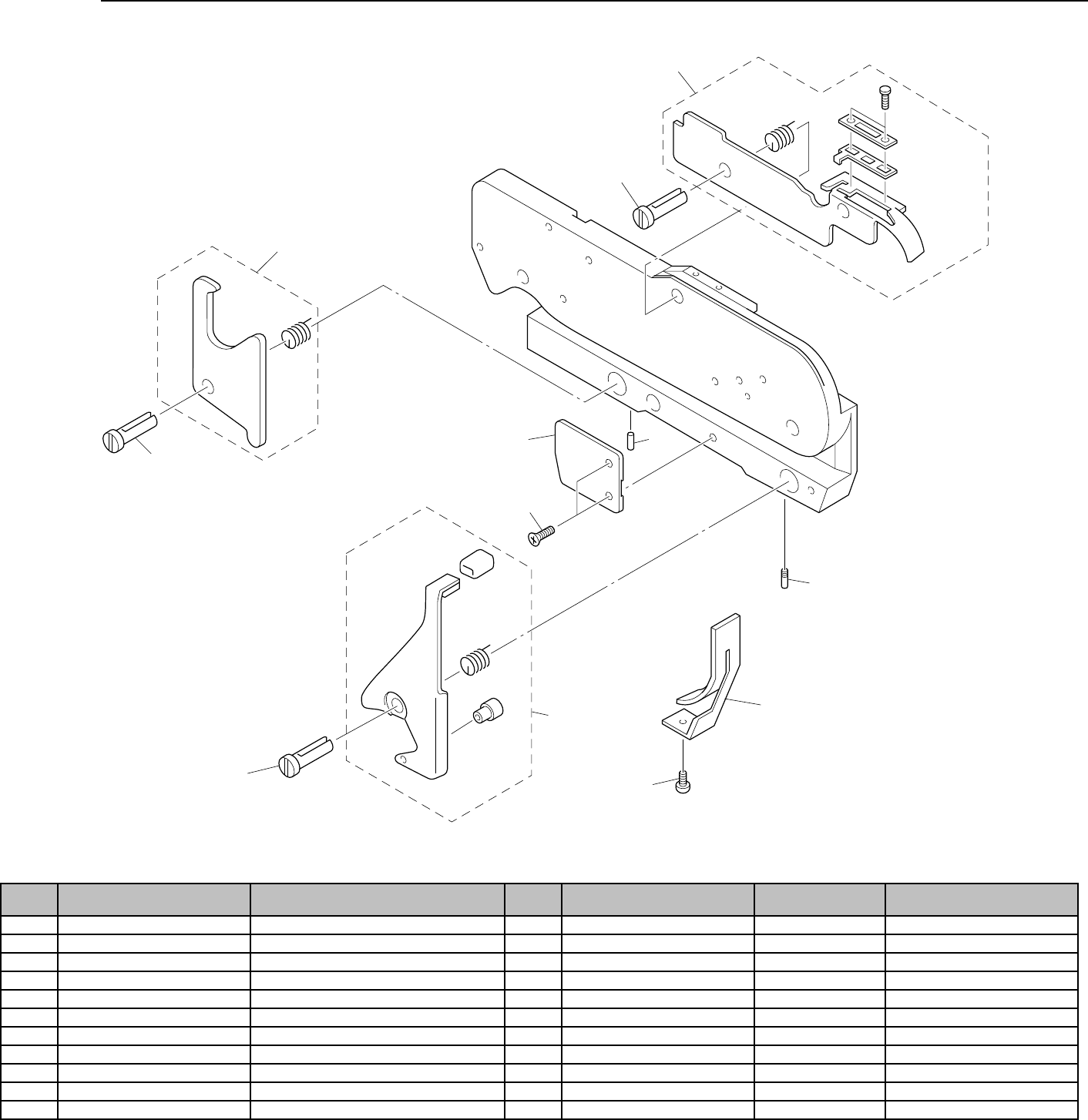

FV82C
FV82C
FV82C-0208
10
8
17
11
7
6
13
3
14
5
15
16
22
1
18
18
12
18
9
19
21
20
2
4
4
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M1310-00X BODY ASSY 1
2 K87-M1112-00X KNOCK PIN (FRONT) 1
3 K87-M1313-00X KNOCK PIN (REAR) 1
4 NEEDLE ROLLER 2
5 CIRCULAR RIVET 2
6 K87-M111A-00X SPRING 1
7 K87-M111B-00X BACK STOPPER AXIS 1
8 K87-M111C-00X PLANE WASHER 1
9 K87-M111D-00X PUSH PIN 1
10 K87-M111E-00X SPRING 1
11 K87-M111F-00X STOPPER PIN 1
12 K87-M111G-00X PUSH PIN 1
13 K87-M131H-00X BACK STOPPER 1
14 K87-M111L-00X BARB CONNECTOR STRAIGHT 1
15 K87-M111M-00X GASKET 1
16 K87-M111N-00X SCREW,PAN HEAD + 1
17 K87-M111P-00X SCREW,FLAT HEAD + 1
18 K87-M111R-00X SCREW,SET 4
19 K87-M1320-00X SPROCKET 1
20 K87-M132A-00X RACKING LEVER ASSY 1
21 K87-M112D-00X COIL SPRING 1
22 K87-M112L-00X SPROCKET AXIS ASSY 1
FV82C
FV82C
G2
FV82C-0012
4
3
5
6
10
8
9
2
11
10
7
1
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M111S-00X
SCREW,FLAT HEAD + 2
2
K87-M111T-00X
SCREW,SET 1
3
K87-M111W-00X
SCREW,PAN HEAD + 1
4
K87-M111X-00X
SCREW,SET 1
5
K87-M1132-00X
CLAMP LEVER ASSY 1
6
K87-M113L-00X
CLAMP LEVER AXIS 1
7
K87-M1340-00X
TAPE GUIDE ASSY 1
2002/7
8
K87-M114A-00X
LOCK LEVER ASSY 1
9
K87-M114L-00X
SUPPORT PLATE 1
10
K87-M114N-00X
GUIDE AXIS 2
11
K87-M114R-00X
FRONT COVER 1
