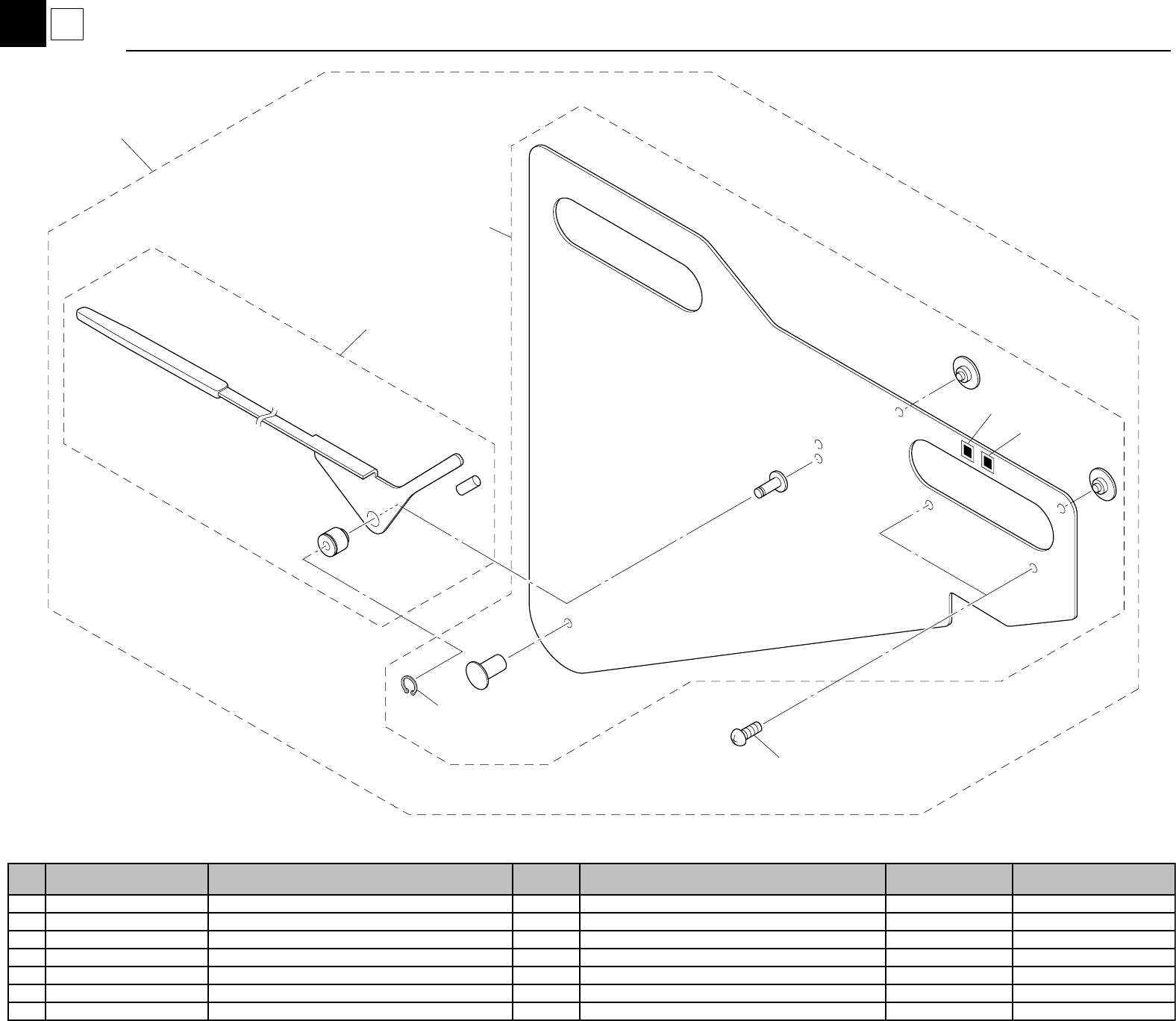

FV82E FV82E FV 82E -0012 19 6 1 4 2 3 5 6 7 No. Part No. Part Name Q'ty Remarks Date R evised No. 1 K87-M12D0-10X REEL HOLDER ASSY 1 2 K87-M12D1-10X REEL PLATE ASSY 1 3 K87-M11D3-00X TAPE SIZE STICKER 1 4 K87-M11D7-…

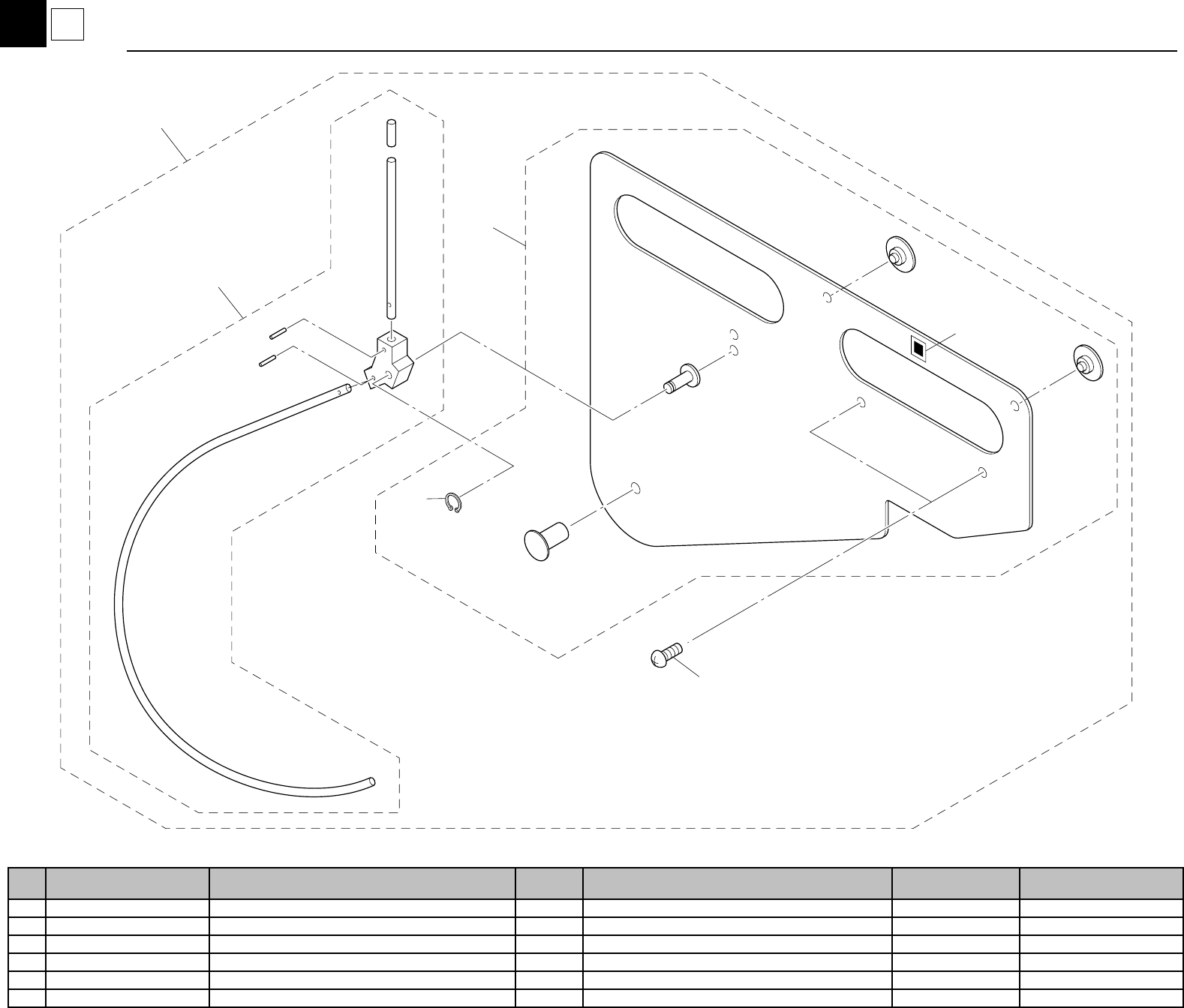

FV82E
FV82E
FV82E-0012
19
6
1
4
2
3
5
6
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M12D0-10X
REEL HOLDER ASSY 1
2
K87-M12D1-10X
REEL PLATE ASSY 1
3
K87-M11D3-00X
TAPE SIZE STICKER 1
4
K87-M11D7-20X
CIRCLIP C 1
5
K87-M12D8-00X
REEL SIZE STICKER 1
6
K87-M12DA-00X
INDICATOR LEVER ASSY 1
7
K87-M111N-00X
SCREW,PAN HEAD + 2
1
20
FV84C
FV84C
FV84C-0012
No. Part No. Part Name Q'ty Remarks Date Revised No.

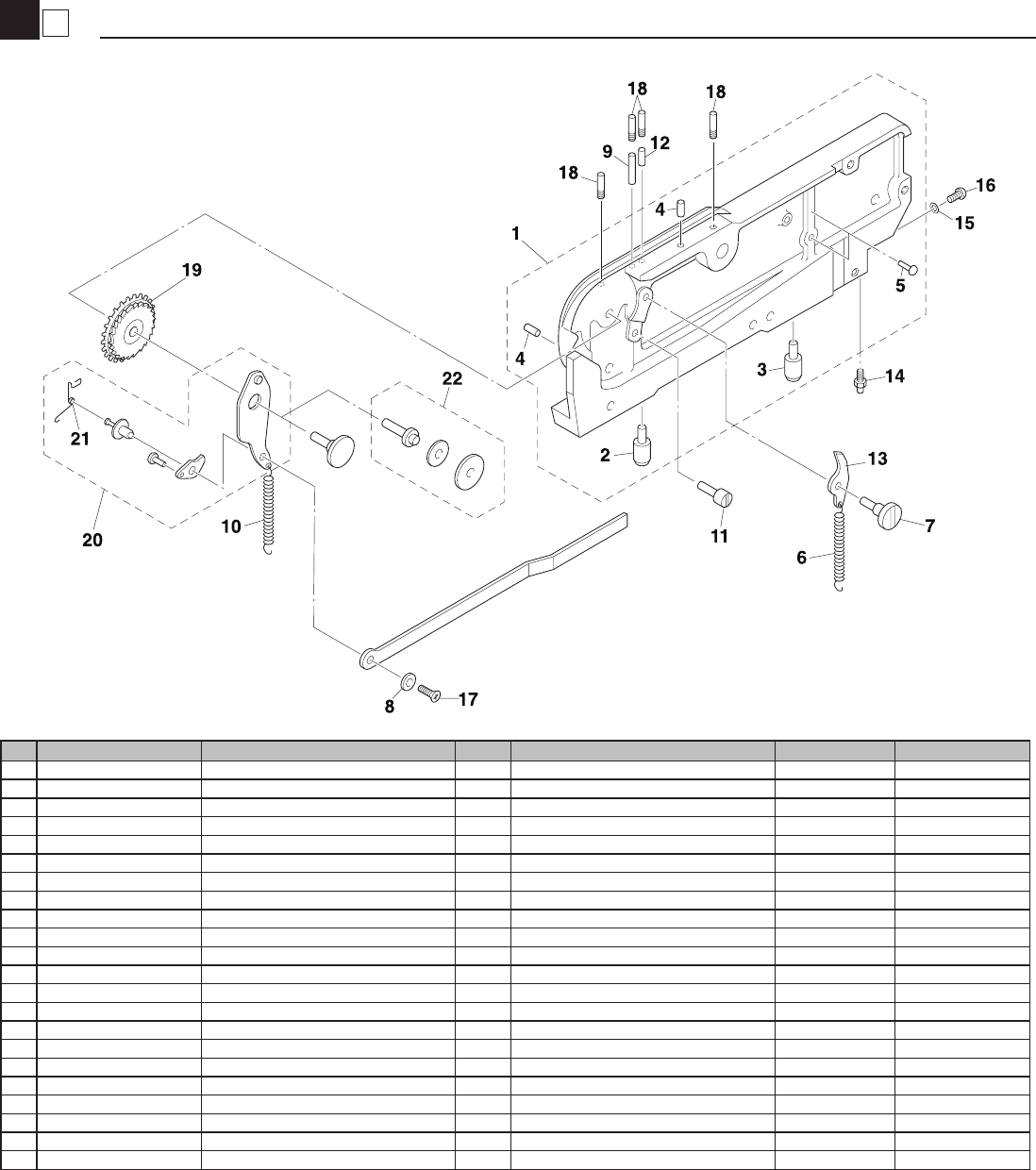

1 K87-M1110-00X BODY ASSY 1
