FV84C FV84C FV 84C -0012 20 3 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M1173-00 X MA I N ARM ASS Y 1 2 K87-M117B-00 X P LANE WASHE R 1 3 K87-M1181-00 X ROD CONNEC T 1 4 K87-M1182-00 X AR M 1 5 K87-…
FV84C
FV84C
FV84C-0012
20
2

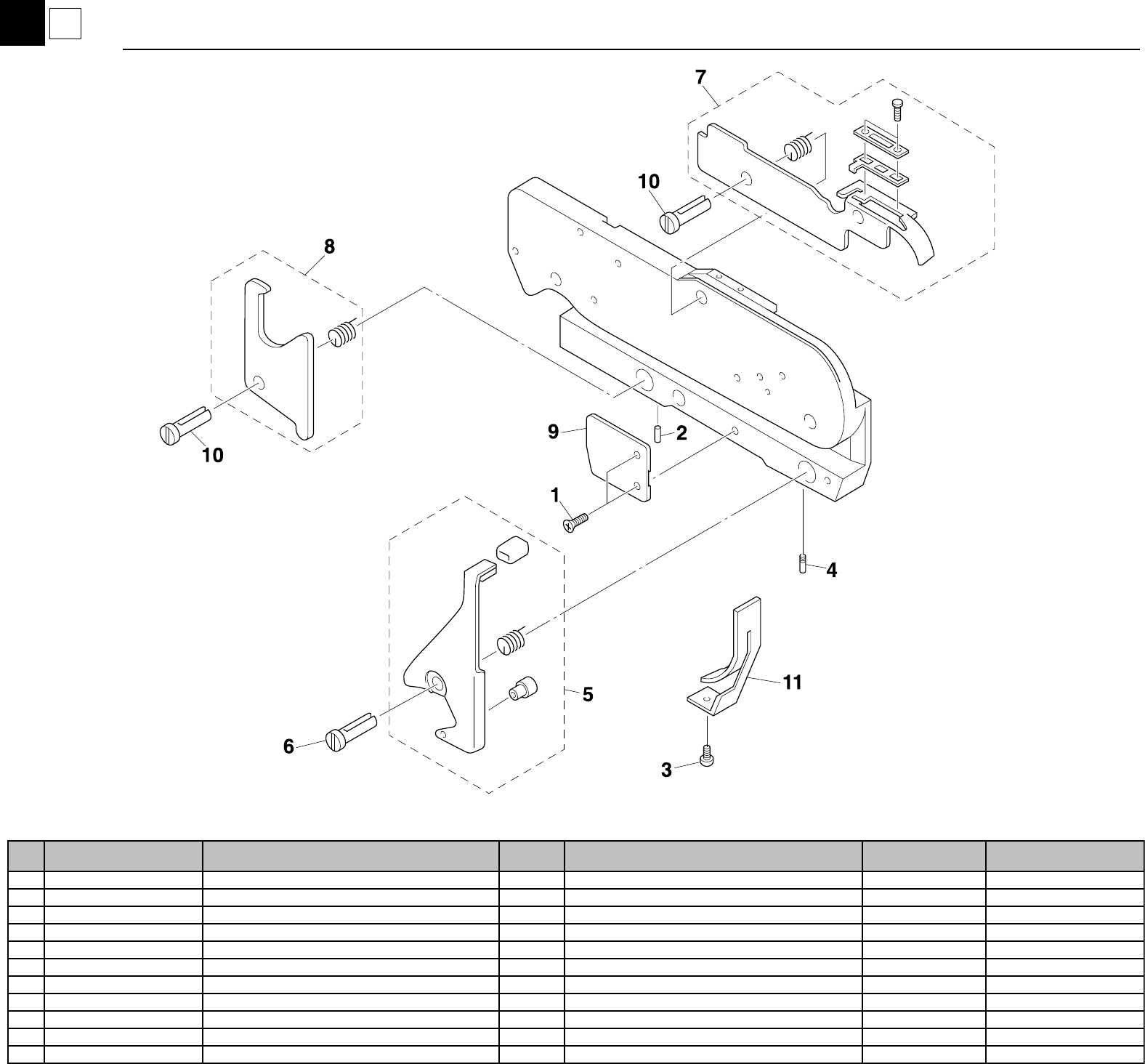

No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M111S-00XSCREW,FLAT HEAD +2
2K87-M111T-00XSCREW,SET1
3K87-M111W-00XSCREW,PAN HEAD +1
4K87-M111X-00XSCREW,SET1
5K87-M1132-00XCLAMP LEVER ASSY1
6 K87-M113L-00XCLAMP LEVER AXIS1
7K87-M1140-00XTAPE GUIDE ASSY1
8K87-M114A-00XLOCK LEVER ASSY1
9K87-M114L-00XSUPPORT PLATE1
10K87-M114N-00XGUIDE AXIS2
11K87-M114R-00XFRONT COVER1
FV84C
FV84C
FV84C-0012
20
3

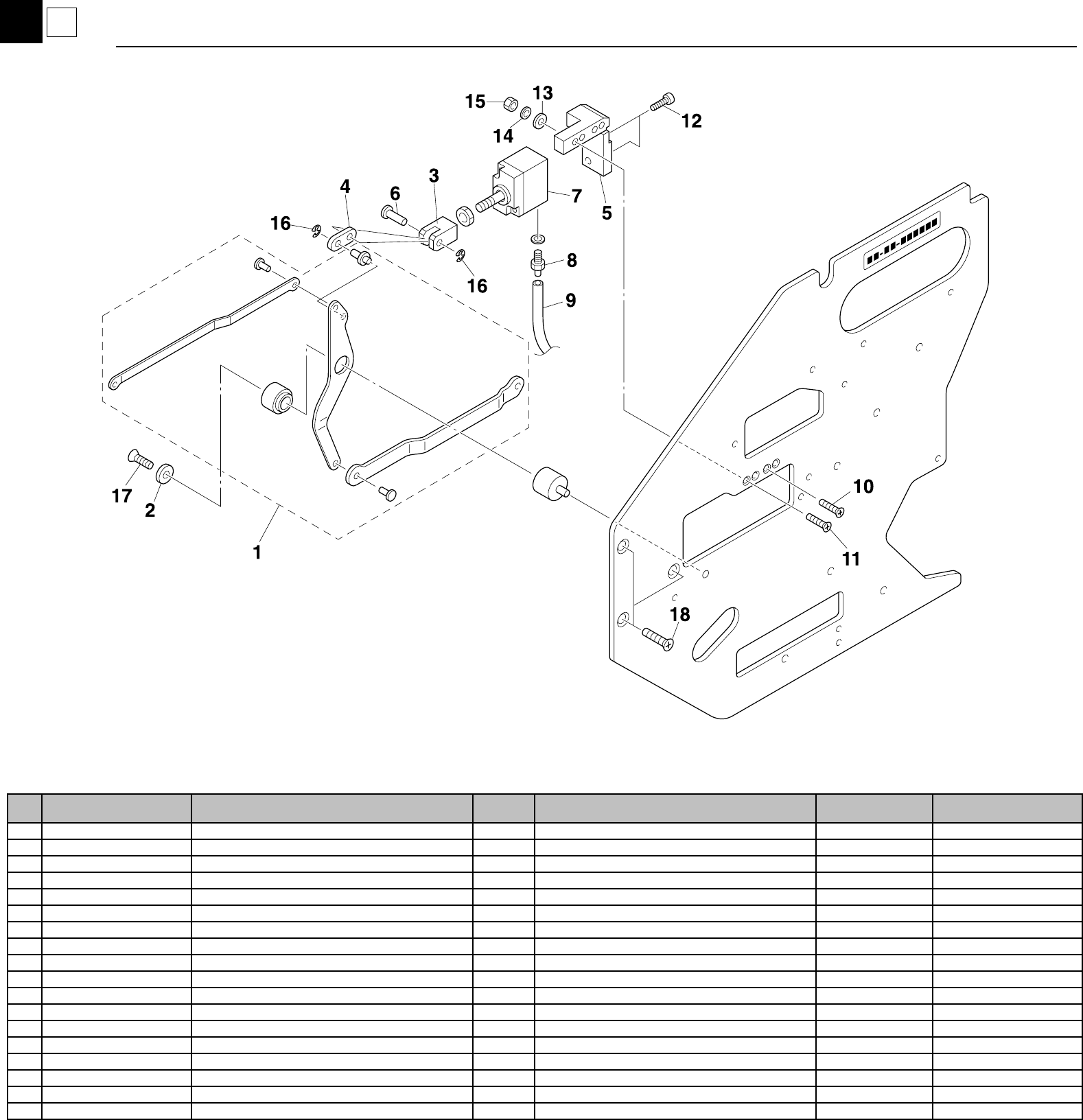

No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M1173-00XMAIN ARM ASSY1
2K87-M117B-00XPLANE WASHER1
3K87-M1181-00XROD CONNECT1
4K87-M1182-00XARM1
5K87-M1183-00XCYLINDER HOLDER1
6 K87-M1184-00XCONNECT PIN1
7K87-M1185-00XMULTI CYLINDER1
8K87-M1186-00XBARB CONNECTOR STRAIGHT1
9K87-M11B1-00XAIR HOSE (145)1
10K87-M11B2-00XSCREW,FLAT HEAD +1
11K87-M11B3-00XSCREW,FLAT HEAD +1
12K87-M11B5-00XBOLT,HEXAGON SOCKET HEAD2
13K87-M11B6-00XPLANE WASHER1
14K87-M11B7-00XSPRING LOCK WASHER1
15K87-M11B8-00X SCREW NUT1
16 K87-M11B9-00XCIRCLIP E2
17K87-M11BB-00XSCREW,FLAT HEAD + IB1
18K87-M11B4-00XSCREW,FLAT HEAD +IB3
FV84C
FV84C
FV84C-0012
20
4
No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M1160-00XBACK PLATE ASSY1
2K87-M1166-00XGUIDE PLATE1
3K87-M1169-00XGUIDE PLATE1
4K87-M1191-00XDRIVE ROLLER UNIT1
5K87-M1192-00XINDENTATION LEVER ASSY1
6 K87-M1196--00XSUB LEVER ASSY1
7K87-M1199-00XDRIVE GEAR ASSY1
8K87-M117B-00XPLANE WASHER1
9K87-M11BB-00XSCREW,FLAT HEAD + IB1
10K87-M119C-00XLEVER METAL ASSY1
11K87-M11BC-00XSCREW,FLAT HEAD +2
12K87-M119G-00XDRIVE ROLLER1
13K87-M119J-00XTHRUST WASHER1
14K87-M119K-00XSPRING1
15K87-M119L-00X IDLE ROLLER ASSY1
16 K87-M117B-00XPLANE WASHER2
17K87-M11BB-00XSCREW,FLAT HEAD + IB2
18K87-M119P-00XSPRING1
19K87-M11A1-00XLOWER GUIDE PLATE1
20K87-M11A3-00XLOWER GUIDE PLATE1
21K87-M11B9-00XCIRCLIP E1
22K87-M11BE-00XPLANE WASHER6
23K87-M11BF-00XSCREW,FLAT HEAD +IB2
24K87-M111N-00XSCREW,PAN HEAD +6
