1 21 FV84D FV84D FV84D-0012 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M1 110-10X BODY ASSY 1 2 K87-M1 112-10X KNOCK PIN (FRONT) 1 3 K87-M1 113-10X KNOCK PIN (REAR) 1 4 NEEDLE ROLLER 1 5 CIRCULAR RIV…
1
21
FV84D
FV84D
FV84D-0012
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M1110-10X BODY ASSY 1
2 K87-M1112-10X KNOCK PIN (FRONT) 1
3 K87-M1113-10X KNOCK PIN (REAR) 1
4 NEEDLE ROLLER 1
5 CIRCULAR RIVET 2
6 K87-M111A-10X SPRING 1
7 K87-M111B-00X BACK STOPPER AXIS 1
8 K87-M111C-00X PLANE WASHER 1
9 K87-M111D-00X PUSH PIN 1
10 K87-M111E-10X SPRING 1
11 K87-M111F-10X STOPPER PIN 1
12 K87-M111G-10X PUSH PIN 1
13 K87-M111H-10X BACK STOPPER 1
14 K87-M111L-00X BARB CONNECTOR STRAIGHT 1
15 K87-M111M-00X GASKET 1
16 K87-M111N-00X SCREW,PAN HEAD + 1
17 K87-M111P-00X SCREW,FLAT HEAD + 1
18 K87-M111R-00X SCREW,SET 4
19 K87-M1120-00X SPROCKET 1
20 K87-M112A-10X RACKING LEVER ASSY 1
21 K87-M112D-00X COIL SPRING 1
22 K87-M112L-10X SPROCKET AXIS ASSY 1
FV84D
FV84D
FV84D-0012
21
2
6
11
7
8
9
10
8
5

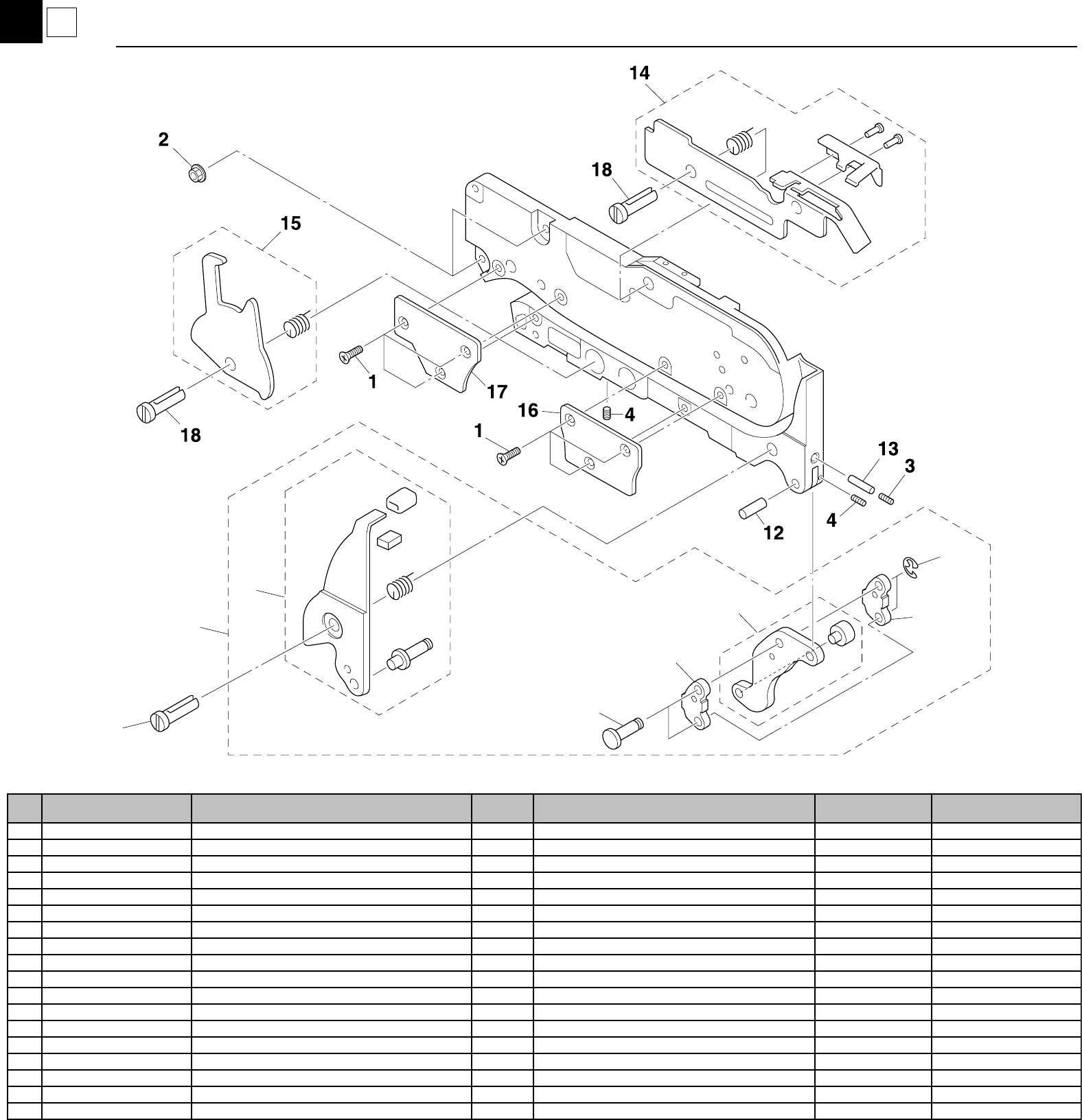

No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M111S-00X
SCREW,FLAT HEAD + 6
2
K87-M111U-00X
SCREW FLANGE NUT 2
3
K87-M111V-00X
SCREW,SET 1
4
K87-M111X-00X
SCREW,SET 2
5
K87-M1131-00X
CLAMP LEVER UNIT 1
6
K87-M1132-10X
CLAMP LEVER ASSY 1
7
K87-M113A-00X
CLANK ARM ASSY 1
8
K87-M113D-00X
ARM 2
9
K87-M113E-00X
HINGE PIN 2 1
10
K87-M11D7-00X
CIRCLIP E 2
11
K87-M113L-10X
CLAMP LEVER AXIS 1
12
K87-M113M-00X
AXIS PIN 1
13
K87-M113H-00X
PUSH PIN 1
14
K87-M1140-10X
TAPE GUIDE ASSY 1
15
K87-M114A-10X
LOCK LEVER ASSY 1
16
K87-M114L-10X
SUPPORT PLATE 1
17
K87-M114M-10X
SUPPORT PLATE 1
18
K87-M114N-00X
GUIDE AXIS 2
