4 7 FV24AL STD FV24AL STD FV24AL STD-0403 22 23 24 10 4 9 24 9 26 21 29 12 20 19 5 7 6 25 25 13 27 28 29 29 22 3 22 23 2 1 14 15 16 24 9 17 8 11 18 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M4460-00…

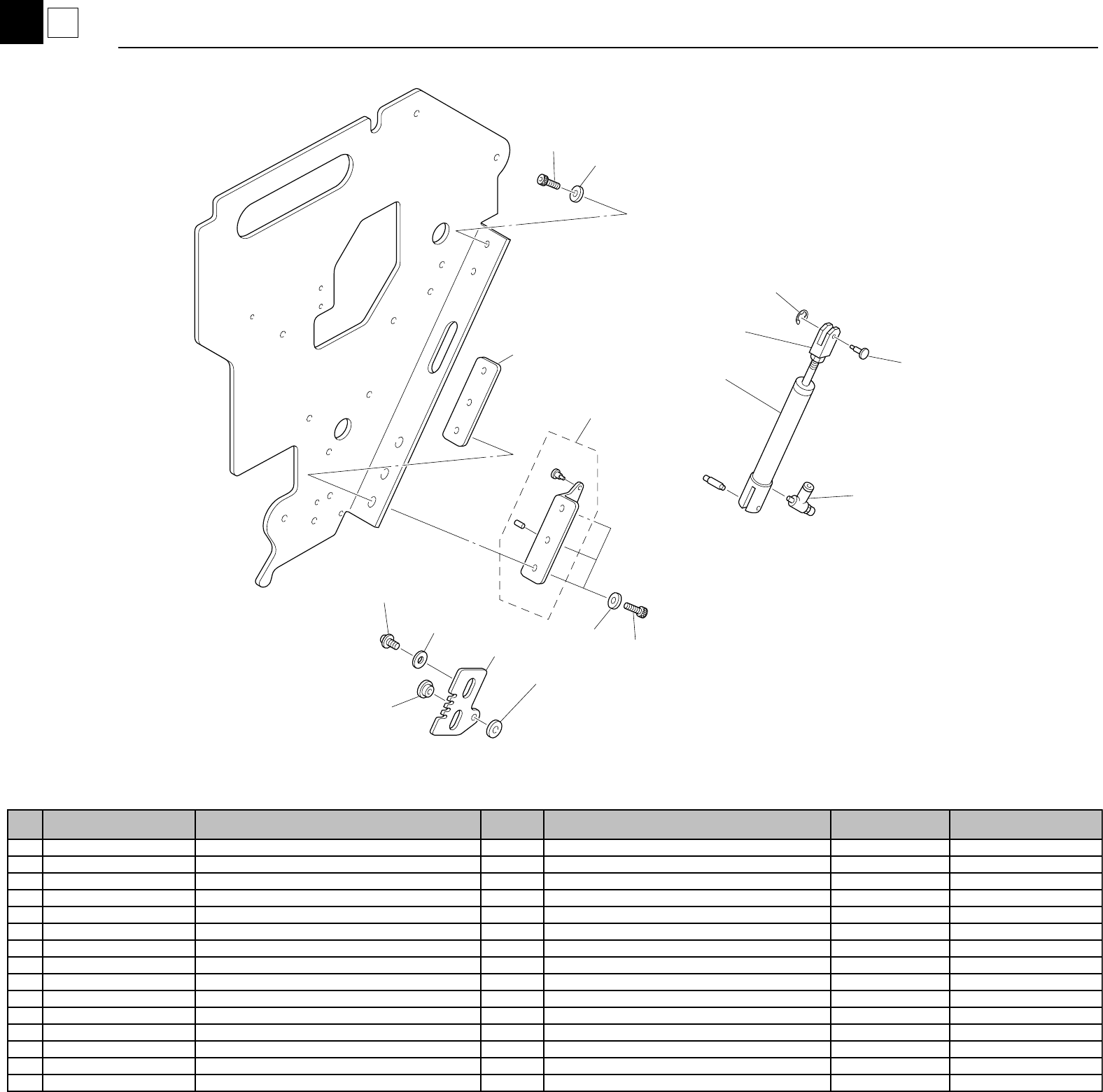

FV24AL STD
FV24AL STD
FV24AL STD-0301
7
3
14
15
9
8
13
7
10
5
4
6
12
2
1
11
3
15
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2381-00X CYLINDER 1
2 K87-M2382-00X CYL CONNECTOR 1
3 K87-M1184-00X CONNECT PIN 1
4 K87-M4384-00X MOVE PLATE 1
5 K87-M2385-00X METAL 1
6 K87-M2386-00X PLANE WASHER 1
7 K87-M2387-00X PLANE WASHER 2
8 K87-M2389-00X SET PLATE ASSY 1
9 K87-M238C-00X FASTEN PLATE 1
10 K87-M23B7-00X SCREW,PAN HEAD + 2
11 K87-M43B8-00X SPEED CONTROLER 1
12 K87-M11B9-00X CIRCLIP E 1
13 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
14 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 2
15 K87-M23BC-00X PLANE WASHER 5
4
7
FV24AL STD
FV24AL STD
FV24AL STD-0403
22
23
24
10
4
9
24
9
26
21
29
12
20
19
5
7
6
25
25
13
27
28
29
29
22
3
22
23
2
1
14
15
16
24
9
17
8
11
18
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M4460-00X BACK PLATE ASSY 1
2 K87-M236E-00X GUIDE PLATE 1
3 K87-M236F-00X GUIDE PLATE 1
4 K87-M119P-10X SPRING (84D) 1
5 K87-M2390-00X WIND ROLLER 1 ASSY 1
6 K87-M2394-10X GEAR 1
7 K87-M2395-00X FLANGE 1
8 K87-M2396-00X ROLLER AXIS 1
9 K87-M2397-00X PLANE WASHER 3
10 K87-M239A-00X WIND ROLLER 2 ASSY 1
11 K87-M239E-00X GUIDE PLATE 1
12 K87-M439E-00X CONNECT ARM 1
13 K87-M239G-10X GEAR 1
14 K87-M239H-00X LEVER METAL ASSY 1
15 K87-M239L-00X INDEX LEVER ASSY 1
16 K87-M439N-00X SPRING 1
17 K87-M2199-00X DRIVE GEAR ASSY 1
18 K87-M119J-00X THRUST WASHER 1
19 K87-M239U-00X SUB LEVER ASSY 1
20 K87-M239X-00X INDEX GEAR 1
21 K87-M239Y-00X PLANE WASHER 1
22 K87-M111N-00X SCREW,CIRCULAR HEAD + 6
23 K87-M11BE-00X PLANE WASHER 4
24 K87-M23BJ-00X SCREW,FLAT HEAD + 3
25 K87-M11B2-00X SCREW,FLAT HEAD + 4
26 K87-M23BL-00X SCREW,TRUSS HEAD + 1
27 K87-M23BM-00X SCREW,FLAT HEAD + 2
28 K87-M23BN-00X SCREW,IT + 1
29 K87-M11B9-00X CIRCLIP E 3
FV24AL STD
FV24AL STD
FV24AL STD-0012
7
5
1
4
2
3
5
6
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M43D0-00X REEL HOLDER ASSY 1
2 K87-M43D1-00X REEL PLATE ASSY 1
3 K87-M43D3-00X TAPE SIZE STICKER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M23DA-00X INDICATOR LEVER ASSY 1
6 K87-M43DD-00X REEL BRAKE LEVER 1
7 K87-M23DE-00X SPRING 1
