FV32N ADD FV32N ADD FV32N-0012 13 2 4 3 4 6 19 9 15 18 7 8 17 5 11 22 10 16 14 13 23 23 2 20 25 1 24 12 21 N o . Part No. Part Name Q'ty Re m arks Date R evised No. 1 K87-M561N-00X PEEL LEVER 1 2 K87-M561P-00X GUIDE…
1
13
FV32N ADD
FV32N ADD
FV32N-0012
15
5
23
21
30
29
8
9
6
13
11
12
14
7
1
17
2
3
18
22
19
25
27
25
4
4
24
16
25
28
10
20
26
24
24
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5610-00X BODY ASSY 1
2 K87-M561F-00X GUIDE PIN 1
3 K87-M113H-00X PUSH PIN 2
4 K87-M561H-00X PIN 2
5 K87-M561R-00X KNOCK PIN 1
6 K87-M5620-00X BACK STOPPER ASSY 1
7 K87-M5623-00X LEAF 1
8 K87-M5624-00X BACK STOPPER SHAFT 1
9 K87-M5625-00X SPRING 1
10 K87-M562C-00X MAIN ARM ASSY 1
11 K87-M562F-00X PEEL LEVER ASSY 1
12 K87-M562J-00X SHAFT,LEVER 1
13 K87-M2387-00X PLANE WASHER 1
14 K87-M556C-00X SPRING 1
15 K87-M562M-00X GUIDE PIN 1
16 K87-M5642-00X TAPE PLATE 1
17 K87-MB01H-00X SCREW,SET 1
18 K87-M23B3-00X SCREW,SET 2
19 K87-M532M-00X U NUT 1
20 K87-M56BJ-00X WAVE SPRING PIN 2
21 K87-M56BJ-00X WAVE SPRING PIN 2
22 K87-M532K-00X CLAMP ELEMENT 1
23 K87-M231M-00X STRAIGHET PIN 1
24 K87-M111S-00X SCREW,FLAT HEAD + 6
25 K87-M23B5-00X SCREW,SET 3
26 K87-M532D-00X COIL SPRING 1
27 K87-M531F-00X PUSH PIN 1
28 K87-M11B9-00X CIRCLIP E 1
29 K87-M551U-00X KNOCK PIN 1
30 K87-M111S-00X SCREW, FLAT HEAD+ 4
FV32N ADD
FV32N ADD
FV32N-0012
13
2
4
3
4
6
19
9
15
18
7
8
17
5
11
22
10
16
14
13
23
23
2
20
25
1
24
12
21
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M561N-00X PEEL LEVER 1
2 K87-M561P-00X GUIDE PLATE 1
3 K87-M5630-00X CLAMP LEVER ASSY 1
4 K87-M233A-00X GUIDE AXIS 2
5 K87-M5640-00X TAPE HOLDER ASSY 1
6 K87-M5643-00X ROCK LEVER ASSY 1
7 K87-M5647-00X TAPE FIX PLATE 1
8 K87-M5543-00X STICKER 2
9 K87-M5649-00X SUPPORT A 1
10 K87-M564A-00X SHAFT HOLDER 1
11 K87-M564B-00X THRUST WASHER 1
12 K87-M564C-00X SUPPORT B 1
13 K87-M5669-00X GUIDE ROLLER 1
14 K87-M566B-00X FRANGE PIN 1
15 K87-M55BH-00X SCREW,TRUSS HEAD + 2
16 K87-M56BA-00X SCREW,BIND HEAD 2
17 K87-M111Y-00X SCREW,SET 1
18 K87-M23BC-00X PLANE WASHER 2
19 K87-M56BH-00X WAVE SPRING PIN 2
20 K87-M56C1-00X BARB CONNECTOR 1
21 K87-M56C2-00X PLUG 1
22 K87-M23B3-00X SCREW, SET 1
23 K87-M111S-00X SCREW, FLAT HEAD+ 4
24 K87-M56C6-00X LEVER AXIS 1
25 K87-M111X-00X CSCREW, SET 1
FV32N ADD
FV32N ADD
FV32N-0012
13
3
7
12
21
13
25
18
17
10
16
5
4
11
1
2
24
14
21
6
22
23
3
15
19
8
9
20
2
2

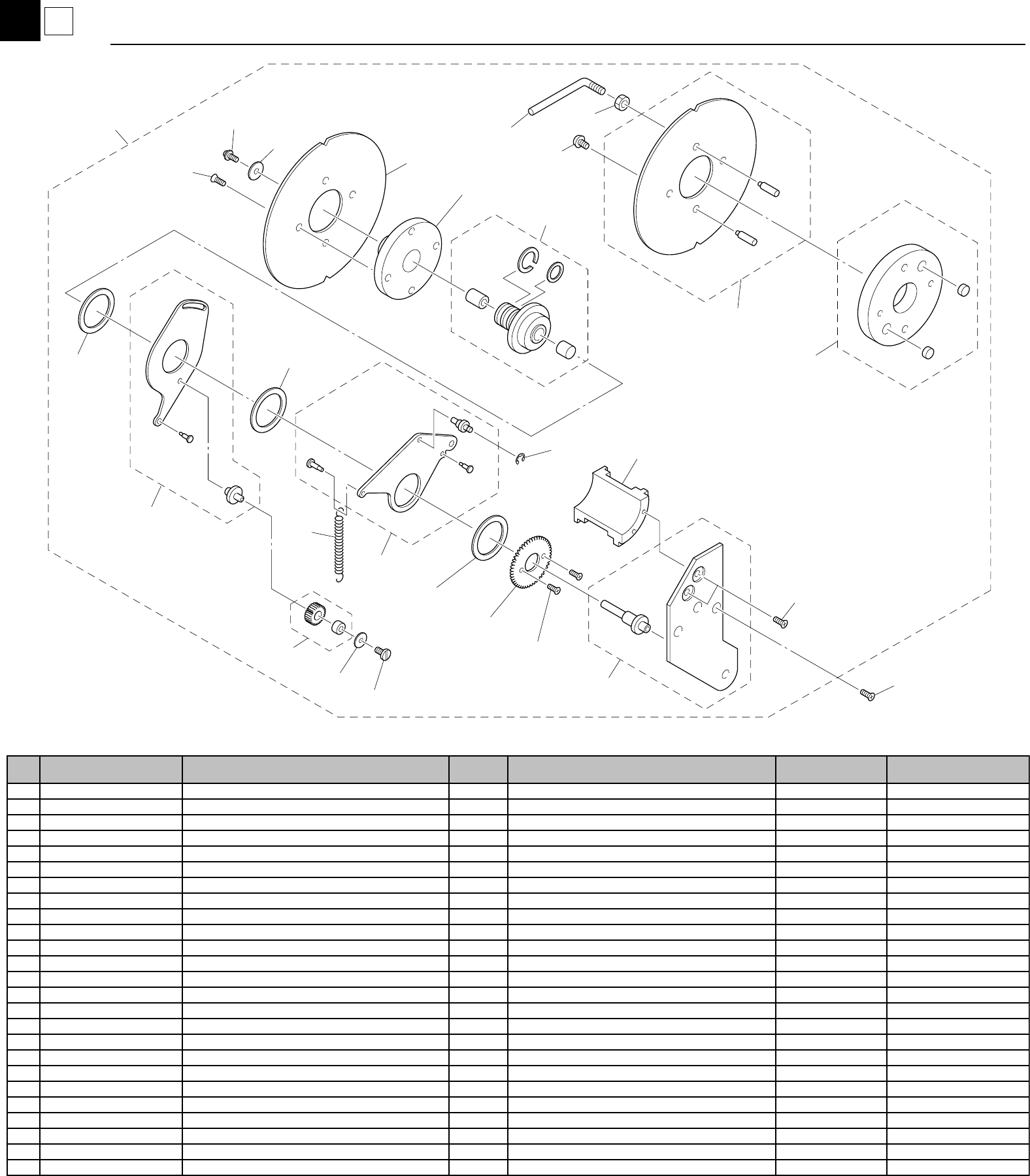

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5690-00X WIND ROLER ASSY 1
2 K87-M5626-00X THRUST WASHER 3
3 K87-M5627-00X INDEX GEAR 1
4 K87-M5628-00X SPRING 1
5 K87-M5629-00X SPECIAL SCREW 1
6 K87-M562A-00X WASHER PLANE 1
7 K87-M562B-00X TAPE GUIDE 1
8 K87-M5691-00X FRANGE REEL ASSY 1
9 K87-M5694-00X WIND METAL ASSY 1
10 K87-M5697-00X LEVER METAL ASSY 1
11 K87-M569D-00X SUB LEVER ASSY 1
12 K87-M569J-00X ROD 1
13 K87-M239Y-00X PLANE WASHER 1
14 K87-M56A1-00X WIND PLATE ASSY 1
15 K87-M56A4-00X INDEKING LEVER ASSY 1
16 K87-M56A8-00X DRIVE GEAR ASSY 1
17 K87-M56AB-00X METAL SHAFT 1
18 K87-M56AC-00X REEL FRANGE 1
19 K87-M56B1-00X SCREW NUT 1
20 K87-M23B7-00X SCREW,PAN HEAD + 1
21 K87-M23BN-00X SCREW,IT + 3
22 K87-M11B9-00X CIRCLIP E 1
23 K87-M23B6-00X SCREW,FLAT HEAD + 3
24 K87-M55BN-00X SCREW,FLAT HEAD + 2
25 K87-M23BJ-00X SCREW,FLAT HEAD + 2
