FV44 S TD FV44 S TD FV 44 STD-0 403 14 4 34 35 36 36 36 33 33 20 13 19 36 19 41 32 43 23 31 30 14 15 17 16 37 37 24 38 42 5 4 39 6 12 11 34 35 2 3 4 10 4 9 5 11 40 8 12 11 12 1 25 26 27 36 19 28 18 22 21 29 7 No. Part No…
FV44 STD
FV44 STD

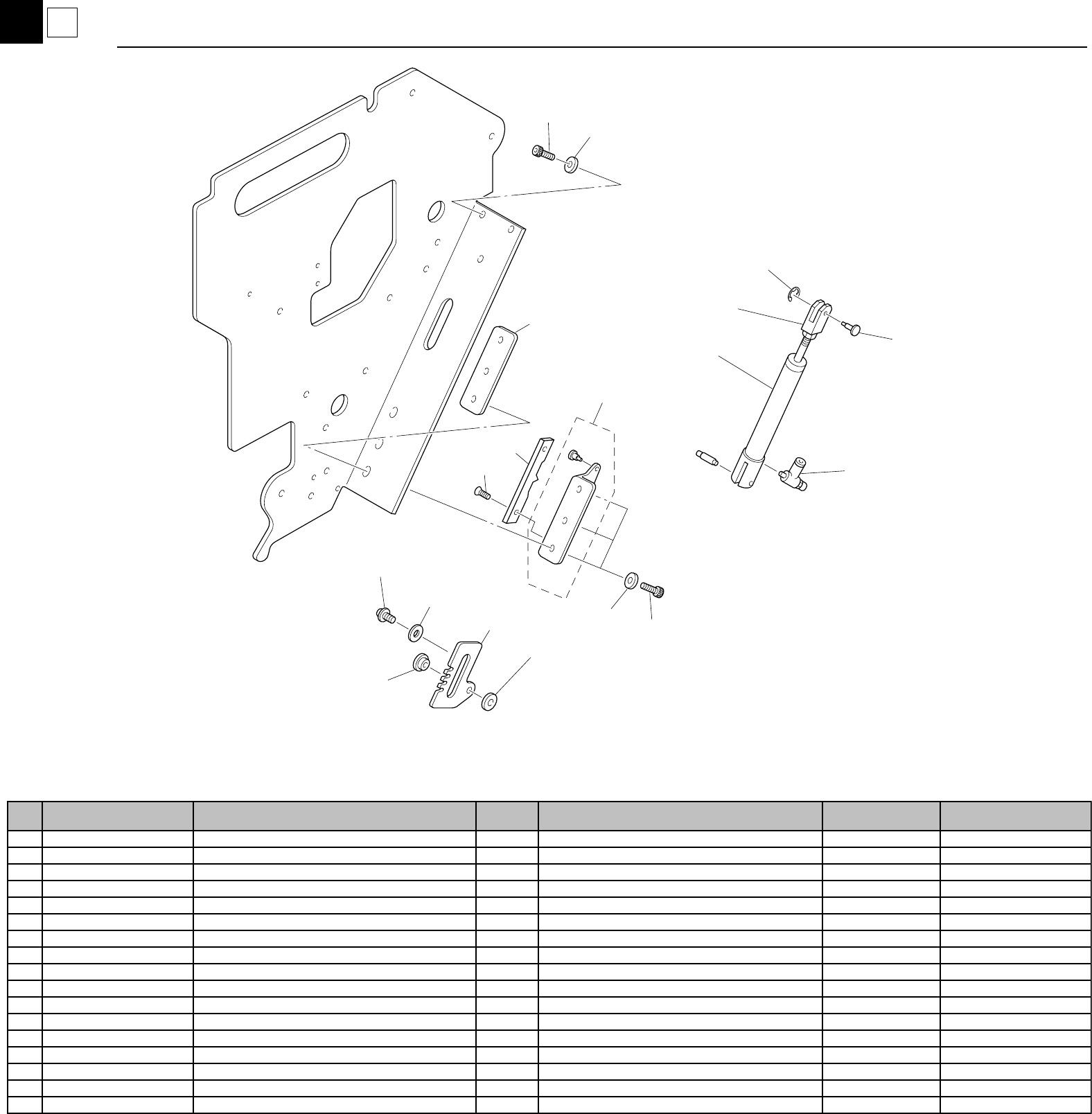

FV44STD-0301
14
3
14
15
9
8
15
13
7
10
5
4
6
12
2
1
11
3
16
17
No. Part No. Part Name Q'ty Remarks Date Revised No.
1K87-M2381-00XCYLINDER1
2K87-M2382-00XCYL CONNECTOR1
3 K87-M1184-00X CONNECT PIN 1
4 K87-M5384-00X MOVE PLATE 1
5 K87-M2385-00X METAL 1
6 K87-M2386-00X PLANE WASHER 1
7 K87-M2387-00X PLANE WASHER 2
8 K87-M5389-00X SET PLATE ASSY 1
9 K87-M238C-00X FASTEN PLATE 1
10 K87-M23B7-00X SCREW,PAN HEAD + 2
11 K87-M43B8-00X SPEED CONTROLER 1
12 K87-M11B9-00X CIRCLIP E 3
13 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
14 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BC-00X PLANE WASHER 6
16 K87-M111S-00X FLAT HEAD + 2
17 K87-M538C-00X POSITION PLATE 1
FV44 STD
FV44 STD
FV44STD-0403
14
4
34
35
36
36
36
33
33
20
13
19
36
19
41
32
43
23
31
30
14
15
17
16
37
37
24
38
42
5
4
39
6
12
11
34
35
2
3
4
10
4
9
5
11
40
8
12
11
12
1
25
26
27
36
19
28
18
22
21
29
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M6360-00X BACK PLATE ASSY 1
2 K87-M536V-00X GUIDE PLATE 1
3K87-M536F-00XPLATE 1
4 K87-M536T-00X ROLLER 7
5 K87-M536S-00X ROLLER AXIS 2
6 K87-M536R-00X PLATE 1
7 K87-M536W-00X ROLLER SHAFT ASSY 1
8 K87-M536X-00X ROLLER SET PLATE 1
9 K87-M536Y-00X ROLLER SHAFT 1
10 K87-M536J-00X ROLLER 1
11 K87-M21BN-00X SCREW NUT 4
12 K87-M21BM-00X SPRING LOCK WASHER 4
13 K87-M536P-00X SPRING 1
14 K87-M5390-00X WIND ROLLER 1 ASSY 1
15 K87-M5394-00X ROLLER 1
16 K87-M5395-00X GEAR 1
17 K87-M2395-00X FLANGE 1
18 K87-M5397-00X ROLLER AXIS 1
19 K87-M2397-00X PLANE WASHER 3
20 K87-M539A-00X WIND ROLLER 2 ASSY 1
21 K87-M5394-00X ROLLER 1
22 K87-M539C-00X GUIDE PLATE 1
23 K87-M539D-00X CONNECT ARM 1
24 K87-M539E-00X GEAR 1
25 K87-M239H-00X LEVER METAL ASSY 1
26 K87-M239L-00X INDEX LEVER ASSY 1
27 K87-M539M-00X SPRING 1
28 K87-M2199-00X DRIVE GEAR ASSY 1
29 K87-M119J-00X THRUST WASHER 1
30 K87-M239U-00X SUB LEVER ASSY 1
31 K87-M239X-00X INDEX GEAR 1
32 K87-M239Y-00X PLANE WASHER
33 K87-M5399-00X FLANGE 2
34 K87-M111N-00X SCREW,CIRCULAR HEAD + 4
35 K87-M11BE-00X PLANE WASHER 4
36 K87-M23BJ-00X SCREW,FLAT HEAD + 9
37 K87-M11B2-00X SCREW,FLAT HEAD + 4
38 K87-M11BC-00X SCREW,FLAT HEAD + 2
39 K87-M53BS-00X SCREW,SEMICIRCULAR HEAD + 2
40 K87-M111W-00X SCREW,SEMICIRCULAR HEAD + 2
41 K87-M55BJ-00X SCREW,TRUSS HEAD 1
42 K87-M23BN-00X SCREW,IT + 1
43 K87-M11B9-00X CIRCLIP E
1
1
FV44 STD
FV44 STD

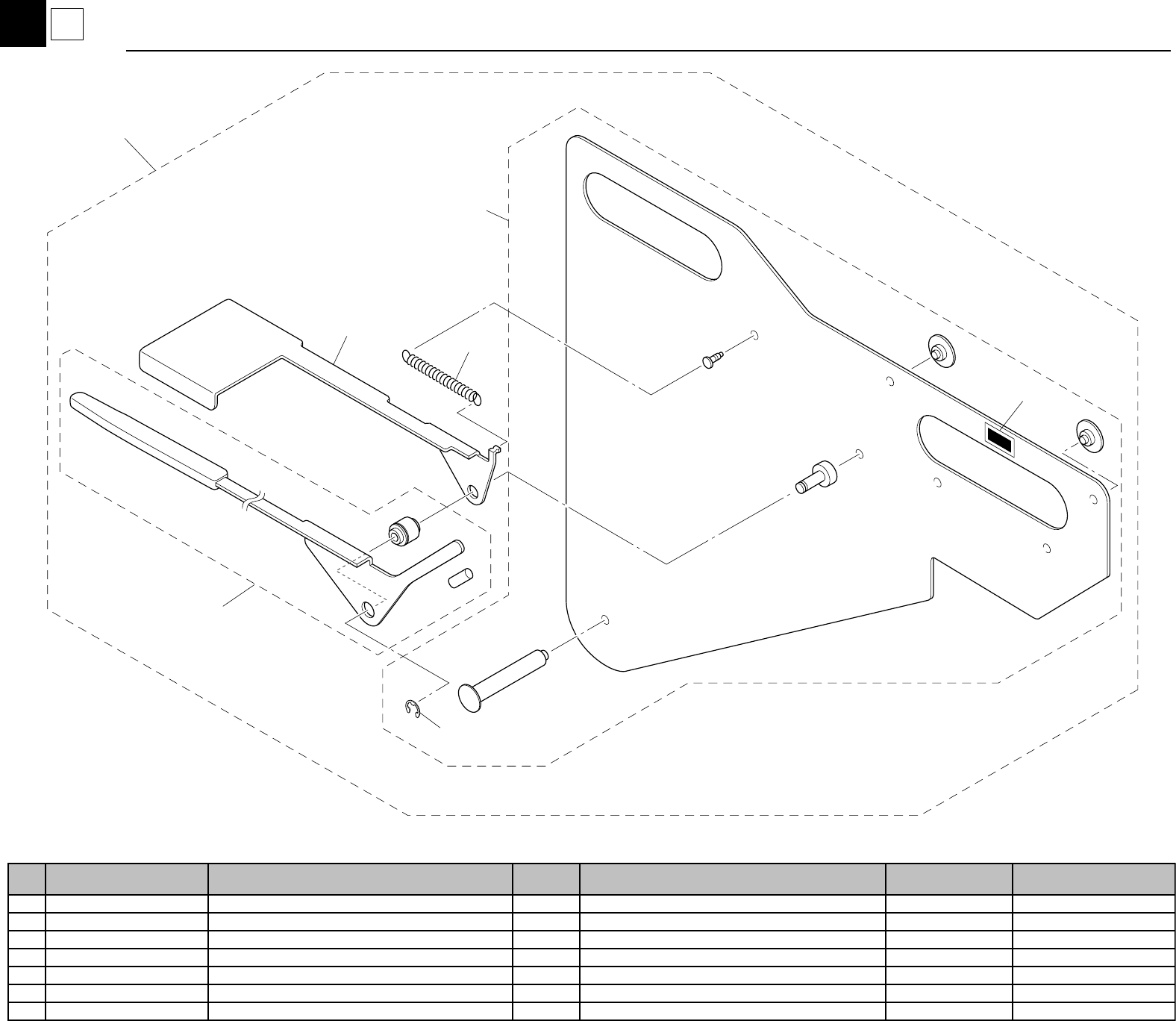

FV44STD-0012
14
5
1
4
2
3
5
6
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M63D0-00X REEL HOLDER ASSY 1
2 K87-M63D1-00X REEL PLATE ASSY 1
3 K87-M63D4-00X TAPE SIZE STICKER 1
4 K87-M53BX-00X CIRCLIP U 1
5 K87-M53DA-00X INDICATOR LEVER ASSY 1
6 K87-M53DE-00X REEL BRAKE LEVER 1
7 K87-M23DE-00X SPRING 1
