K87_FV_M-PL.pdf - 第14页

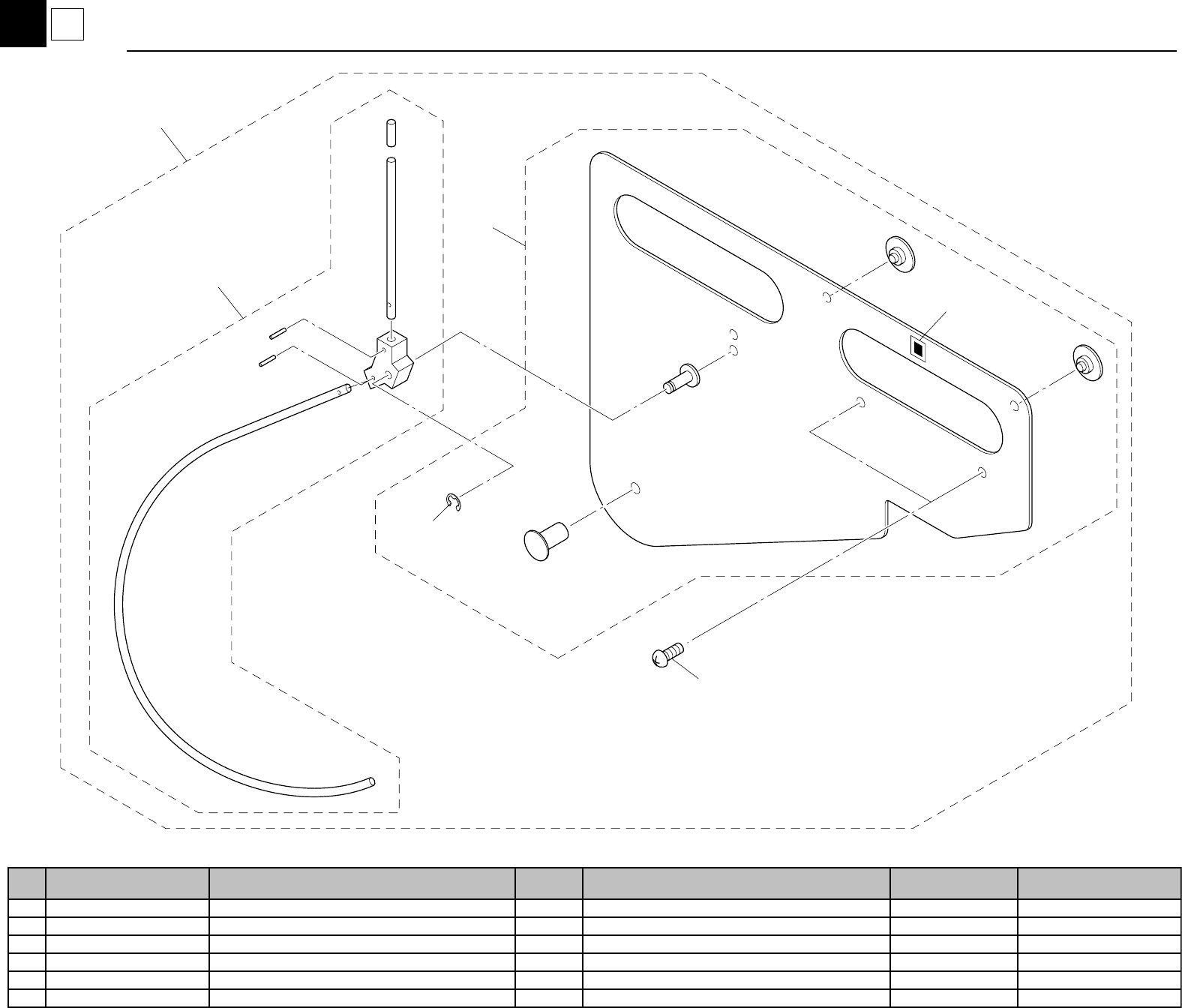

FV12D FV12D FV12D-0012 2 6 1 4 2 3 5 6 7 8 N o . Part No. Part Name Q'ty Re m arks Date R evised No. 1 K87-M22D0-10X REEL HOLDER ASSY 1 2 K87-M22D1-10X REEL PLATE ASSY 1 3 K87-M21D3-00X TAPE SIZE STICKER 1 4 K87-M11…
FV12D
FV12D
FV12D-0012
2
6
1
4
2
3
5
6
7
8
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M22D0-10X REEL HOLDER ASSY 1
2 K87-M22D1-10X REEL PLATE ASSY 1
3 K87-M21D3-00X TAPE SIZE STICKER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M12D8-00X REEL SIZE STICKER 1
6 K87-M22DA-00X INDICATOR LEVER ASSY 1
7 K87-M22DL-00X SPRING 1
8 K87-M111N-00X SCREW,PAN HEAD + 2
1
3
FV12LP STD
FV12LP STD
FV12LP STD-0012
27
19
16
18
17
15
10
2
3
8
12
13
26
20
27
21
27
9
7
1
24
24
3
22
6
23
5
25
25
4
13
14
26
11
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2310-00X BODY ASSY 1
2 K87-M1112-00X KNOCK PIN (FRONT) 1
3 K87-M231M-00X STRAIGHET PIN 2
4 CIRCULAR RIVET 1
5 K87-M111D-00X PUSH PIN 1
6 K87-M111G-00X PUSH PIN 1
7 K87-M2319-00X BACK STOPPER 1
8 K87-M231A-00X BACK STOPPER AXIS 1
9 K87-M2318-00X SPRING 1
10 K87-M211F-00X STOPPER PIN 1
11 K87-M231G-00X LEVER ASSY 1
12 K87-M231F-00X PLATE 1
13 K87-M2316-00X THRUST WASHER 2
14 K87-M2317-00X CAP 1
15 K87-M2315-00X MAIN ARM 1
16 K87-M2321-00X SPROCKET 1
17 K87-M232A-00X RACKING LEVER ASSY 1
18 K87-M112D-00X COIL SPRING 1
19 K87-M212L-00X SPROCKET AXIS ASSY 1
20 K87-M231C-00X SPRING 1
21 K87-M238D-00X SUB ARM 1
22 K87-M111T-00X SCREW,SET 1
23 K87-M111X-00X SCREW,SET 1
24 K87-M111R-00X SCREW,SET 2
25 K87-M111V-00X SCREW,SET (84D) 2
26 K87-M23B6-00X SCREW,FLAT HEAD + 4
27 K87-M11B9-00X CIRCLIP E 3
