FV32N ADD FV32N ADD FV32N-0012 13 5 12 13 11 10 1 3 2 9 6 8 7 4 13 5 N o . Part No. Part Name Q'ty Re m arks Date R evised No. 1 K87-M5660-00X CYL HOLDER ASSY 1 2 K87-M5663-00X SPRING 1 3 K87-M55BH-00X SCREW,TRUSS H…
FV32N ADD
FV32N ADD
FV32N-0012
13
4
6
9
3
2
4
1
7
10
5
8

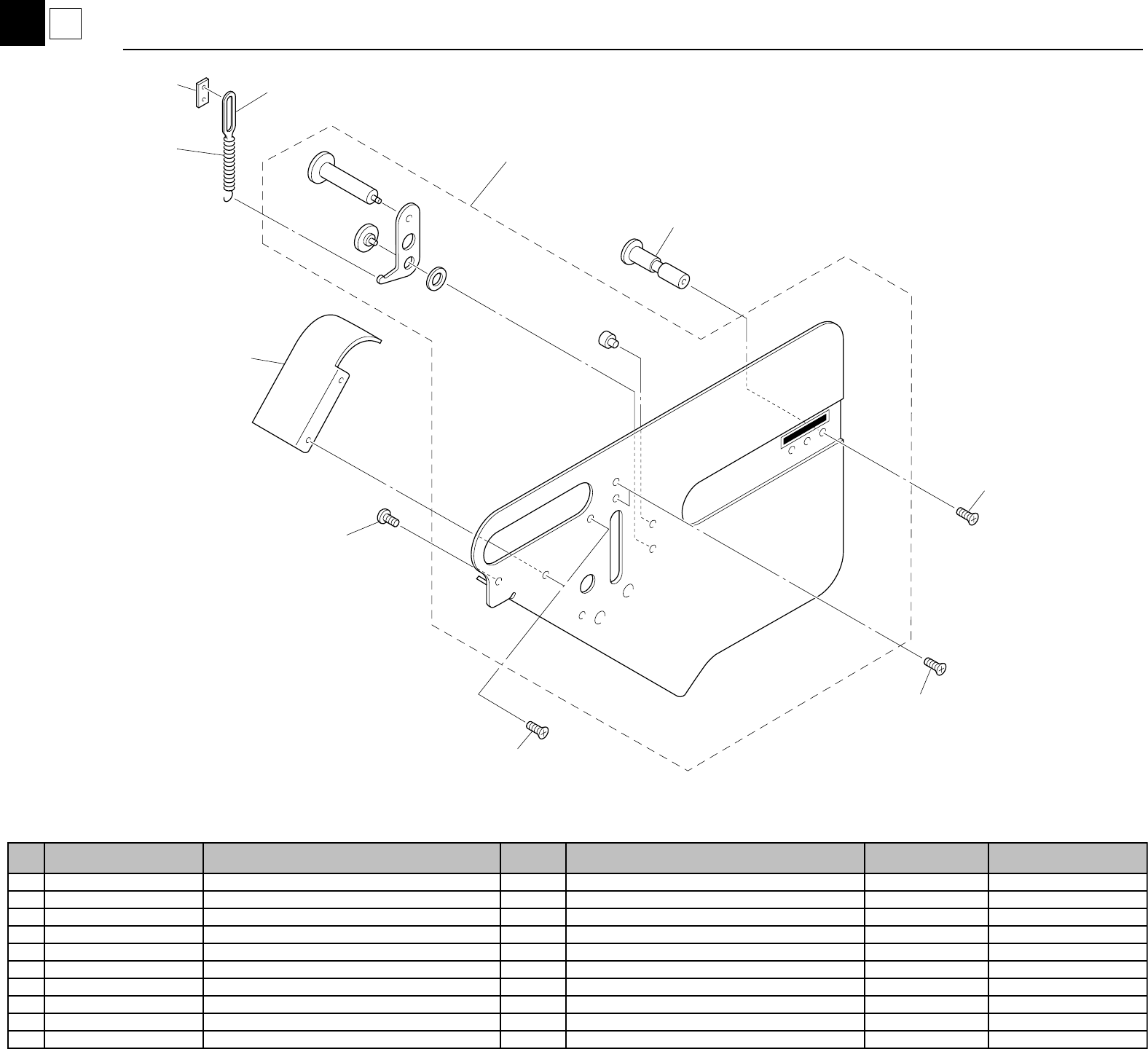

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M56D0-00X REEL HOLDER ASSY 1
2 K87-M556C-00X SPRING 1
3 K87-M556E-00X PLATE 1
4 K87-M556B-00X PLATE HOOK 1
5 K87-M23BJ-00X SCREW,FLAT HEAD + 2
6 K87-M56DB-00X TAPE GUIDE PLATE 1
7 K87-M56DC-00X REEL SHAFT 1
8 K87-M23B7-00X SCREW,PAN HEAD + 1
9 K87-M534F-00X SCREW,TRUSS HEAD + 2
10 K87-M55BH-00X SCREW, TRUSS HEAD+ 1
FV32N ADD
FV32N ADD
FV32N-0012
13
5
12
13
11
10
1
3
2
9
6
8
7
4
13
5

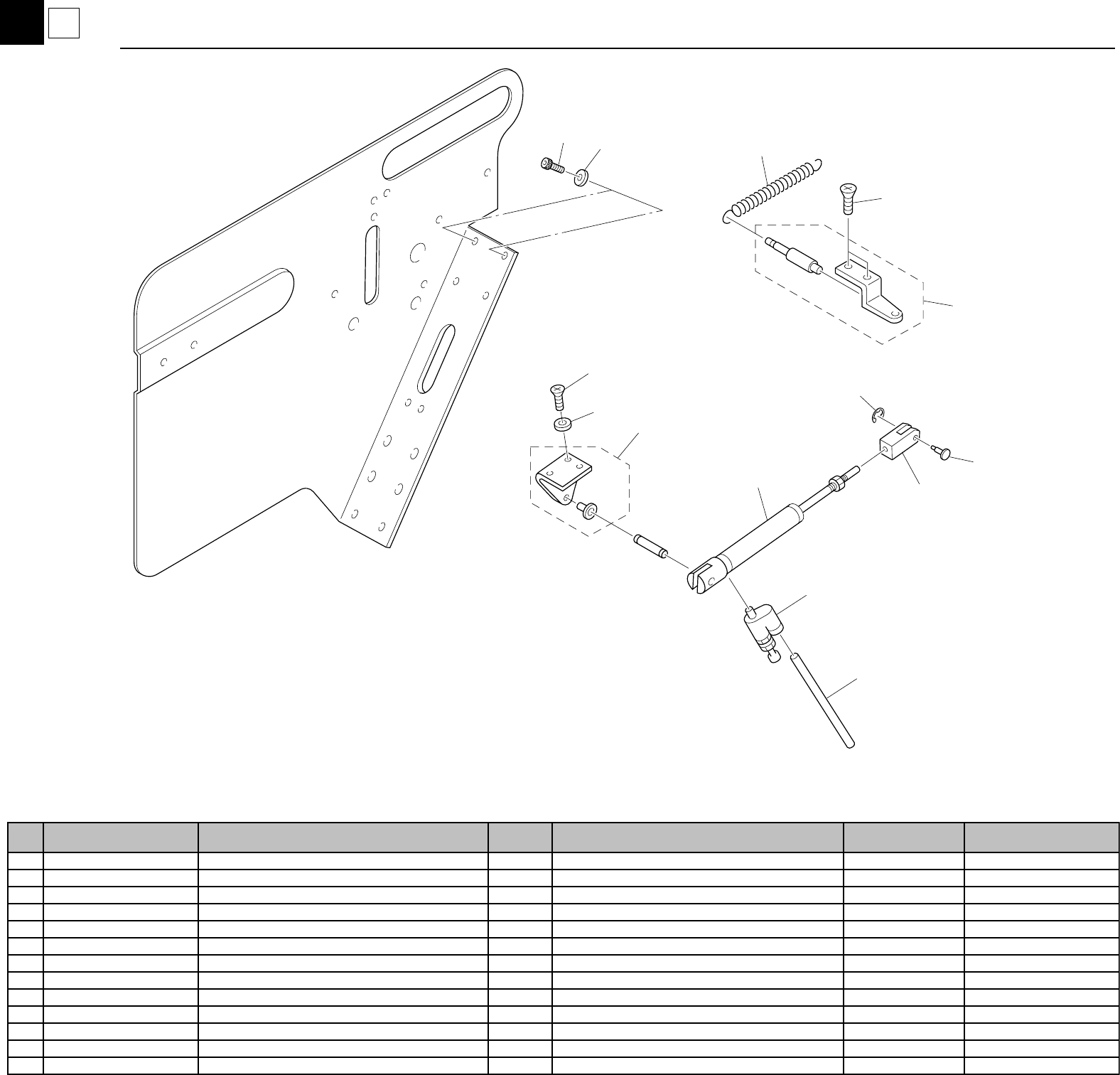

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M5660-00X CYL HOLDER ASSY 1
2 K87-M5663-00X SPRING 1
3 K87-M55BH-00X SCREW,TRUSS HEAD + 2
4 K87-M5665-00X CYL HOLDER2 ASSY 1
5 K87-M56BH-00X SCREW,TRUSS HEAD + 4
6 K87-M2381-00X CYLINDER 1
7 K87-M5682-00X SPEED CONTROLER 1
8 K87-M5683-00X URETHANE TUBE 1
9 K87-M5684-00X ROD CONNECT 1
10 K87-M1184-00X CONNECT PIN 1
11 K87-M11B9-00X CIRCLIP E 1
12 K87-M23BB-00X BOLT,HEX SOCKET HEAD 4
13 K87-M23BC-00X PLANE WASHER 8
1
14
FV44 STD
FV44 STD
FV44STD-0012
19
2
17
21
22
13
26
25
7
27
7
18
16
1
29
14
28
15
12
8
10
9
11
29
5
7
7
13
4
3
6
29
29
22
23
13
20
24
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M6310-00X BODY ASSY 1
2 K87-M1112-00X KNOCK PIN (FRONT) 1
3 K87-M116H-00X THRUST WASHER 1
4 4K87-M5323-00X CAP 1
5 K87-M532D-00X COIL SPRING 1
6 K87-M5320-00X SUB LEVER ASSY 1
7 K87-M11B9-00X CIRCLIP E 4
8 K87-M532J-00X METAL 1
9 K87-M532L-00X PRESSURE RING 1
10 K87-M532K-00X CLAMP ELEMENT 1
11 K87-M532M-00X U NUT 1
12 K87-M111P-00X SCREW,FLAT HEAD + 3
13 K87-M23B6-00X SCREW,FLAT HEAD + 5
14 4K87-M531F-00X PUSH PIN 1
15 K87-M531B-00X PUSH PIN 1
16 K87-M531G-00X BACK STOPPER 1
17 K87-M531A-00X BACK STOPPER AXIS 1
18 K87-M5319-00X BACK STPPER SPRING 1
19 K87-M531E-00X STOPPER PIN 1
20 K87-M431G-00X LEVER ASSY 1
21 K87-M231F-00X PLATE 1
22 K87-M2316-00X THRUST WASHER 2
23 K87-M2317-00X CAP 1
25 4K87-M5315-00X MAIN ARM 1
25 K87-M531C-00X HOOK 2
26 K87-M531D-00X SPRING 1
27 K87-M238D-00X SUB ARM 1
28 K87-M111Y-00X SCREW,SET 2
29 K87-M111V-00X SCREW,SET (84D) 4
