FV82C FV82C FV 82C -0012 17 4 11 10 5 16 17 7 4 21 13 17 9 8 16 12 6 14 20 15 18 22 24 23 3 1 22 19 2 24 22 24 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M1160-00X BACK PLATE ASSY 1 2 K87-M1166-00X G…

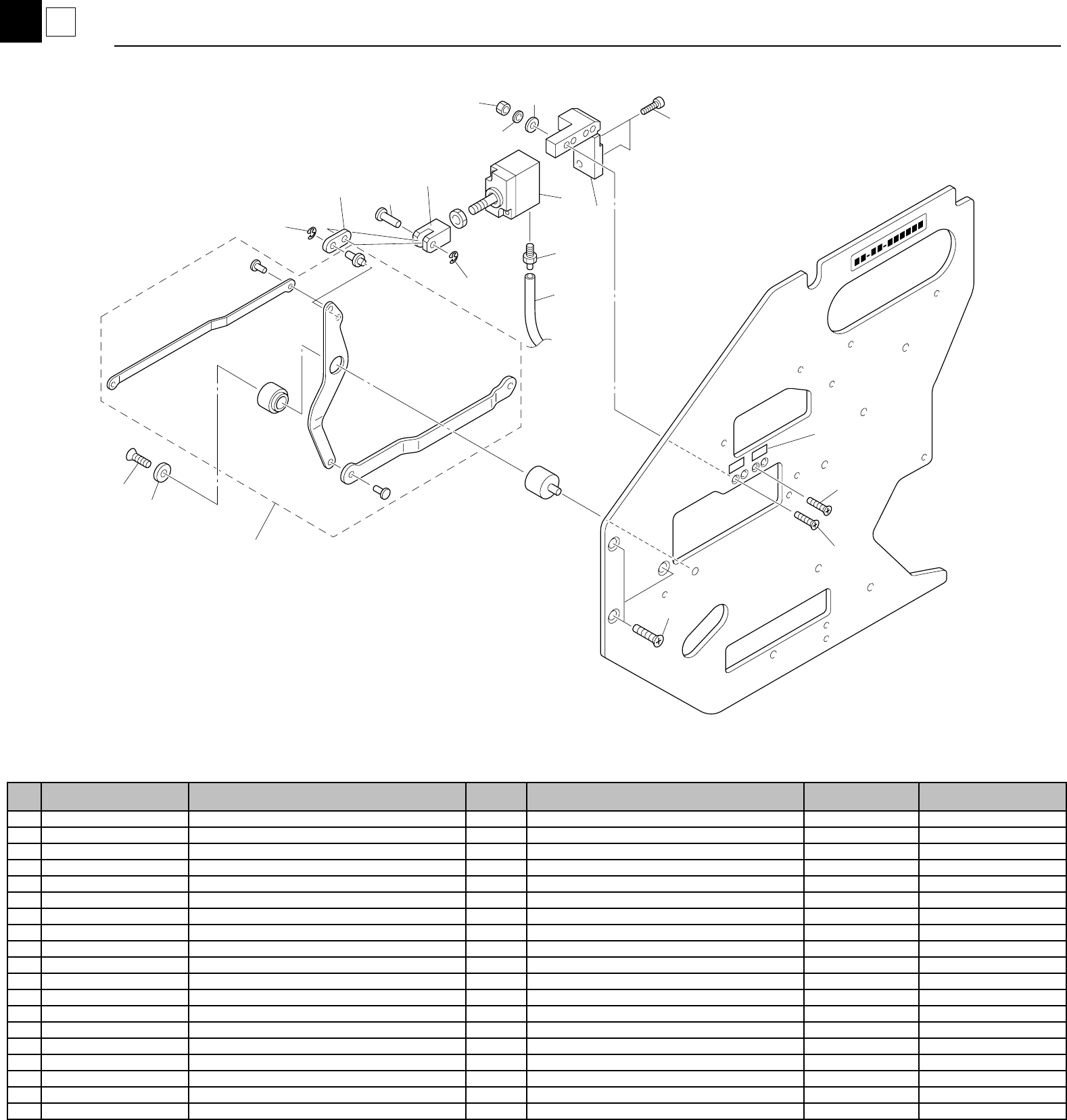

FV82C
FV82C
FV82C-0012
17
3
19
12
11
1
2
3
17
5
18
17
7
4
8
14
16
15
6
9
10
13
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M138K-00X
RATCHET PITCH STICKER 2
2
K87-M1173-00X
MAIN ARM ASSY 1
3
K87-M117B-00X
PLANE WASHER 1
4
K87-M1181-00X
ROD CONNECT 1
5
K87-M1182-00X
ARM 1
6
K87-M1183-00X
CYLINDER HOLDER 1
7
K87-M1184-00X
CONNECT PIN 1
8
K87-M1185-00X
MULTI CYLINDER 1
9
K87-M1186-00X
BARB CONNECTOR STRAIGHT 1
10
K87-M11B1-00X
AIR HOSE (145) 1
11
K87-M11B2-00X
SCREW,FLAT HEAD + 1
12
K87-M11B3-00X
SCREW,FLAT HEAD + 1
13
K87-M11B5-00X
BOLT,HEXAGON SOCKET HEAD 2
14
K87-M11B6-00X
PLANE WASHER 1
15
K87-M11B7-00X
SPRING LOCK WASHER 1
16
K87-M11B8-00X
SCREW NUT 1
17
K87-M11B9-00X
CIRCLIP E 2
18
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
19
K87-M11B4-00X
SCREW,FLAT HEAD +IB 3
FV82C
FV82C
FV82C-0012
17
4
11
10
5
16
17
7
4
21
13
17
9
8
16
12
6
14
20
15
18
22
24
23
3
1
22
19
2
24
22
24
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1160-00X
BACK PLATE ASSY 1
2
K87-M1166-00X
GUIDE PLATE 1
3
K87-M1169-00X
GUIDE PLATE 1
4
K87-M1191-00X
DRIVE ROLLER UNIT 1
5
K87-M1192-00X
INDENTATION LEVER ASSY 1
6
K87-M1196-00X
SUB LEVER ASSY 1
7
K87-M1199-00X
DRIVE GEAR ASSY 1
8
K87-M117B-00X
PLANE WASHER 1
9
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
10
K87-M119C-00X
LEVER METAL ASSY 1
11
K87-M11BC-00X
SCREW,FLAT HEAD + 2
12
K87-M119G-00X
DRIVE ROLLER 1
13
K87-M119J-00X
THRUST WASHER 1
14
K87-M119K-00X
SPRING 1
15
K87-M119L-00X
IDLE ROLLER ASSY 1
16
K87-M117B-00X
PLANE WASHER 2
17
K87-M11BB-00X
SCREW,FLAT HEAD + IB 2
18
K87-M119P-00X
SPRING 1
19
K87-M11A1-00X
LOWER GUIDE PLATE 1
20
K87-M11A3-00X
LOWER GUIDE PLATE 1
21
K87-M11B9-00X
CIRCLIP E 1
22
K87-M11BE-00X
PLANE WASHER 6
23
K87-M11BF-00X
SCREW,FLAT HEAD +IB 2
24
K87-M111N-00X
SCREW,PAN HEAD + 6
