K87_FV_M-PL.pdf - 第111页
FV84D FV84D FV 84D -0012 21 3 No. Part No. Part Name Q't y Remarks Date R evised No. 1 K87-M1173-00X MAIN ARM ASSY 1 2 K87-M117B-00X PLANE WASHER 1 3 K87-M1181-00X ROD CONNECT 1 4 K87-M1182-00X ARM 1 5 K87-M1183-00X…
FV84D
FV84D
FV84D-0012
21
2
6
11
7
8
9
10
8
5

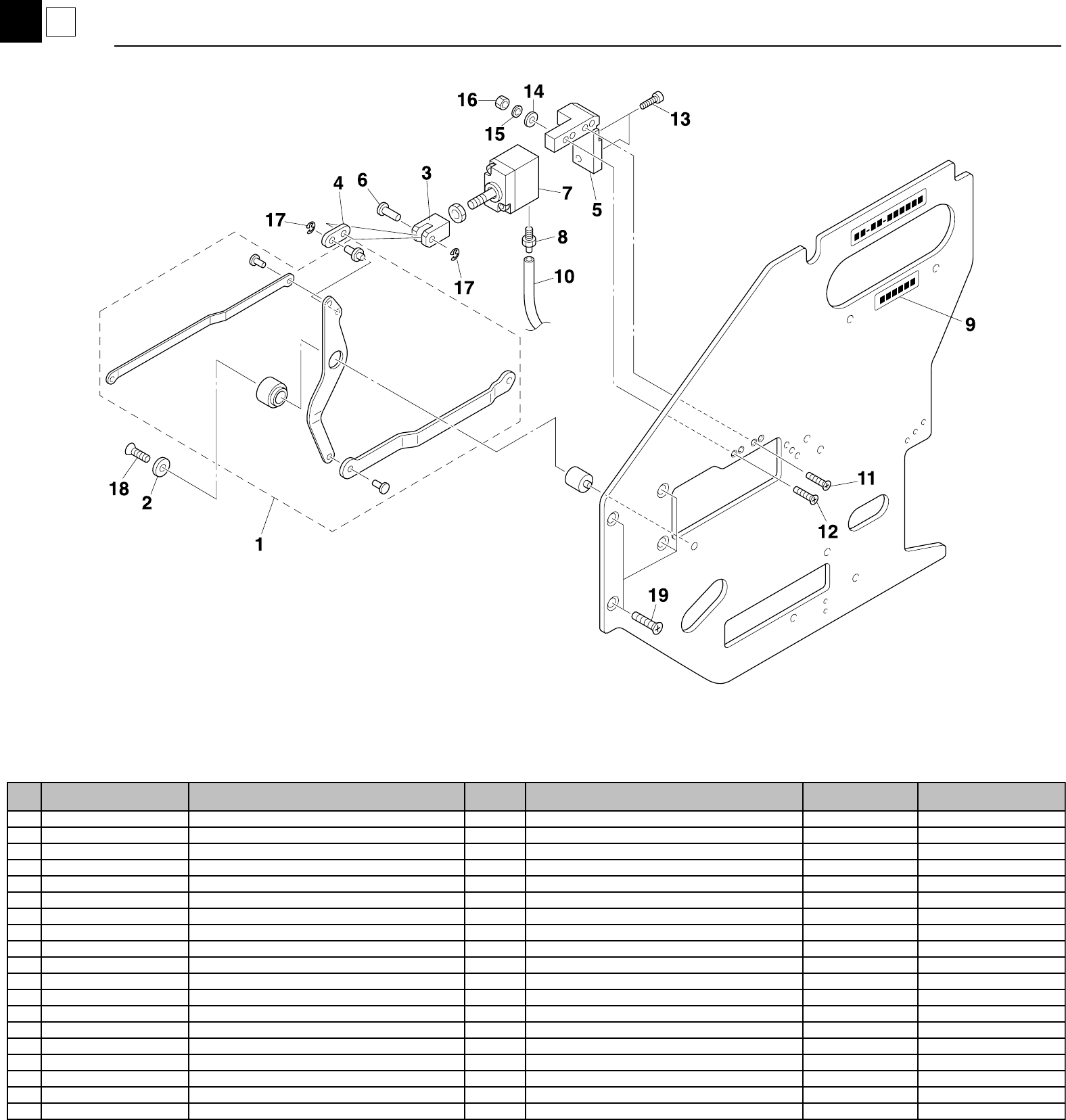

No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M111S-00X
SCREW,FLAT HEAD + 6
2
K87-M111U-00X
SCREW FLANGE NUT 2
3
K87-M111V-00X
SCREW,SET 1
4
K87-M111X-00X
SCREW,SET 2
5
K87-M1131-00X
CLAMP LEVER UNIT 1
6
K87-M1132-10X
CLAMP LEVER ASSY 1
7
K87-M113A-00X
CLANK ARM ASSY 1
8
K87-M113D-00X
ARM 2
9
K87-M113E-00X
HINGE PIN 2 1
10
K87-M11D7-00X
CIRCLIP E 2
11
K87-M113L-10X
CLAMP LEVER AXIS 1
12
K87-M113M-00X
AXIS PIN 1
13
K87-M113H-00X
PUSH PIN 1
14
K87-M1140-10X
TAPE GUIDE ASSY 1
15
K87-M114A-10X
LOCK LEVER ASSY 1
16
K87-M114L-10X
SUPPORT PLATE 1
17
K87-M114M-10X
SUPPORT PLATE 1
18
K87-M114N-00X
GUIDE AXIS 2
FV84D
FV84D
FV84D-0012
21
3
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1173-00X
MAIN ARM ASSY 1
2
K87-M117B-00X
PLANE WASHER 1
3
K87-M1181-00X
ROD CONNECT 1
4
K87-M1182-00X
ARM 1
5
K87-M1183-00X
CYLINDER HOLDER 1
6
K87-M1184-00X
CONNECT PIN 1
7
K87-M1185-00X
MULTI CYLINDER 1
8
K87-M1186-00X
BARB CONNECTOR STRAIGHT 1
9
K87-M118J-00X
PA NO. SEAL 1
10
K87-M11B1-00X
AIR HOSE (145) 1
11
K87-M11B2-00X
SCREW,FLAT HEAD + 1
12
K87-M11B3-00X
SCREW,FLAT HEAD + 1
13
K87-M11B5-00X
BOLT,HEXAGON SOCKET HEAD 2
14
K87-M11B6-00X
PLANE WASHER 1
15
K87-M11B7-00X
SPRING LOCK WASHER 1
16
K87-M11B8-00X
SCREW NUT 1
17
K87-M11B9-00X
CIRCLIP E 2
18
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
19
K87-M11B4-10X
SCREW,FLAT HEAD + 4
FV84D
FV84D
FV84D-0012
21
4
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1160-10X
BACK PLATE ASSY 1
2
K87-M116D-00X
SPRING STICKER 1
3
K87-M1169-00X
GUIDE PLATE 1
4
K87-M1191-10X
DRIVE ROLLER UNIT 1
5
K87-M1192-00X
INDENTATION LEVER ASSY 1
6
K87-M1196-00X
SUB LEVER ASSY 1
7
K87-M1199-10X
DRIVE GEAR ASSY 1
8
K87-M117B-00X
PLANE WASHER 1
9
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
10
K87-M119C-00X
LEVER METAL ASSY 1
11
K87-M11BC-00X
SCREW,FLAT HEAD + 2
12
K87-M119F-10X
DRIVE ROLLER ASSY 1
13
K87-M119G-10X
DRIVE ROLLER 1
14
K87-M119H-00X
COVER PLATE 1
15
K87-M11BA-00X
SCREW,FLAT HEAD + 2
16
K87-M119J-00X
THRUST WASHER 1
17
K87-M119K-00X
SPRING 1
18
K87-M119L-10X
IDLE ROLLER ASSY 1
19
K87-M117B-00X
PLANE WASHER 2
20
K87-M11BB-00X
SCREW,FLAT HEAD + IB 2
21
K87-M119P-10X
SPRING 1
22
K87-M11A1-10X
LOWER GUIDE PLATE 1
23
K87-M11A2-00X
COVER PLATE 1
24
K87-M11A3-10X
LOWER GUIDE PLATE 1
25
K87-M11BE-00X
PLANE WASHER 2
26
K87-M11BF-00X
SCREW,FLAT HEAD +IB 2
27
K87-M111N-00X
SCREW,PAN HEAD + 4
28
K87-M11B9-00X
CIRCLIP E 1
