FV32 S TD FV32 S TD FV32STD-0 301 11 3 14 15 9 8 15 13 7 10 5 4 6 12 2 1 11 3 16 17 N o . Part No. Part Name Q'ty Re m arks Da t e R evised No. 1 K87-M 2 381-00X CYLINDER 1 2 K87-M5382-00X CYL CONNECTOR 1 3 K87-M118…
FV32 STD
FV32 STD
FV32STD-0012
11
2
6
7
8
11
10
1
2
3
4
9
6
5
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2313-00X KNOCK PIN (REAR) 1
2 K87-M5330-00X CLAMP LEVER ASSY 1
3 K87-M2335-00X CLAMP ROLLER 1
4 K87-M11D7-00X CIRCLIP E 1
5 K87-M5342-00X GUIDE AXIS 1
6 K87-M533A-00X GUIDE AXIS 2
7 K87-M5340-00X TAPE GUIDE ASSY 1
8 K87-M534A-00X LOCK LEVER ASSY 1
9 K87-M534F-00X SCREW, TRUSS HEAD + 2
10 K87-M23BG-00X ELBO CONNECTOR 1
11 K87-M53BH-00X HOSE 1
FV32 STD
FV32 STD
FV32STD-0301
11
3
14
15
9
8
15
13
7
10
5
4
6
12
2
1
11
3
16
17
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M2381-00X CYLINDER 1
2 K87-M5382-00X CYL CONNECTOR 1
3 K87-M1184-00X CONNECT PIN 1
4 K87-M5384-00X MOVE PLATE 1
5 K87-M2385-00X METAL 1
6 K87-M2386-00X PLANE WASHER 1
7 K87-M2387-00X PLANE WASHER 2
8 K87-M5389-00X SET PLATE ASSY 1
9 K87-M238C-00X FASTEN PLATE 1
10 K87-M23B7-00X SCREW, TRUSS HEAD 2
11 K87-M43B8-00X SPEED CONTROLER 1
12 K87-M11B9-00X CIRCLIP E 3
13 K87-M23BA-00X BOLT,HEXAGON SOCKET HEAD 3
14 K87-M23BB-00X BOLT,HEXAGON SOCKET HEAD 3
15 K87-M23BC-00X PLANE WASHER 6
16 K87-M111S-00X SCREW FLAT HEAD + 2
17 K87-M538C-00X POSITION PLATE 1
4
11
FV32 STD
FV32 STD

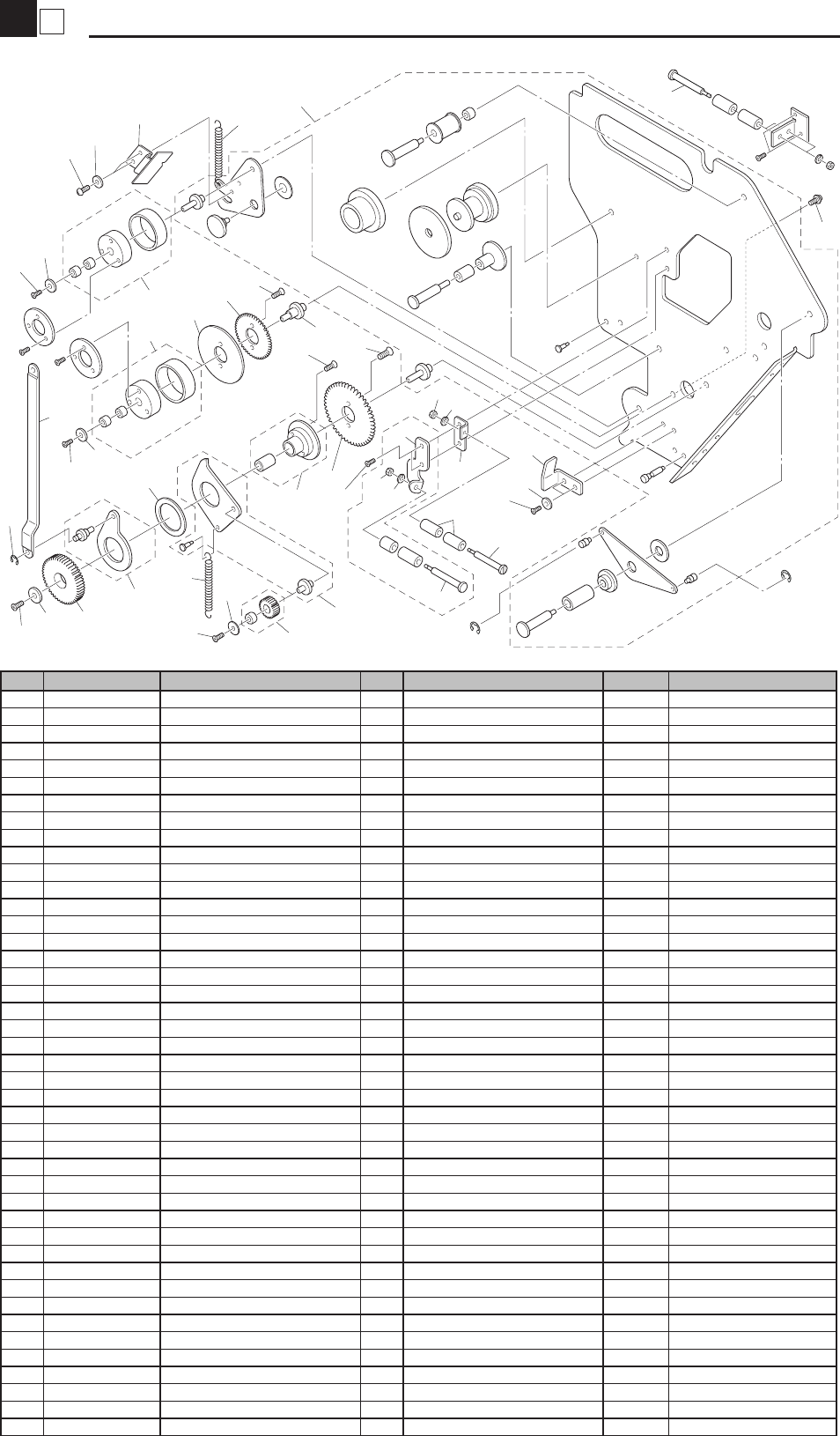

FV32STD-1112
34
35
36
36
36
33
33
20
13
19
36
19
41
32
43
23
31
30
14
17
16
37
37
24
38
42
5
4
39
6
12
11
34
35
2
3
4
10
4
9
5
11
40
8
12
11
12
1
25
26
27
36
19
28
18
22
29
7
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 K87-M5360-00X BACK PLATE ASSY 1
2 K87-M536V-00X GUIDE PLATE 1
3 K87-M536F-00X PLATE 1
4 K87-M536T-00X ROLLER 7
5 K87-M536S-00X ROLLER AXIS 2
6 K87-M536R-00X PLATE 1
7 K87-M536W-00X ROLLER SHAFT ASSY 1
8 K87-M536X-00X ROLLER SET PLATE 1
9 K87-M536Y-00X ROLLER SHAFT 1
10 K87-M536J-00X ROLLER 1
11 K87-M21BN-00X SCREW NUT 4
12 K87-M21BM-00X SPRING LOCK WASHER 4
13 K87-M536P-00X SPRING 1
14 K87-M5390-00X WIND ROLLER 1 ASSY 1
15 1
16 K87-M5395-00X GEAR 1
17 K87-M2395-00X FLANGE 1
18 K87-M5397-00X ROLLER AXIS 1
19 K87-M2397-00X PLANE WASHER 3
20 K87-M539A-00X WIND ROLLER 2 ASSY 1
21
22 K87-M539C-00X GUIDE PLATE 1
23 K87-M539D-00X CONNECT ARM 1
24 K87-M539E-00X GEAR 1
25 K87-M239H-00X LEVER METAL ASSY 1
26 K87-M239L-00X INDEX LEVER ASSY 1
27 K87-M539M-00X SPRING 1
28 K87-M2199-00X DRIVE GEAR ASSY 1
29 K87-M119J-00X THRUST WASHER 1
30 K87-M239U-00X SUB LEVER ASSY 1
31 K87-M239X-00X INDEX GEAR 1
32 K87-M239Y-00X PLANE WASHER 1
33 K87-M5399-00X FLANGE 2
34 K87-M111N-00X SCREW,SEMICIRCULAR HEAD + 4
35 K87-M11BE-00X PLANE WASHER 4
36 K87-M23BJ-00X SCREW,FLAT HEAD + 9
37 K87-M11B2-00X SCREW,FLAT HEAD + 4
38 K87-M11BC-00X SCREW,FLAT HEAD + 2
39 K87-M53BS-00X SCREW,SEMICIRCULAR HEAD + 2
40 K87-M111W-00X SCREW,SEMICIRCULAR HEAD + 2
41 K87-M55BJ-00X SCREW,TRUSS HEAD 1
42 K87-M23BN-00X SCREW,IT + 1
43 K87-M11B9-00X CIRCLIP E 1
