FV84E FV84E FV 84E -0012 22 4 11 10 5 19 20 7 4 25 16 20 9 8 19 13 15 12 14 6 17 24 18 21 3 2 26 27 28 22 23 1 28 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 K87-M1160-20X BACK PLATE ASSY 1 2 K87-M116D-00…

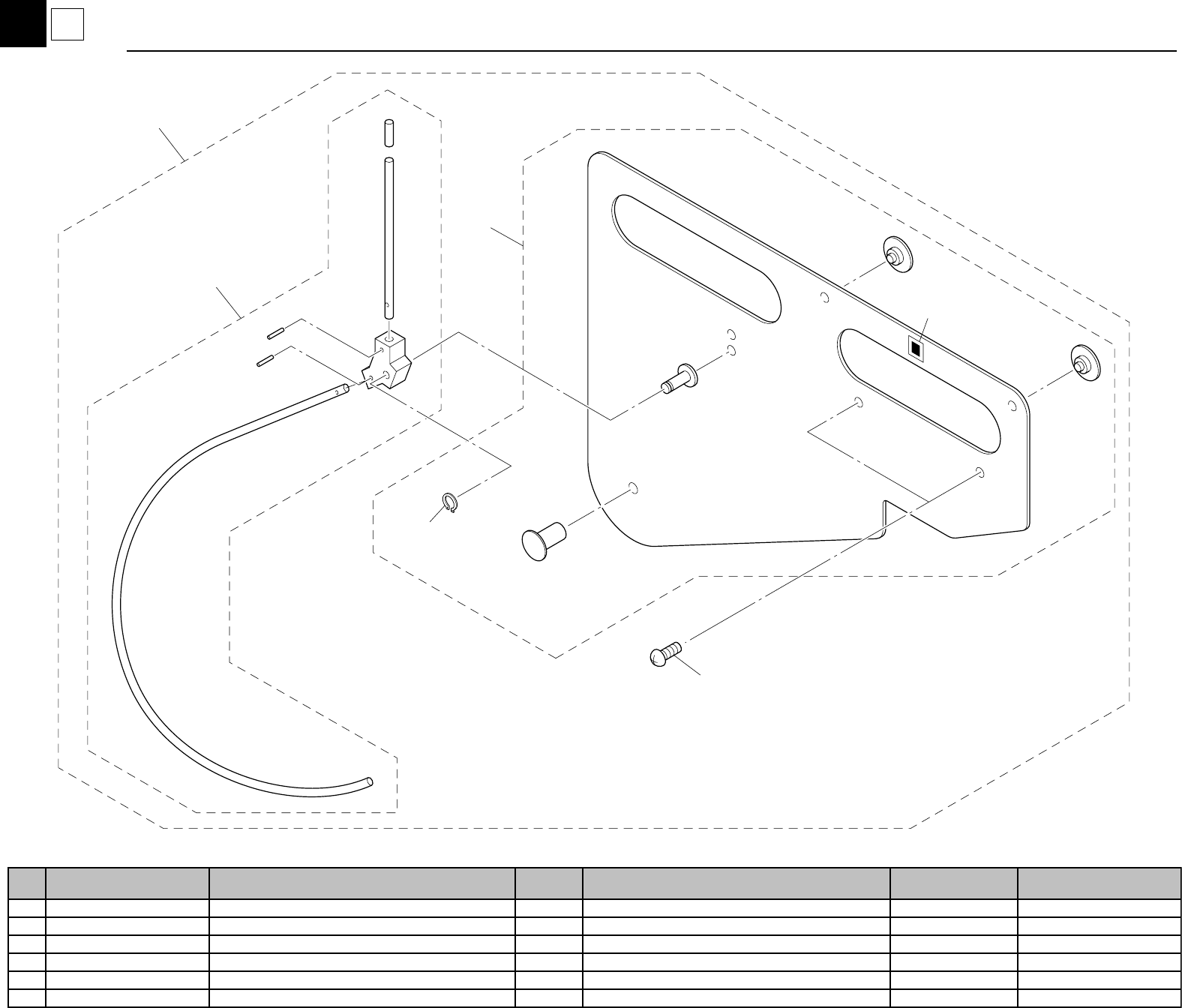

FV84E
FV84E
FV84E-0012
22
3
10
16
9
15
2
4
15
1
5
12
14
13
3
6
8
11
7

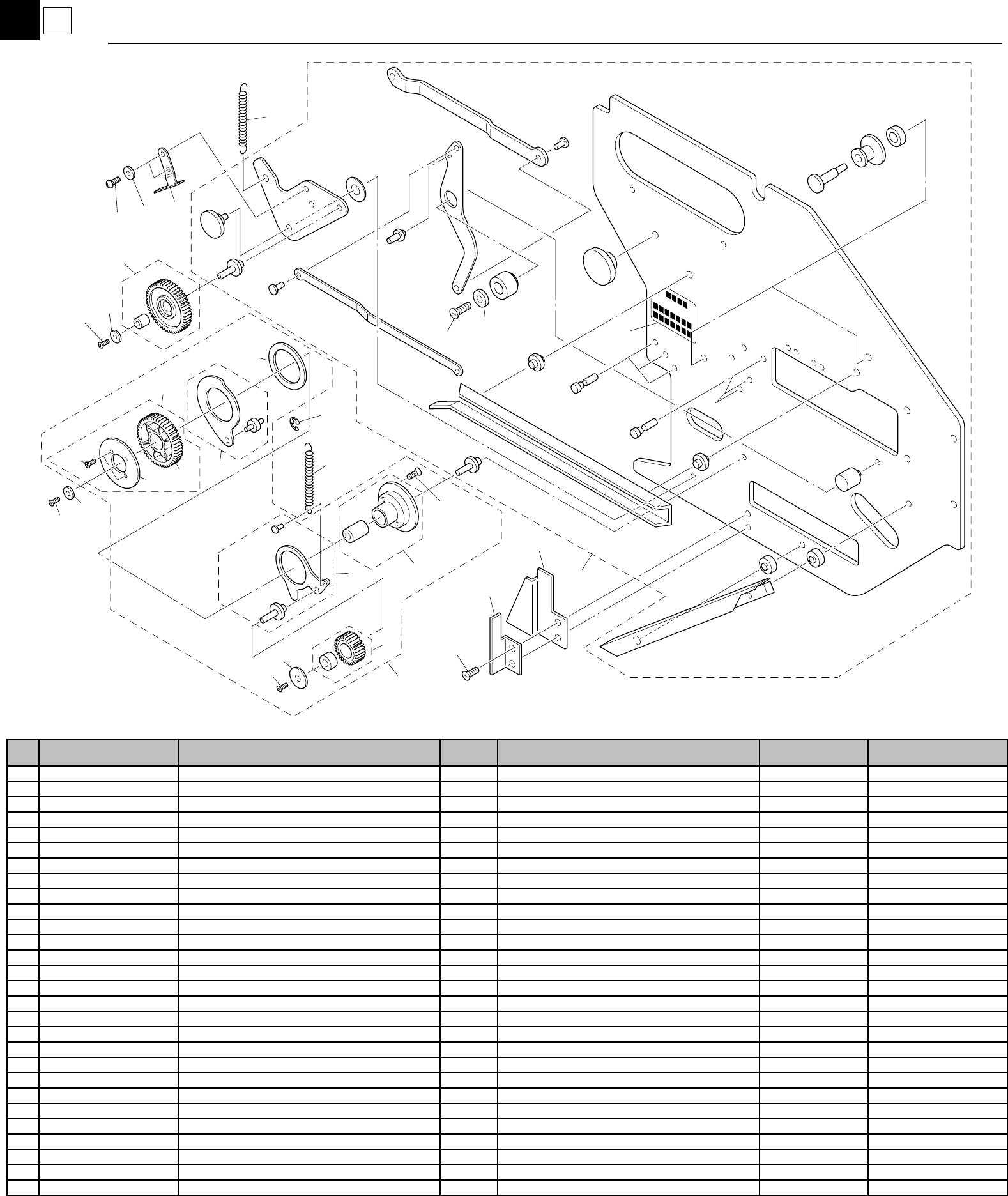

No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1181-00X
ROD CONNECT 1
2
K87-M1182-00X
ARM 1
3
K87-M1183-00X
CYLINDER HOLDER 1
4
K87-M1184-00X
CONNECT PIN 1
5
K87-M1185-00X
MULTI CYLINDER 1
6
K87-M1186-00X
BARB CONNECTOR STRAIGHT 1
7
K87-M118J-00X
PA NO. SEAL 1
8
K87-M11B1-00X
AIR HOSE (145) 1
9
K87-M11B2-00X
SCREW,FLAT HEAD + 1
10
K87-M11B3-00X
SCREW,FLAT HEAD + 1
11
K87-M11B5-00X
BOLT,HEXAGON SOCKET HEAD 2
12
K87-M11B6-00X
PLANE WASHER 1
13
K87-M11B7-00X
SPRING LOCK WASHER 1
14
K87-M11B8-00X
SCREW NUT 1
15
K87-M11B9-00X
CIRCLIP E 2
16
K87-M11B4-10X
SCREW,FLAT HEAD + 4
FV84E
FV84E
FV84E-0012
22
4
11
10
5
19
20
7
4
25
16
20
9
8
19
13
15
12
14
6
17
24
18
21
3
2
26
27
28
22
23
1
28
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1160-20X
BACK PLATE ASSY 1
2
K87-M116D-00X
SPRING STICKER 1
3
K87-M117B-00X
PLANE WASHER 1
4
K87-M1191-10X
DRIVE ROLLER UNIT 1
5
K87-M1192-00X
INDENTATION LEVER ASSY 1
6
K87-M1196-00X
SUB LEVER ASSY 1
7
K87-M1199-10X
DRIVE GEAR ASSY 1
8
K87-M117B-00X
PLANE WASHER 1
9
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
10
K87-M119C-00X
LEVER METAL ASSY 1
11
K87-M11BC-00X
SCREW,FLAT HEAD + 2
12
K87-M119F-10X
DRIVE ROLLER ASSY 1
13
K87-M119G-10X
DRIVE ROLLER 1
14
K87-M119H-00X
COVER PLATE 1
15
K87-M11BA-00X
SCREW,FLAT HEAD + 2
16
K87-M119J-00X
THRUST WASHER 1
17
K87-M119K-00X
SPRING 1
18
K87-M119L-10X
IDLE ROLLER ASSY 1
19
K87-M117B-00X
PLANE WASHER 2
20
K87-M11BB-00X
SCREW,FLAT HEAD + IB 2
21
K87-M119P-10X
SPRING 1
22
K87-M11A1-10X
LOWER GUIDE PLATE 1
23
K87-M11A2-00X
COVER PLATE 1
24
K87-M11A3-10X
LOWER GUIDE PLATE 1
25
K87-M11B9-00X
CIRCLIP E 1
26
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
27
K87-M11BE-00X
PLANE WASHER 2
28
K87-M111N-00X
SCREW,PAN HEAD + 4
