FV84E FV84E FV 84E -0012 22 6 1 4 2 3 5 6 7 No. Part No. Part Name Q't y Remarks Date R evised No. 1 K87-M12D0-10X REEL HOLDER ASSY 1 2 K87-M12D1-10X REEL PLATE ASSY 1 3 K87-M11D3-00X TAPE SIZE STICKER 1 4 K87-M11D7…

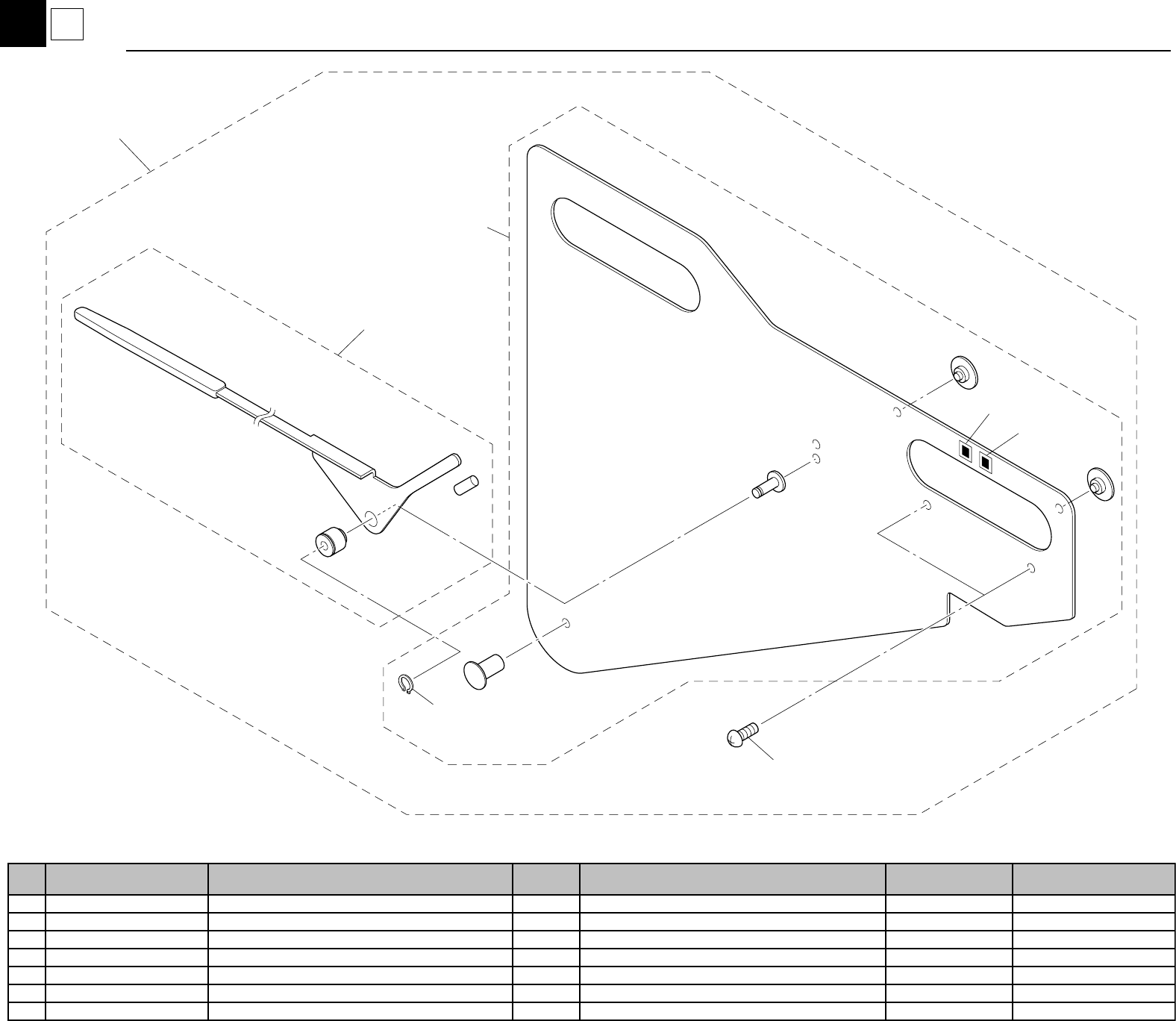

FV84E
FV84E
FV84E-0012
22
4
11
10
5
19
20
7
4
25
16
20
9
8
19
13
15
12
14
6
17
24
18
21
3
2
26
27
28
22
23
1
28
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M1160-20X
BACK PLATE ASSY 1
2
K87-M116D-00X
SPRING STICKER 1
3
K87-M117B-00X
PLANE WASHER 1
4
K87-M1191-10X
DRIVE ROLLER UNIT 1
5
K87-M1192-00X
INDENTATION LEVER ASSY 1
6
K87-M1196-00X
SUB LEVER ASSY 1
7
K87-M1199-10X
DRIVE GEAR ASSY 1
8
K87-M117B-00X
PLANE WASHER 1
9
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
10
K87-M119C-00X
LEVER METAL ASSY 1
11
K87-M11BC-00X
SCREW,FLAT HEAD + 2
12
K87-M119F-10X
DRIVE ROLLER ASSY 1
13
K87-M119G-10X
DRIVE ROLLER 1
14
K87-M119H-00X
COVER PLATE 1
15
K87-M11BA-00X
SCREW,FLAT HEAD + 2
16
K87-M119J-00X
THRUST WASHER 1
17
K87-M119K-00X
SPRING 1
18
K87-M119L-10X
IDLE ROLLER ASSY 1
19
K87-M117B-00X
PLANE WASHER 2
20
K87-M11BB-00X
SCREW,FLAT HEAD + IB 2
21
K87-M119P-10X
SPRING 1
22
K87-M11A1-10X
LOWER GUIDE PLATE 1
23
K87-M11A2-00X
COVER PLATE 1
24
K87-M11A3-10X
LOWER GUIDE PLATE 1
25
K87-M11B9-00X
CIRCLIP E 1
26
K87-M11BB-00X
SCREW,FLAT HEAD + IB 1
27
K87-M11BE-00X
PLANE WASHER 2
28
K87-M111N-00X
SCREW,PAN HEAD + 4
FV84E
FV84E
FV84E-0012
22
6
1
4
2
3
5
6
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1
K87-M12D0-10X
REEL HOLDER ASSY 1
2
K87-M12D1-10X
REEL PLATE ASSY 1
3
K87-M11D3-00X
TAPE SIZE STICKER 1
4
K87-M11D7-20X
CIRCLIP C 1
5
K87-M12D8-00X
REEL SIZE STICKER 1
6
K87-M12DA-00X
INDICATOR LEVER ASSY 1
7
K87-M111N-00X
SCREW,PAN HEAD + 2
