12 Placement heads Nozzle changer Nozzle changer for the SIPLACE S peedSt ar Nozzle chan ger for the SIPLACE Multi St ar 4 magazines for 20 nozzles of type 40xx 6 magazines for 20 nozzles of type 40xx Magazine for 9 nozz…
11
Placement heads

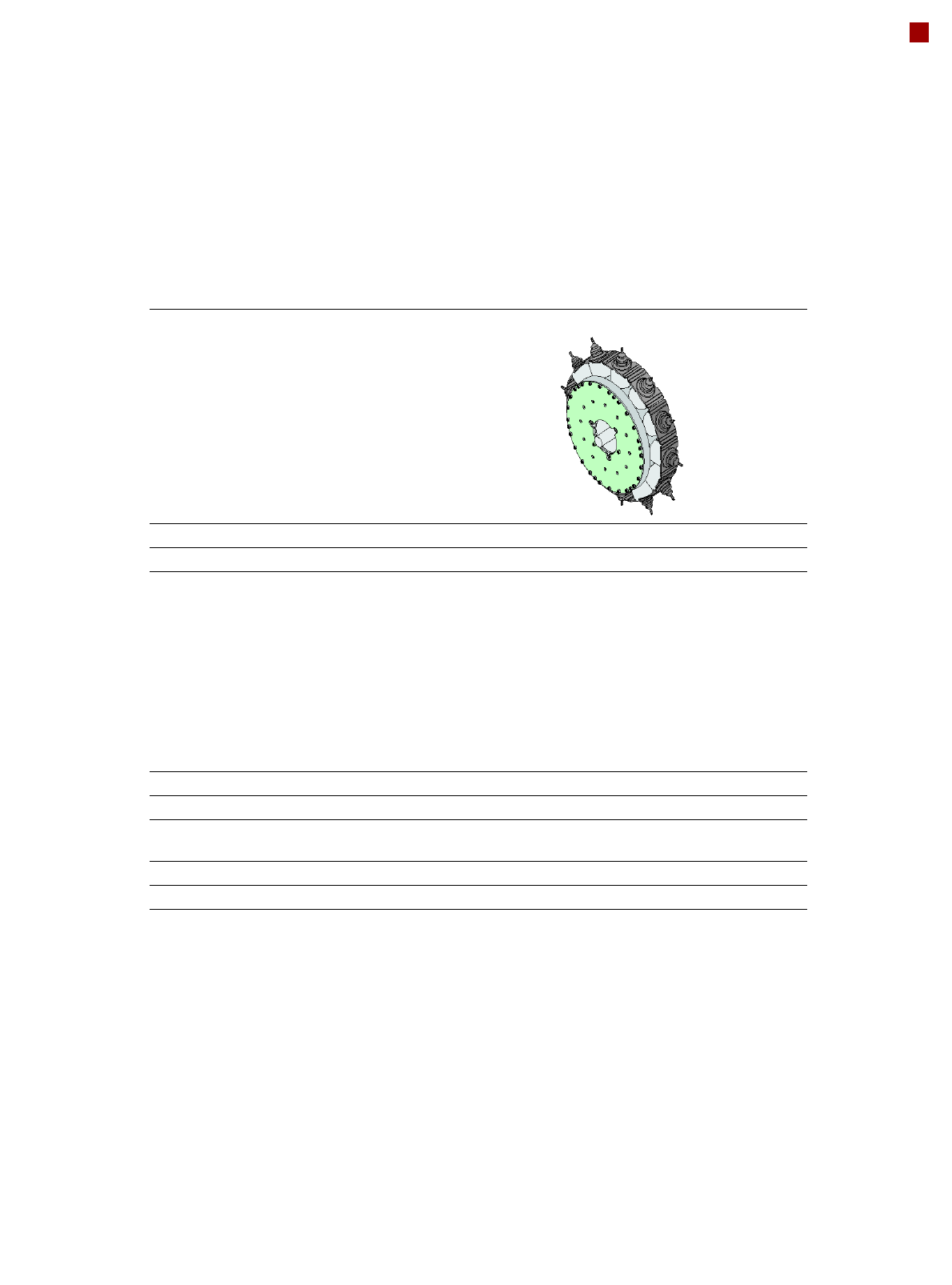

SIPLACE MultiStar (CPP M)
SIPLACE MultiStar (CPP M)
With component camera type 45
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-
specific standards, the component packaging tolerances and the component tolerances.
01005 to 15 mm x 15 mm
b
b) Larger components up to 27 mm x 27 mm available on request
Component spec.
Max. height
c
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
c) CPP M head: in low installation position.
6,0 mm
250 µm / 120 µm
d
50 µm
140 µm
70 µm
110 µm x 110 µm
15 mm x 15 mm
4 g
d) Only available for components which are within the camera range of focus: ± 1.3 mm.
Set-down force 1.0 - 10 N
Nozzle types 20xx, 28xx
X/Y accuracy See section Placement performance and accura-
cy on page 8
Angular accuracy ± 0.1°at 3σ
Illumination levels 5
12
Placement heads
Nozzle changer
Nozzle changer for the SIPLACE SpeedStar
Nozzle changer for the SIPLACE MultiStar
4 magazines for 20 nozzles of
type 40xx
6 magazines for 20 nozzles of
type 40xx
Magazine for 9 nozzles of
type 28xx
Magazine for 20 nozzles of type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit. This checks whether the nozzle magazines
are seated correctly on the mount. In addition, the nozzle changer recognizes whether the
magazines are for 40xx, 20xx or 28xx nozzles by the code.
13
Placement heads
Nozzle changer
Technical data
Nozzle changer for the SIPLACE SpeedStar
Number of magazines
a
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
a) All magazines in the nozzle changer must be configured.
6
4
Number of nozzle holders
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
120
80
Nozzle types 40xx
Nozzle changer for the SIPLACE MultiStar
Number of magazines
a,
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
6
4
Number of nozzle garages
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
120
80
Standard configuration
SIPLACE CA4 V2 80 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
Nozzle types 20xx, 28xx
