Panel lane and wafer lane conveyor

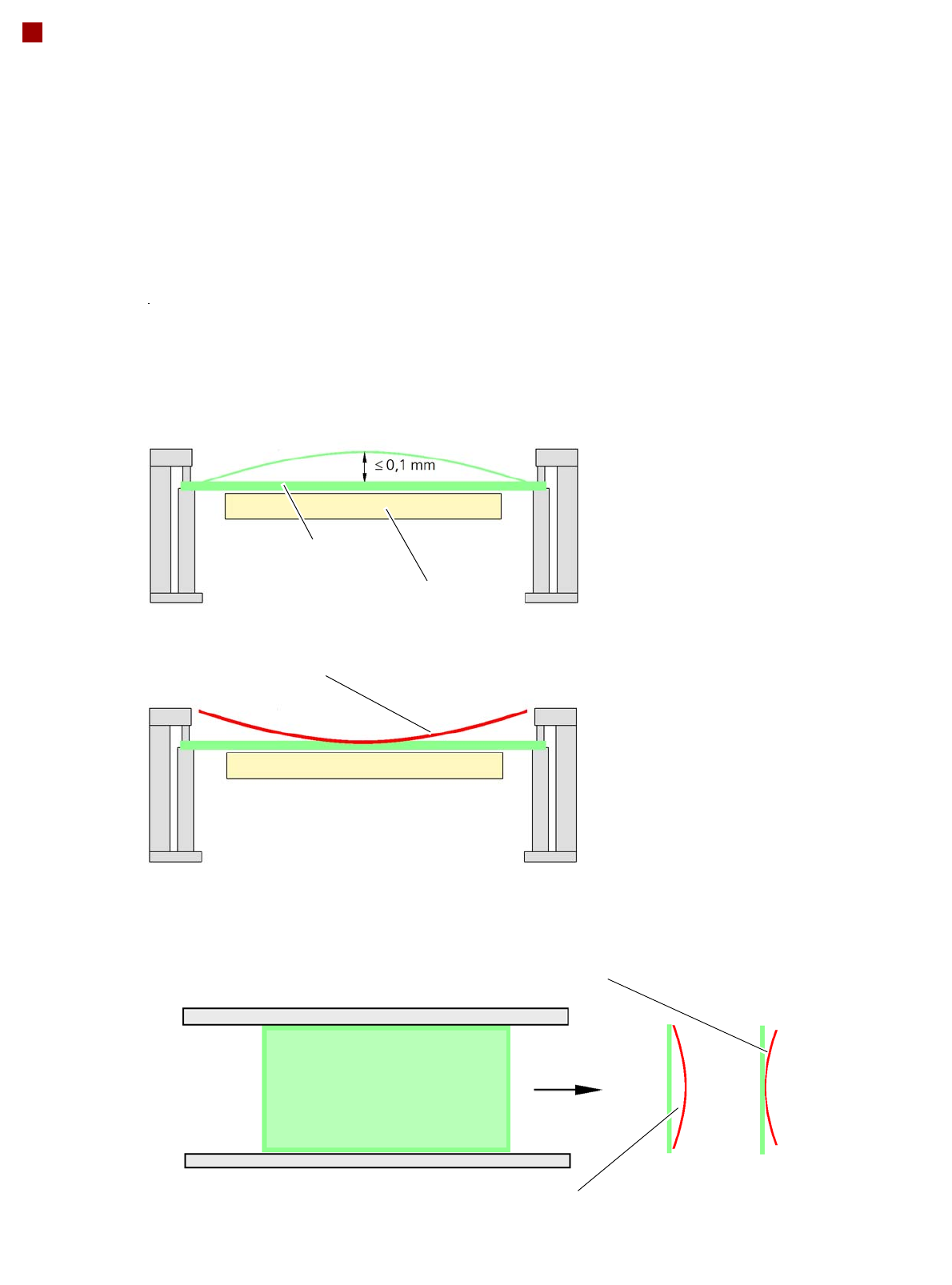

Workpiece carrier warpage

Vacuum tooling

Workpiece carrier

The front and back edge of the workpiece carrier may not be

curved upwards. There is no guarantee that the curvature will be

pulled flat by the vacuum tooling.

Warpage across the direction of travel max.

1 % of the diagonal but not more than 0.1 mm.

The warpage is then pulled flat by the vacuum

tooling.

The side edges may not be curved downwards.

The side edges may not be curved upwards.

Component feeding

Component trolley X

The SIPLACE X component

trolleys are independent and

easily maneuverable mod-

ules. Four component trol-

leys, each with 40 tracks, can

be docked onto SIPLACE X

machines. The tape reels are

taken up into the tape con-

tainer of the component trol-

ley. A cutting device on the

machine automatically cuts

up the used tape material.

The component trolleys can

be set up directly on the

machine or at an external

setup area with feeder mod-

ules. The benefits of offline

setup are that the configura-

tions can be prepared with-

out stopping the line.

This allows the setup change

to be realized very quickly,

using the changeover table

principle, to rapidly change

the component trolleys.

The SIPLACE X component

trolleys also support fast set-

ting up and tearing down of

feeder modules even during

the placement process.

Tapes can be spliced without

stopping the machine.

For safety reasons, unoccu-

pied locations are fitted with

so-called dummy feeder

modules.

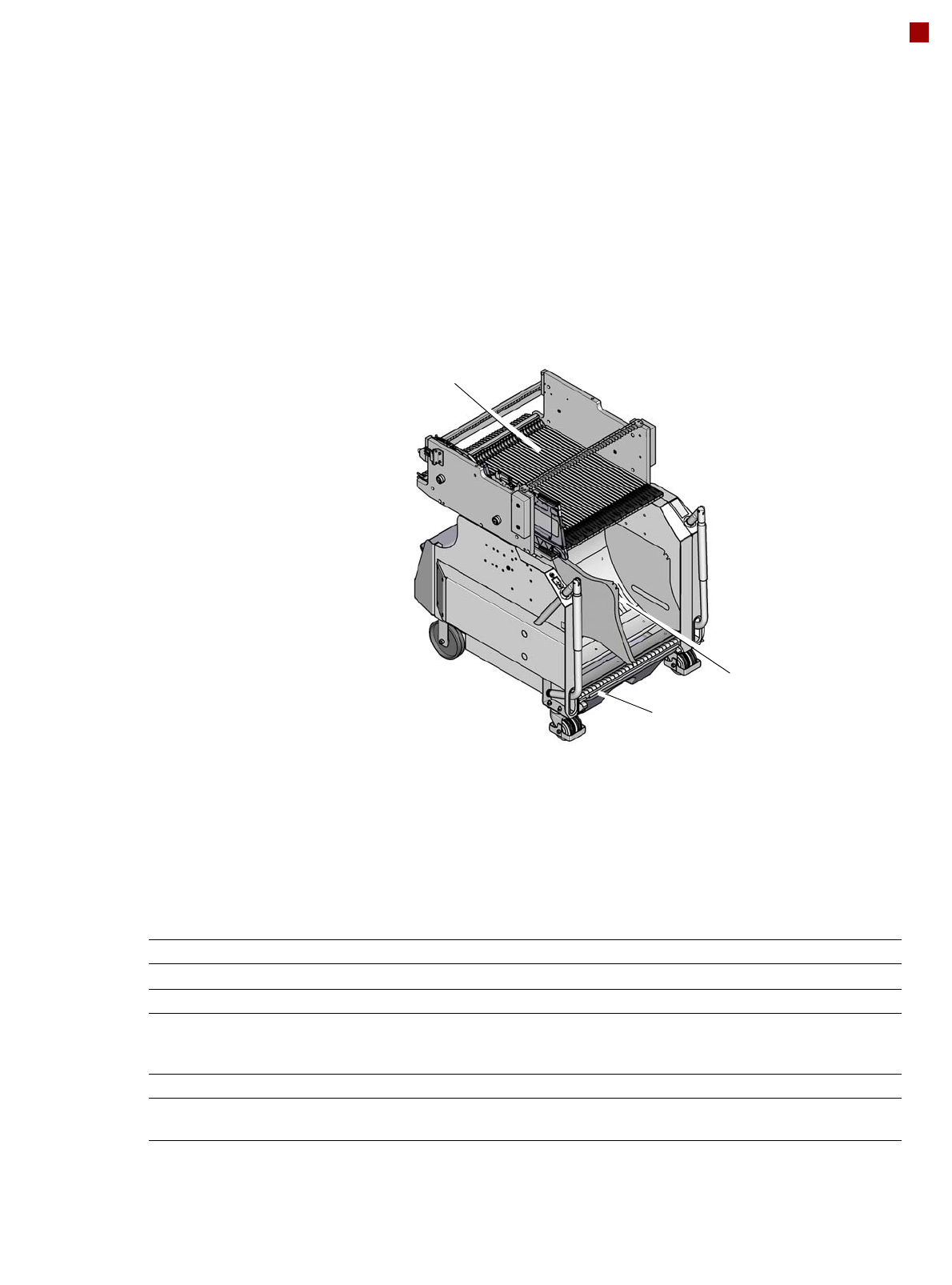

Component trolley X

Tape container

Waste container for remaining

empty tape

Changeover

table

Component supply Tracks occupied

4 component trolleys in the SIPLACE CA4 V2

160 feeder modules, each with 8 mm X

Tape reel diameter

Standard

Maximum

to 432 mm (17“)

483 mm (19“)

Changeover time for component trolley < 1 minute

Alternative feeder modules with adapter X Roadrunner, S linear vibratory feeder and

label presenter

Component feeding

SIPLACE SmartFeeder X / Xi

SIPLACE SmartFeeder X/Xi

are intelligent tape feeder

modules for flexible produc-

tion environments, which

simplify upgrading and con-

version tasks considerably.

Since all SIPLACE Smart-

Feeder X/Xi support tape

splicing as a standard, this

prevents machine stoppages

when refilling.

The benefits at a glance:

Conversion-friendly

• Omega profiles on the

tape feeder module and

table facilitate safe and

reliable upgrading and

conversion of tape feeder

modules during ongoing

production.

Robust

• Brushless motors extend

the service life of the

SIPLACE SmartFeeder X/

Xi.

Intelligent

• A unique ID ensures a pre-

cise assignment of the

component to the

SIPLACE SmartFeeder X

/ Xi. This makes reliable

setup verification very sim-

ple.

• Component pitch, feeder

speed and other functions

are automatically set

when the setup program is

downloaded.

High feeding accuracy

• Closed loop control path

measurement ensures

highly accurate compo-

nent feeding, even for

0201 (metric) placements

with standard feeders.

Operator-friendly

• Contactless data and

power transmission make

it easier to attach/remove

the SIPLACE SmartFeed-

er X/Xi

• A multicolor status display

signals the operating sta-

tuses of the SIPLACE

SmartFeeder X/Xi.

Technical data

SIPLACE SmartFeeder X / Xi

L x H

[mm]

Width

[mm]

Loca-

tion

Transport

increment

[mm]

Max. tape

height

[mm]

SIPLACE SmartFeeder 4 mm Xi 587x200 10,8 1 1 1,1

SIPLACE SmartFeeder 8 mm X 587x200 10,8 1 1/2/4/8 3,5

SIPLACE SmartFeeder 8 mm Xi 587x200 10,8 1 1/2/4/8 3,5

SIPLACE SmartFeeder 2x8 mm Xi 587x200 22,9 2 1/2/4/8 3,5

SIPLACE SmartFeeder 12 mm X 587x200 22,6 2 4 - 16

SIPLACE SmartFeeder 16 mm X 587x200 22,6 2 4 - 20

SIPLACE SmartFeeder 24 mm X 587x200 34,4 3 4 - 32

SIPLACE SmartFeeder 32 mm X 587x200 46,2 4 4 - 40

SIPLACE SmartFeeder 44 mm X 587x200 58,0 5 4 - 52

SIPLACE SmartFeeder 56 mm X 587x200 69,8 6 4 - 64

SIPLACE SmartFeeder 72 mm X 587x200 81,6 7 4 - 80

SIPLACE SmartFeeder 88 mm X 587x200 105,2 9 4 - 96

SIPLACE SmartFeeder 104 mm X 587x200 128,9 11 4 - 96

Tape reels 178 to 330.2 mm in diameter (7" - 13")

Changeover time ≤ 8 s

a) In 4mm steps

b) For 8 mm paper tapes, the paper thickness must not exceed 1.6 mm. The length of a component pocket

in the direction of tape travel may not exceed 51 mm.
