21 Panel lane and wafer lane conveyor Wafer lane conveyor There are two differe nt vac- uum tooling options for the different wo rkpiece ca rrier thicknesses available for the wafer lane conveyor : • DM 300 ST 0.55 for t…
20
Panel lane and wafer lane conveyor
Panel lane conveyor
There are two different vac-
uum tooling options available
for the panel lane conveyor:
• Vacuum tooling
L625 x W615 for wide
workpiece carriers
• Vacuum tooling
L330 x W315 for narrow
workpiece carriers

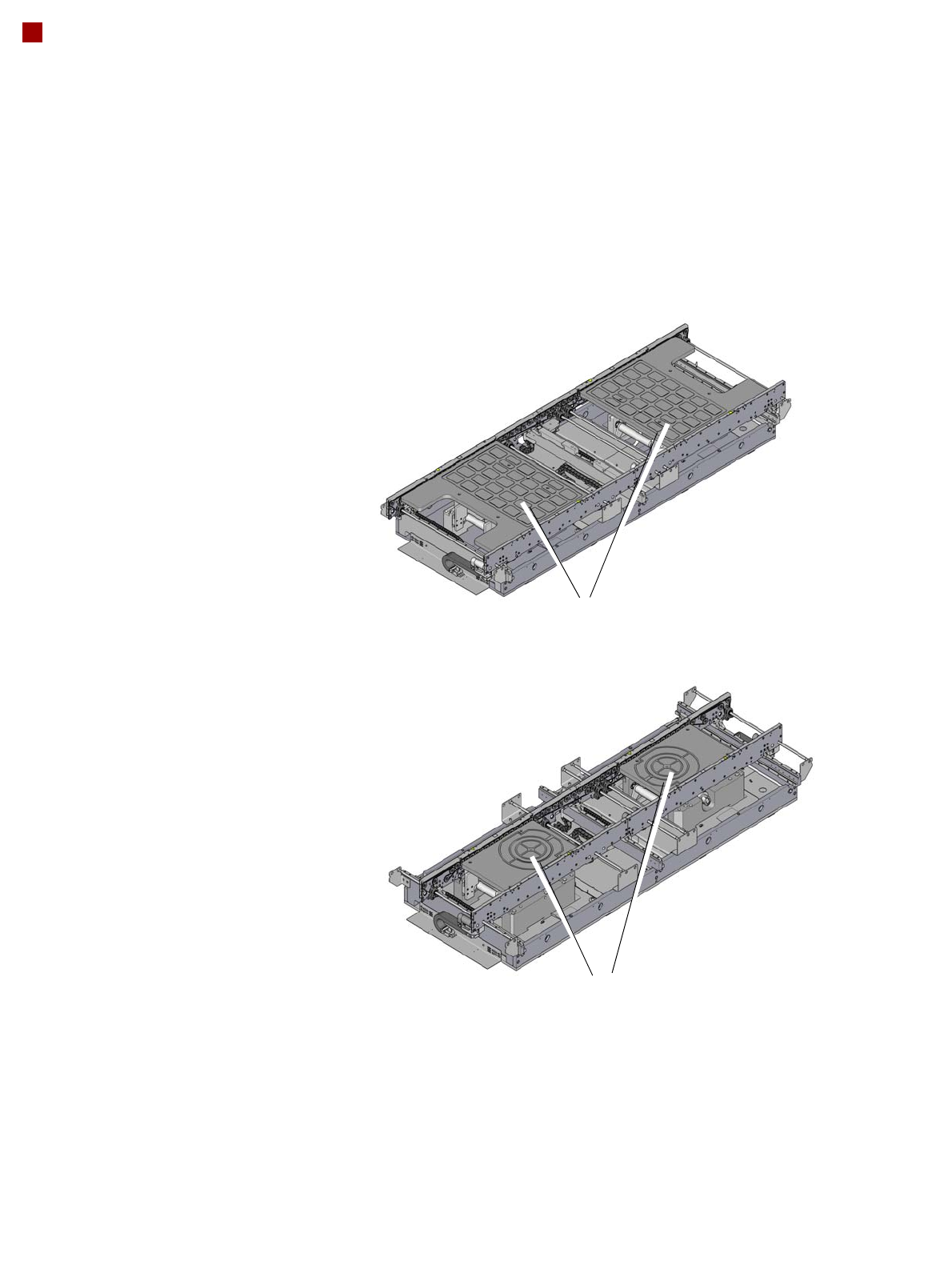

Panel lane conveyor with vacuum tooling L625 x W615
Panel lane conveyor with vacuum tooling L330 x W315
21
Panel lane and wafer lane conveyor
Wafer lane conveyor
There are two different vac-
uum tooling options for the
different workpiece carrier
thicknesses available for the
wafer lane conveyor:
• DM 300 ST 0.55 for thin
workpiece carriers
• DM 300 ST 1.2 for thick
workpiece carriers
The vacuum tooling DM 300
can be temperature-con-
trolled. The corners feature
glass fiducials to compen-
sate the precise position of
the vacuum tooling in the
machine and the deformation
of the machine.
A temperature regulating
system to keep the set pro-
cess temperature constant is
available for the tempera-
ture-controlled vacuum tool-
ing.

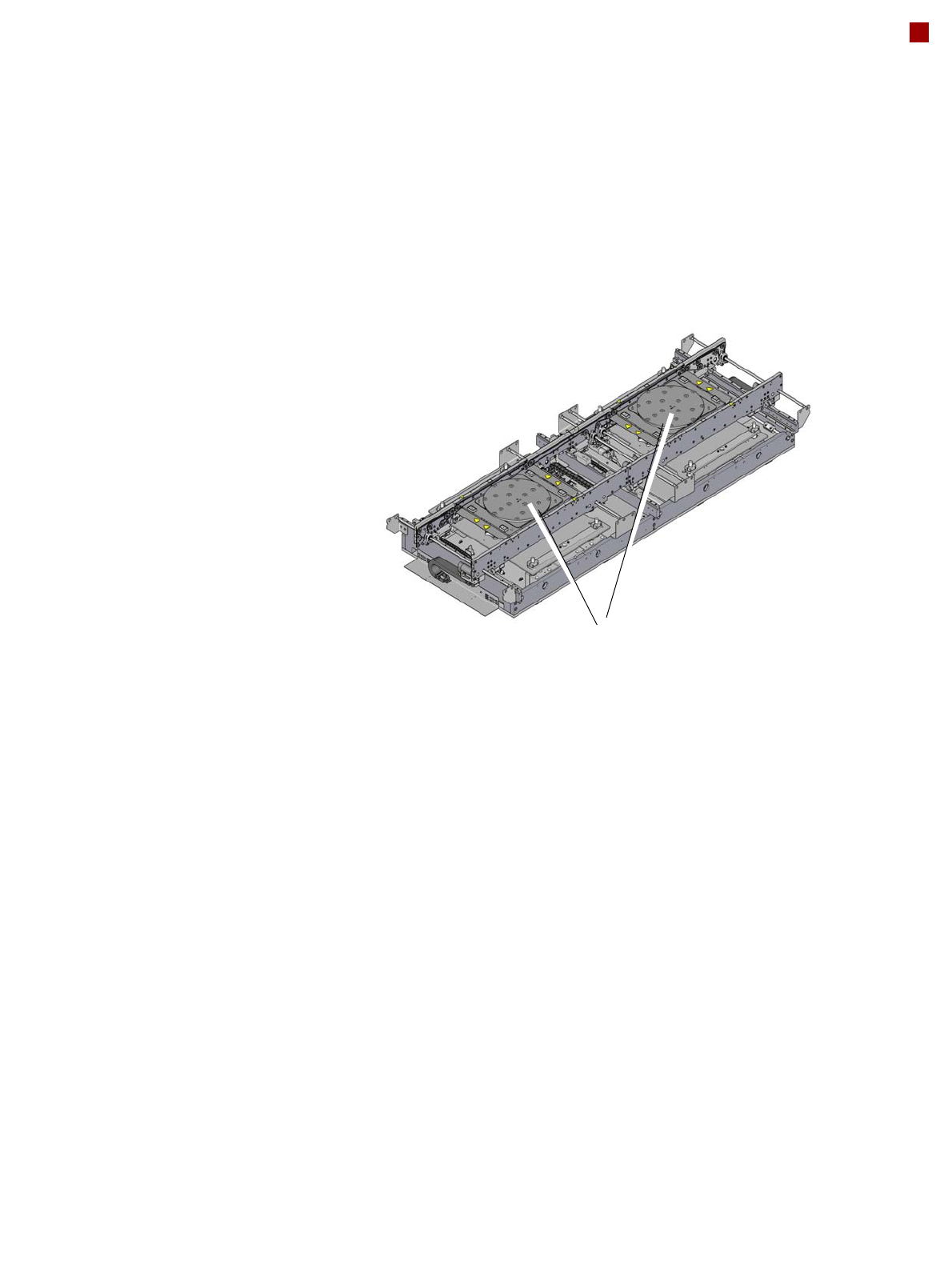

Wafer lane conveyor with vacuum tooling DM 300
22
Panel lane and wafer lane conveyor
Technical data
Panel lane conveyor Wafer lane con-
veyor
Vacuum tooling
L330 x W315
Vacuum tooling
L625 x W615
Vacuum tooling
DM 300
Workpiece carrier dimensions
Width x length to
330 mm x
330 mm
to
650 mm x 685
mm
a
a) With long board option (LBO)
--
Diameter -- -- to 300 mm
b
b) In the case of rectangular workpiece carriers, 330 mm x 330 mm is possible
Automatic electrical width adjustment? Standard
Workpiece thickness
Vacuum tooling L330 x W315
Vacuum tooling L625 x W615
Vacuum tooling DM 300 ST 0.55
Vacuum tooling DM 300 ST 1,25
0.3 mm to 4.5 mm
0.3 mm to 4.5 mm
--
--
--
--
0.55 mm
1.25 mm
Workpiece carrier warpage See page 24
Workpiece carrier weight
c
Cycle time 60 min / 3 years service life
Cycle time 10 min / 3 years service life
Cycle time 0,25 min / 3 years service life
c) The workpiece weight value refers to the weight of the workpiece plus the weight of the components.
Max. 10.0 kg
Max. 6.0 kg
d
Max. 3.0 kg
d
d) Shorter cycle times could lead to reduced service life or an increased need for spare parts.
Max. 10.0 kg
Max. 6.0 kg
d
Max. 3.0 kg
d
--
--
Max. 3.0 kg
d
Space on the workpiece carrier underside 0.0 mm
Workpiece carrier transportation height
Option
Standard
Option SMEMA
900 mm
930 mm
950 mm
Type of interface SMEMA or IPC-HERMES-9852
Component-free PCB handling edge 3 mm
Workpiece carrier changeover time < 1.5 seconds
