13 Placement heads Nozzle changer Technical data Nozzle changer for t he SIPLACE Sp eedSt ar Number of magazines a SIPLACE CA4 V2 - long NC SIPLACE CA4 V2 - short NC a) All magazines in the nozzl e changer must be config…
12
Placement heads
Nozzle changer

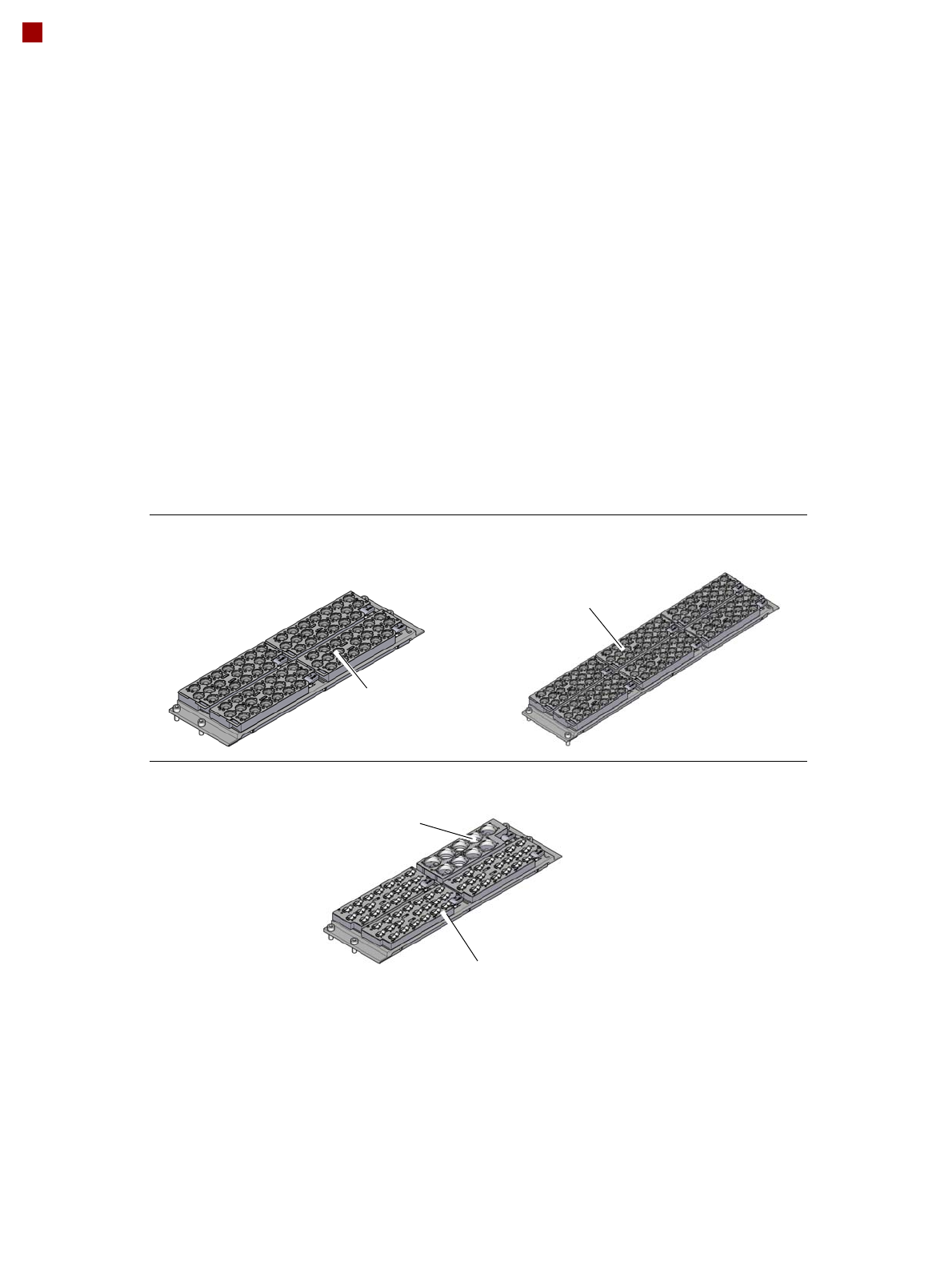

Nozzle changer for the SIPLACE SpeedStar
Nozzle changer for the SIPLACE MultiStar
4 magazines for 20 nozzles of
type 40xx
6 magazines for 20 nozzles of
type 40xx
Magazine for 9 nozzles of
type 28xx
Magazine for 20 nozzles of type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit. This checks whether the nozzle magazines
are seated correctly on the mount. In addition, the nozzle changer recognizes whether the
magazines are for 40xx, 20xx or 28xx nozzles by the code.
13
Placement heads
Nozzle changer
Technical data
Nozzle changer for the SIPLACE SpeedStar
Number of magazines
a
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
a) All magazines in the nozzle changer must be configured.
6
4
Number of nozzle holders
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
120
80
Nozzle types 40xx
Nozzle changer for the SIPLACE MultiStar
Number of magazines
a,
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
6
4
Number of nozzle garages
SIPLACE CA4 V2 - long NC
SIPLACE CA4 V2 - short NC
120
80
Standard configuration
SIPLACE CA4 V2 80 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
Nozzle types 20xx, 28xx
14
Single lane and dual lane conveyor
Overview
Single lane conveyor
When using a single lane
conveyor, boards are moved
behind one another, along a
conveyor lane and into the
placement machine, where
they are placed. This con-
veyor variant is particularly
suitable for very wide boards.
Dual lane conveyor
To keep the range of PCBs to
be processed as wide as
possible - whilst maintaining
maximum productivity - the
dual lane conveyor allows
you to choose between sin-
gle lane mode and dual lane
mode. In dual lane mode,
two boards are moved into
the placement machine and
placed either at the same
time (synchronous mode) or
alternatively (asynchronous
mode). This makes it possi-
ble to process the top and
bottom sides of a board in
one line.

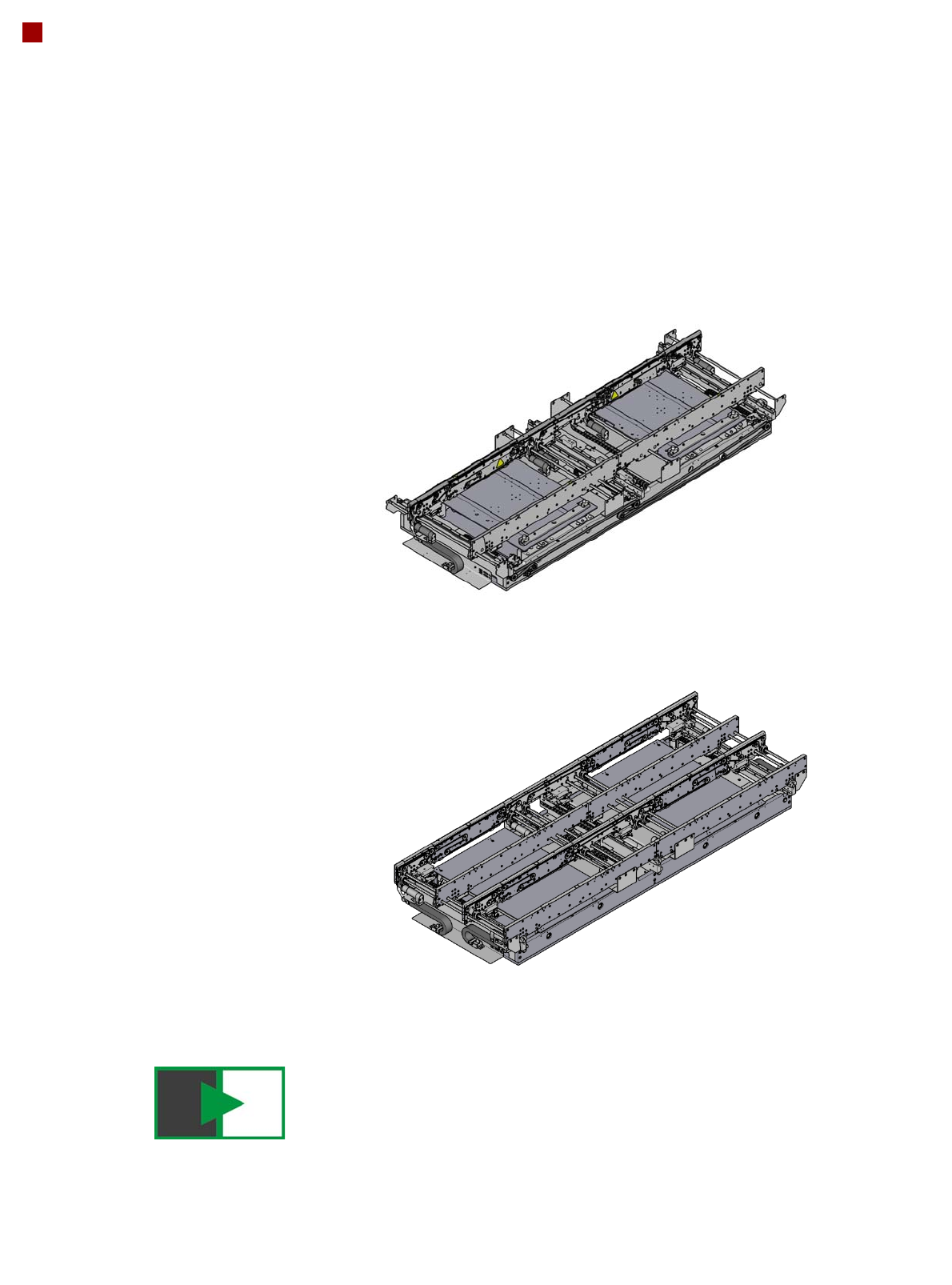

Single lane conveyor
Dual lane conveyor
IPC-Hermes-9852
A protocol for advanced development of Industry 4.0 in electronics production
The Hermes Standard, also published as IPC-HERMES-9852, is a non-proprietary open protocol,
based on TCP / IP and XML. This boosts the exchange of PCB-relevant data between the various
machines in the electronics production lines. The Hermes Standard was initiated, developed and
established and is still managed by a group of leading equipment manufacturers, who share their
know-how to achieve a significant step towards advanced process integration. It has been recognized
by IPC as the next generation solution for IPC-SMEMA-9851, normally known as "SMEMA standard".
The founding and defining body The Hermes Standard Initiative is available to all equipment providers
wanting to actively participate in using the benefits of Industry 4.0 for their customers.
