49 Technical data Spacing distances dual lane conveyor Fixed conveyor side at maxi- mum right position a . a) The value depends on the position of th e fixed side. See tab le of adjustable side positions on page 17. All …

100%1 / 64
48
Technical data
Spacing distances single lane conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 17. All dimen-
sions in millimeters.
Fixed conveyor side at maximum
left position
a
.
49
Technical data
Spacing distances dual lane conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 17. All dimensions in
millimeters.
Fixed conveyor side at maxi-
mum left position
a
.
50
Technical data

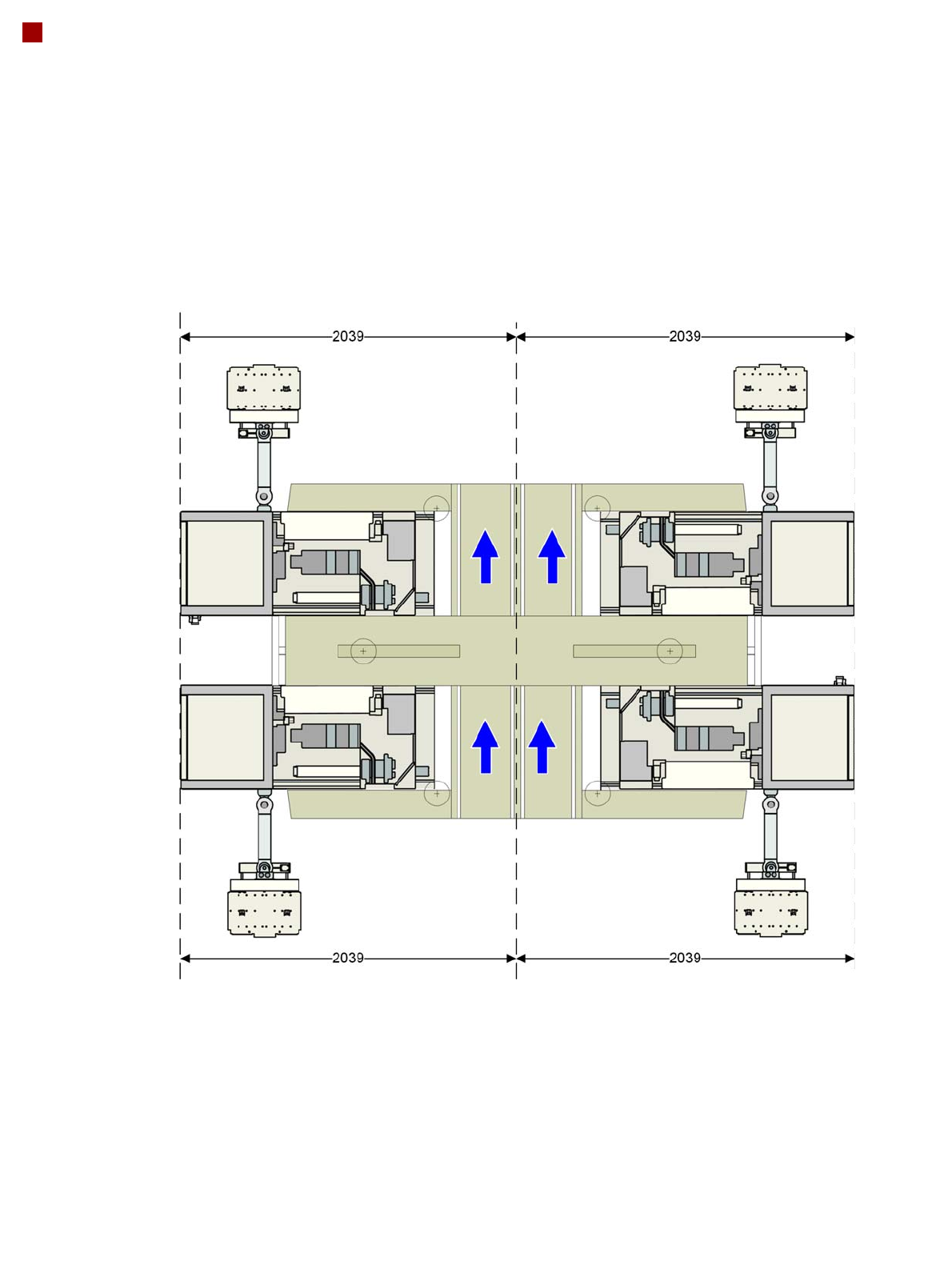

Spacing distances with SIPLACE Wafer System
All dimensions in millimeters.
Machine center to SWS = SWS outside: 2039 mm / SWS innermost:1889 mm
