47 Technical data Maneuvering radii for the X component trolleys Working area (A) and minimum di stance to adjacent machine 500 mm Maneuvering distance (R) location position 600 mm Distance L1: Mach ine center to outer e…
46
Technical data
Placement machine dimensions

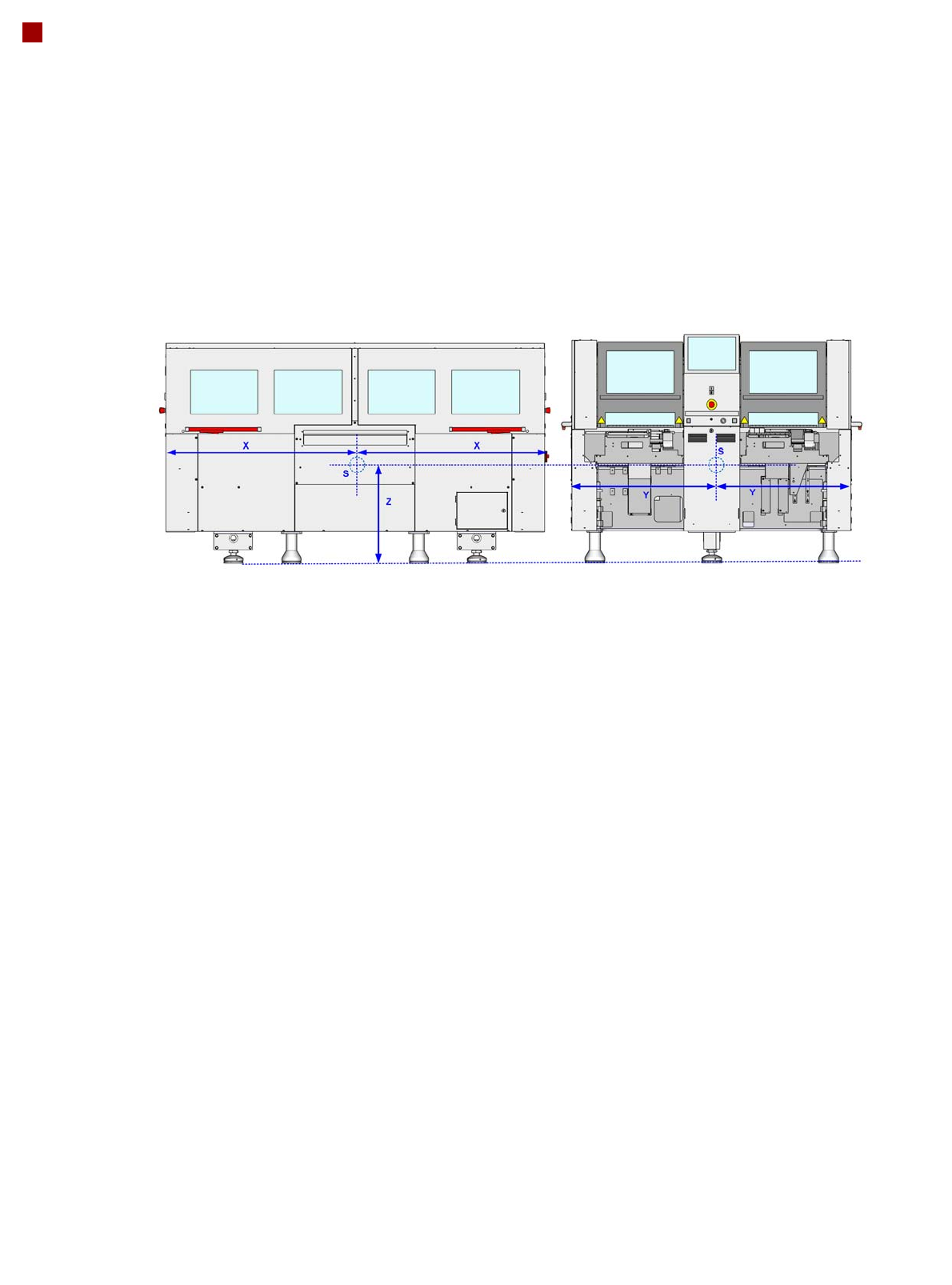

Placement machine center of gravity
X = 1400 mm
Y = 1050 mm
Z = 630 mm
S = center of gravity
These center of gravity coordinates apply for the machine with a PCB conveyor height of
930 mm.
47
Technical data
Maneuvering radii for the X component trolleys
Working area (A) and minimum distance to adjacent machine 500 mm
Maneuvering distance (R) location position 600 mm
Distance L1: Machine center to outer edge of X component trolley 1470 mm
Distance L2: Machine center to wall 2300 mm
