47
Technical data
Maneuvering radii for the X component trolleys
Working area (A) and minimum distance to adjacent machine 500 mm
Maneuvering distance (R) location position 600 mm
Distance L1: Machine center to outer edge of X component trolley 1470 mm
Distance L2: Machine center to wall 2300 mm
48
Technical data

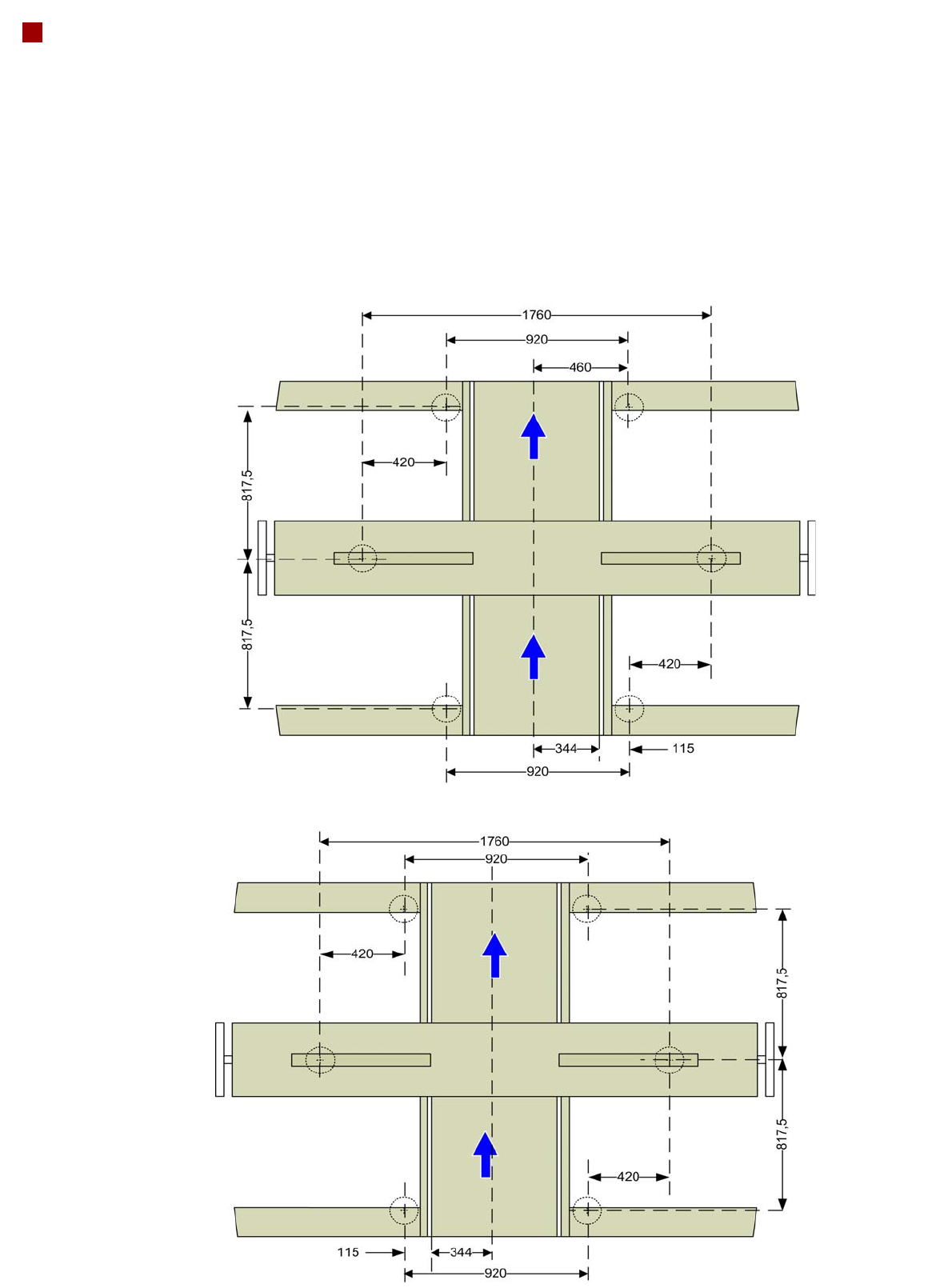

Spacing distances single lane conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 17. All dimen-
sions in millimeters.
Fixed conveyor side at maximum
left position
a
.
49
Technical data

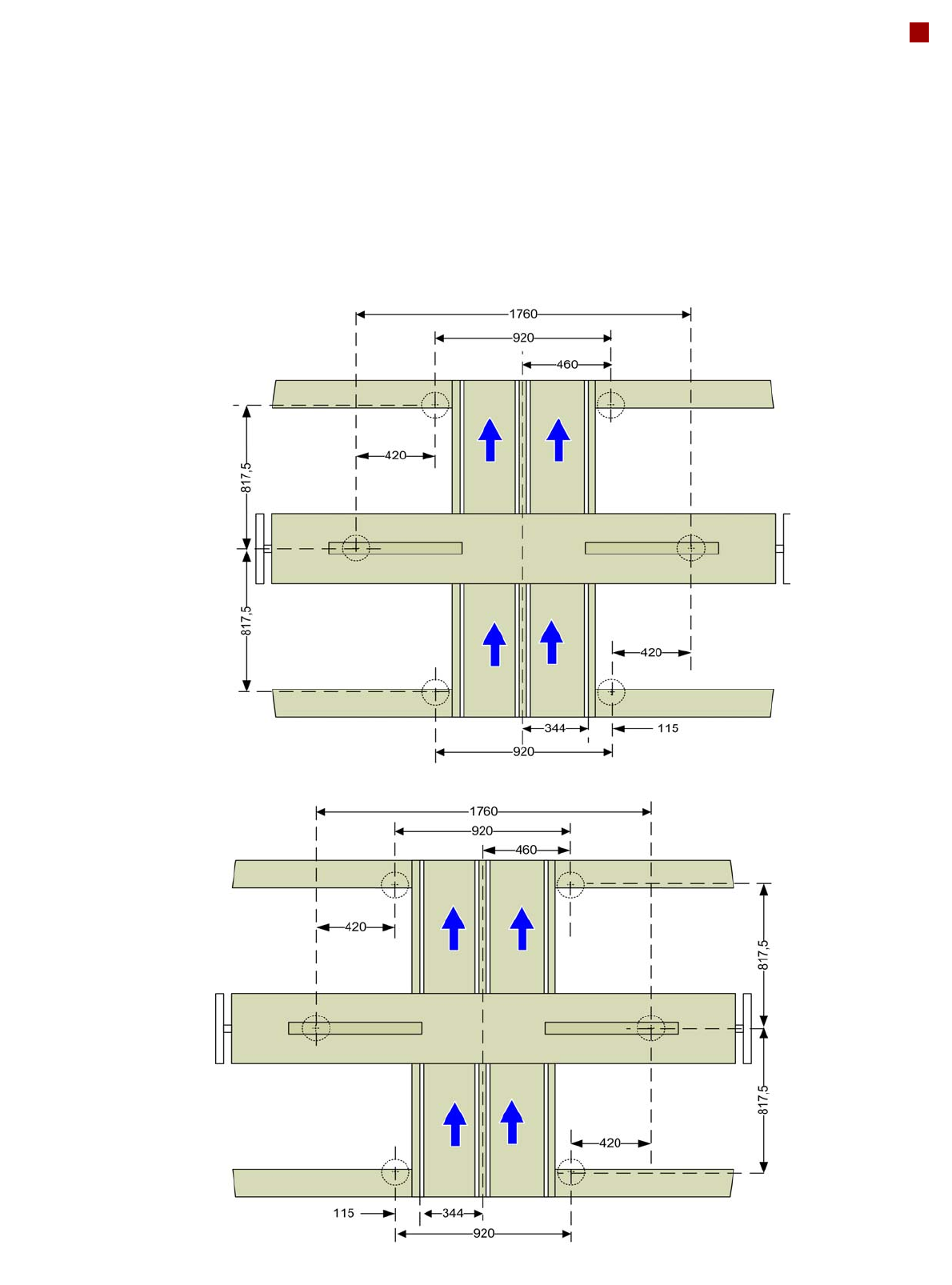

Spacing distances dual lane conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 17. All dimensions in
millimeters.
Fixed conveyor side at maxi-
mum left position
a
.
