51
Technical data

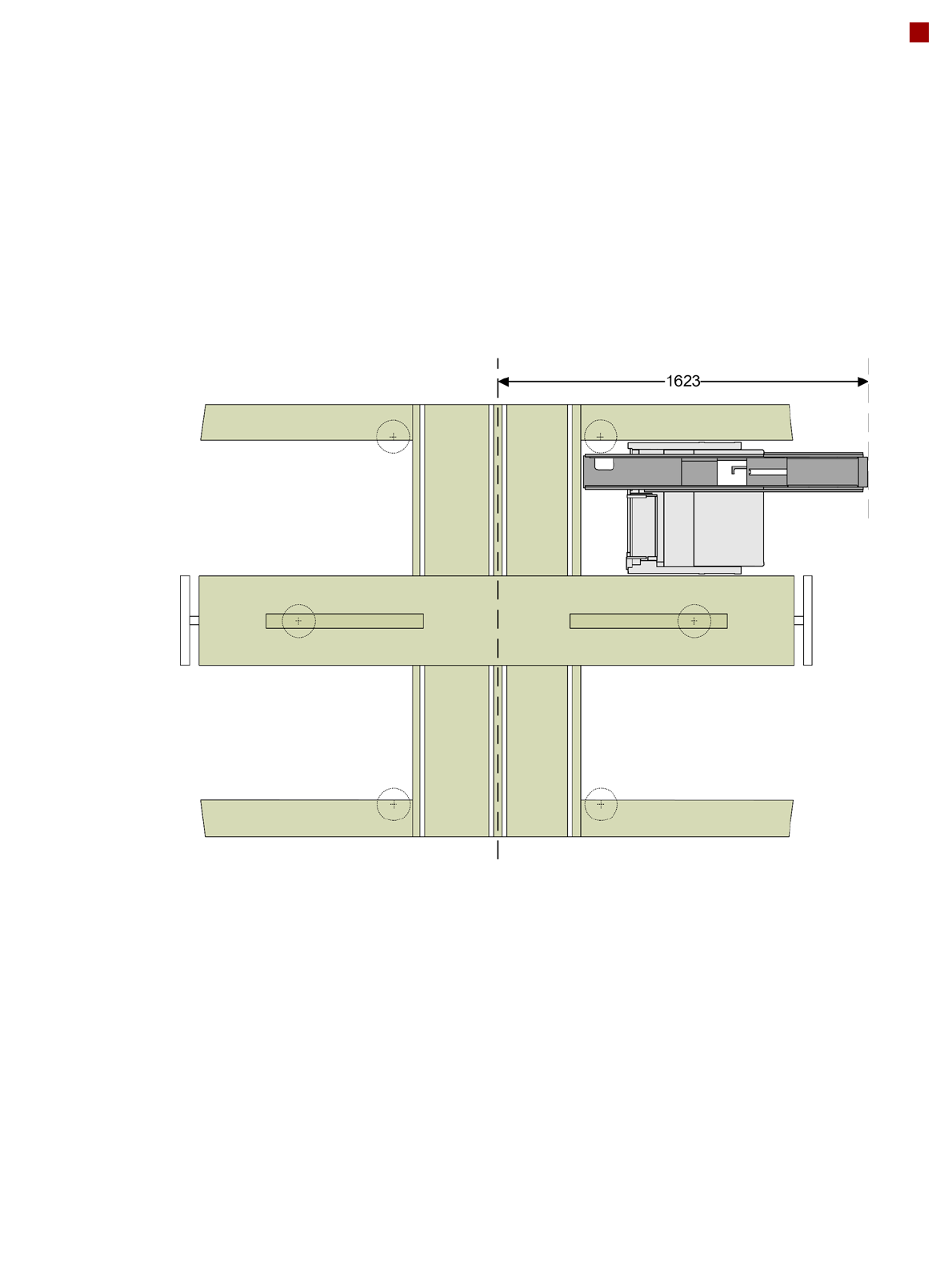

Dimensions with JTF-M
All dimensions in millimeters.
52
Technical data
Transportation and delivery configuration
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• The dual lane conveyor
has a preset lane width for
lane 1 of 100mm and for
lane 2 of 210mm.
• Both keyboards, the oper-
ating panel and the moni-
tors are dismantled.
• The indicator lamp is dis-
mantled.
Transport dimensions and weight
Means of transport
A fork-lift with the following specification will be needed to carry
the machine in its crate:
Length
Width
Height
2000 mm
2960 mm
1620 mm
Weight Dispatch Dispatch
within Europe overseas
3,859 kg 4,359 kg
Fork length
Lifting power
Clear fork width
Min. 1800 mm
Min. 6000 kg
Min. 350 mm
Attachment point
for the fork-lift
Attachment point
for the fork-lift
53
List of options
Placement machine
Available options CA4 V2 Notes
Vacuum tooling L330 x 315 X
Vacuum tooling L625 x W615 X
Vacuum tooling DM 300 ST 0.5 X Temperature-controlled vacuum tool-
ing
Vacuum tooling DM 300 ST 1.2 X Temperature-controlled vacuum tool-
ing
Thick board X
Hand guard for conveyor X
Dummy feeder module X
Barcode-controlled production including WDTL X
WDTL inkspots X
Station-wise download X
Borrow Performance X
Nozzle changer X Depends on placement head.
Nozzle changer "row 2" X Depends on placement head.
Component trolley X X
SmartFeeder X, 8 mm to 104 mm X
SIPLACE SmartFeeder Xi, 4 mm, 8 mm and 2x8 mm X
Splice point recognition for X feeder modules X
Mount of additional tape reel X
SIPLACE MeasuringFeeder X X
SIPLACE LDU 2 X X
SIPLACE Glue Feeder X
SIPLACE PowerConnector X X
Input conveyor extension X
Output conveyor extension X
110/208 V conversion kit X
2D board barcode readers X
PCB barcode reading with PCB camera X
External pre-setup area X
Interior lighting X
Virtual inkspot handler X Electronic substrate mapping
