2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper Edition 09/2009 36 2.4.2 Required T ools – Set of Allen ke ys – Diagonal cutters – Phillips screwdriver , size 2 2.4.3 Required Consumables – …

Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2

Edition 09/2009

2.4 Required Parts

2.4.1 Optional Stopper Assembly Kit for SX1/SX2 [00519860-xx]

Qty Designation Item number

1 Stopper option B2_1(lane 2_1) 03073472-xx

3 Stopper base unit 4lane 03069271-xx

3 Retaining bracket 03063017-xx

2 Width bedstop 50 mm 03074621-xx

6 DIN 965-M3 x 8-A2 00305778-xx

10 DIN EN ISO 7380-M4 x 10-A2 00319284-xx

6 DIN912-M3 x 5-A2-70 00328906-xx

3 SMC valve assembly. 03077072-xx

1 Push-in Y connector QSY-6 00336928-xx

1 Push-in Y connector QSY-6-4 00336741-xx

1 QSY-4 Y-press-fit connection 03028363-xx

1 Miniature fittings M-3ALU-3 03065624-xx

3 m Compressed-air hose PUN-3x0.5-BL 03053429-xx

0.2 m Compressed-air hose PUN-4x0.75-BL 03038630-xx

0.3 m Compressed-air hose PUN-4x0.75-BL 03038630-xx

1 m Compressed-air hose PUN-4x0.75-BL 03038630-xx

1.6 m Compressed-air hose PUN-4x0.75-BL 03038630-xx

0.15 m Compressed-air hose PUN-6x1-BL 03038629-xx

1 Extension board for options TSP-400E 03057342-xx

1 Wiring optional stoppers 03078067-xx

1 Cable sensor stopper down IA track1 03074278-xx

1 Cable sensor stopper down PA 03074279-xx

1 Cable sensor stopper down OA 03074280-xx

1 Cable valve stopper IA track1 03074282-xx

1 Cable valve stopper PA 03074283-xx

1 Cable valve stopper OA 03074284-xx

1 Cable sensor stopper down IA track2 03077934-xx

1 Cable valve stopper IA track2 03077933-xx

4 Fixing pedestal f.cable tie TY3-G1S adhe 00805102-xx

20 Cable tie B=2.4mm L=92mm TYB-23M 00805140-xx

2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2 Optional stopper

Edition 09/2009

2.4.2 Required Tools

– Set of Allen keys

– Diagonal cutters

– Phillips screwdriver, size 2

2.4.3 Required Consumables

– Cable ties

– Ethanol

Optional stopper 2 Assembly Instructions for Optional Stopper SIPLACE SX1/SX2

Edition 09/2009

2.5 Assembly

X Undock the component trolley to give yourself good access to the working area.

X Switch the placement machine off at the main switch.

X Open the protective covers.

X Loosen the clamp fixtures, as the conveyor trolley needs to be accessible from the outer side

during assembly work.

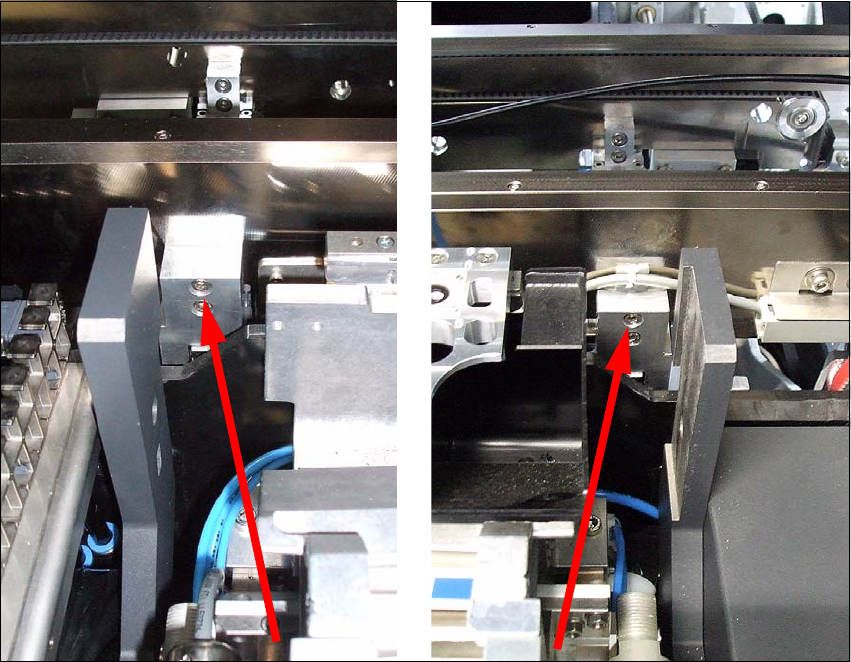

When using a single conveyor, the conveyor side can be fixed on the side of the guidance

block.

Single conveyor


